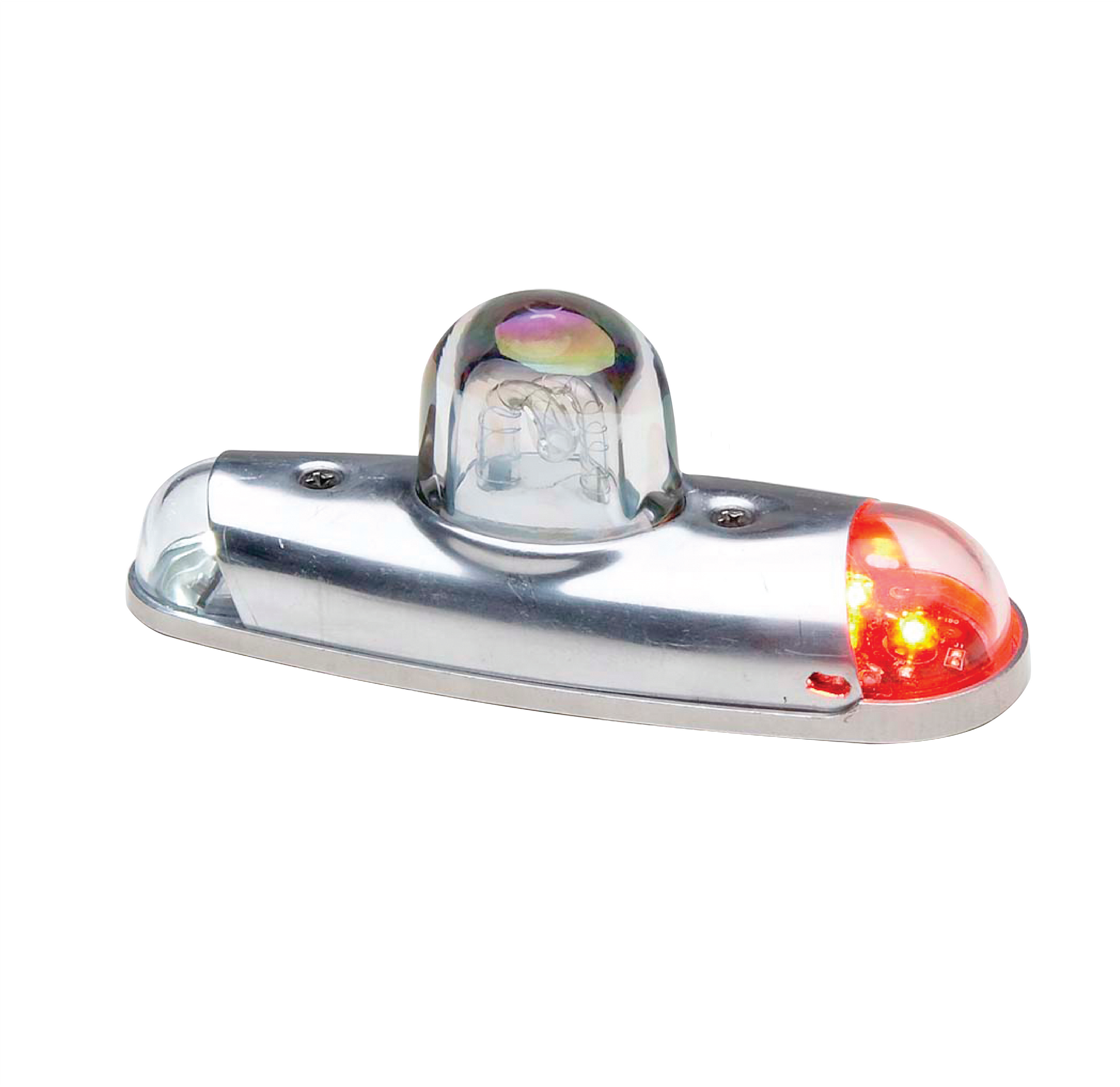

90340 Series Wingtip Strobe/LED RFI Shielded Position Lights
![90340 Series Wingtip Strobe/LED RFI Shielded Position Lights](http://flywat.com/cdn/shop/products/90340_2048x-d_92x92_crop_center.png?v=1631127248)
![90340 Series Wingtip Strobe](http://flywat.com/cdn/shop/products/90340_92x92_crop_center.png?v=1631127255)

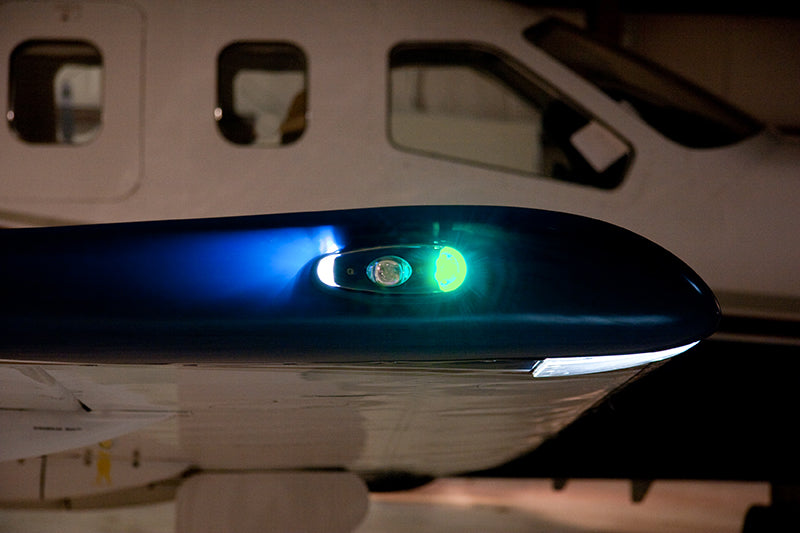

![90340 Series Wingtip LED Installed](http://flywat.com/cdn/shop/products/90340_wingtip-dark_92x92_crop_center.jpg?v=1631127266)

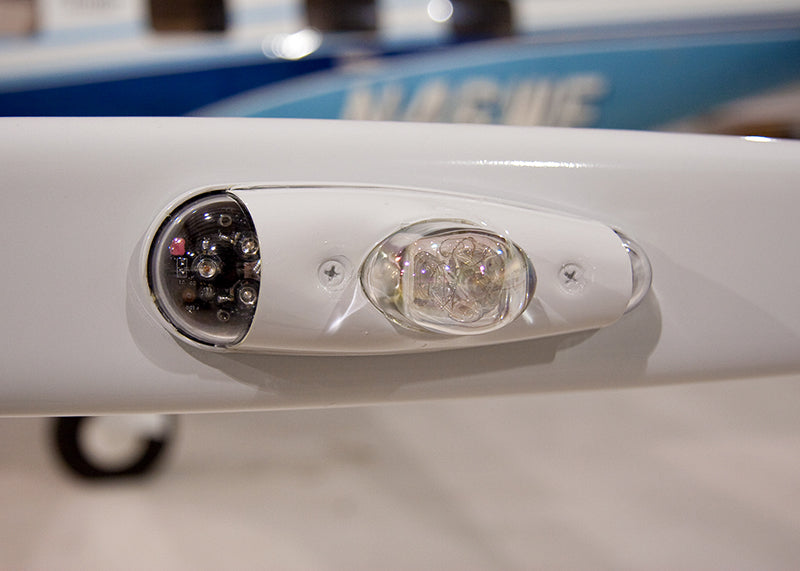

![90340 Series Wingtip LED Installed](http://flywat.com/cdn/shop/products/90340_wingtip_wht_92x92_crop_center.jpg?v=1631127270)
Model 90340 Series is an all-inclusive wingtip mounted Strobe anti-collision/position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail-mounted position light. The LED's provide a significant reduction in the current draw over conventional position light bulbs. The Strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (Exact Footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. A single set of flying leads operates both forward & tail nav on 28V version, and one set each of flying leads for the forward & tail nav on the 14V version.
Model 90340 Series is an all-inclusive wingtip mounted Strobe anti-collision/position light assembly utilizing LED's for both the forward & tail position lights, eliminating the need for a tail-mounted position light. The LED's provide a significant reduction in the current draw over conventional position light bulbs. The Strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (Exact Footprint) for the Whelen Model A600PG/PR series without replacing the current strobe power supply. A single set of flying leads operates both forward & tail nav on 28V version, and one set each of flying leads for the forward & tail nav on the 14V version.
Wingtip Strobe LED RFI Position Lights - 90340 Series
Tech Specs
Model | Part # | Description | Approvals |
9034001 | 01-0790340-01 | Wingtip Strobe/LED Position, Green, 14V, RFI Shielded | FAA TSO-C96a, TSO-C30c Types I |
9034002 | 01-0790340-02 | Wingtip Strobe/LED Position, Red, 14V, RFI Shielded | FAA TSO-C96a, TSO-C30c Types I |
9034003 | 01-0790340-03 | Wingtip Strobe/LED Position, Green, 28V, RFI Shielded | FAA TSO-C96a, TSO-C30c Types I |
9034004 | 01-0790340-04 | Wingtip Strobe/LED Position, Red, 28V, RFI Shielded | FAA TSO-C96a, TSO-C30c Types I |
Documents
USED WITH FLASHER
7123403 PURCHASED SEPARATELY.
![Legacy A600 PG/PR Series Aircraft Light](http://cdn.shopify.com/s/files/1/0080/5598/0128/files/a600pr-1_large.jpg?v=1558709279)
![Red Wingtip Strobe Position Light](http://cdn.shopify.com/s/files/1/0080/5598/0128/files/90340-1_large.jpg?v=1558709304)
