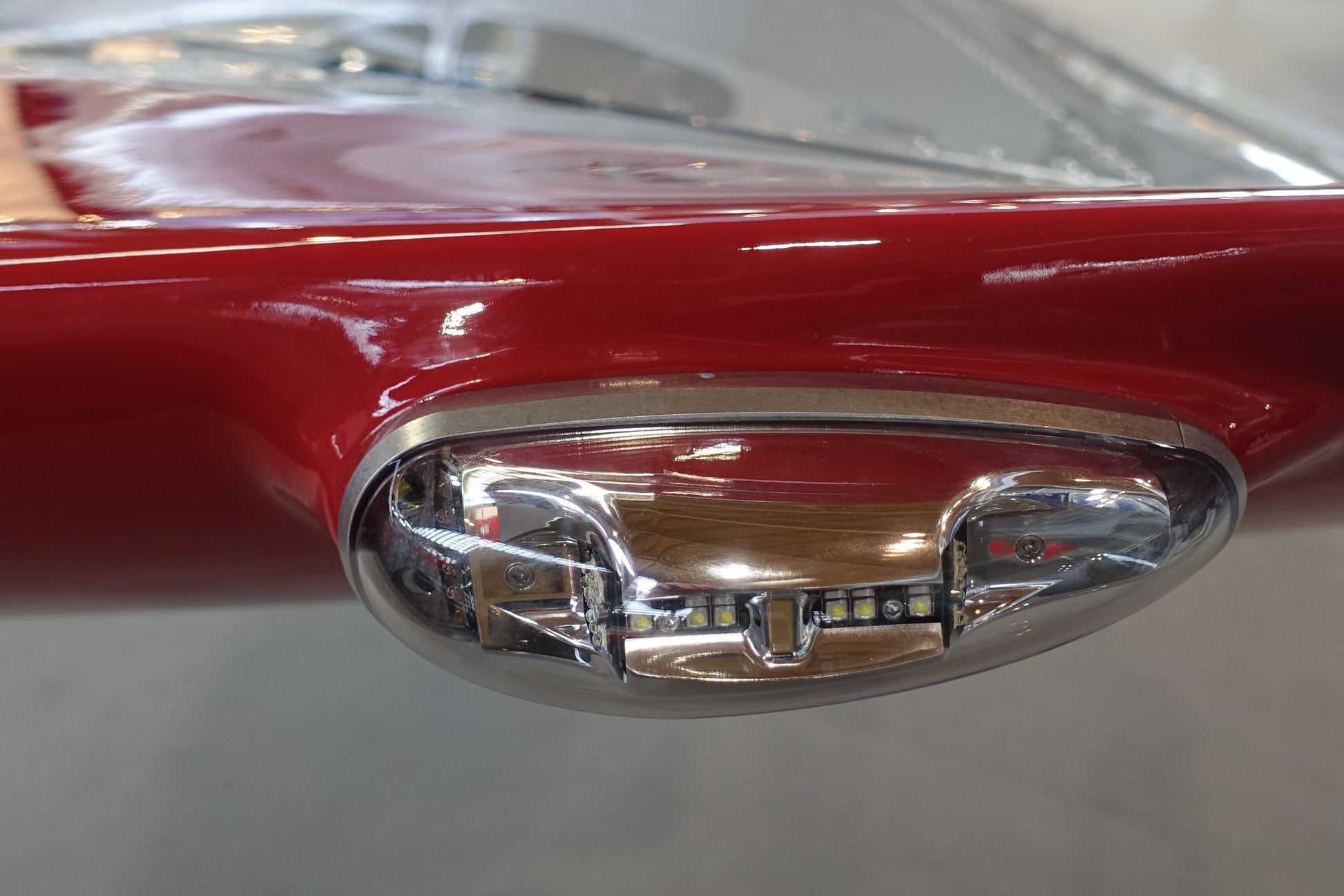

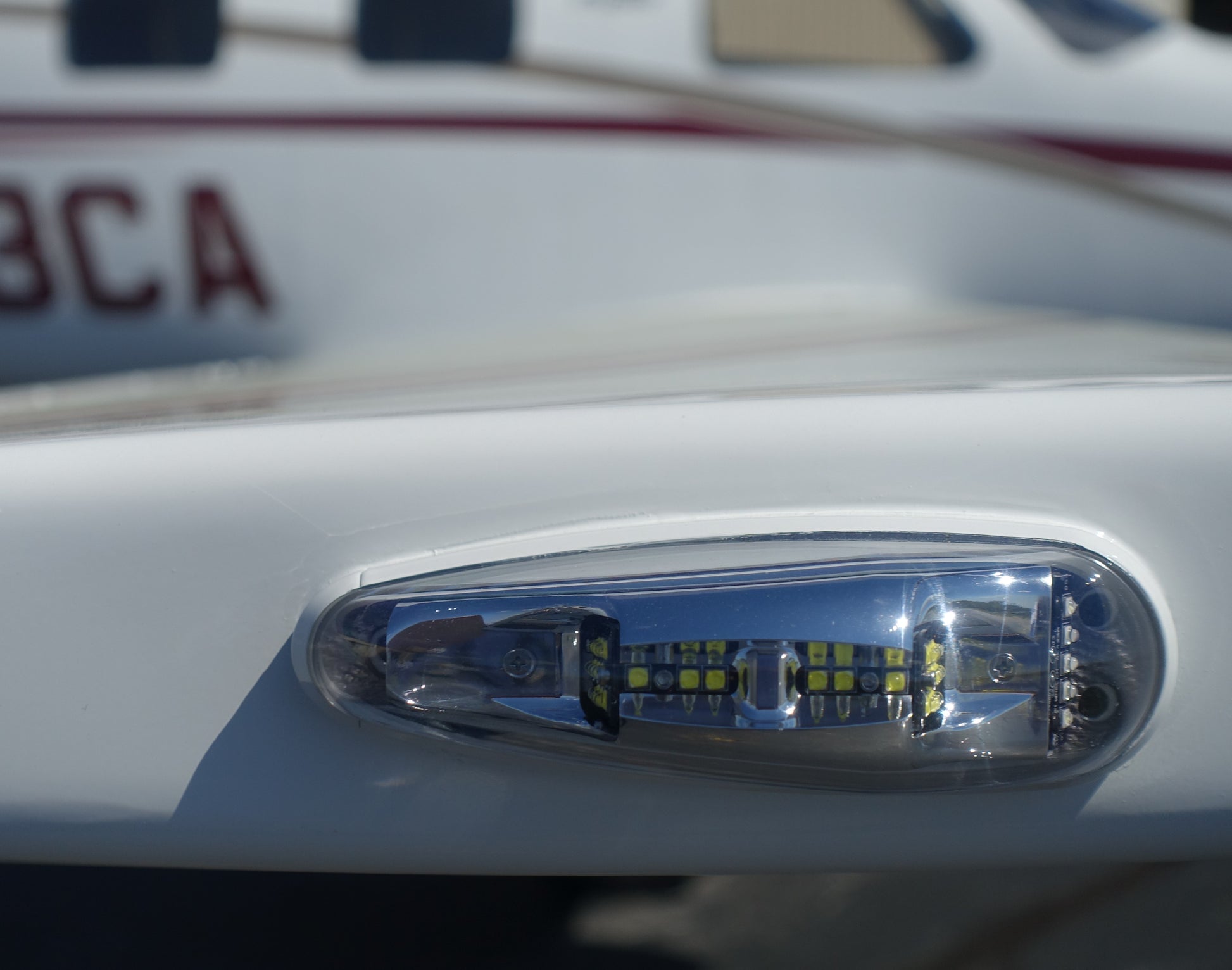

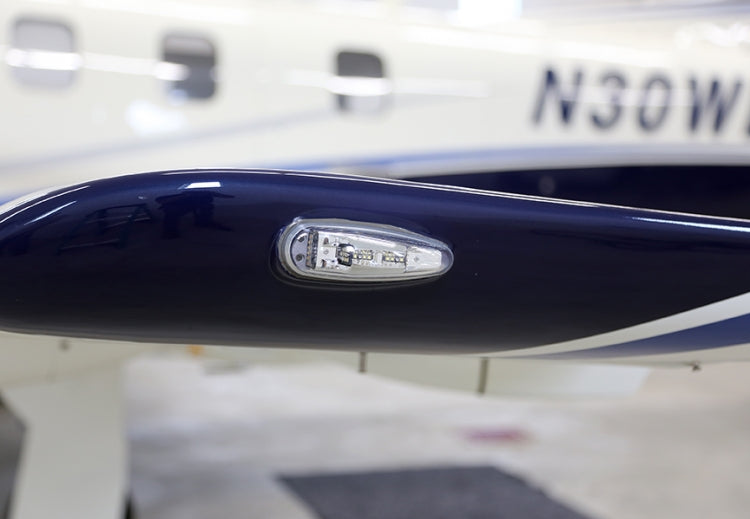

Anti Collision Wingtip Light - Orion 600 Series

Drawing # 71733
Weight 0.5 lbs.
Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
Current Draw 14V / 28V 0.48 / 0.17 Amps Position 1.0 / 0.5 Amps Avg. ACL
Position Led Colors Aviation Red, Aviation Green, Aviation White
Anti-Collision LED color Aviation White
Lenses Clear Polycarbonate Hard-coated, Field Replaceable Lens Part # 02-0371773-30

ORION™ 600 MODEL NUMBER	ORION™ 600 PART NUMBER	DESCRIPTION	APPROVALS

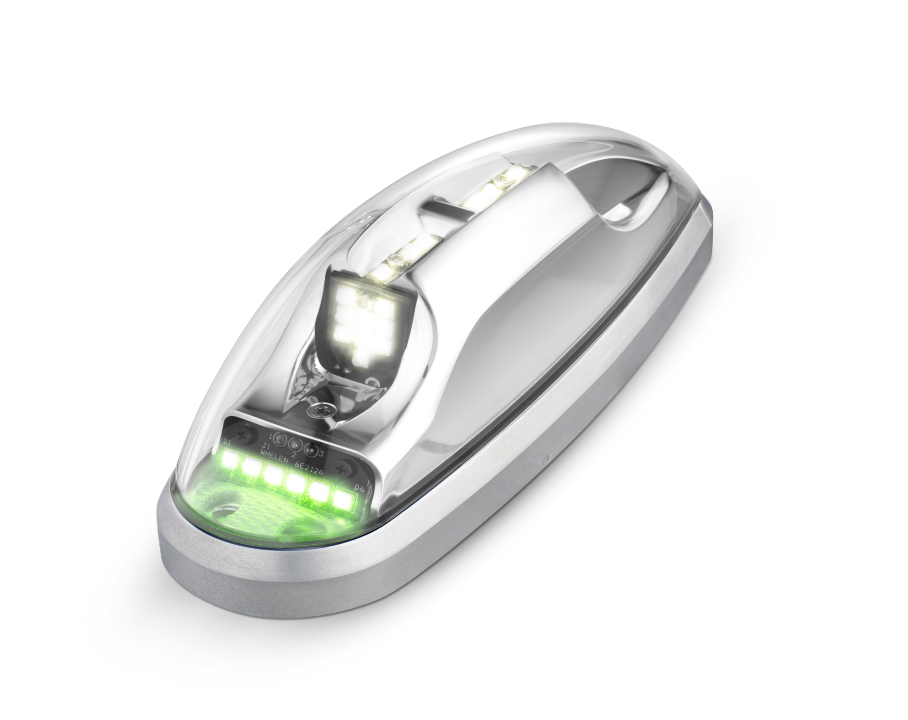

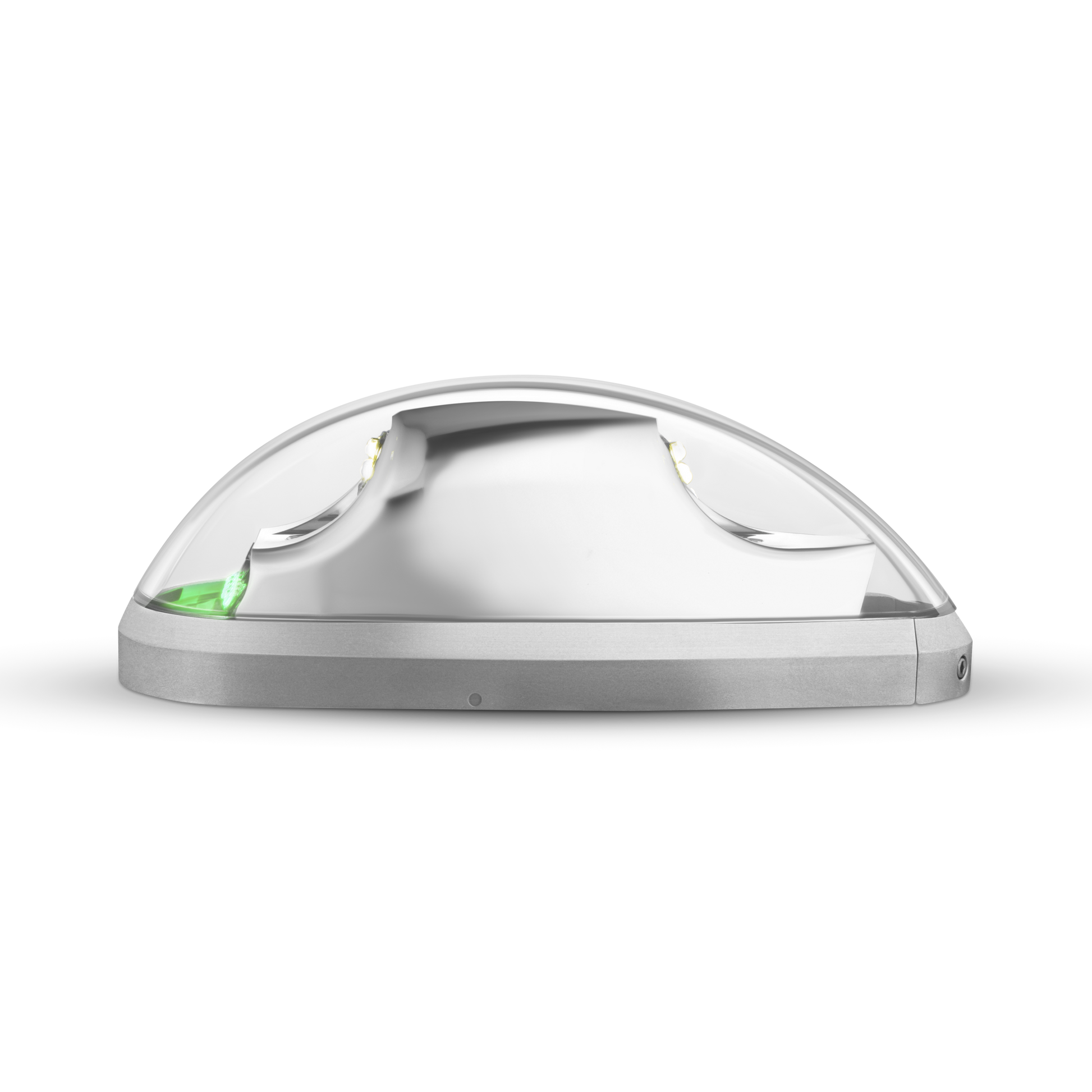

OR6001G	01-0771733-01	Green Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC	TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type II & III

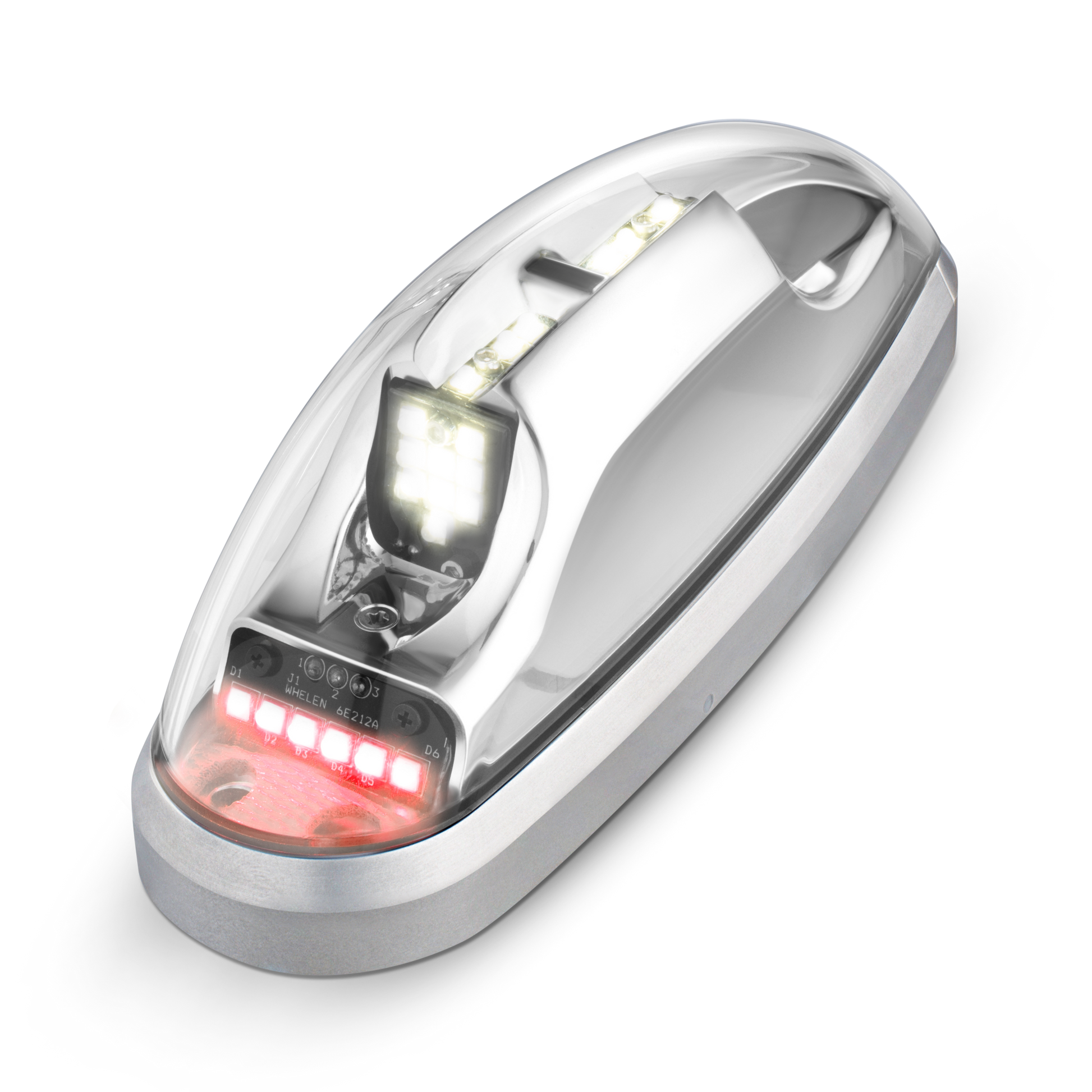

OR6001R	01-0771733-02	Red Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC	TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type I & III
OR6002G	01-0771733-11	Green Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC	TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type II & III.
OR6002R	01-0771733-12	Red Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC	TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type I & III
