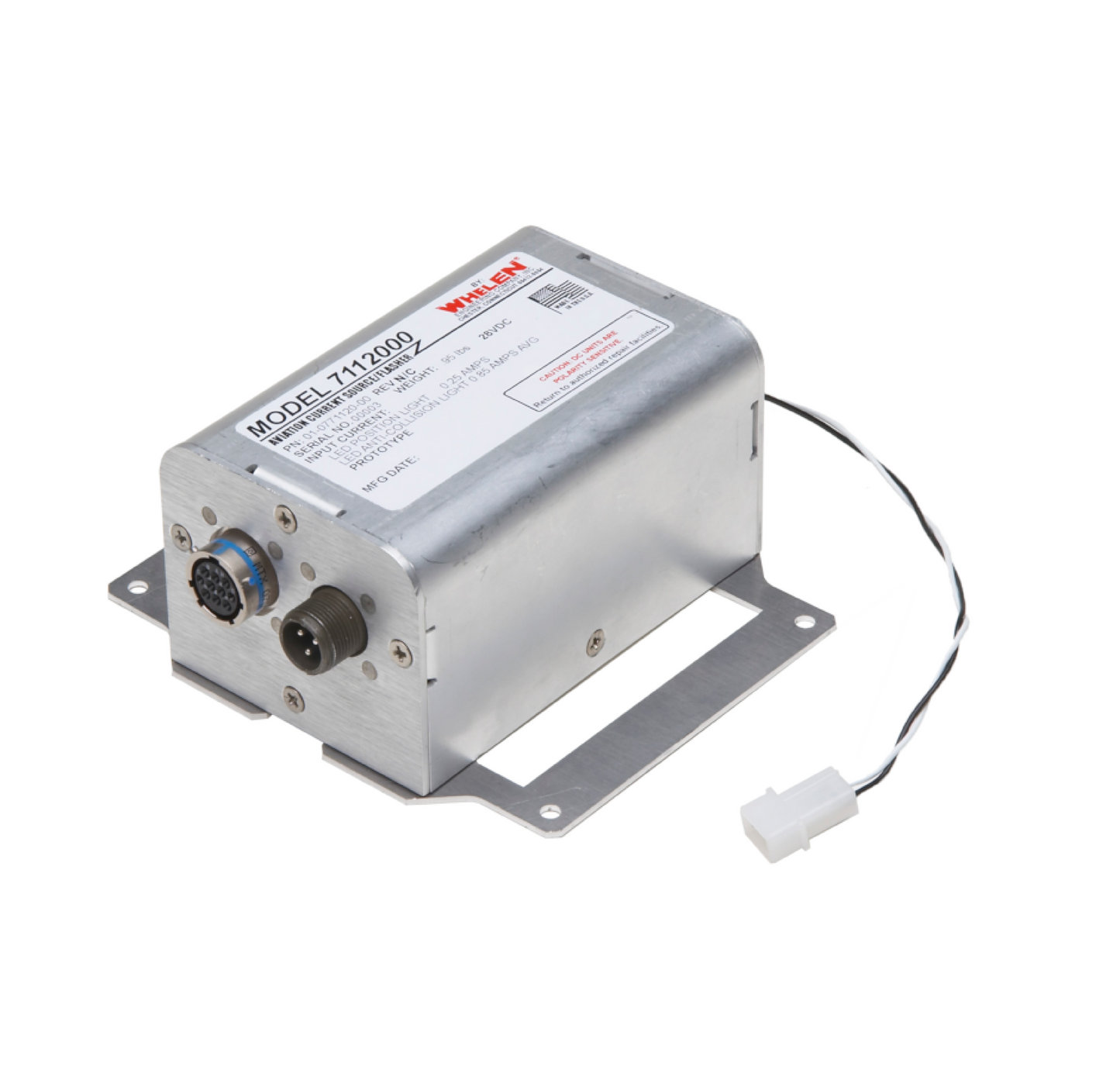

71120 Series LED Current Source

Features

Model 71120 (current source) drives light head model 90325. 71120 are designed to fit the strobe power supply footprint used in Citation wingtips. Available in 28V Only.



Technical Specifications

•Weight: 0.95lbs (431gm)
•Current: 0.85a Average, 4.5a Peak
•Flashrate: 45+/- 5fpm
•Dimensions- Deep: 4.63 (118mm)
•Wide(mounting foot): 5.6 (142mm)
•Height: 2.53 (64mm)



Model

Part

Description

Approvals

7112000 01-0771120-00 LED Flasher Module for 90325 FAA/TSO-C96a, TSO-C30c Types II



Documents

Install Guide: 14137
