W1285 Series Position Light Assembly- Not In Production

Product image 1W1285 Series Position Light Assembly
Product image 2W1285 Series Position Light

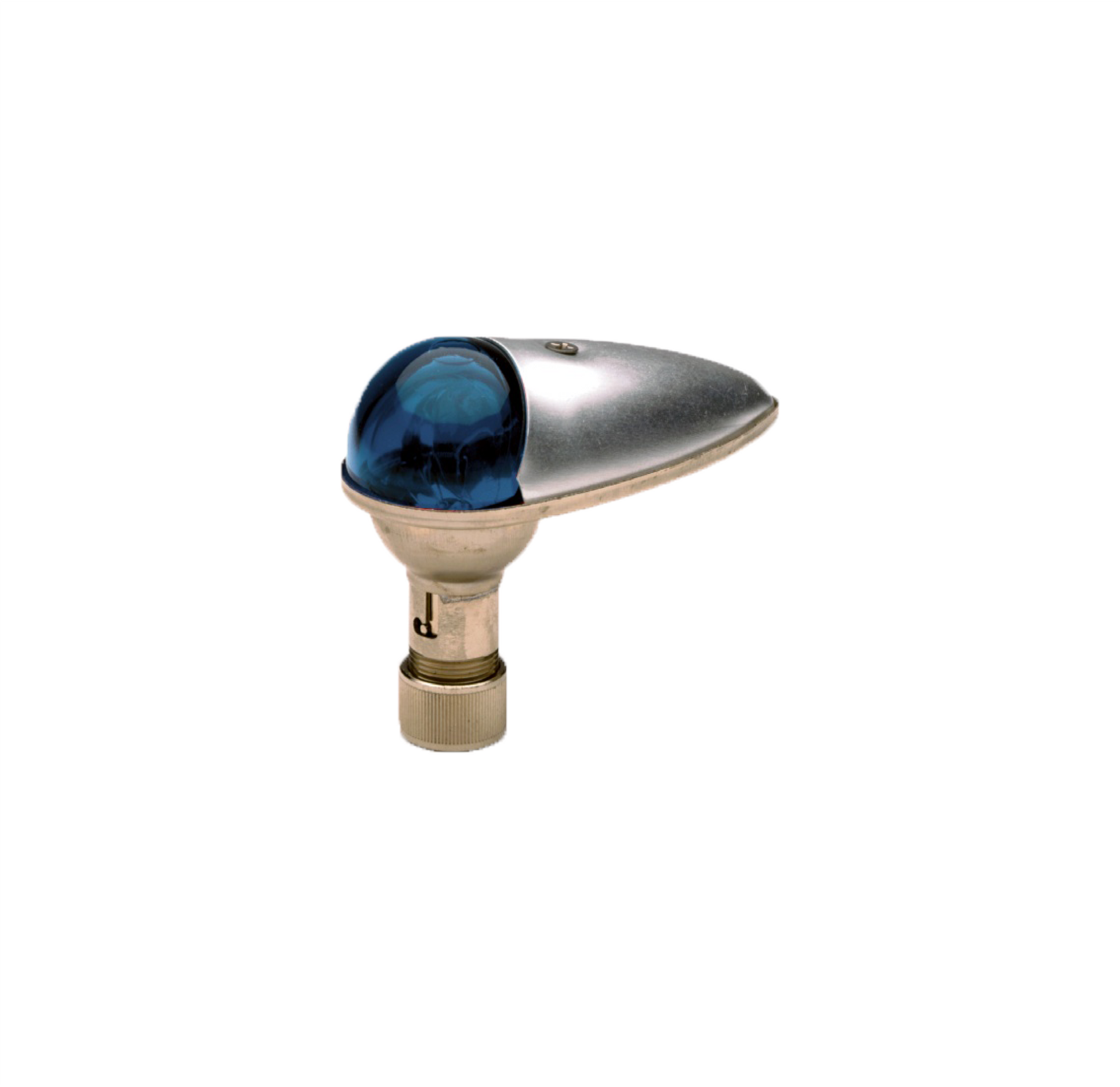

Wing tip position light which uses a 26-watt incandescent lamp. It is a direct replacement for the brand G A1285 Series. Specify 14 or 28 VDC.

Position Light Assembly - W1285 Series

Tech Specs
  • Drawing Number: 70001
  • Weight: 0.2 lbs. (91gm)
  • Height: 1.25 (32mm)
  • Length: 4 (102mm)
  • Power Consumption: 2 amps @ 14 VDC, 1 amp @ 28 VDC
Model Part # Description
W1285PG1 01-0770001-41 Position Light Assembly, Green, 14V
W1285PG2 01-0770001-42 Position Light Assembly, Green, 28V
W1285PR1 01-0770001-51 Position Light Assembly, Red, 14V
W1285PR2 01-0770001-52 Position Light Assembly, Red, 28V
Additional Information

Legacy W1285

Legacy W1285 Light

LED Replacement 71105

LED Replacement 71105
