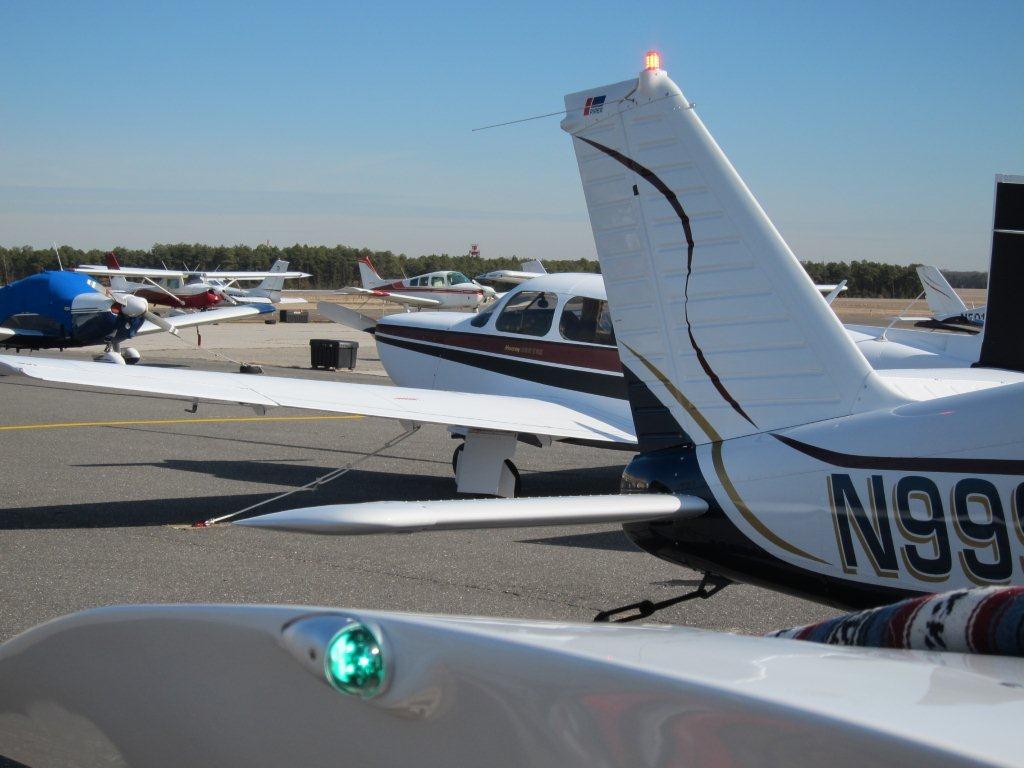

71105 Series LED Position Light Assembly

Product image 171105 Series LED Position Light Assembly
Product image 271105 Series LED Position Light Assembly
Product image 371105 Series LED Position Light Assembly
Contact Reseller

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.

Description

71105 series are fully FAA TSO compliant Forward Position lights. LEDs provide a significant reduction in electrical current draw over conventional light bulbs. Direct replacement for Whelen Model W1285 series (Version STC on Learjet Aircraft).



                  >>>>>



Technical Specifications

•LED Navigation Light Power Consumption: 0.25 Amps @ 14V or 28V
•LED Colors: Aviation Red, Aviation Green
•Weight: 0.20 Lbs (91mm) 14V, 0.25 Lbs (113mm) 28V
•Exposed Height: 2.70 (69mm)
•Lens: Clear Polycarbonate





Model

Part

Description

Approvals

7110501 01-0771105-01 LED Position Light, Green, 14V FAA/TSO-C30c Type II
7110502 01-0771105-02 LED Position Light, Red, 14V FAA/TSO-C30c Type I
7110503 01-0771105-03 LED Position Light, Green, 28V FAA/TSO-C30c Type II
7110504 01-0771105-04 LED Position Light, Red, 28V FAA/TSO-C30c Type I





Documents

Install Guide: 14099 - 7110501
Install Guide: 14099 - 7110502
Install Guide: 14099 - 7110503
Install Guide: 14099 - 7110504
