Parmetheus PLUS PAR 36 LED Landing/Taxi Light
Parmetheus PLUS PAR 36 LED Landing/Taxi Light
Parmetheus Plus™, an LED landing and taxi light 40% brighter than the Parmetheus™. The Parmetheus Plus™ is external flasher friendly, lightweight, low current, and moisture resistant. The new innovations in optic design represent WAT's commitment to providing state of the art technology to the Aviation industry.

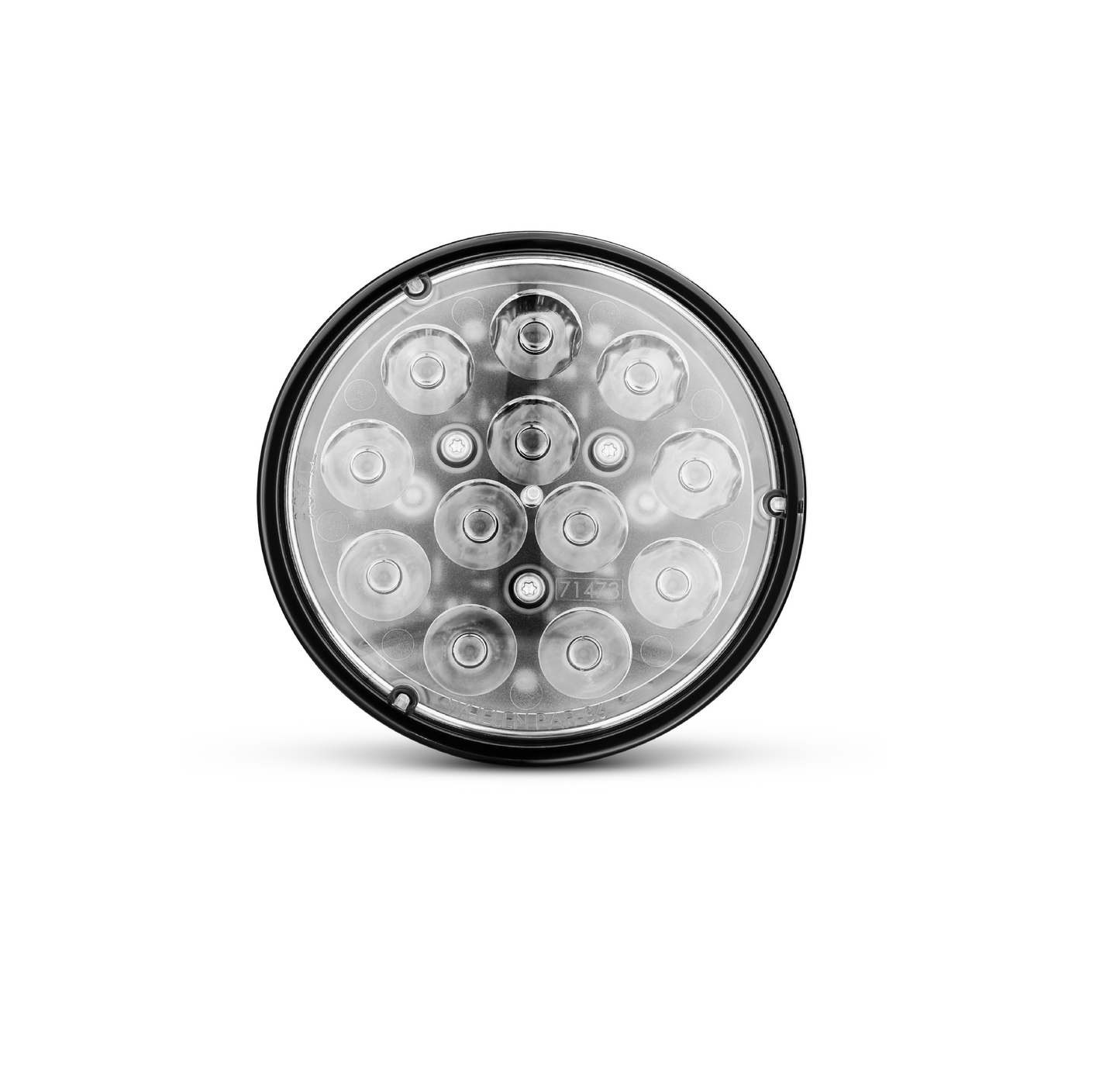

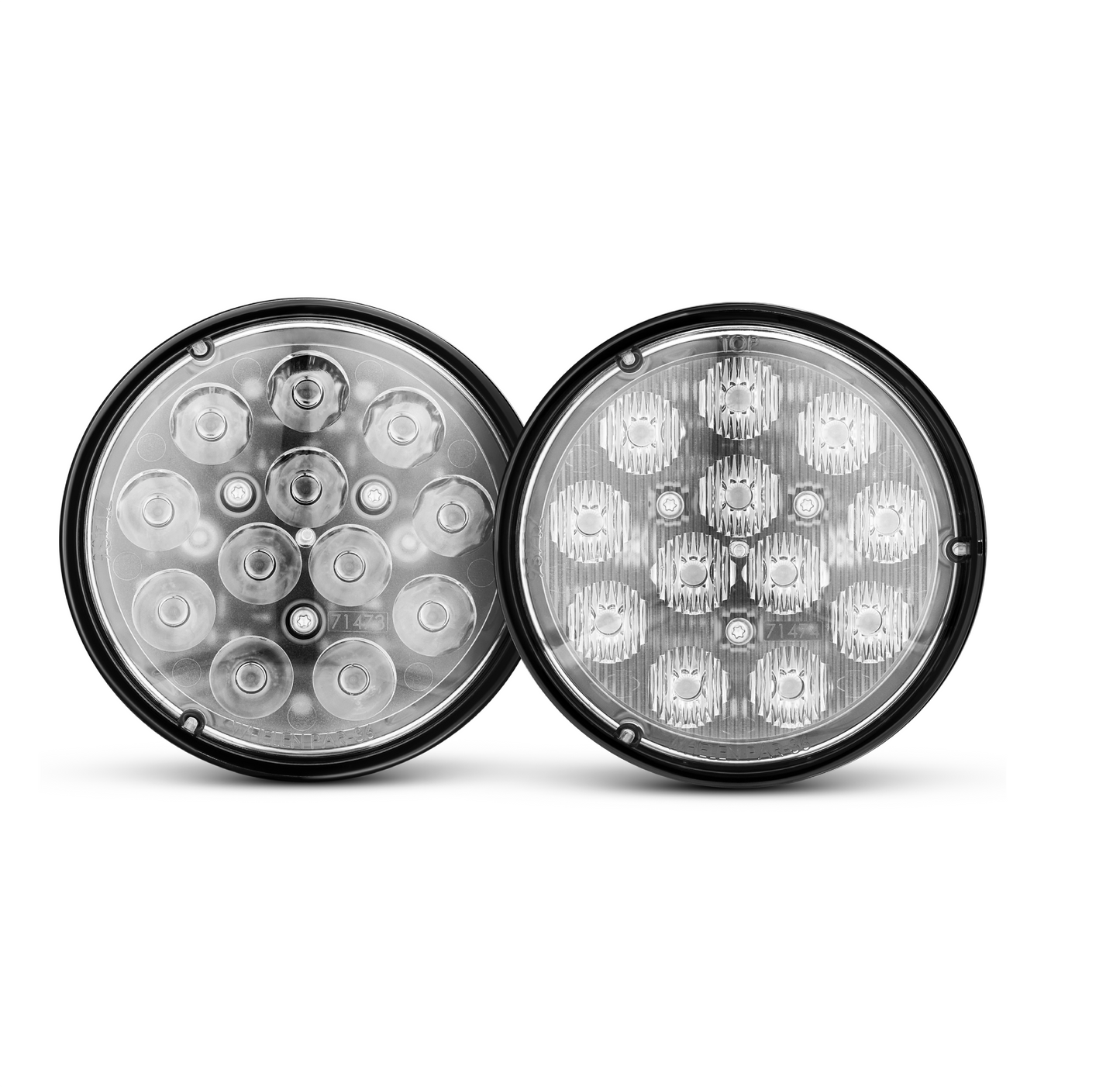

Parmetheus Plus Par 36 Landing & Taxi Lights
Tech Specs
- Drawing: 71833
- Current: 1.36 AMPS @ 14VDC, 0.68 AMPS @ 28VDC
- Weight: 0.52 lbs.
- Lens: 68-3971486A30
- Dimensions: 4.38" L X 4.38 W X 1.7 H
- Compatible with all pulse light modules
| Model | Part # | Description | |
| P36P1L | 01-0771833-10 | PAR36 LED Drop-In Replacement, 14V Landing (Spot Light) | |
| P36P1T | 01-0771833-15 | PAR36 LED Drop-In Replacement, 14V Taxi (Spreader Optic) | |
| P36P2L | 01-0771833-20 | PAR36 LED Drop-In Replacement, 28V Landing (Spot Light) | |
| P36P2T | 01-0771833-25 | PAR36 LED Drop-In Replacement, 28V Taxi (Spreader Optic) |
Documents
- STC - P36 PLUS - SA00344BO- Fixed Wing
- STC - P36 PLUS - SR00359BO - Rotorcraft
- Product Bulletin: Parmetheus Plus Cross-Reference
- PMA P36 PLUS - PMASUP43 - Fixed Wing
- PMA P36 PLUS - PMASUP40 - Rotorcraft
- Product Bulletin: Parmetheus Series
- Install Guide: 14793- Parmetheus Plus
Video
Output Data
