ORION 360 Beacons
ORION 360 Beacons

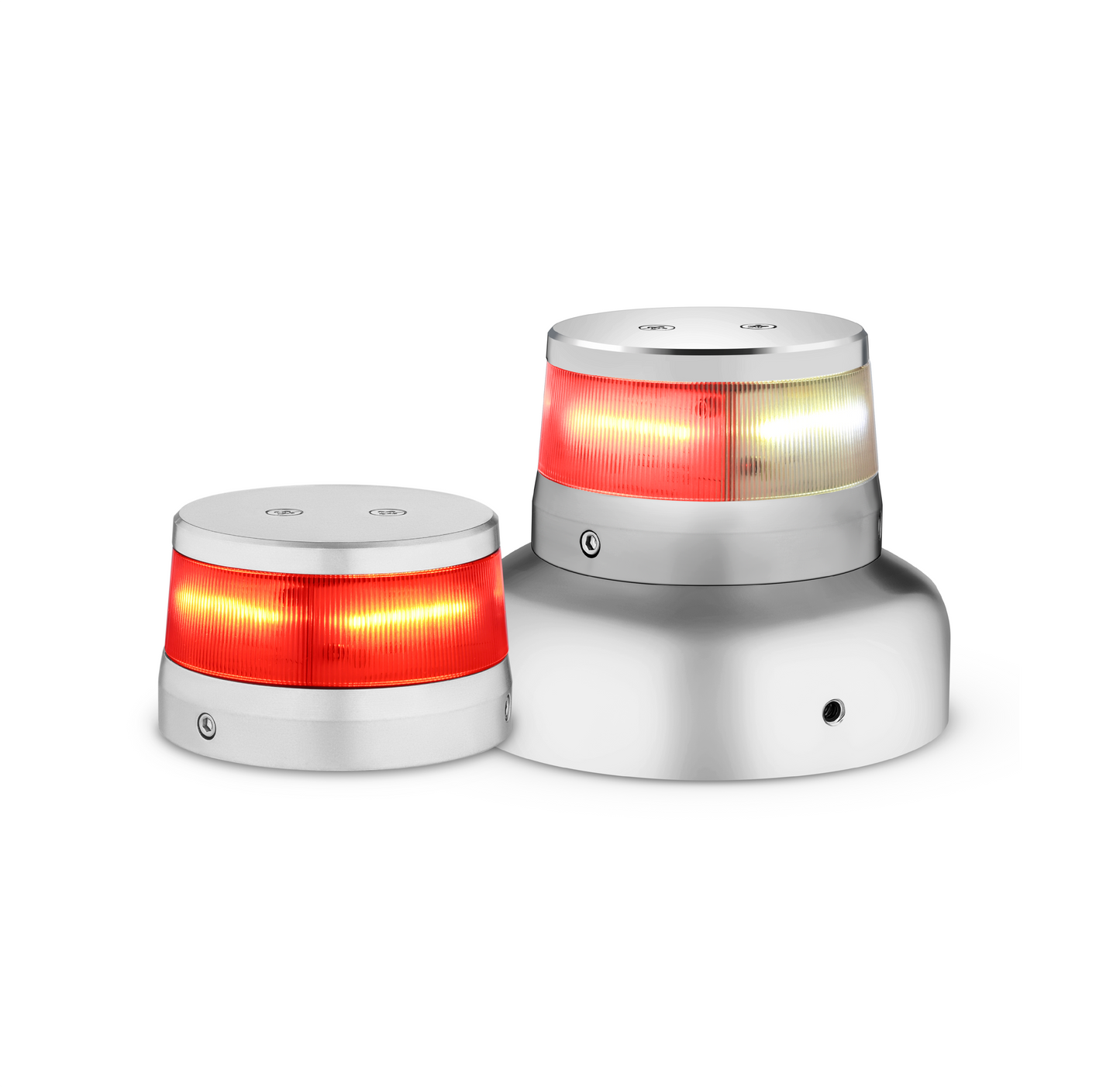

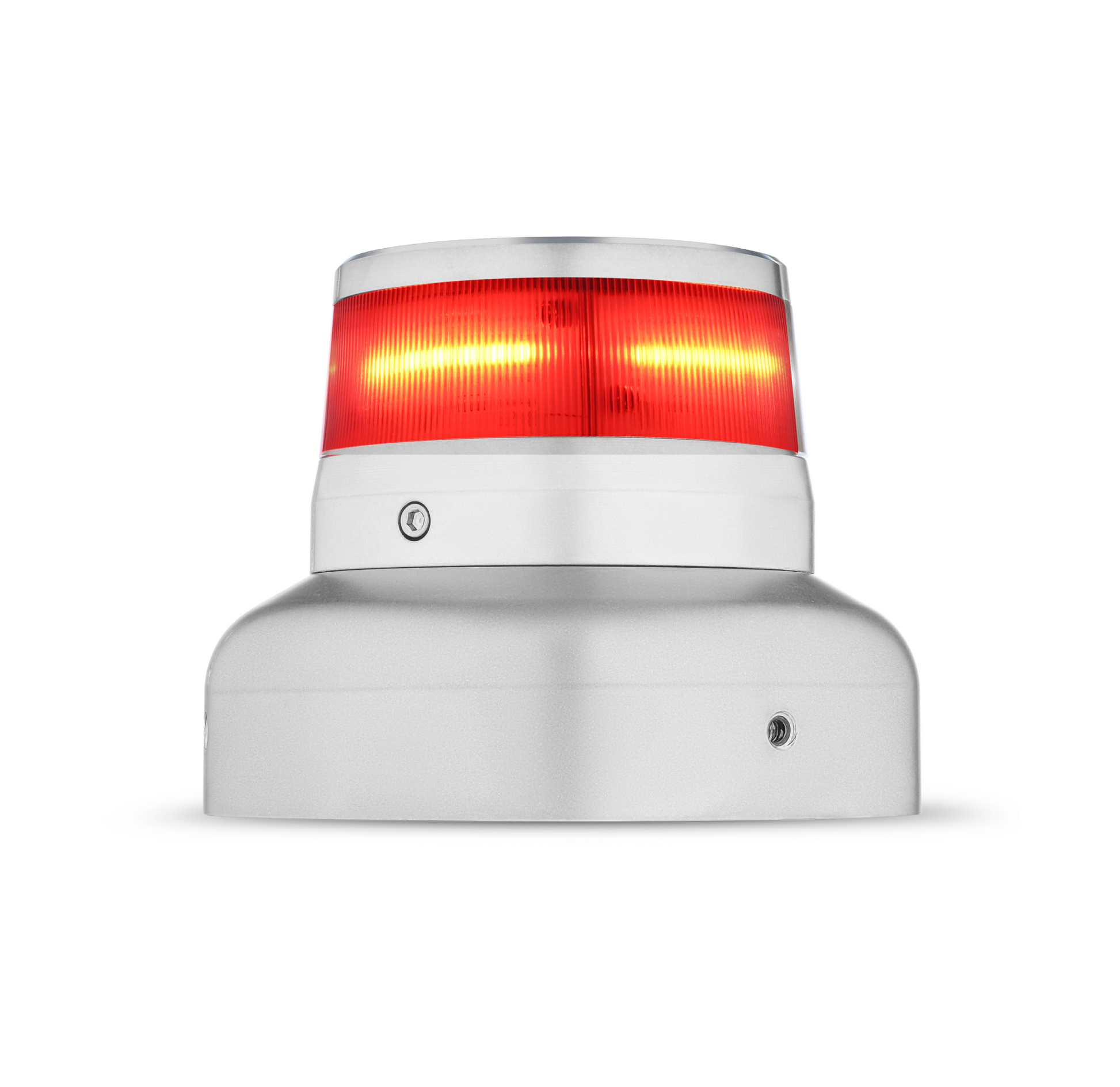

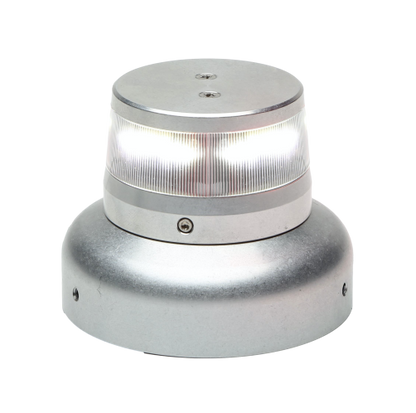

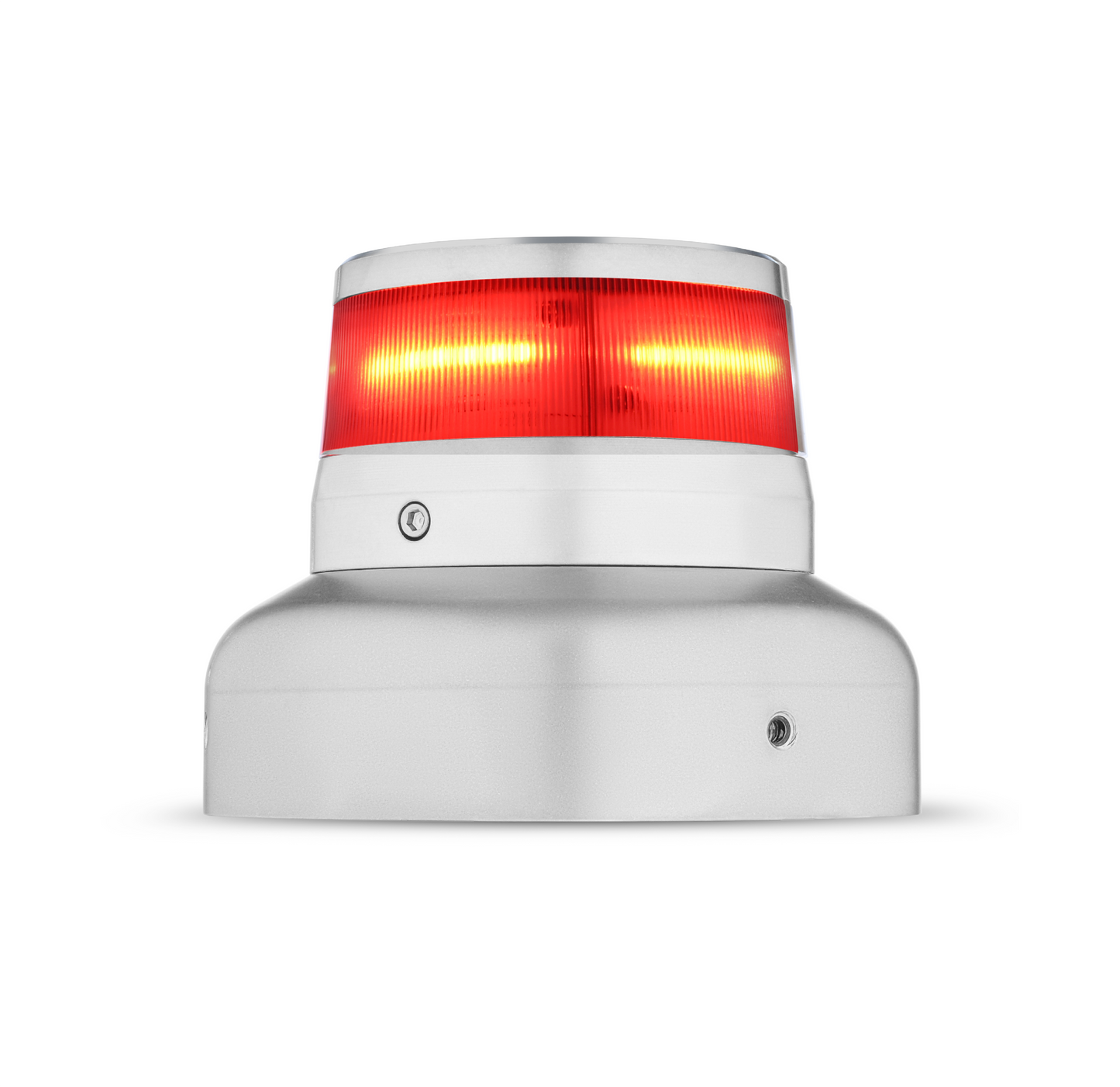

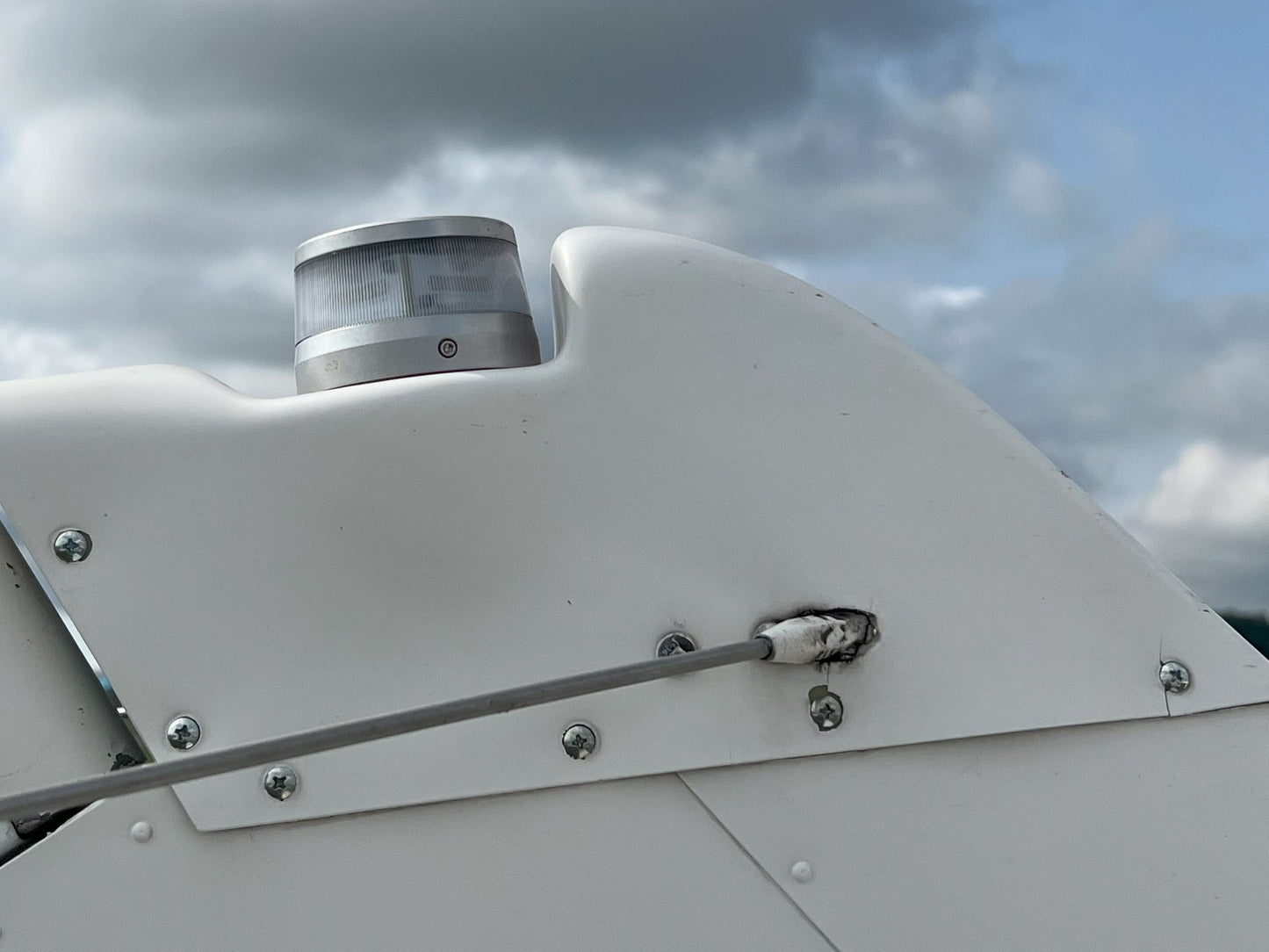

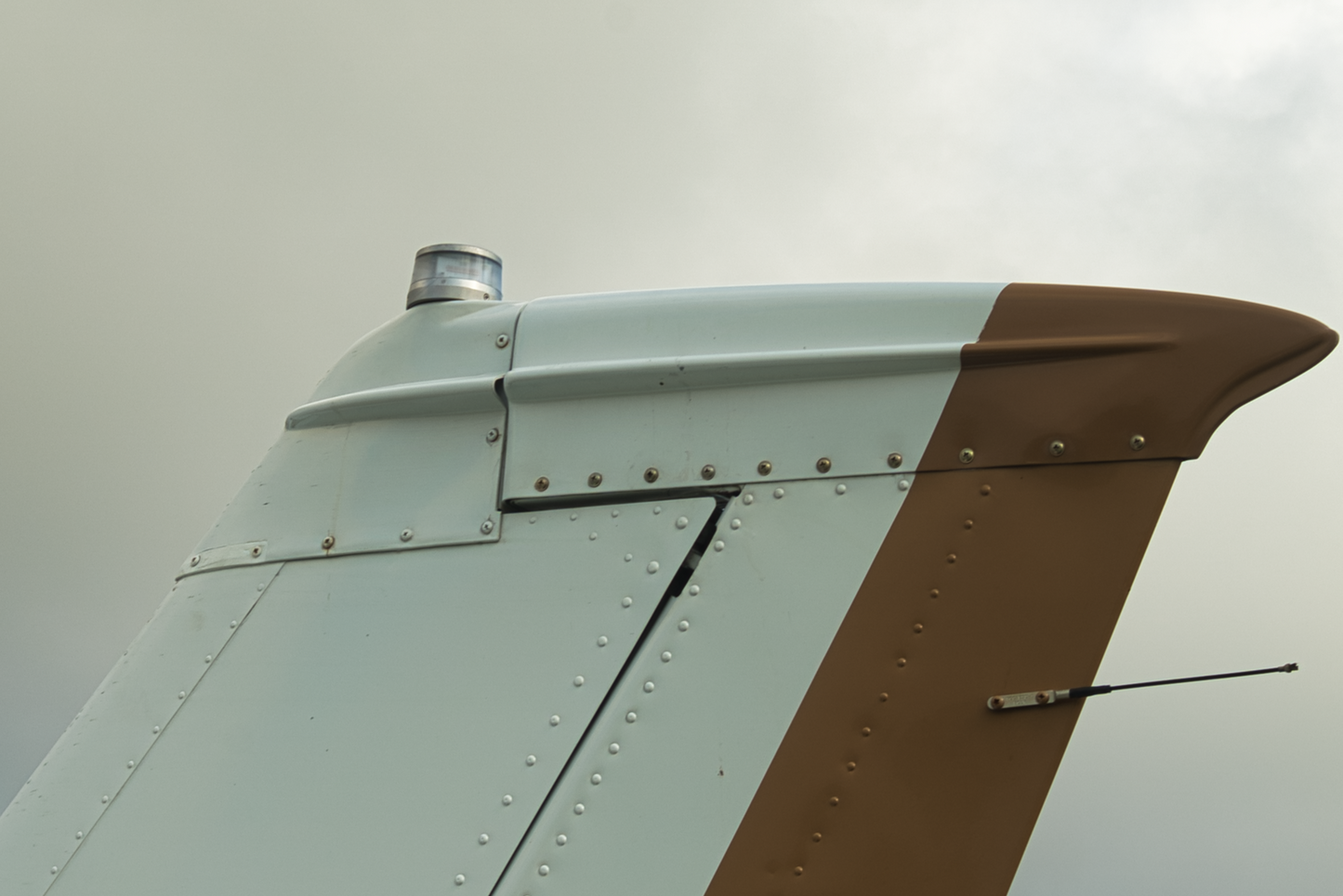

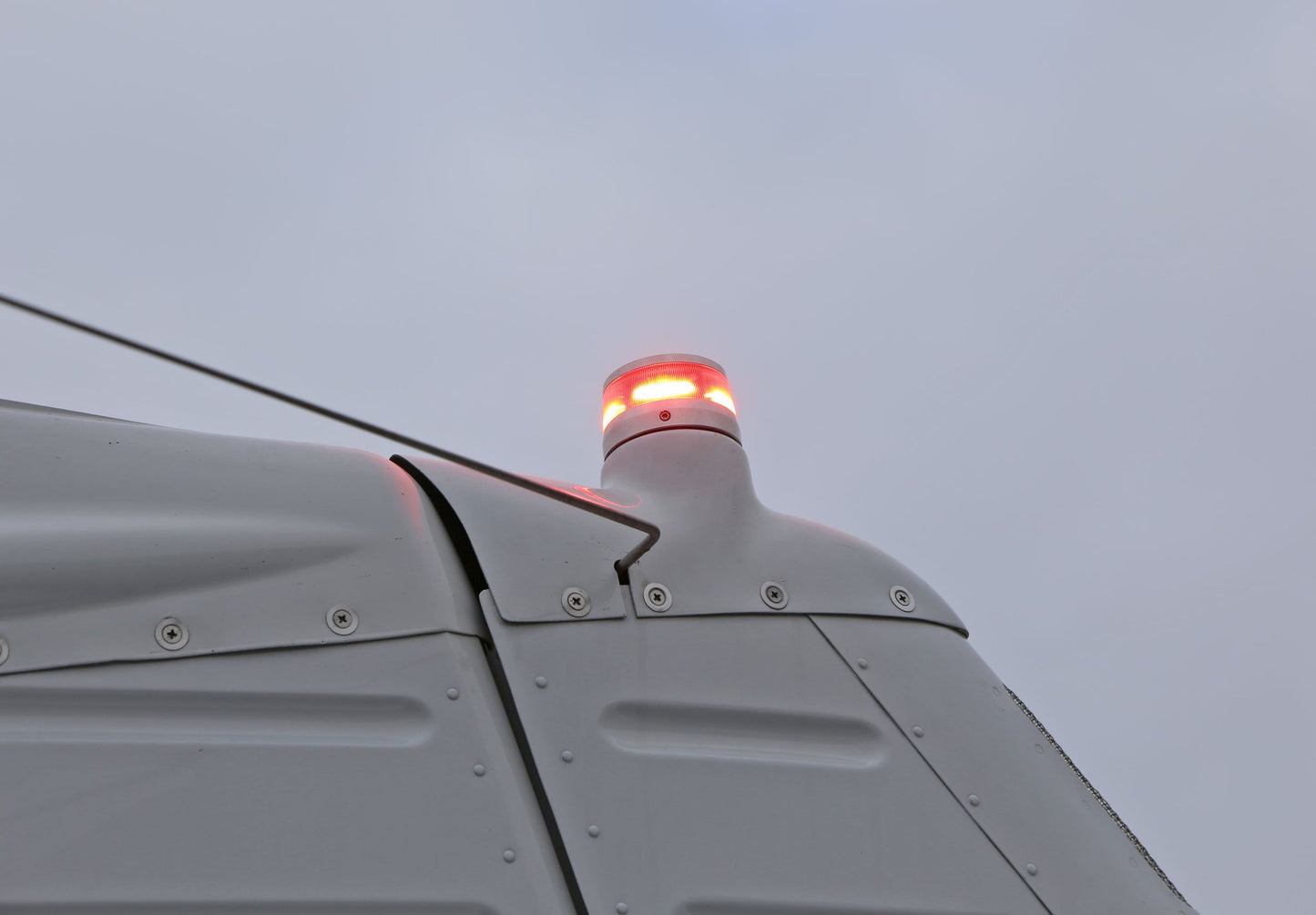

ORION 360 Beacons are the 4th Generation LED beacons for fixed-wing aircraft. These are designed to replace legacy 2.6" and 3.75" round beacons. ORION 360 beacons are lower profile than legacy product by 60%. Please see documents for more information on this product. Available in 14 VDC and 28 VDC. Red, Red / White Split, and White assemblies available.
Orion 360 Beacon
Tech Specs
- Drawing: 72010
- Dimensions:
- Narrow Base: L: 2.60" W: 2.6" H: 1.60"

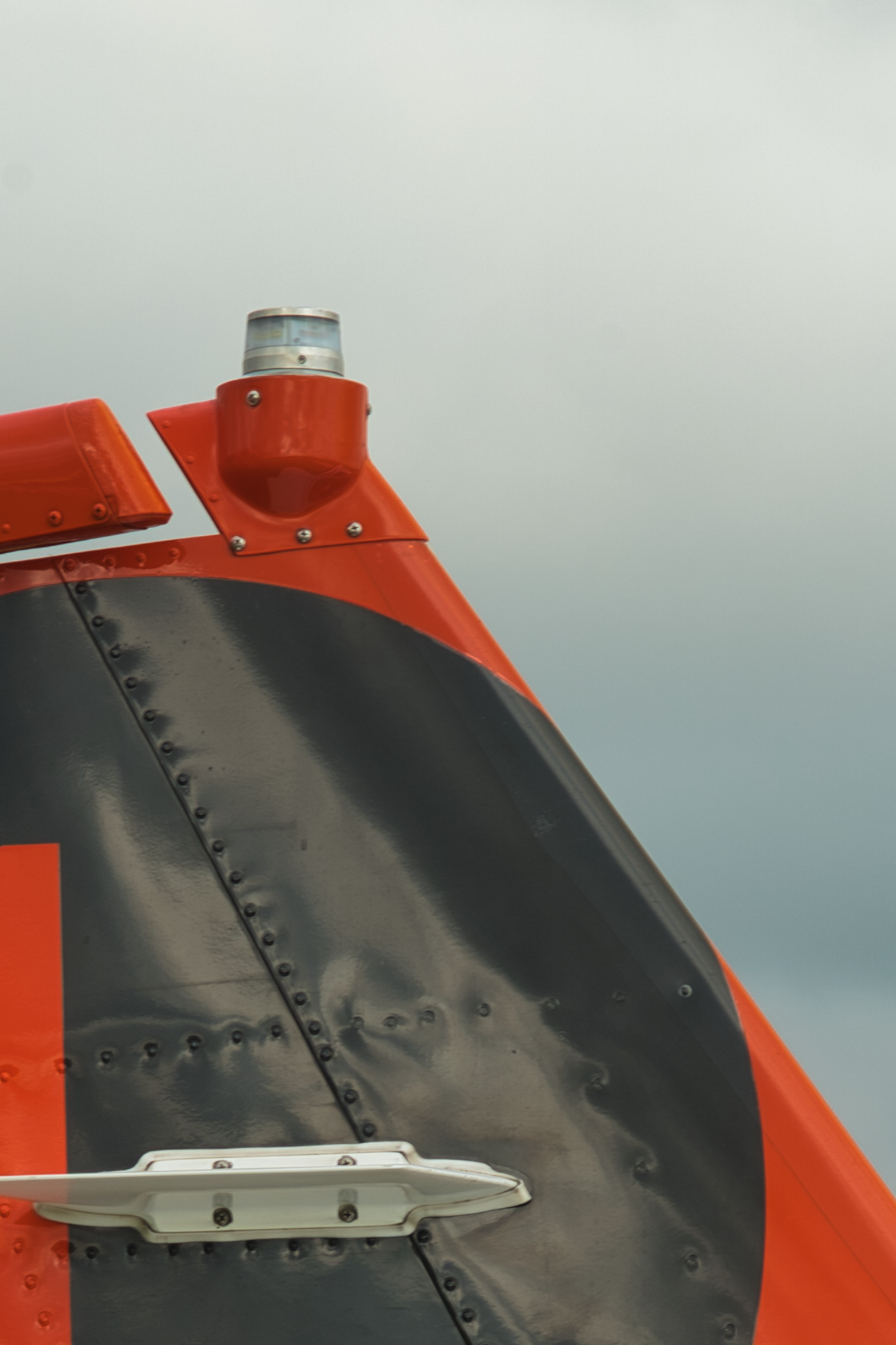

- Wide Base: L 3.67" W: 3.67" H: 2.83"
- Weight: 0.30 lbs (Narrow Base) 0.37 lbs (Wide Base)
- Current Draw:
- 14VDC: 0.53 Amps (Average) | 2.8 Amps (Peak)
- 28VDC: 0.26 Amps (Average) | 1.4 Amps (Peak)
| Model | Part # | Description | Approvals |

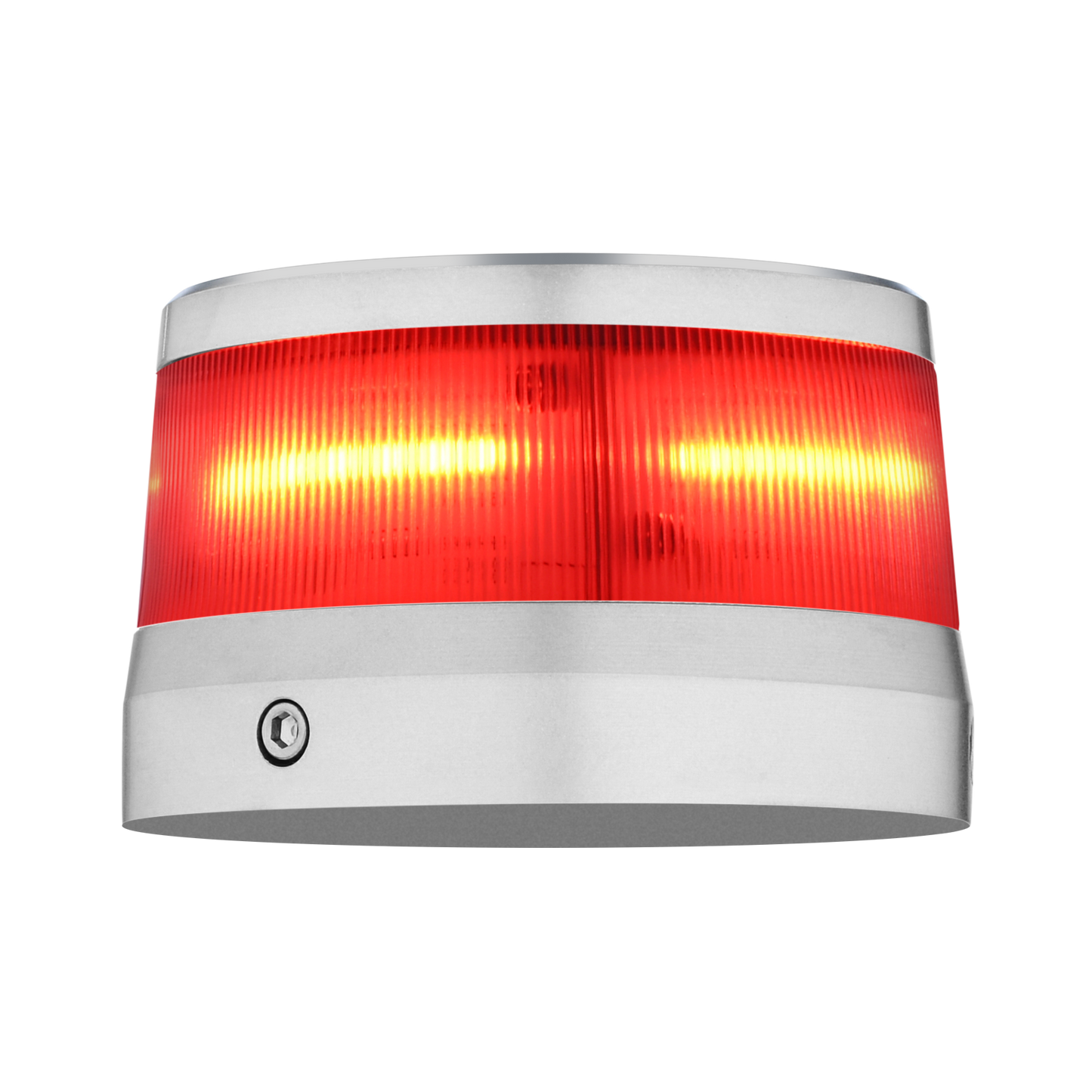

| OR36R1N | 01-0772010-50 | Red LED Beacon 14 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36R1W | 01-0772010-52 | Red LED Beacon 14 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36R2N | 01-0772010-10 | Red LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36R2W | 01-0772010-12 | Red LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36R2WL | 01-0772010-13 | Red LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |
| OR36S1N | 01-0772010-70 | Red / White Split LED Beacon 14 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |

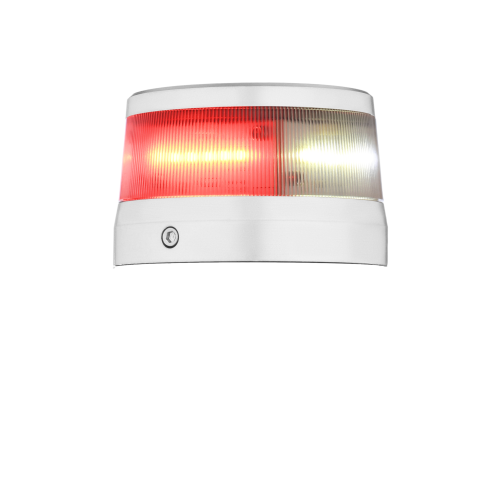

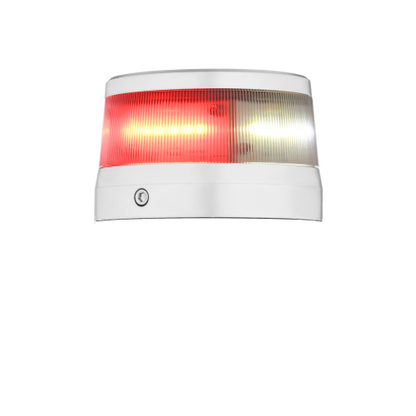

| OR36S1W | 01-0772010-72 | Red / White Split LED Beacon 14 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36S2N | 01-0772010-30 | Red / White Split LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |
| OR36S2W | 01-0772010-32 | Red / White Split LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36S2WL | 01-0772010-33 | Red / White Split LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |

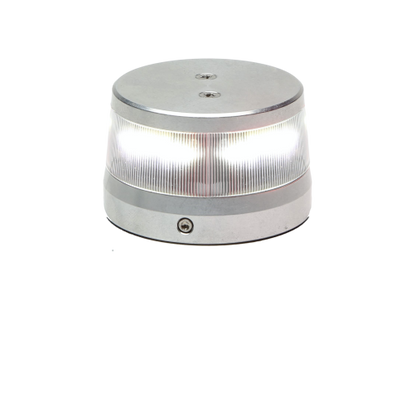

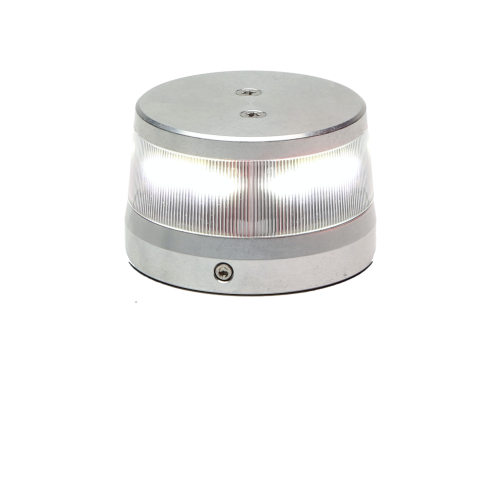

| OR36W2N | 01-0772010-20 | White LED Beacon 28 VDC, 2.6" Base | FAA TSO-C96a Class III/ STC |

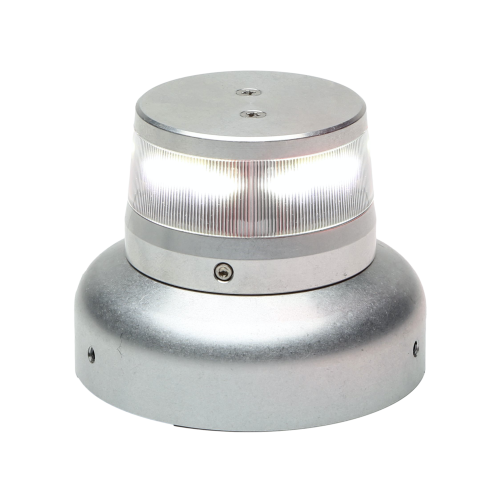

| OR36W2W | 01-0772010-22 | White LED Beacon 28 VDC, 3.75" Base | FAA TSO-C96a Class III/ STC |
| OR36W2WL | 01-0772010-23 | White LED Beacon 28 VDC, 3.75" Base Lower Mount | FAA TSO-C96a Class III/ STC |
Documents
- Install Guide: 14B93 - OR36R2N, OR36W2N, OR36S2N
- Install Guide: 14B92 - OR36R1W, OR36S1W
- Install Guide: 14B91 - OR36R1N, OR36S1N
- Install Guide: 14B90 - OR36W2W, OR36W2WL
- Install Guide: 14B88 - OR36R2W, OR36R2WL
- Install Guide: 14B89 - OR36S2W, OR36S2WL
- STC SA615EA
- STC SA04472AT - Caravan
- Installation & Service Manual - Document #05131 Rev. E
