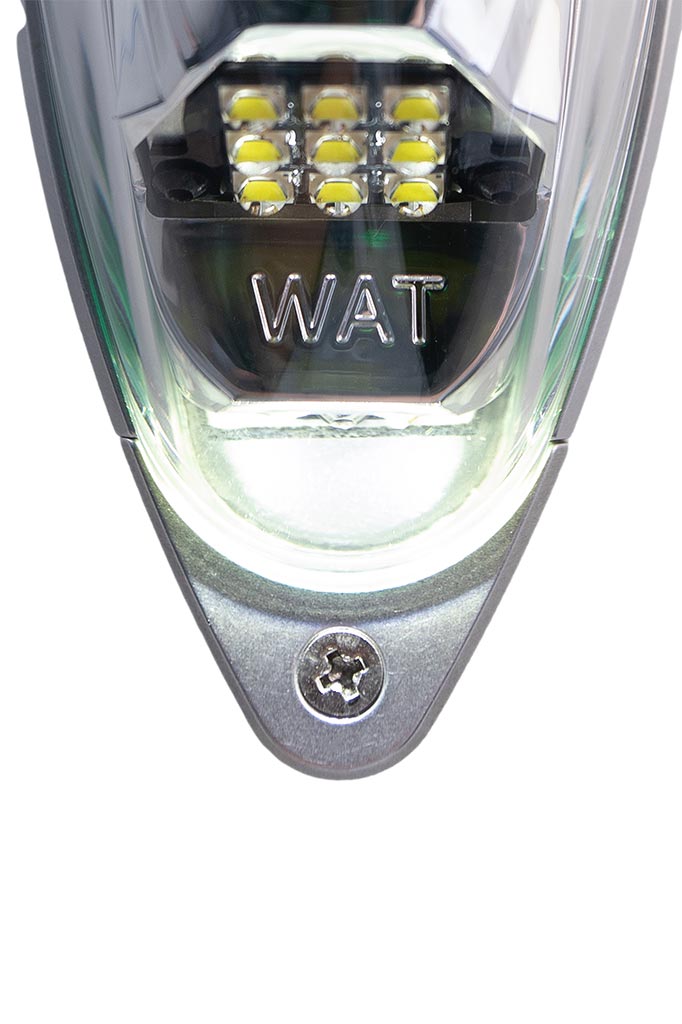

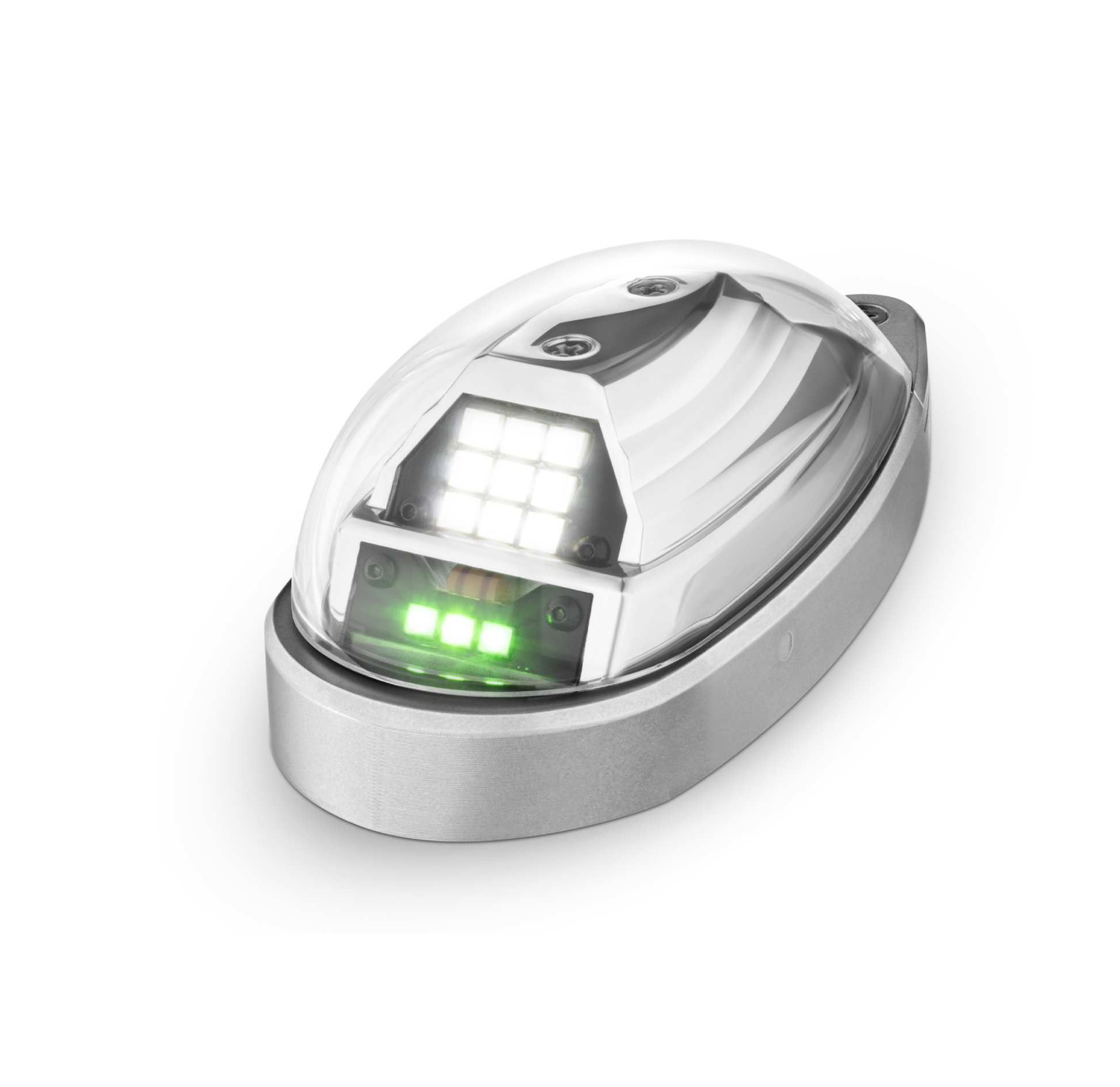

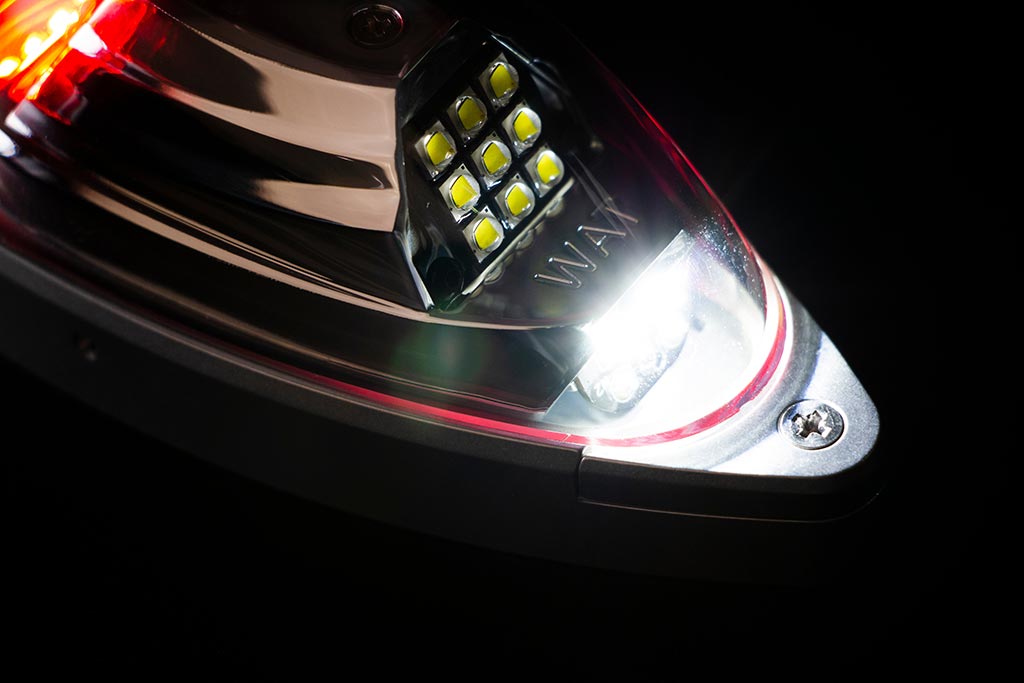

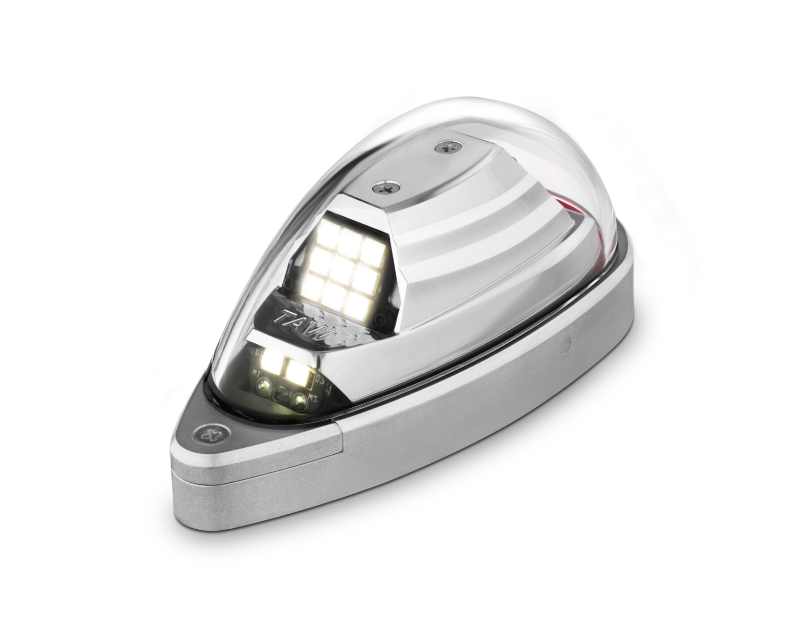

ORION 660 Series Forward & Tail Position/Anti-Collision Wingtip Lights
ORION 660 Series Forward & Tail Position/Anti-Collision Wingtip Lights
SERIES

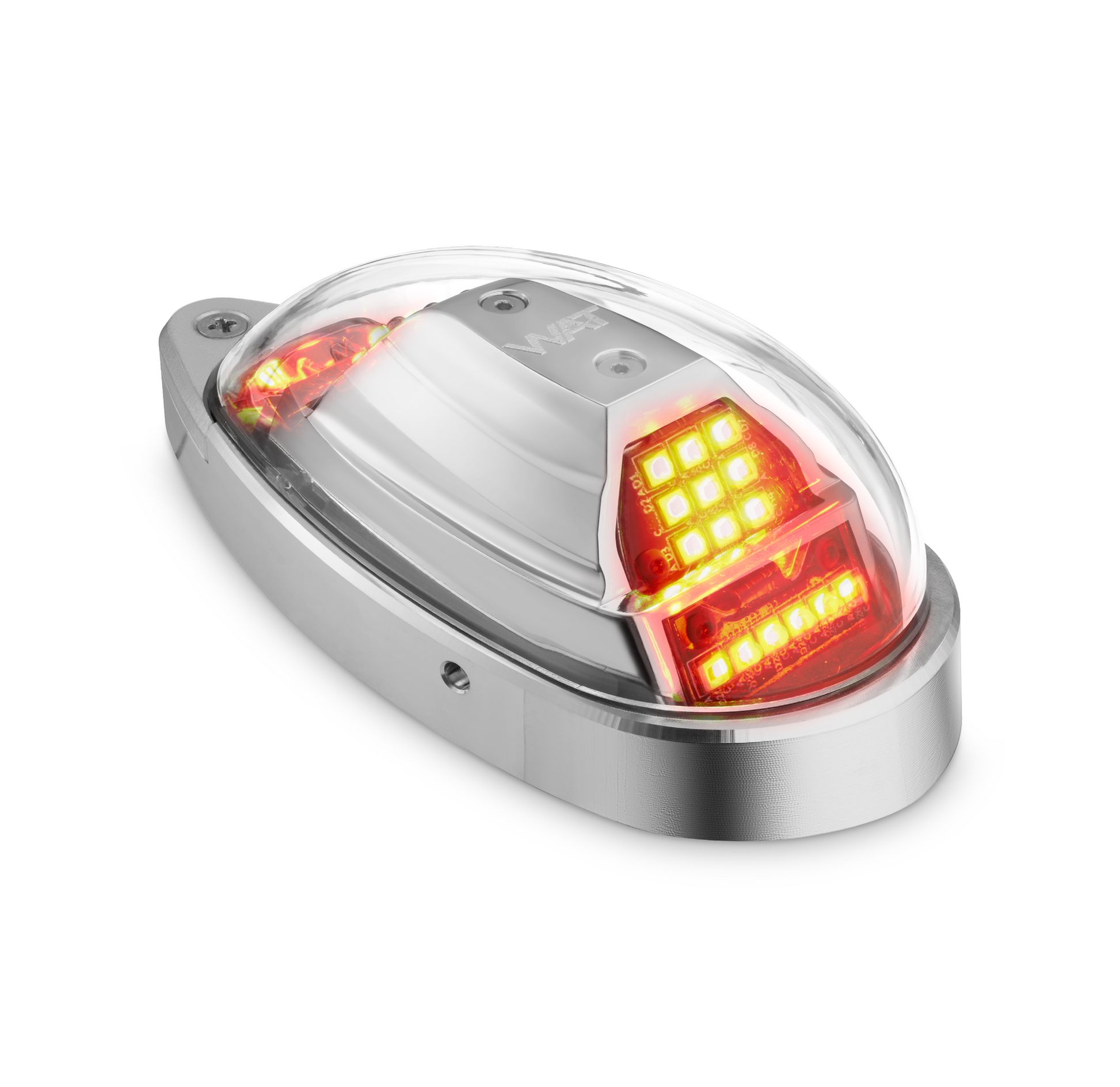

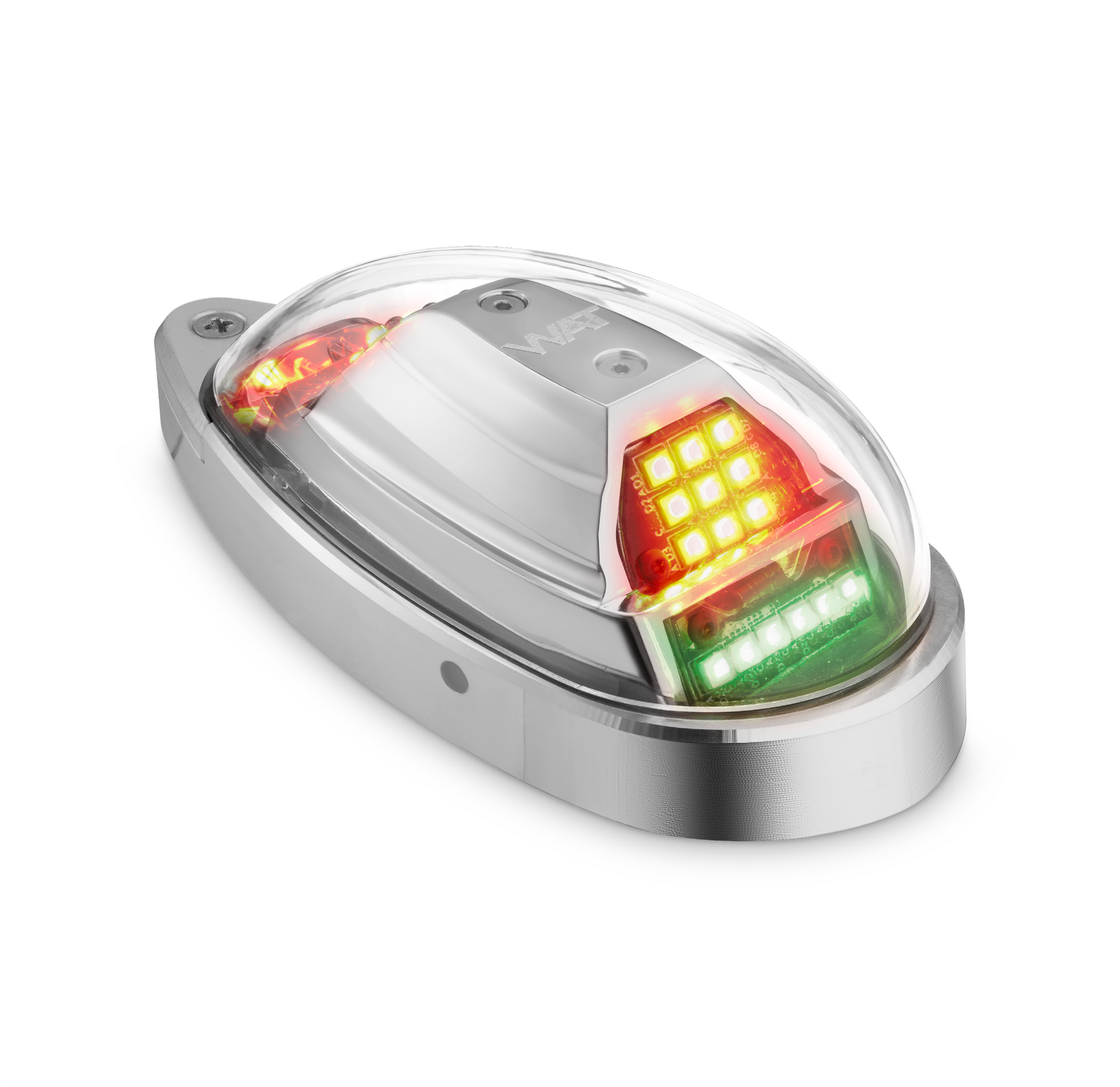

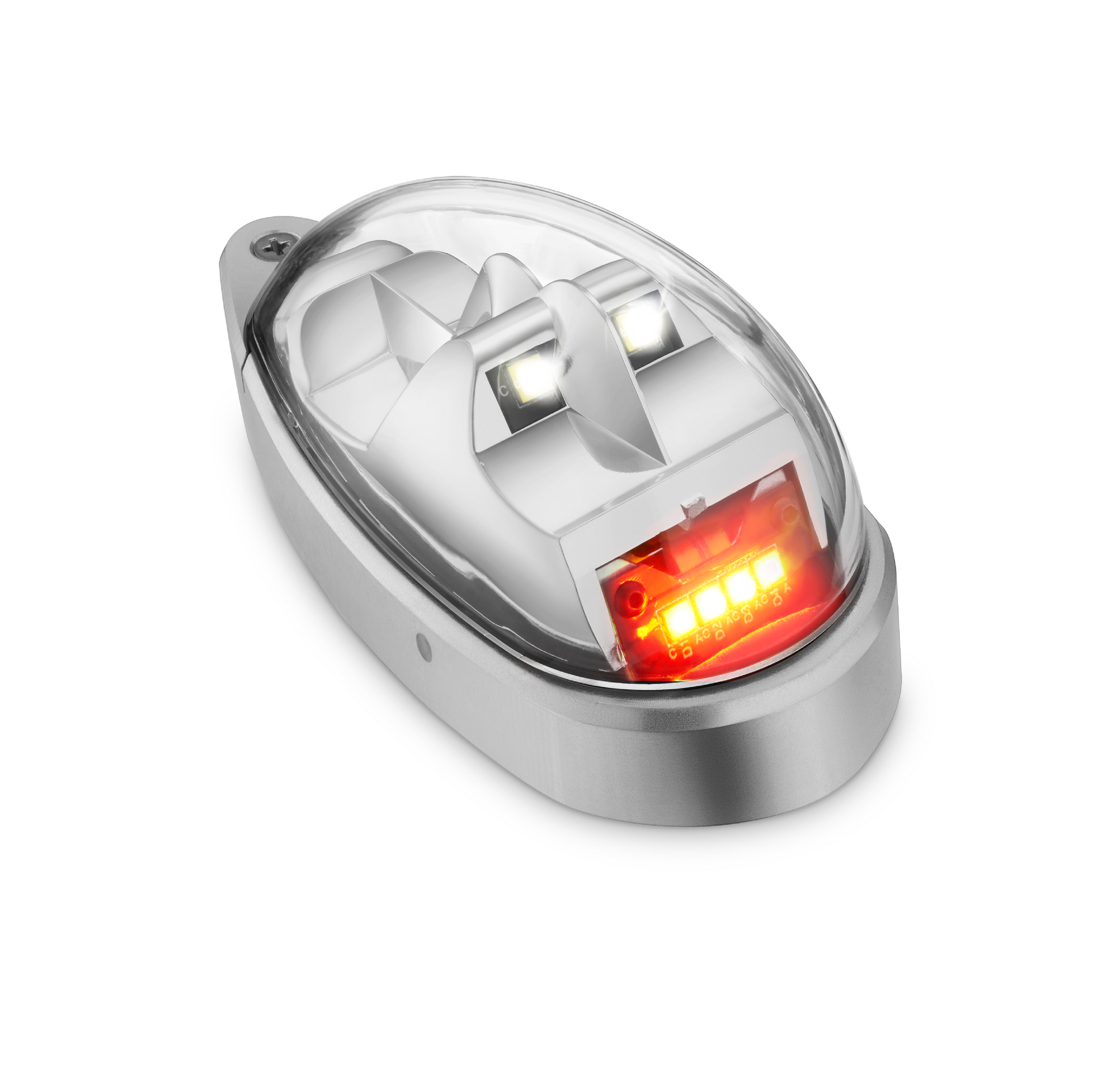

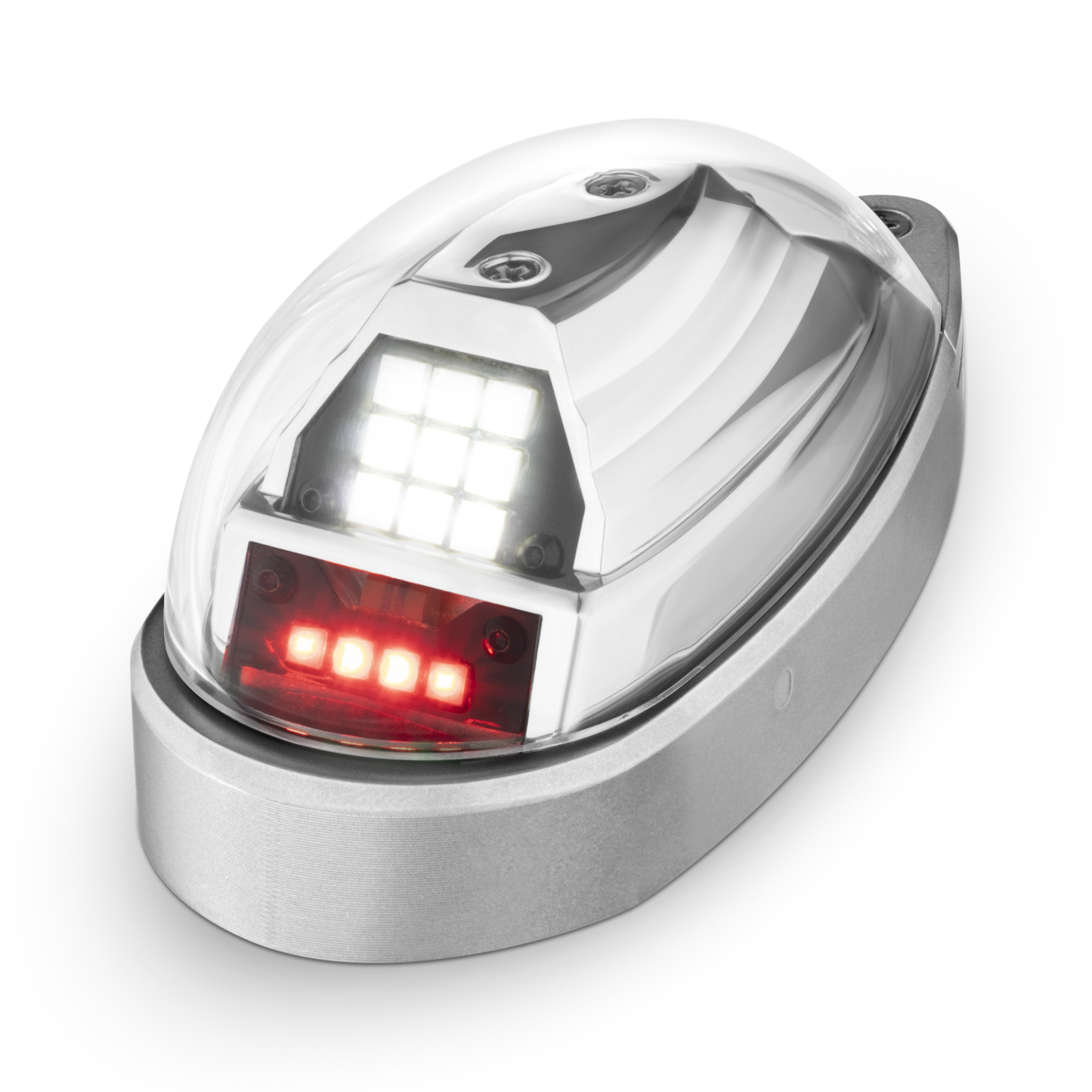

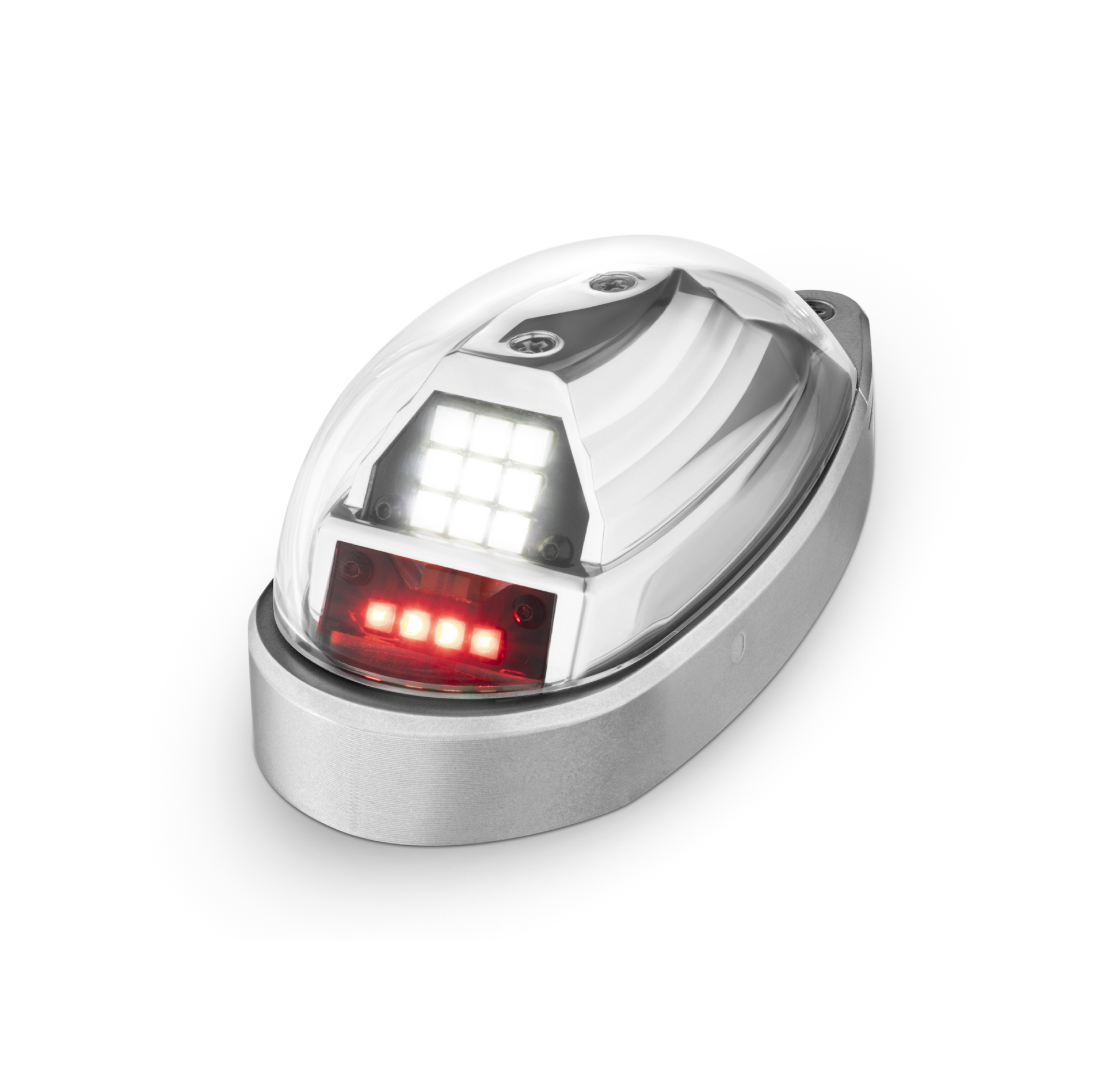

The Orion™ 660 series products integrate a RED or GREEN Forward Position Light, a WHITE flashing Anti-Collision light, and a Tail Position Light function. The built-in tail position light complies with all FAA requirements, eliminating the necessity for a separate tail-mounted position light. These products feature advanced LED circuitry, negating the need for additional flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring hassle-free installation and retrofitting. They have received full FAA/TSO approval, ensuring adherence to aviation standards.

ORION 660 Series LED Lights
Tech Specs
- Dimensions:
- OR6601G/OR6601R L: 3.95" W: 1.79" H: 1.67"
- OR6602G/OR6602R/OR660R2G/OR660R2R L: 4.00" W:1.79" H: 1.68"
- Weight 0.30 lbs
- Current Draw:
- OR6601G/OR6601R 14VDC: Position Light 0.40 Amps | Anti-Collision Light 0.39 Amps (Average) | 2.09 (Peak)
- OR6602G/OR6602R 28VDC: Position Light 0.25 Amps | Anti-Collision Light 0.24 Amps (Average) | 2.40 (Peak)
- OR660R2R/OR660R2G 28VDC: Position Light 0.25 Amps | Anti-Collision Light 0.243 Amps (Average) | 1.3 (Peak)
| Model | Part # | Description | Approvals |
| OR6601G | 01-0790877-01 |
Green
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC
|
TSO-C96a Class III / TSO-C30c Type II & III |
| OR6601R | 01-0790877-02 |
Red
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC
|
TSO-C96a Class III / TSO-C30c Type I & III |
| OR6602G | 01-0790877-11 |
Green
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC
|
TSO-C96a Class II / TSO-C30c Type II & III |
| OR6602R | 01-0790877-12 |
Red
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC
|
TSO-C96a Class II / TSO-C30c Type I & III |
| OR660R2G | 01-0790877-31 |
Green
Forward POS & White Tail POS Light / Red ACL Wingtip Assembly, 28VDC
|
TSO-C96a Class I / TSO C30c Type II & III |
| OR660R2R | 01-0790877-32 |
Red
Forward POS & White Tail POS Light / Red ACL Wingtip Assembly, 28VDC
|
TSO-C96a Class I / TSO C30c Type I & III |
Documents
- Orion™ 660 Marketing Slick
- Install Guide 14D76 Orion™ 660 -01,-02 14V
- Install Guide 14D77 Orion™ -660 -11,-12 28V
- Install Guide 14G88 Orion™ 660 -31,-32 28V
