Microburst™ PLUS
Microburst™ PLUS

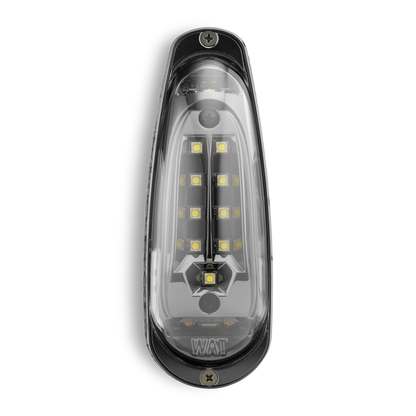

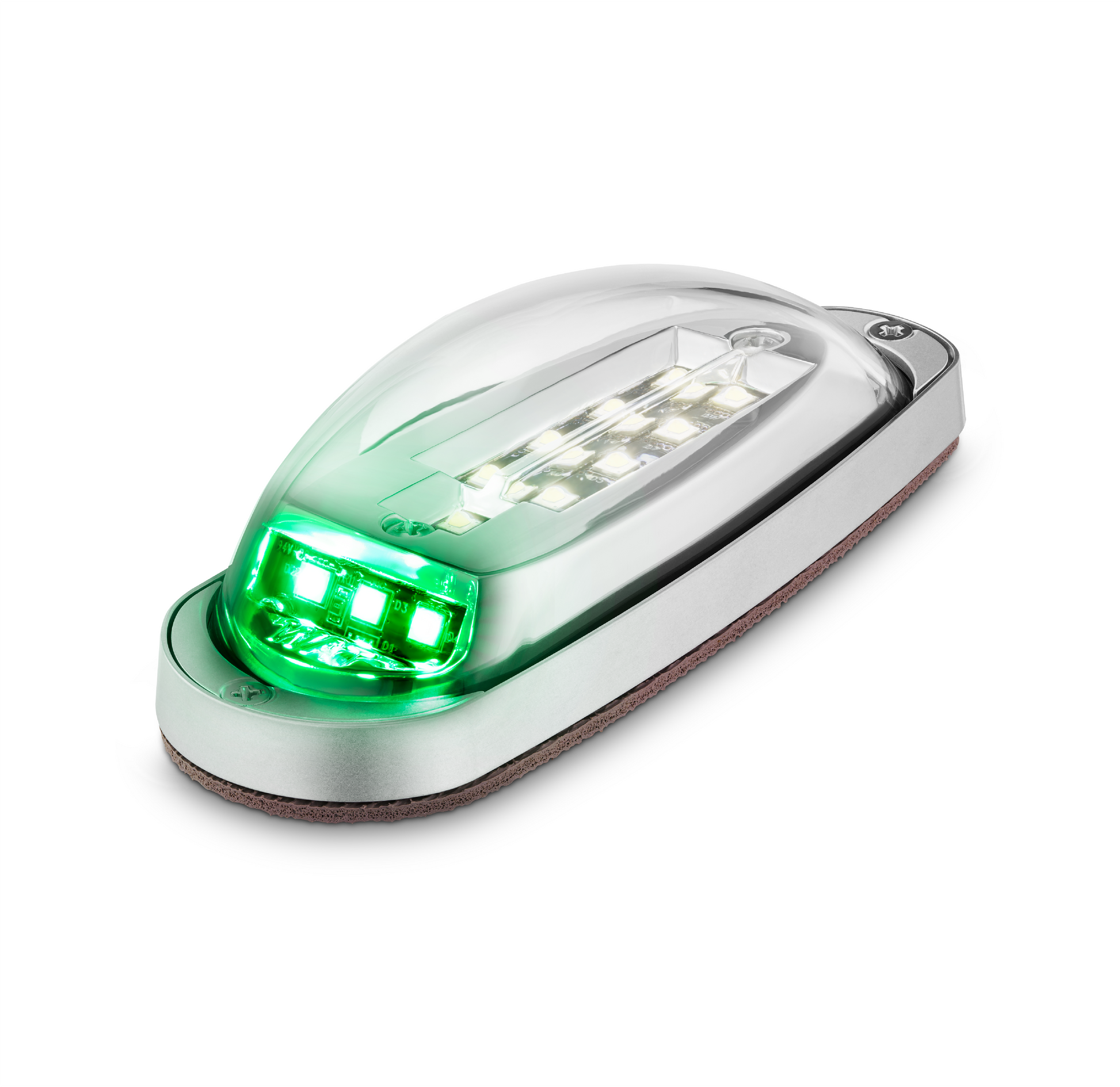

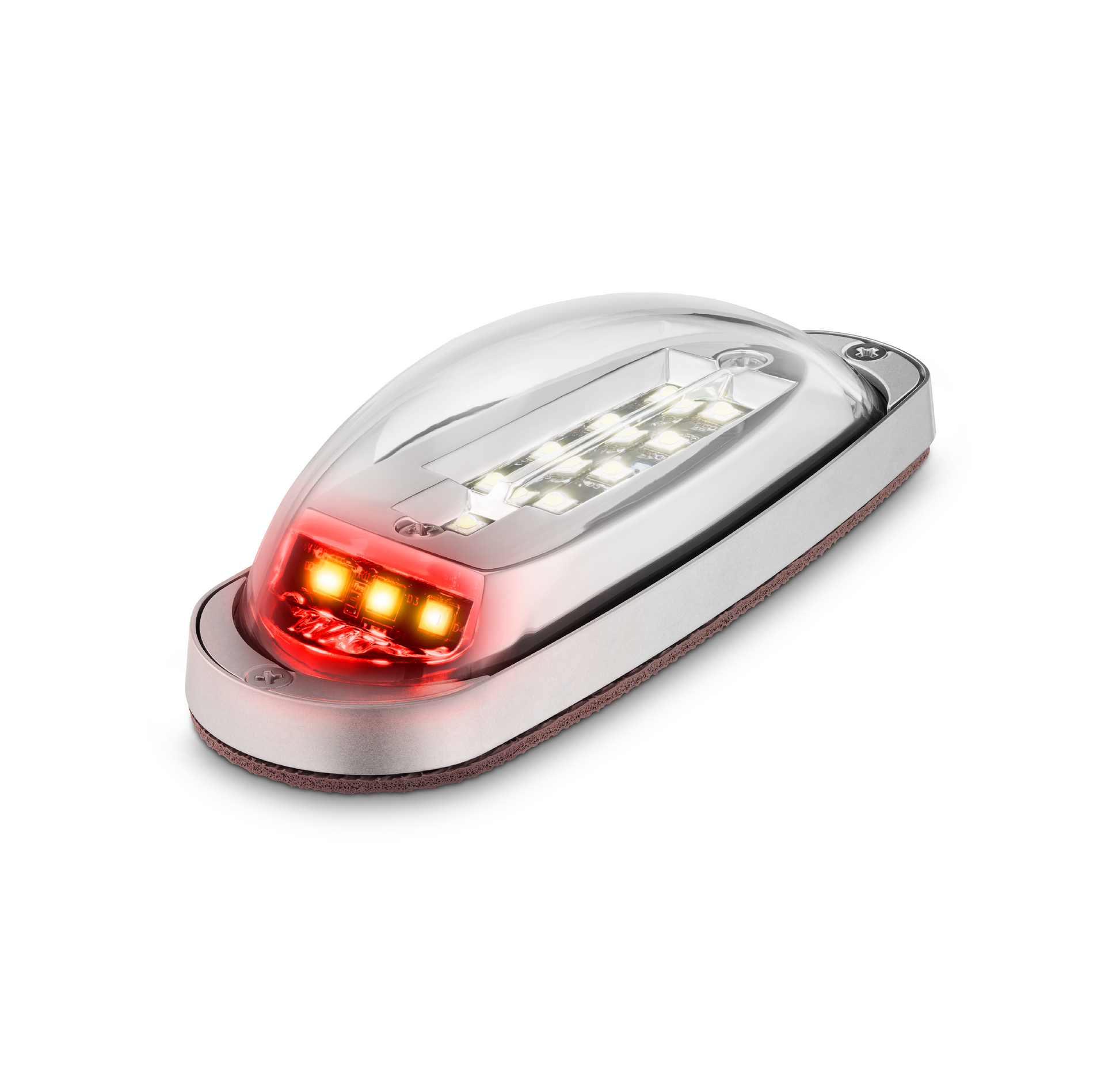

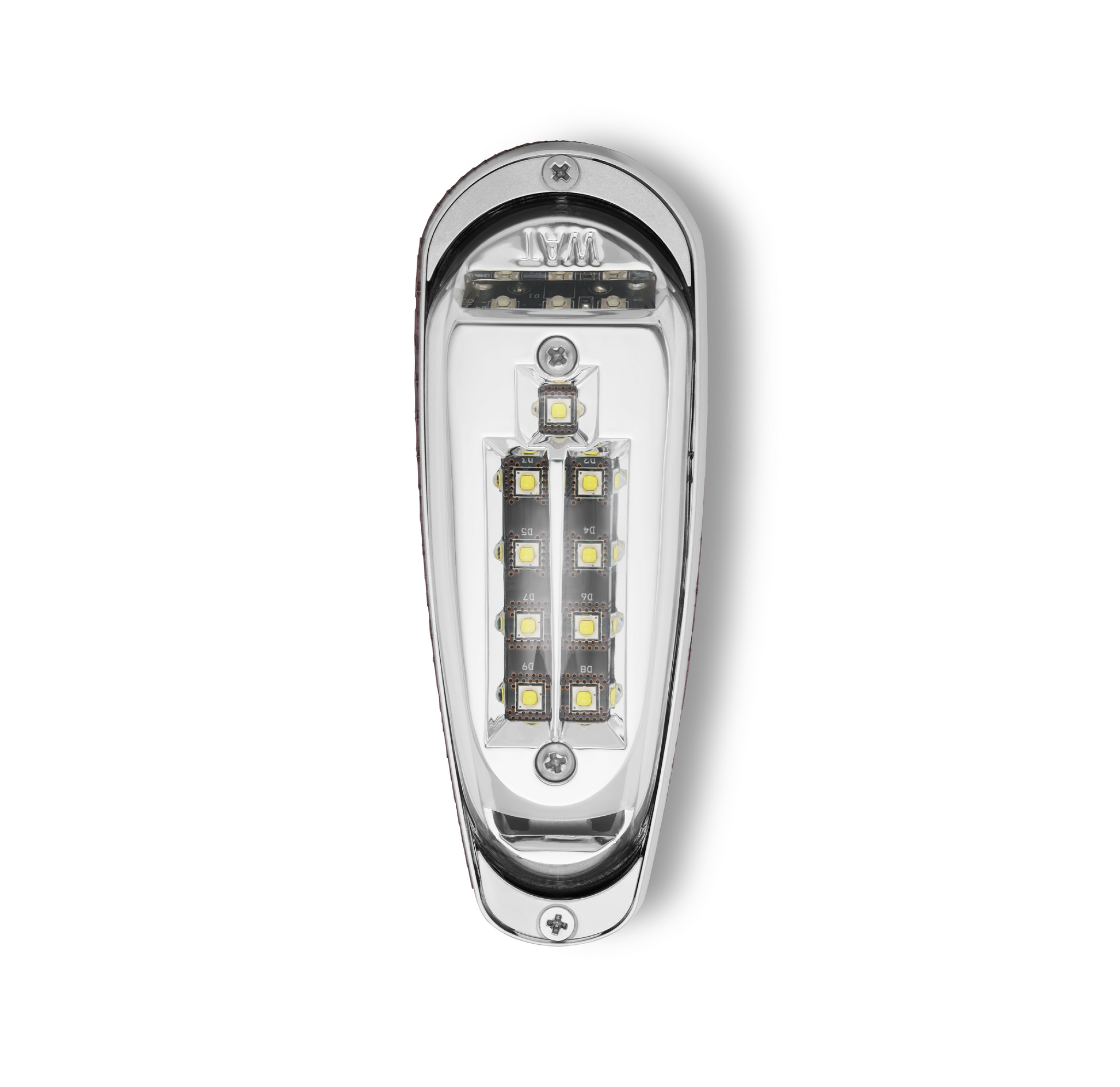

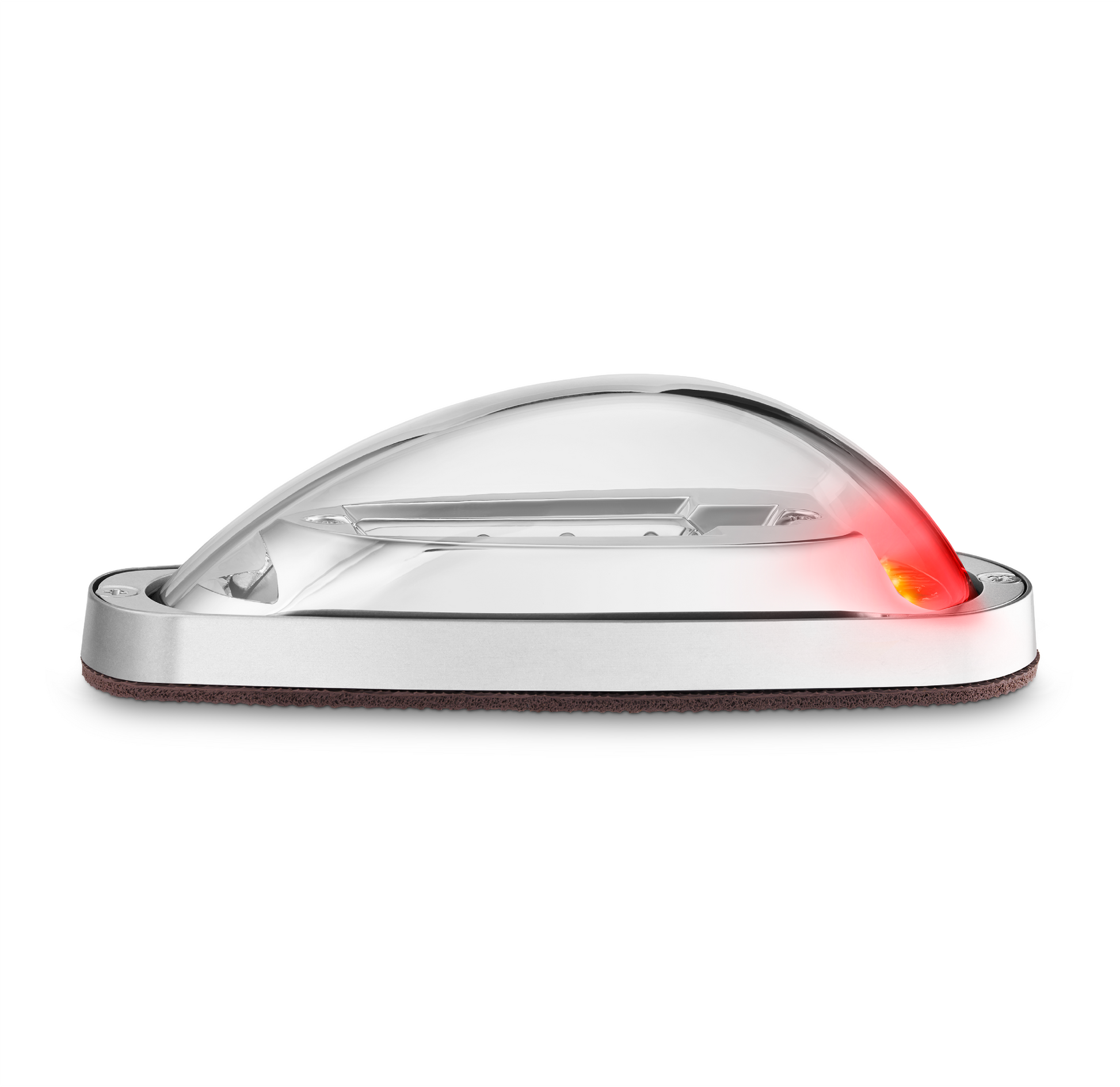

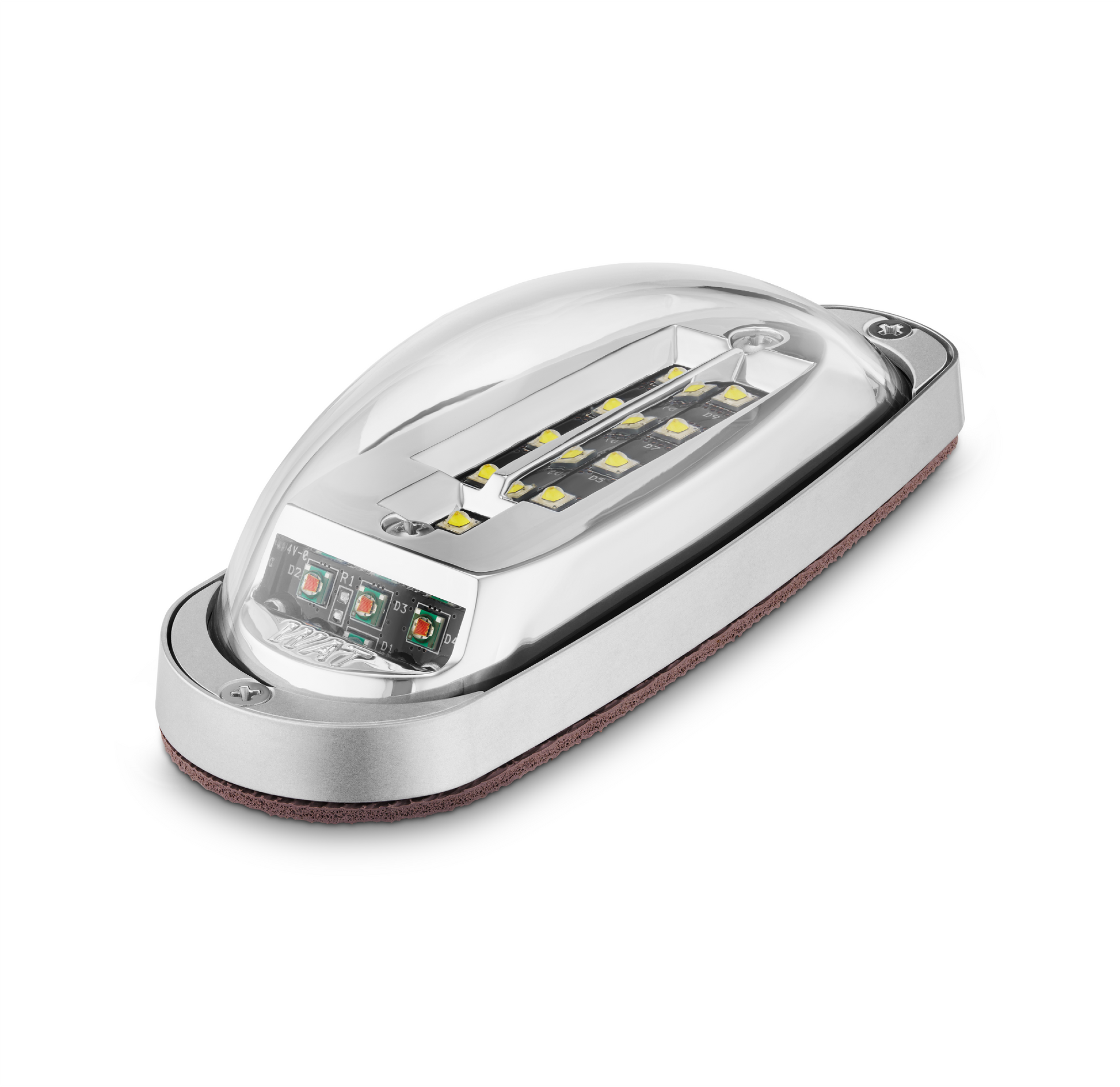

The Microburst™ PLUS Series delivers premium LED position and anti-collision lighting for experimental and Light Sport Aircraft (LSA). Available in both Standard (Chrome) and Stealth (Black) configurations, these assemblies feature advanced optics and a compact, lightweight, aerodynamic design that enhances aircraft visibility while providing a clean, aesthetically pleasing appearance to complement a wide variety of aircraft styles. Engineered for reliability, the Microburst™ PLUS Series is vibration and moisture resistant, operates on 14 VDC, requires no external power supply, and offers low current draw with long-life LED performance. Additional features include synchronizable operation, replaceable lenses, and super-bright light output. Available with CometFlash® technology, the lighting concept that revolutionized aviation lighting, the Microburst™ PLUS Series delivers exceptional performance at an economical price.
Experimental Use Notice: The Microburst™ PLUS Series is intended for experimental and Light Sport Aircraft (LSA) applications only. These products are not FAA approved or certified for installation on certified aircraft and are not recommended for night flight operations.
MicroBurst Plus Aircraft Lighting
Tech Specs
-
Dimensions: MB2/MB3. L: 4.61” W: 1.64" H: 1.41"
MB1. L: 2.32” W: 1.71” H: 2.16”
Weight: MB2 0.20 lbs | MB3. 0.21 lbs. | MB1. 0.15 LBS
Current Draw:
MB2. 14VDC: Position Light: 0.20 Amps | Anti-Collision Light 0.2 Amps (Average) | 1.20 Amps (Peak)-
MB3. 14VDC: Position Light: 0.25 Amps | Anti-Collision Light 0.2 Amps (Average) | 1.20 Amps (Peak)
MB1. 14VDC: Position Light: 0.20 Amps| Anti-Collision Light: 0.15 Amps (Average) | 0.80 Amps (Peak)
| Model | Part # | Description |

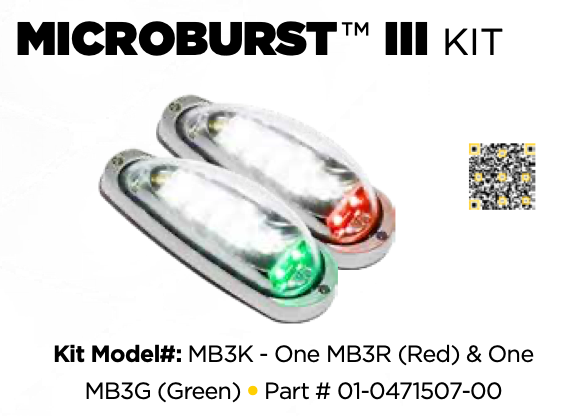

| MB3K |
01-0471507-00 |

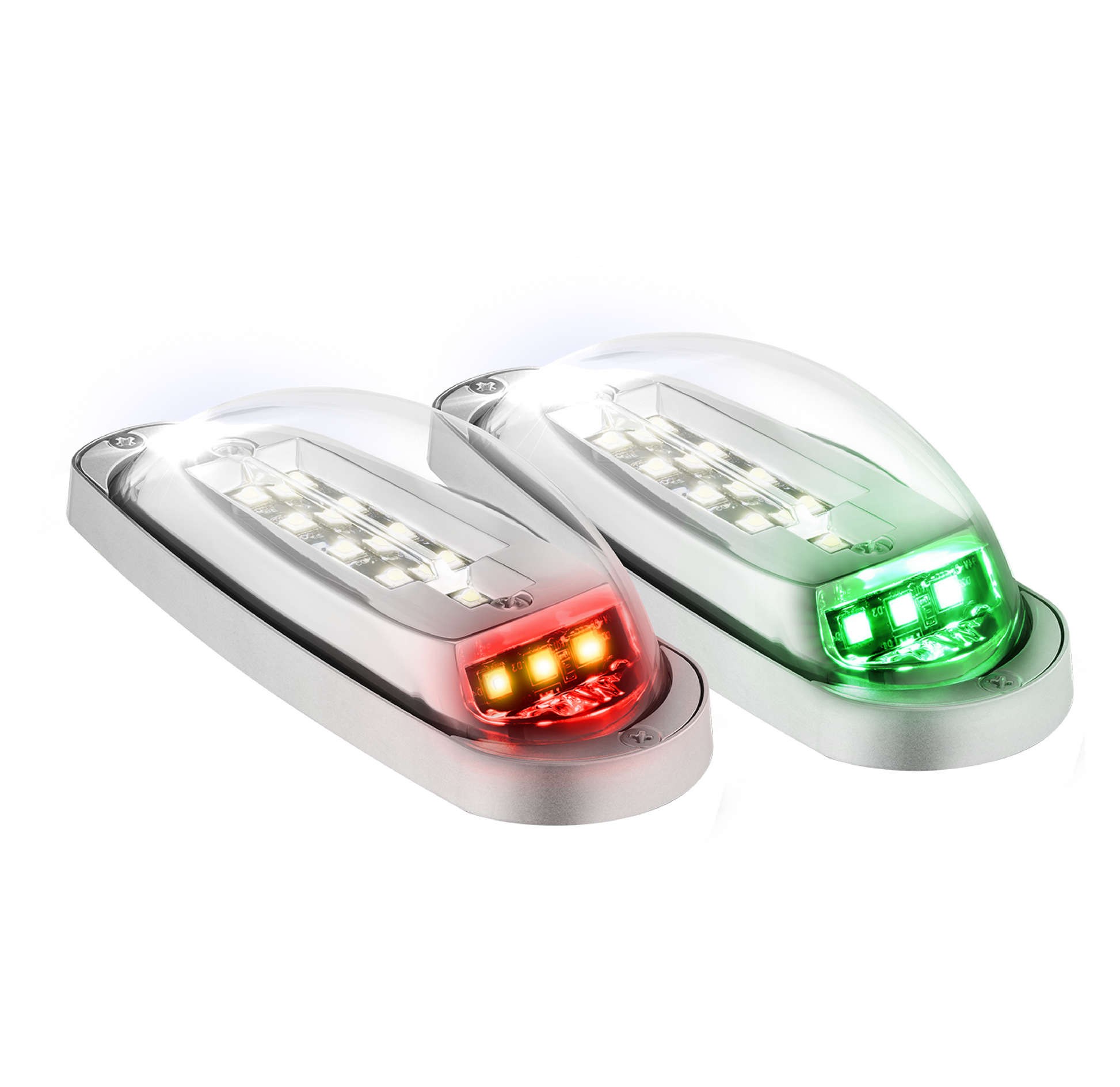

Red & Green: Pair Forward Position & White Tail Position Light/Anti-Collision Light Wingtip Assembly 14 VDC LED-Strobe & Rear Facing White Nav
|

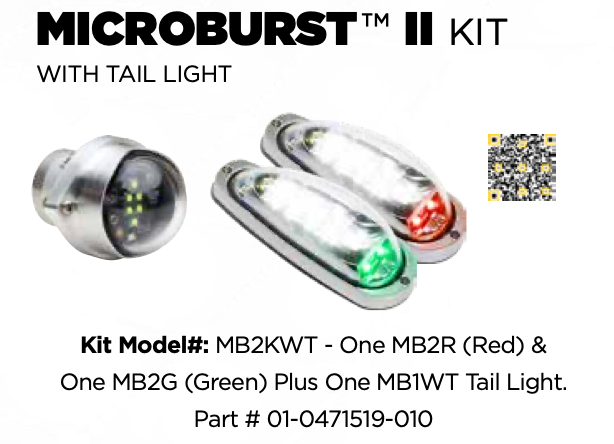

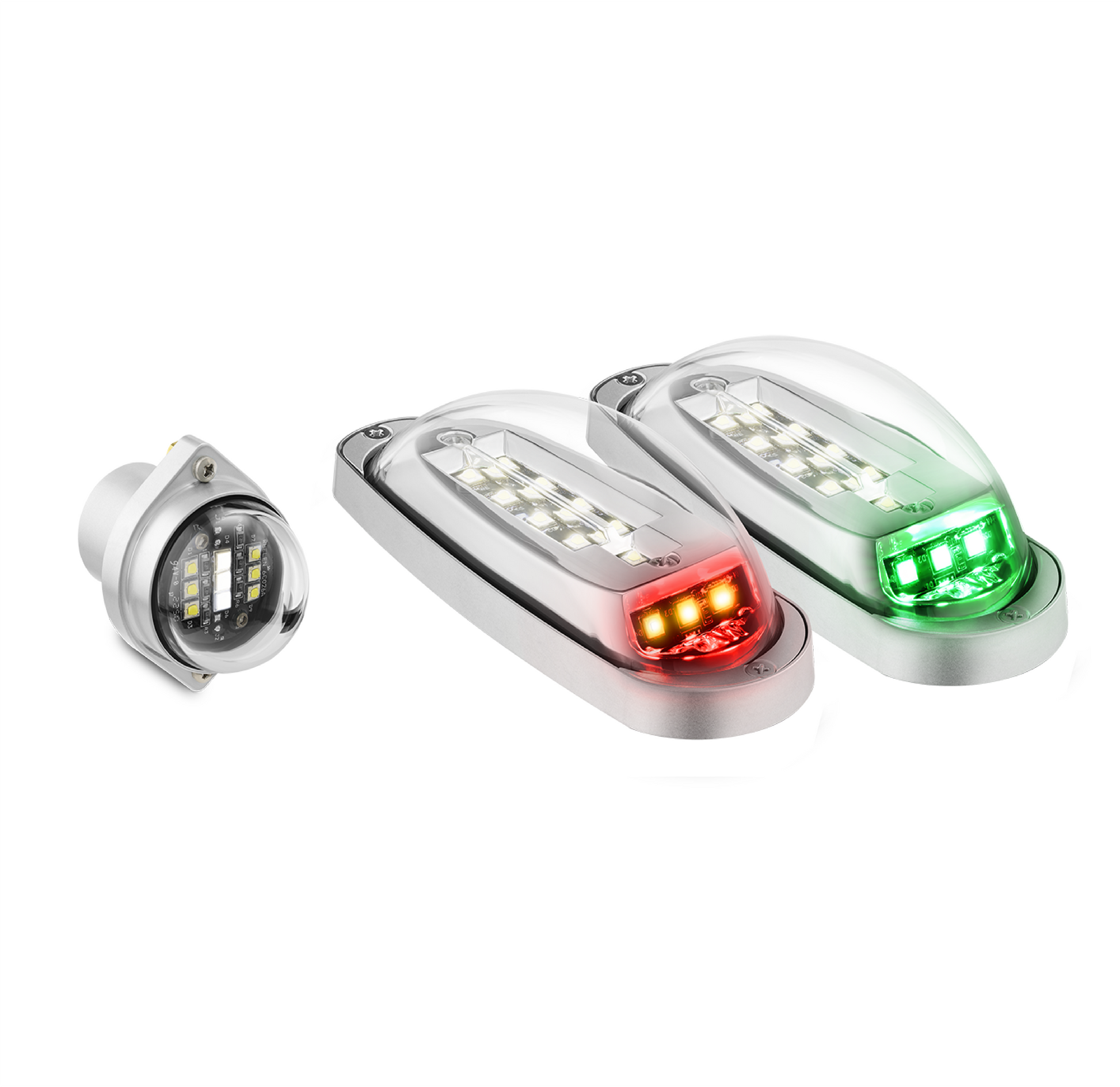

| MB2KWT | 01-0471519-01 |

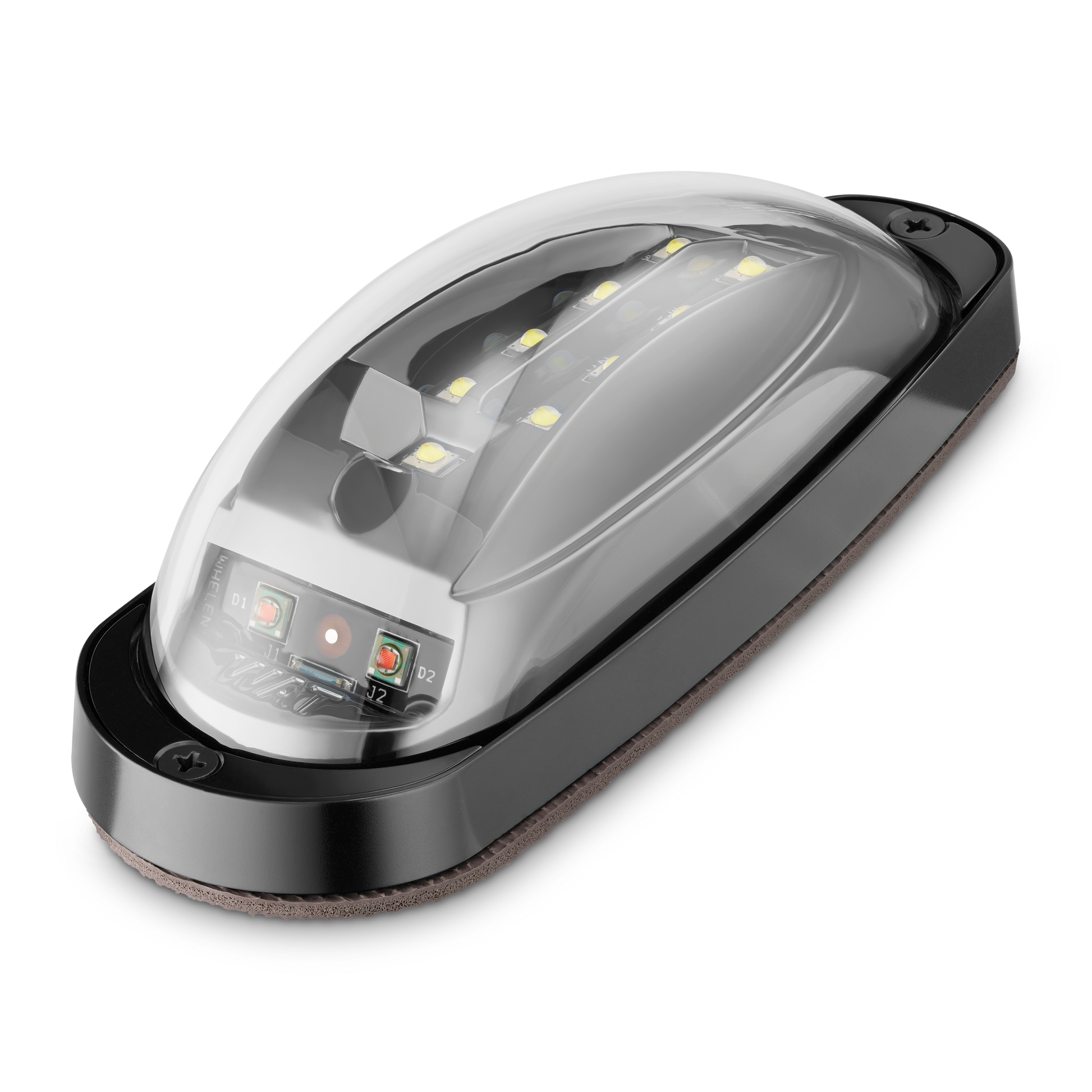

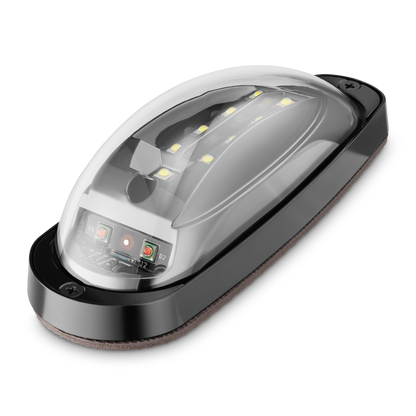

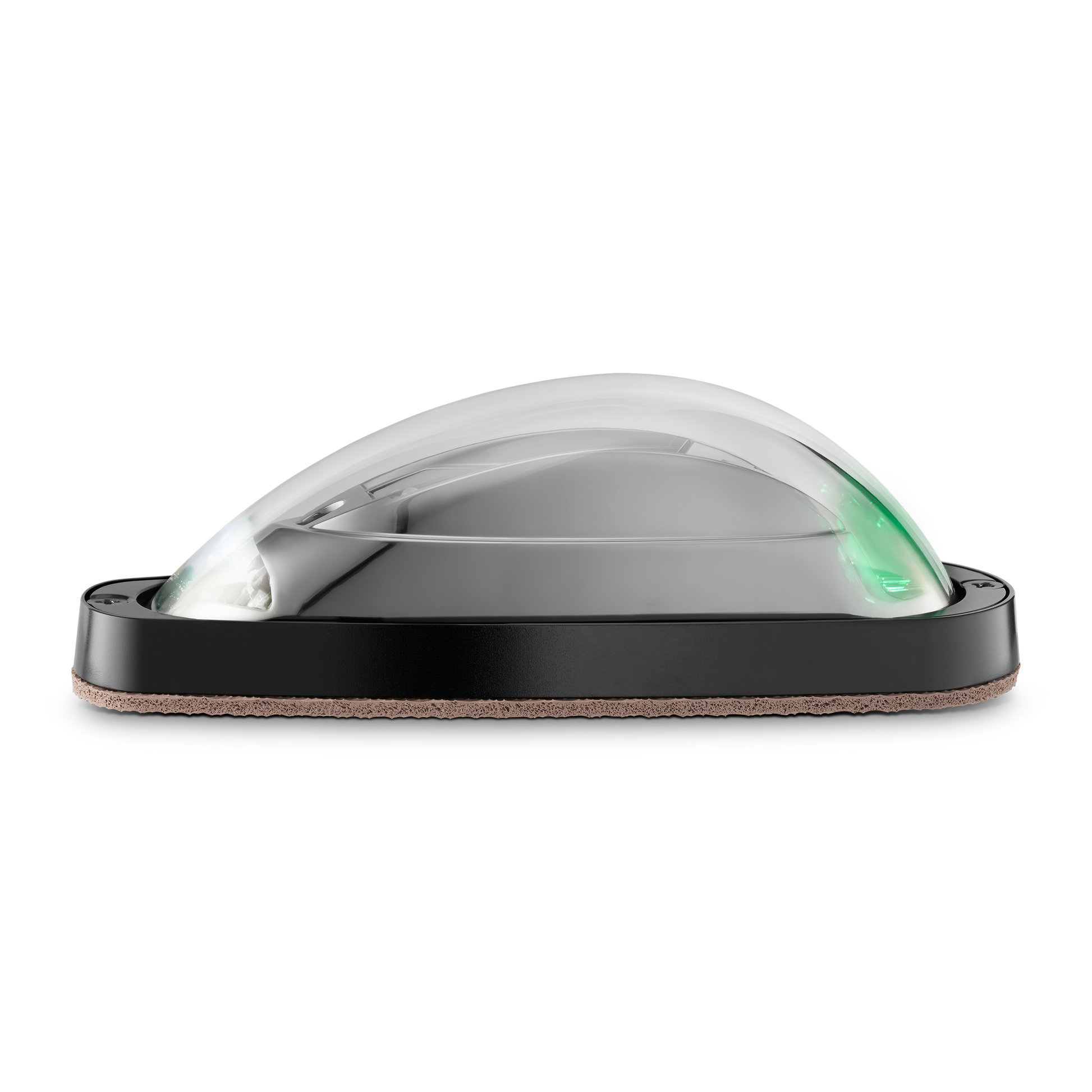

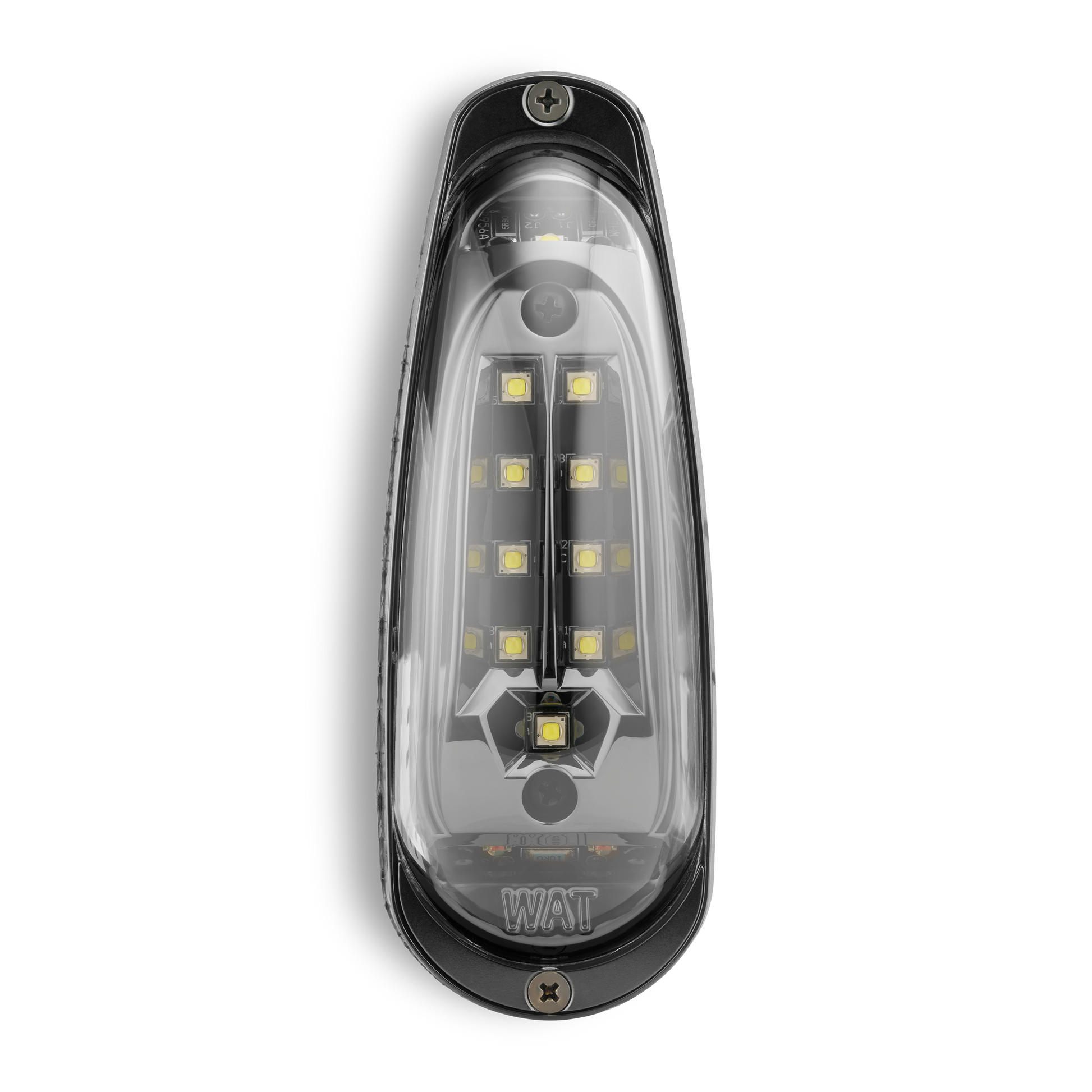

Red & Green: Pair Forward Position Light / Anti-Collision Light Wingtip Assembly
Plus MB1 Tail Position/Anti-Collision Light Assembly 14 VDC |

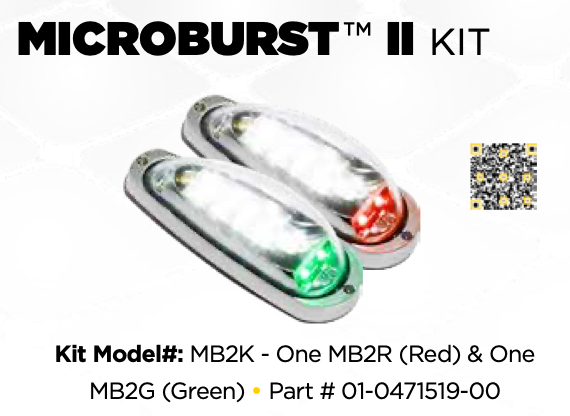

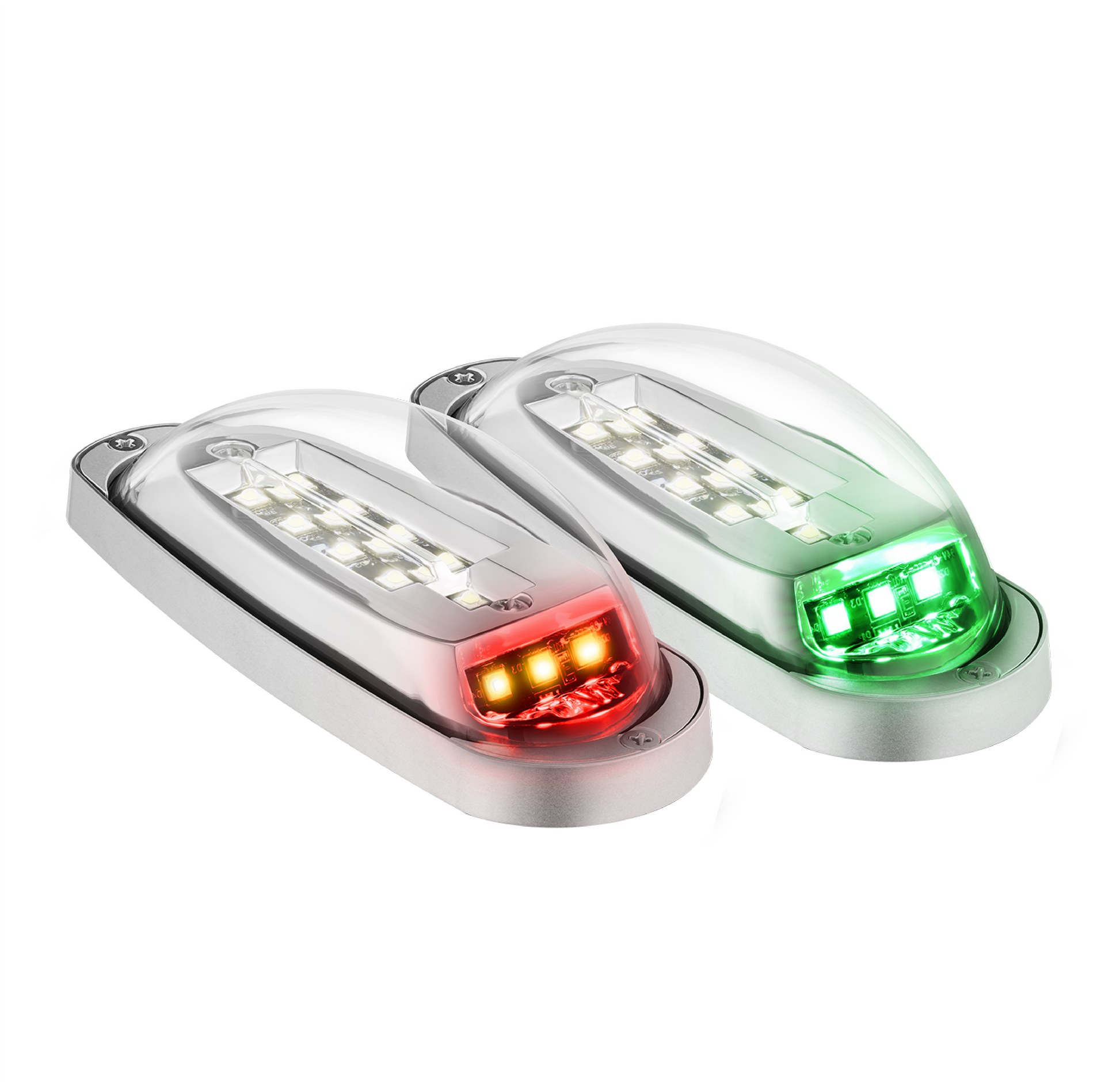

| MB2K | 01-0471519-00 |
Red & Green: Pair Forward Position Light/ Anti-Collision Light Wingtip Assembly 14 VDC
|

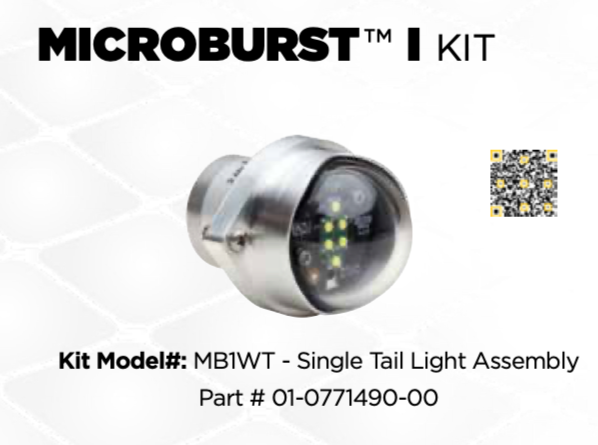

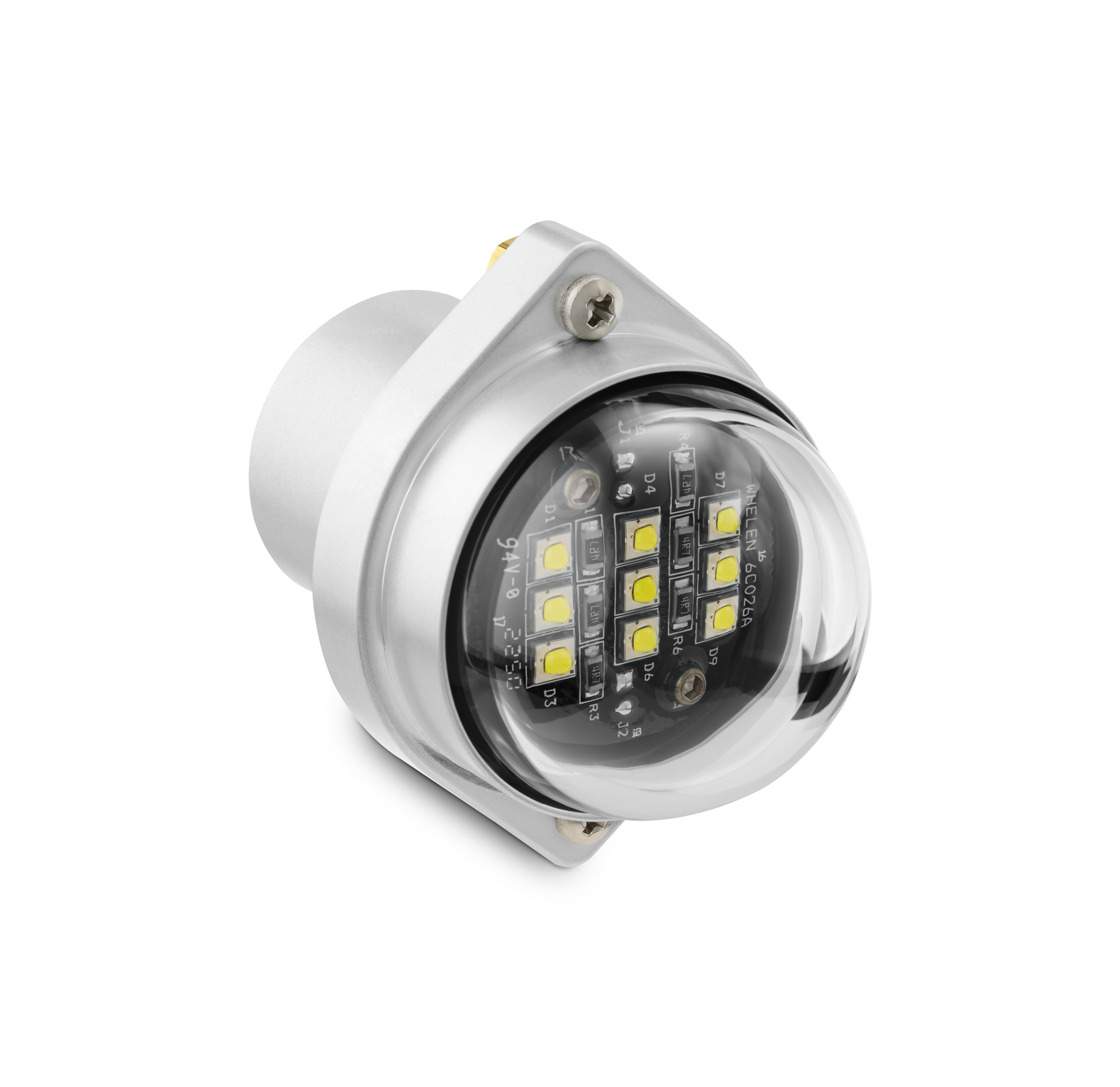

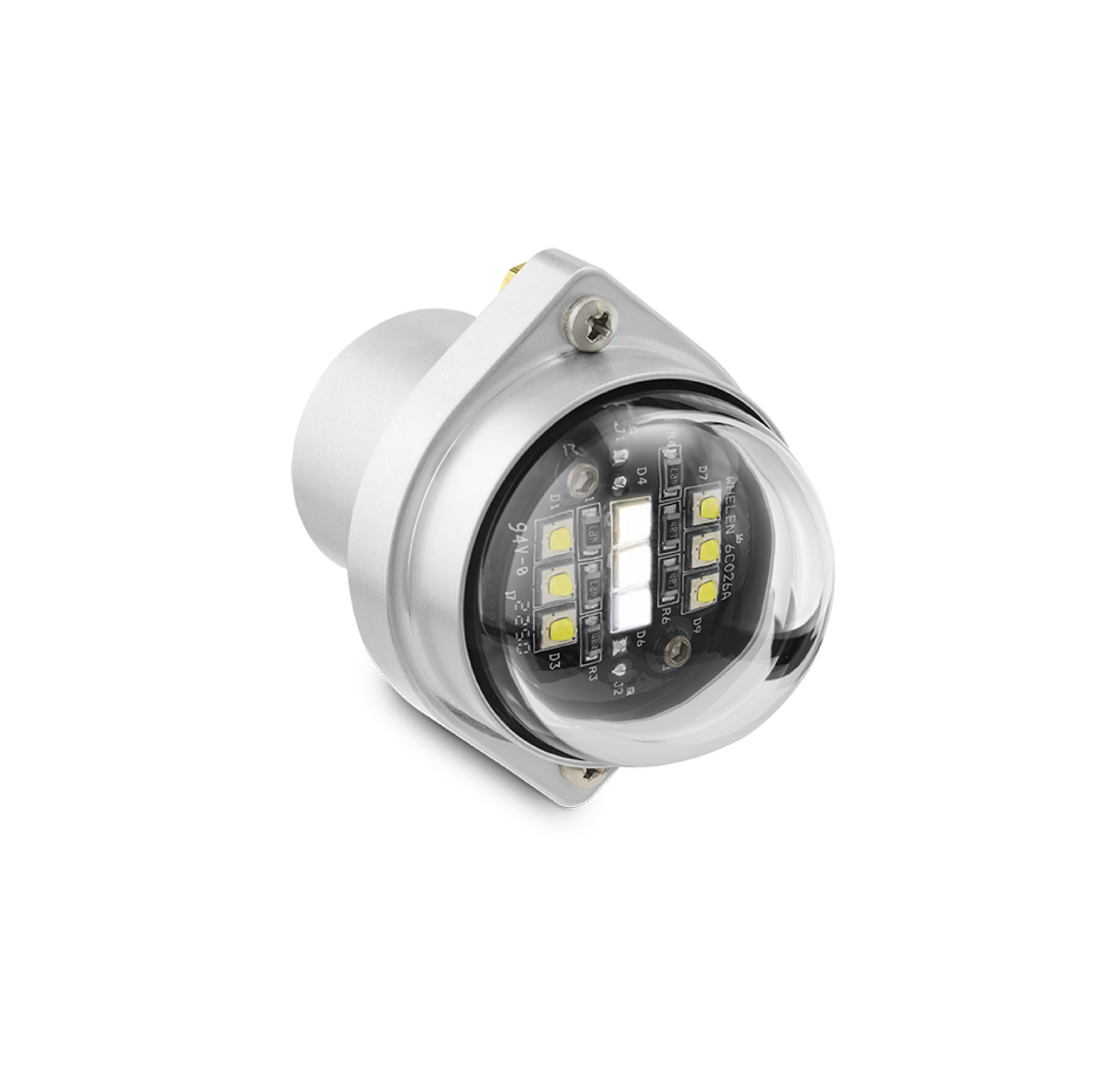

| MB1WT | 01-0771490-00 |

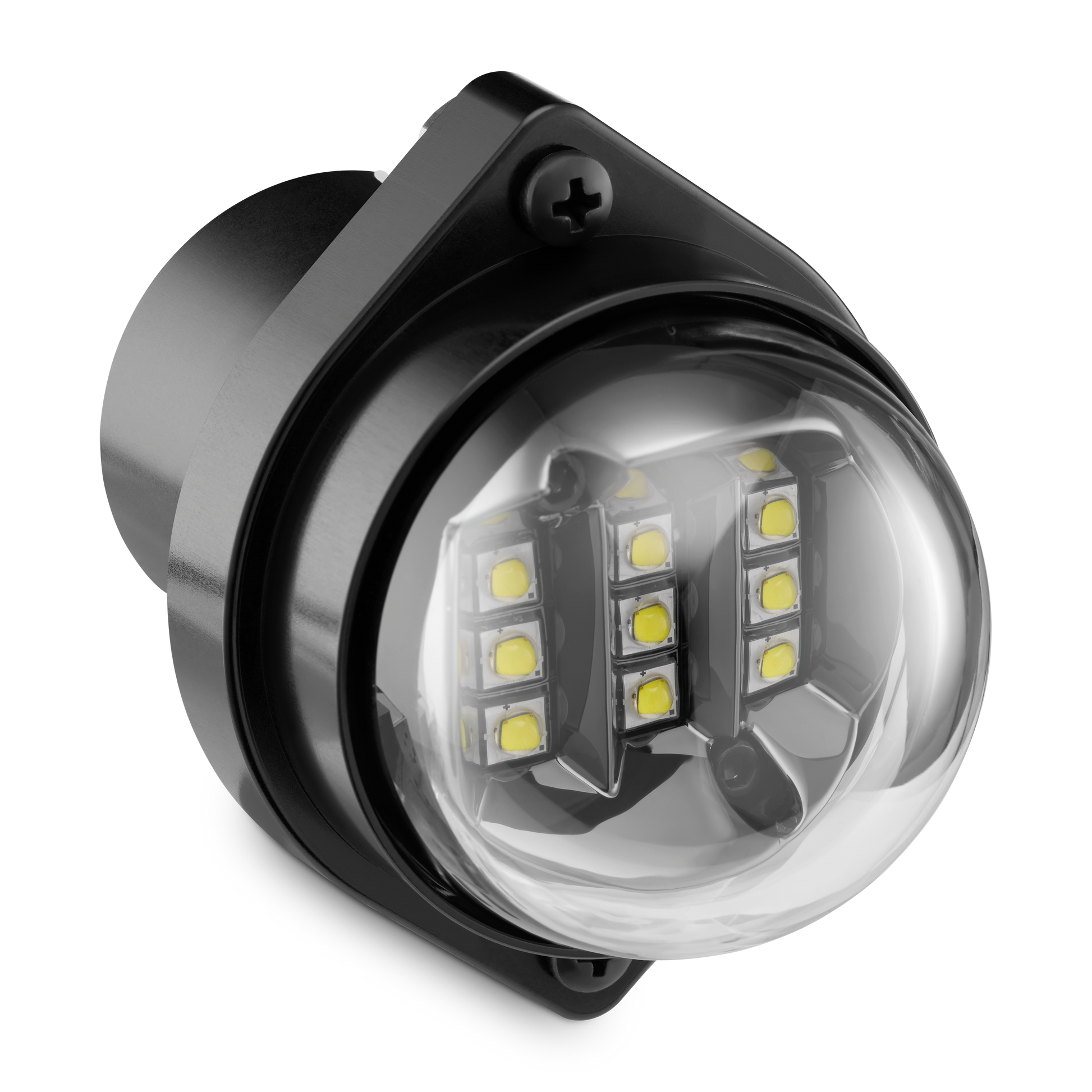

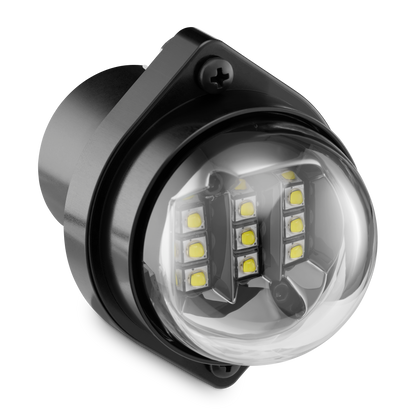

White Tail Position/Anti-Collision Light Assembly14 VDC
|
| MB3GST | 01-0771507-03 |
GreenForward Position & White Tail Position Light/Anti-Collision Light Wingtip Assembly 14 VDC, Stealth (Black)
|
| MB3RST | 01-0771507-04 |
RedForward Position & White Tail Position Light/Anti-Collision Light Wingtip Assembly 14 VDC, Stealth (Black)
|
| MB2GST | 01-0771519-03 |

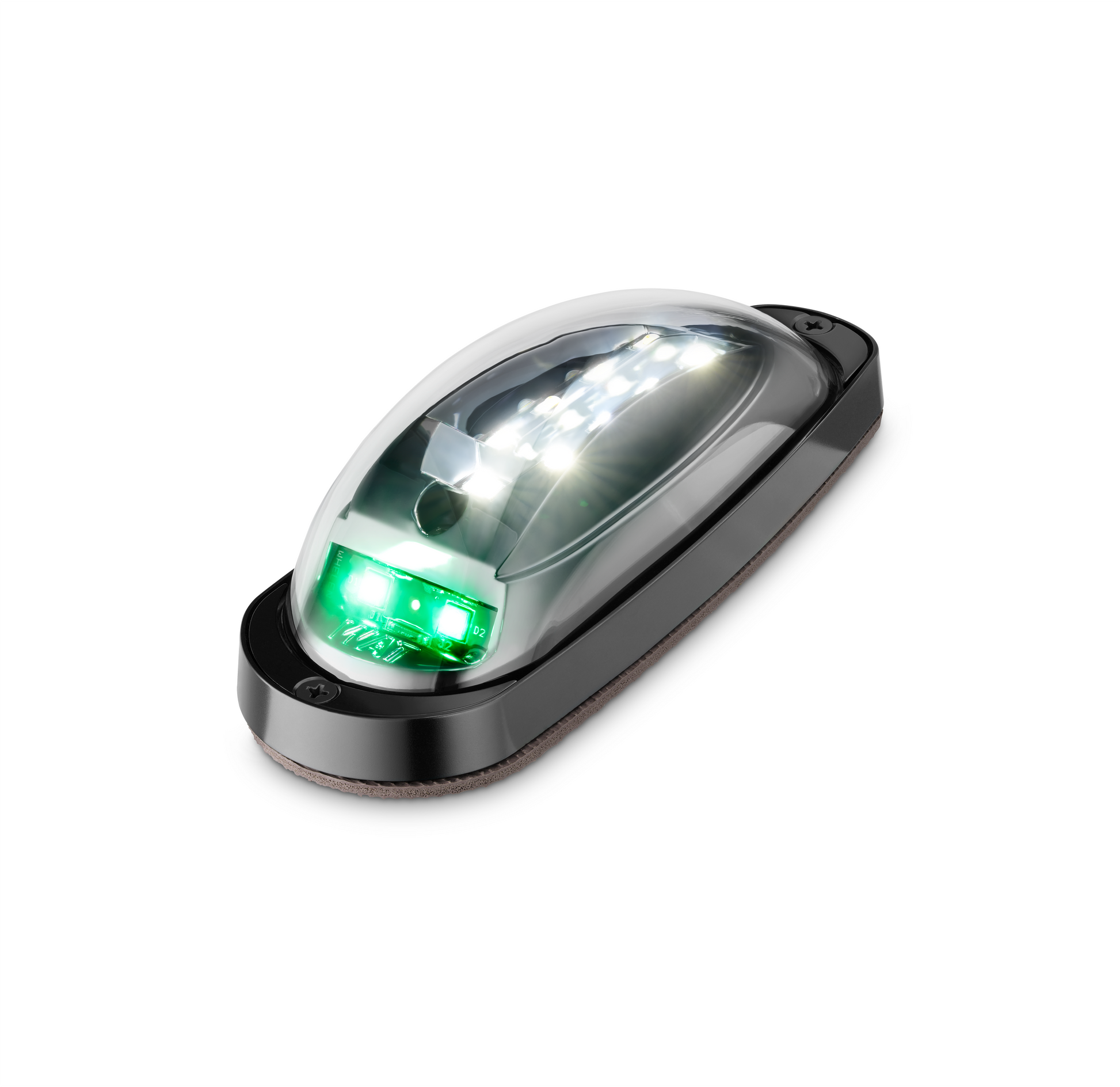

GreenForward Position Light / Anti-Collision Light Wingtip Assembly 14 VDC, Stealth (Black)
|
| MB2RST | 01-0771519-04 |

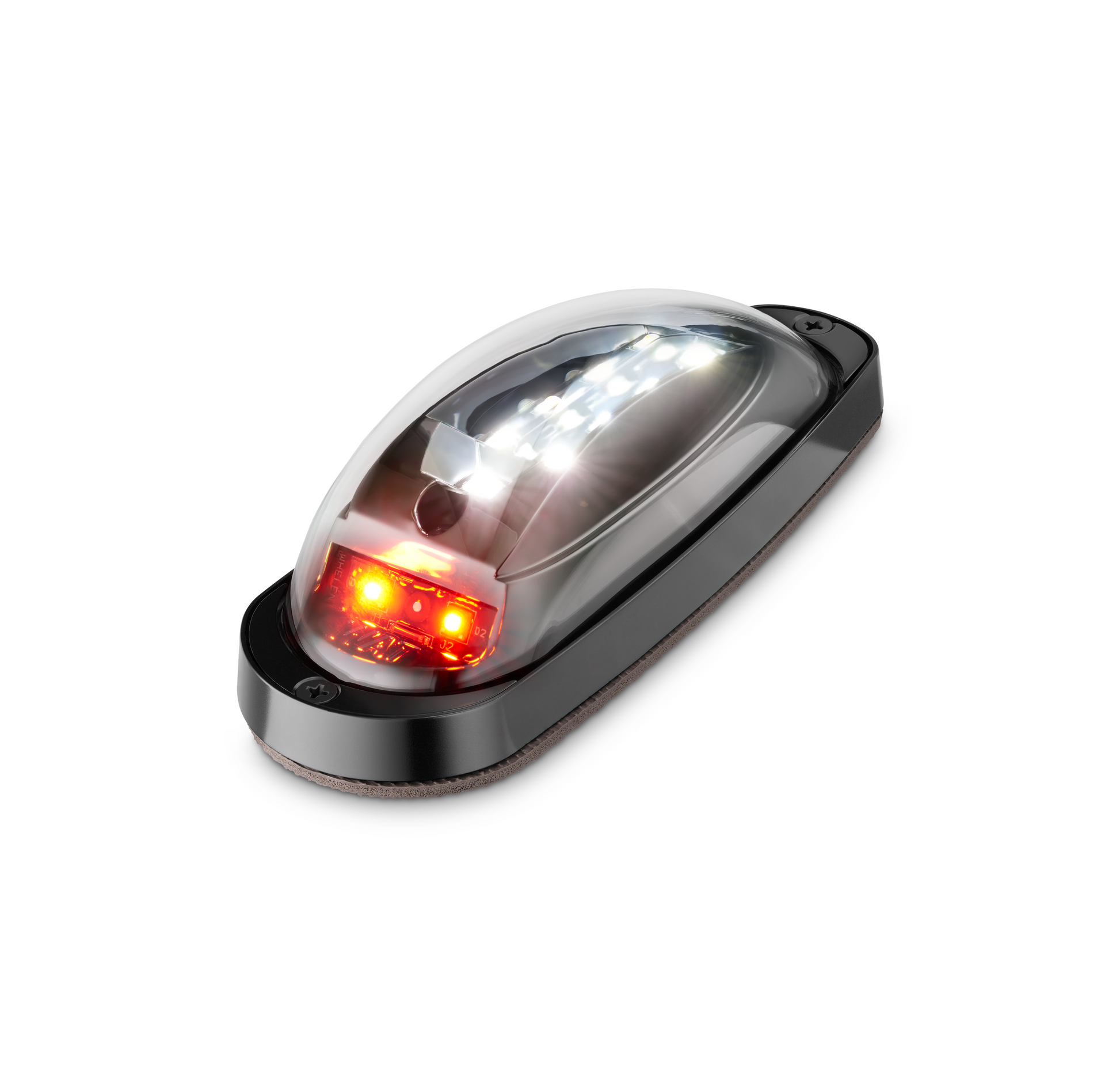

RedForward Position Light / Anti-Collision Light Wingtip Assembly 14 VDC, Stealth (Black)
|
| MB1ST | 01-0771490-01 |

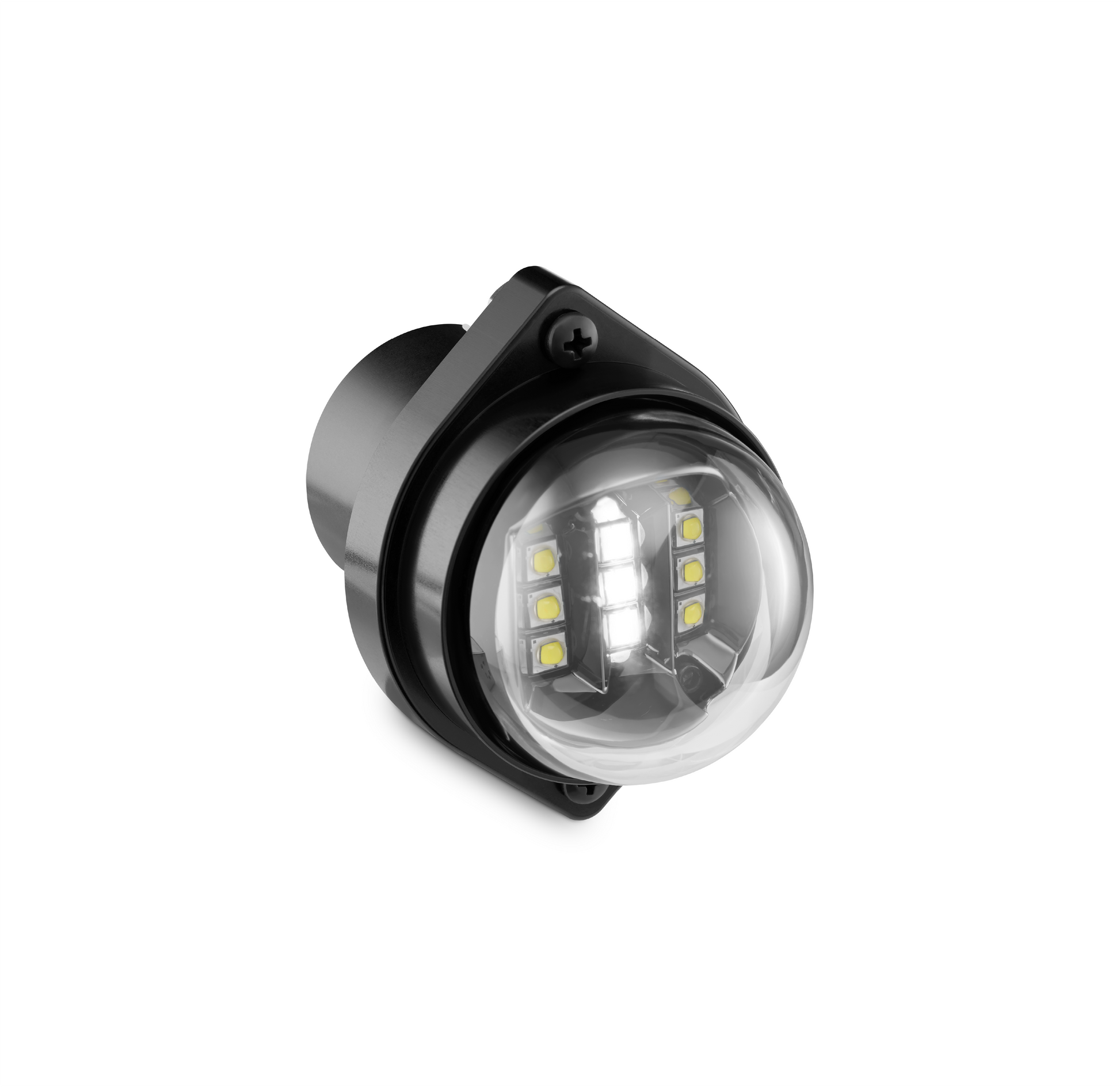

White Tail Position/Anti-Collision Light Assembly14 VDC, Stealth (Black)
|
