HDACF Series Power Supply

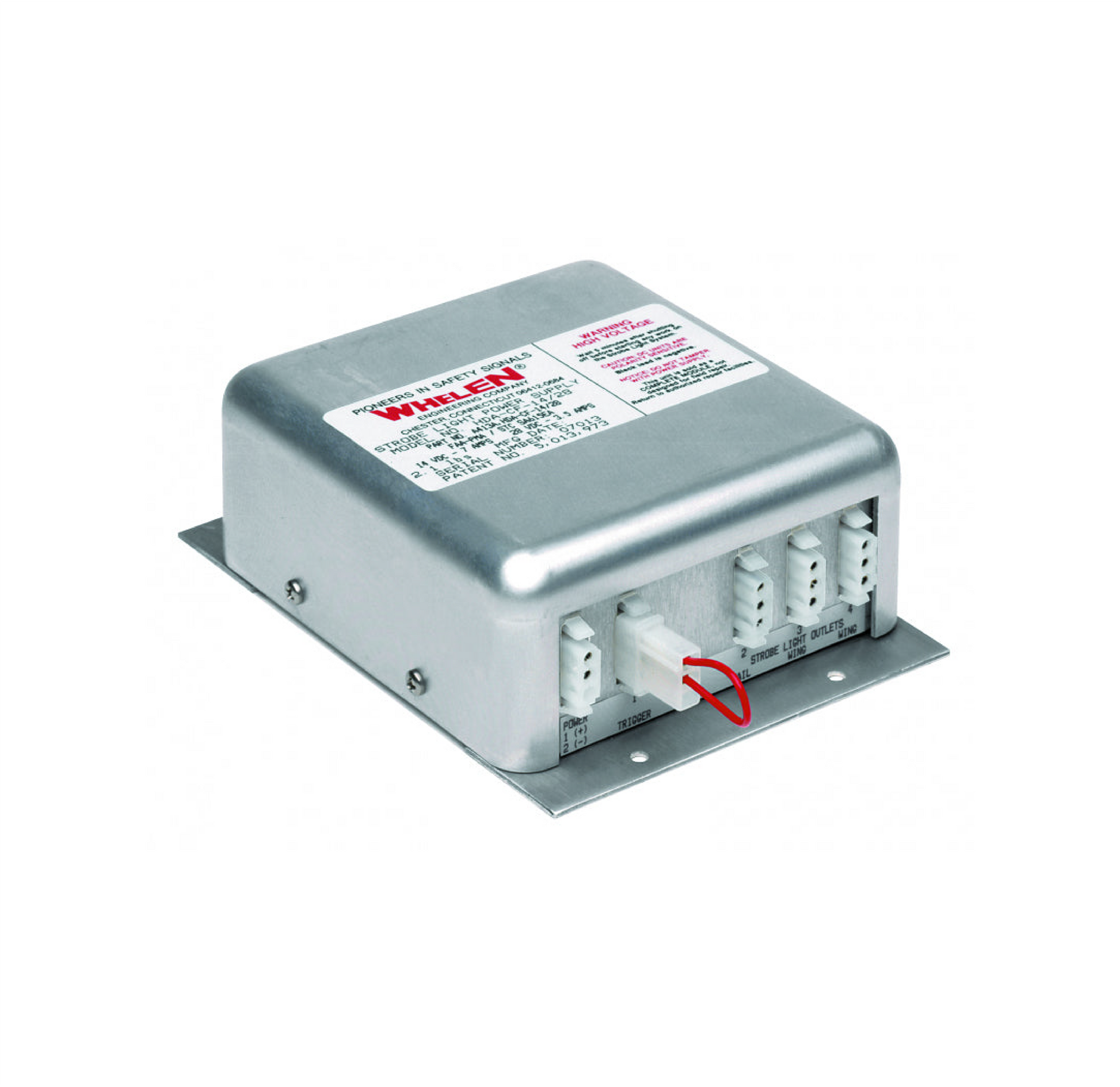

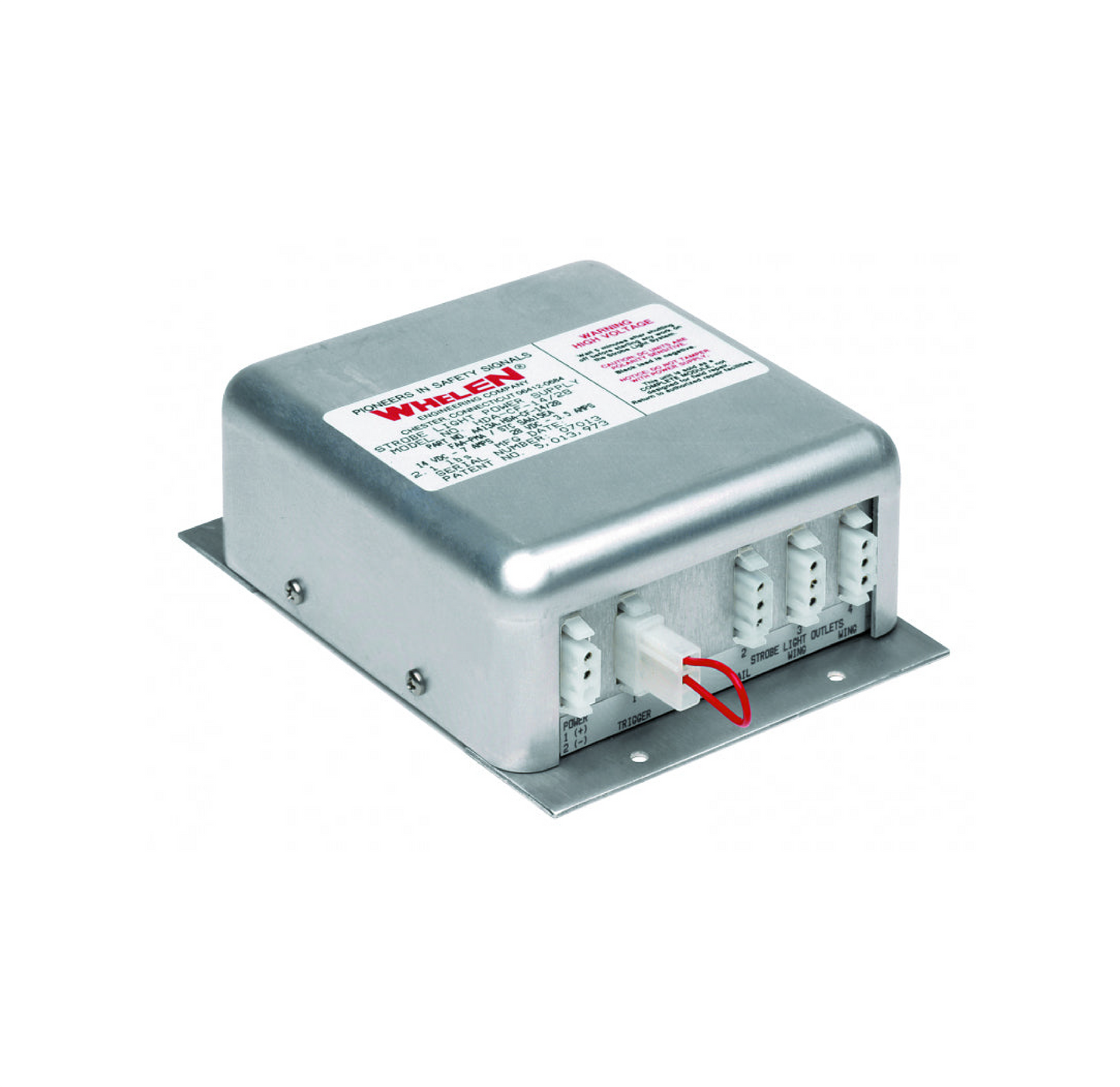

Product image 1HDACF Series Power Supply
Product image 2HDACF Series Power Supply

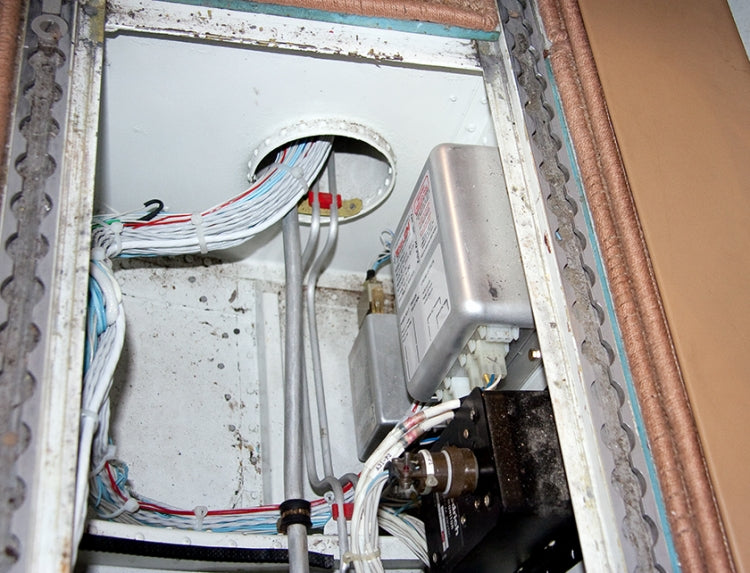

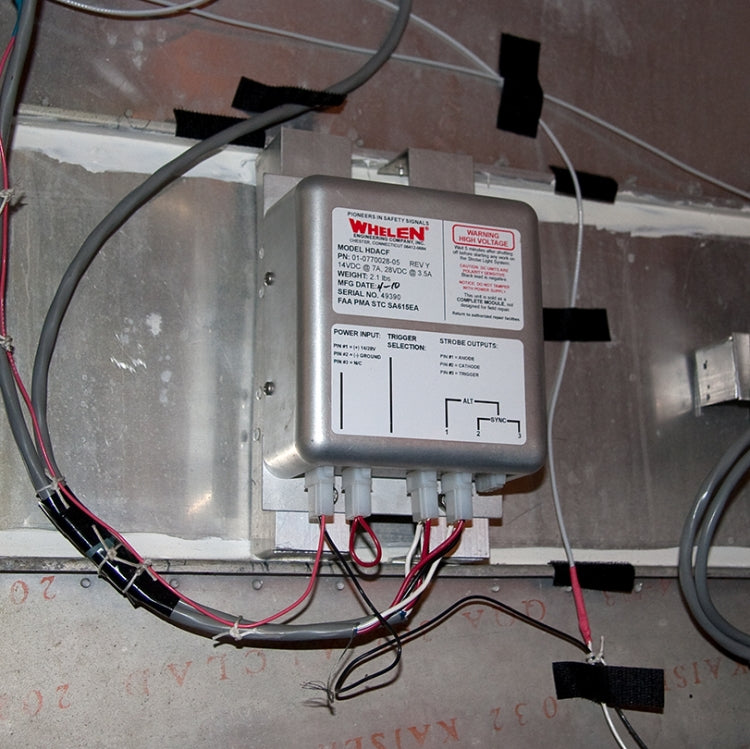

Product image 3HDACF Series Power Supply Installed

Model HDACF series provides simultaneous flashing, alternate flashing or both. It will operate one, two or three strobe lightheads. Operating the wing tip strobes in the alternating mode will provide an accumulated 42 joules of power to each light. When in the simultaneous mode, the accumulated power to each light is 21 joules. In the three light modes, the wingtips will flash simultaneously at an accumulated 21 joules each, they alternate with a third light operating at an accumulated 42 joules.

Tech Specs
  • Drawing Number: 70028
  • Power Consumption: 7.0 Amps @ 14 VDC; 3.5 Amps @ 28 VDC
  • Weight: 2.1 lbs. (953gm)
  • Length: 5.50h (140mm) Width: 5.0h (127mm) Height: 2.37h (60mm)
Model Part # Description STC Approvals
HDACF 01-0770028-05 Power Supply, A413AHDACF-14/28V STC SA615EA.pdf FAA/PMA. pmasup1
Additional Information

Model: HDACF

On the trigger selector outlet, a switch mounted in place of the jumper will allow wing tip outlets 2&3 to be turned off, while the tail outlet 1 will remain on. This function is commonly used when the third light is for ground operations. This power supply will operate from 10 to 30 VDC.
