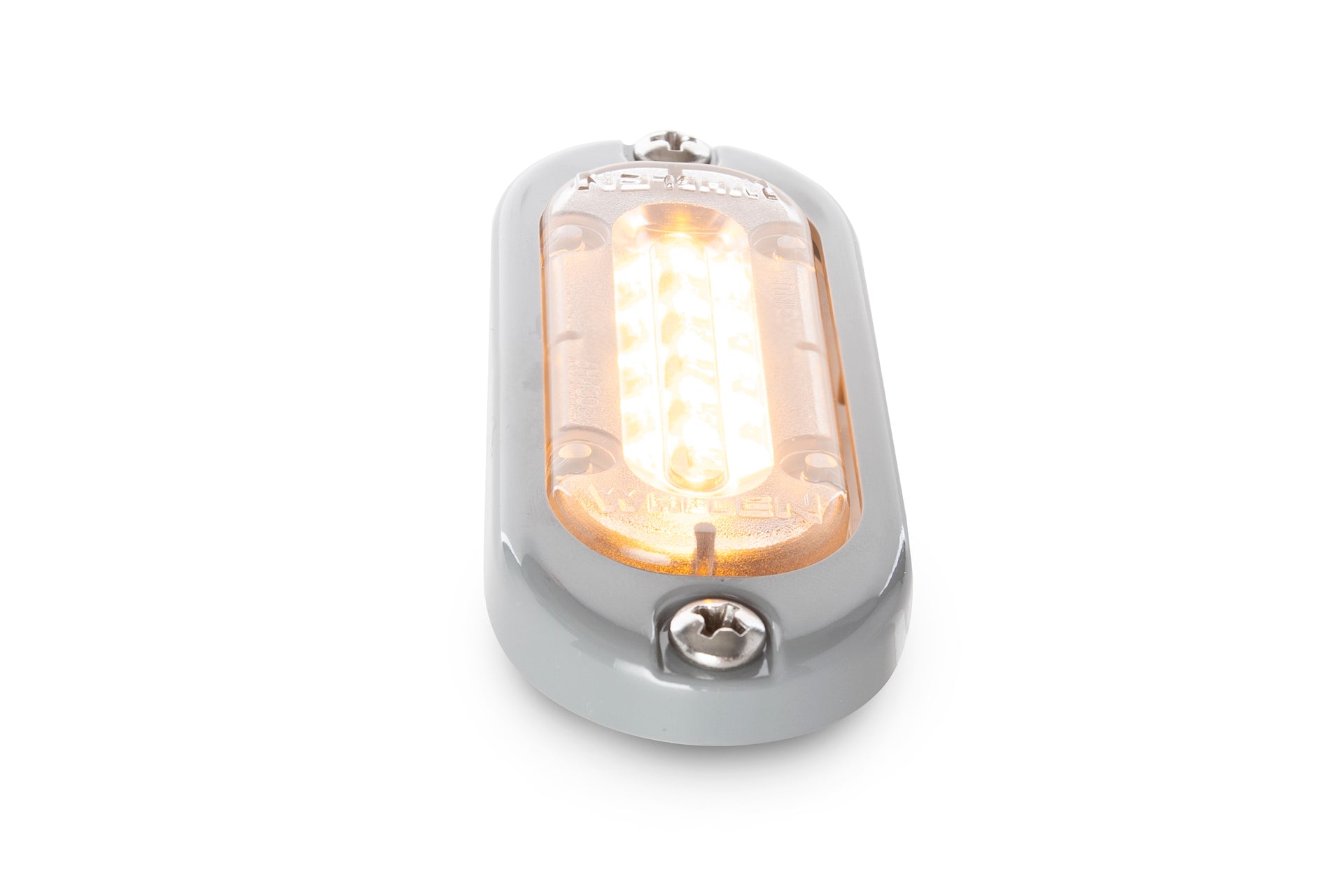

Product image 1

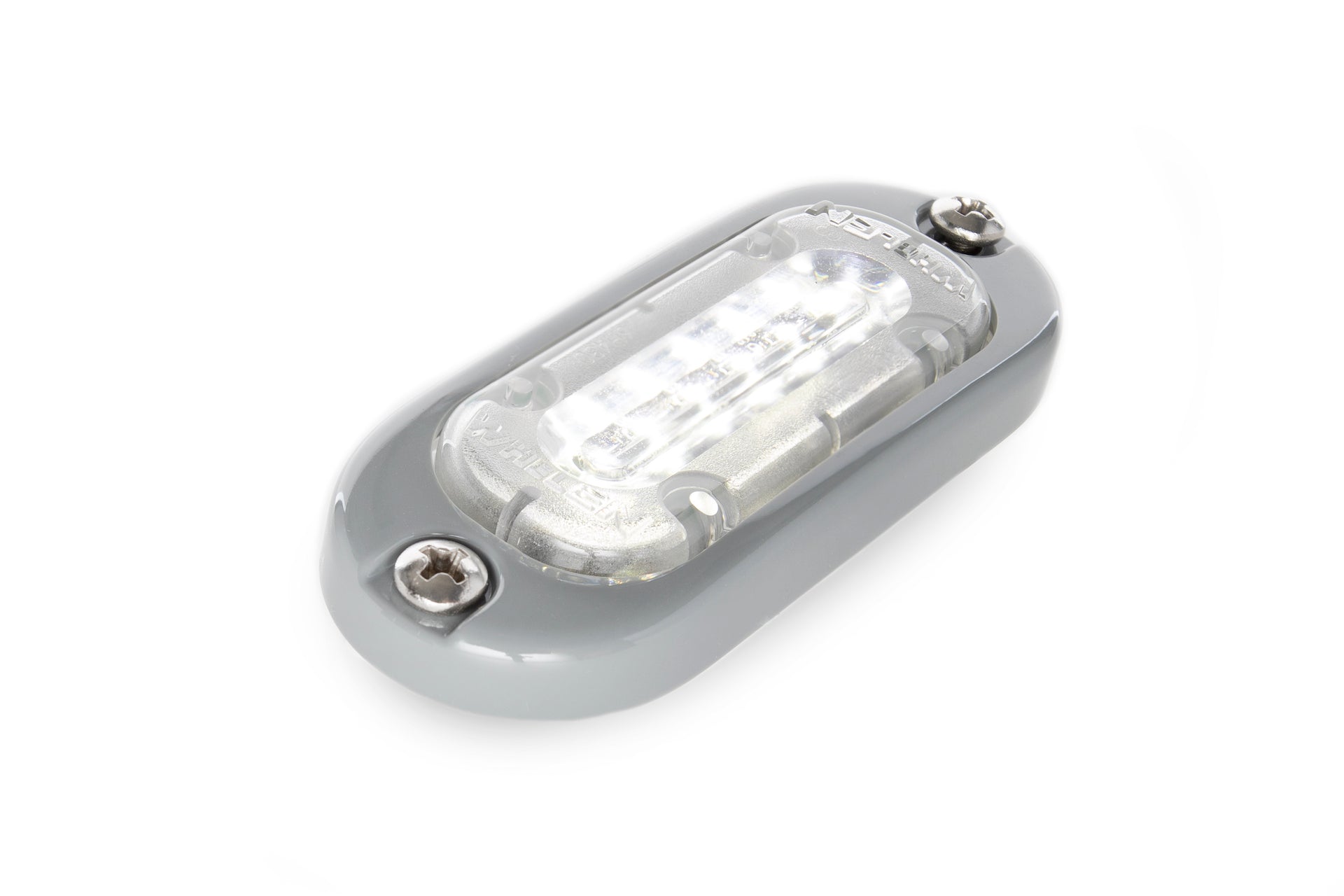

Product image 2

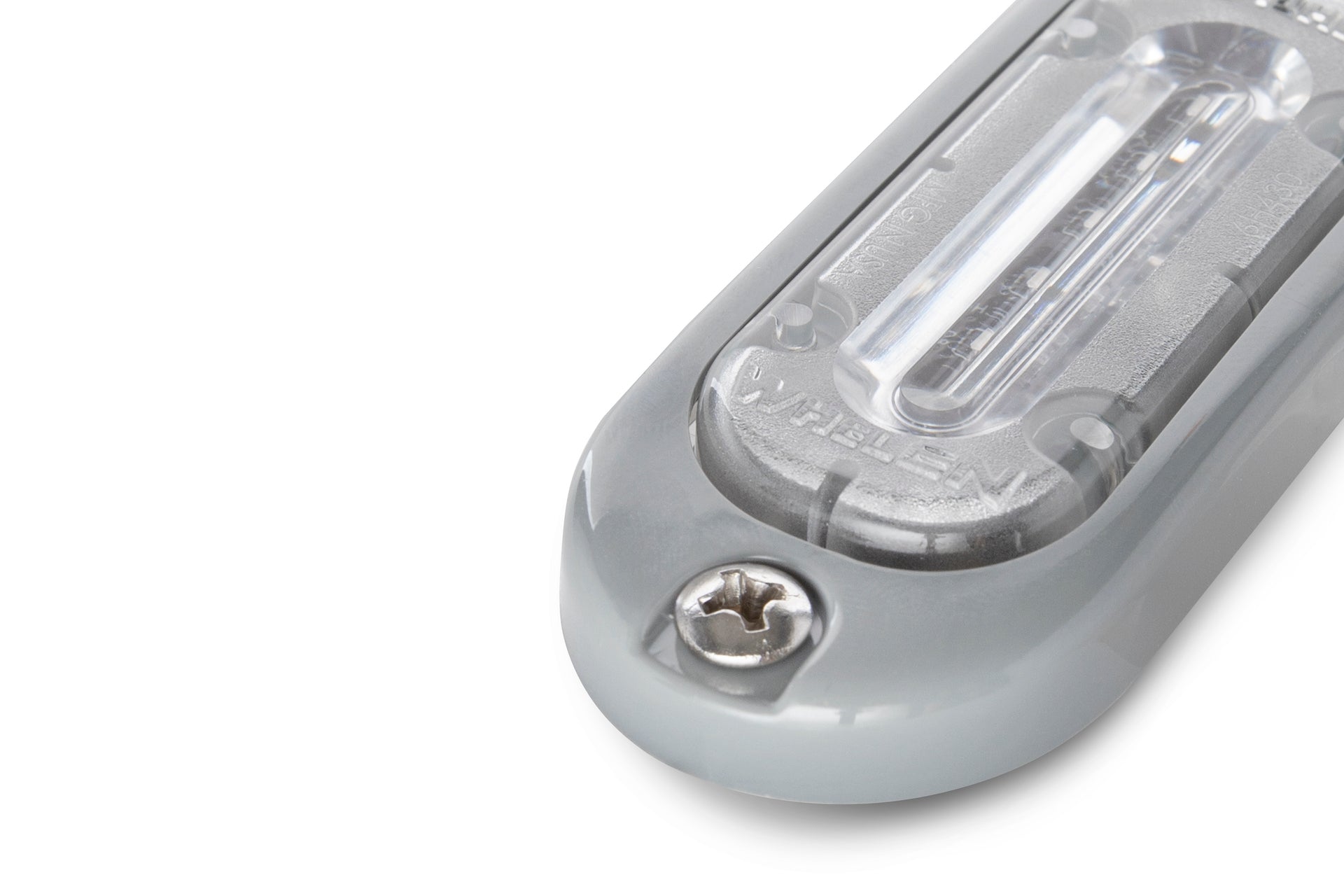

Product image 3

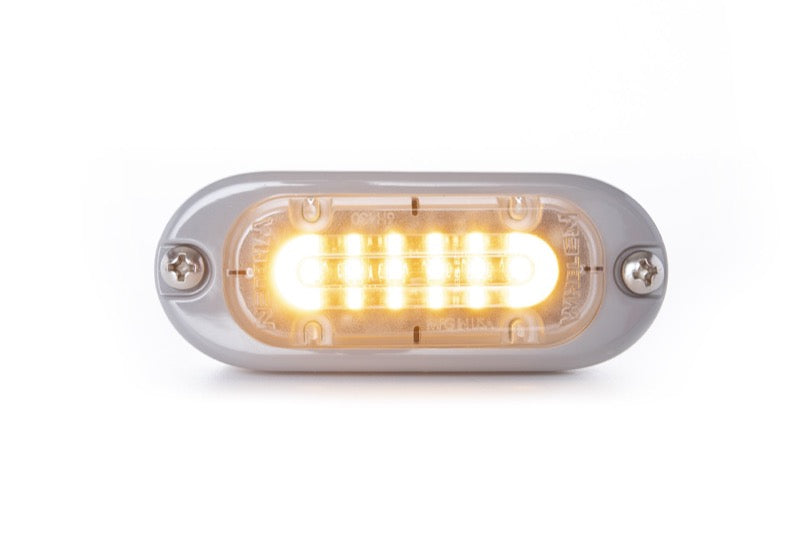

Product image 4

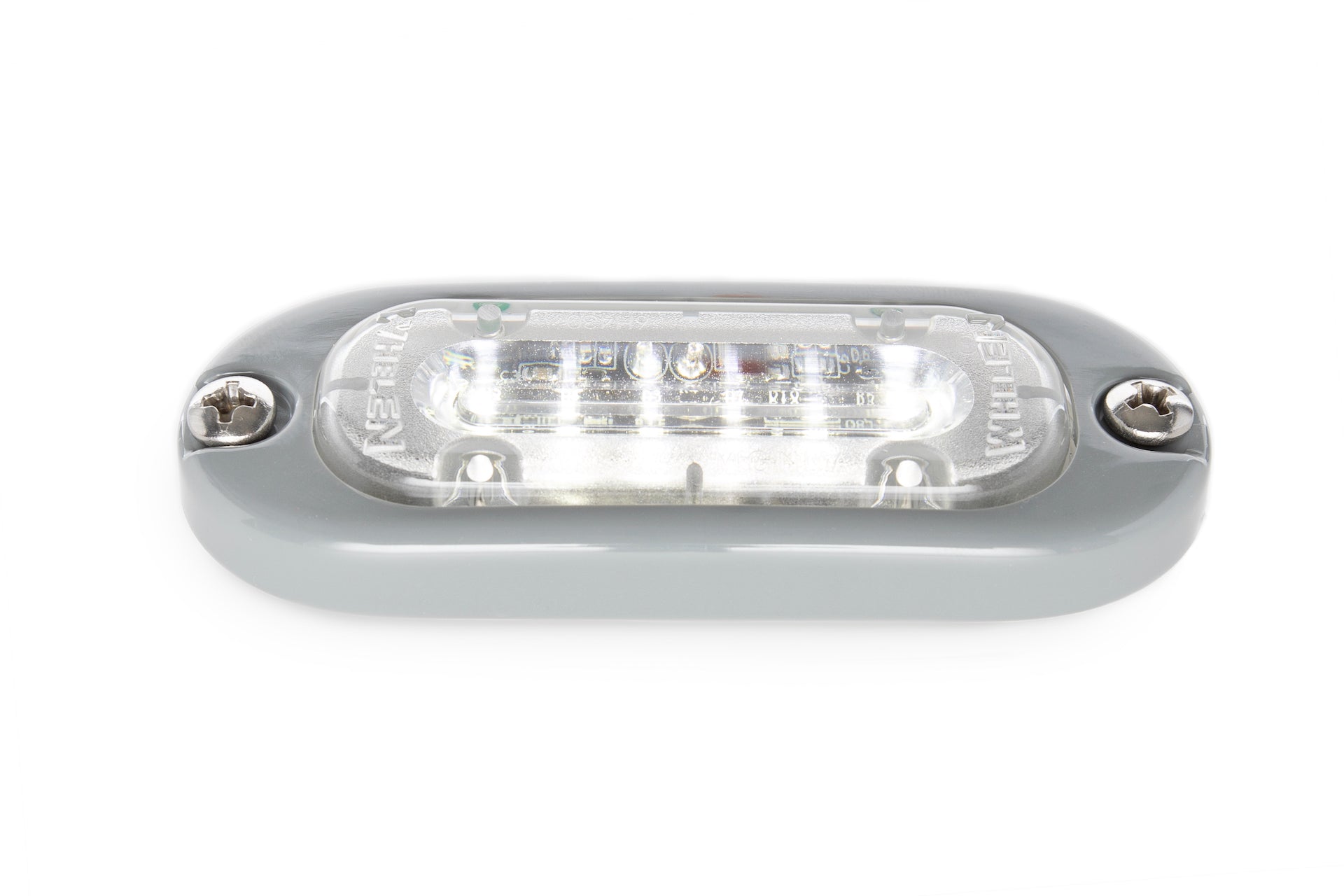

Product image 5

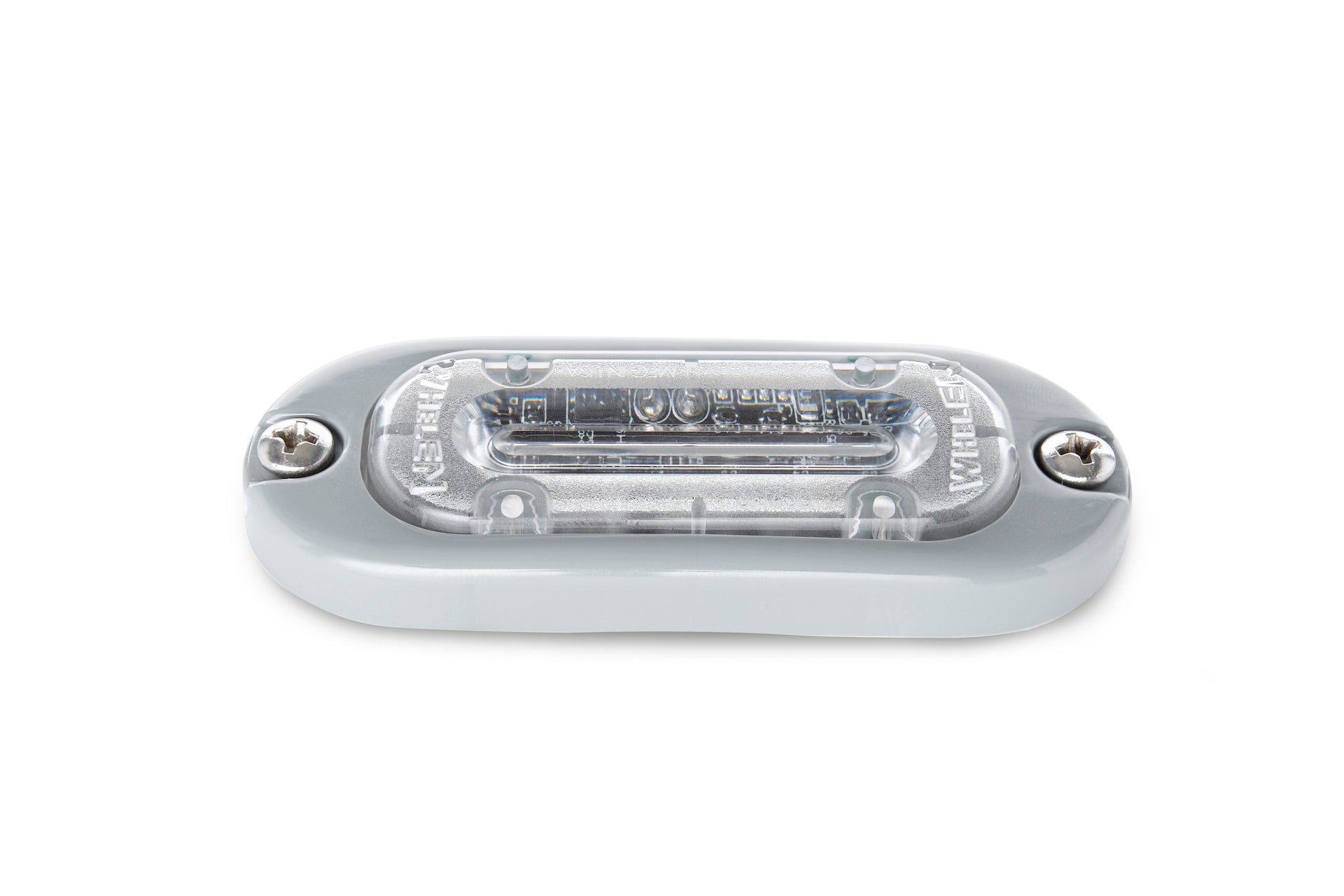

Product image 6

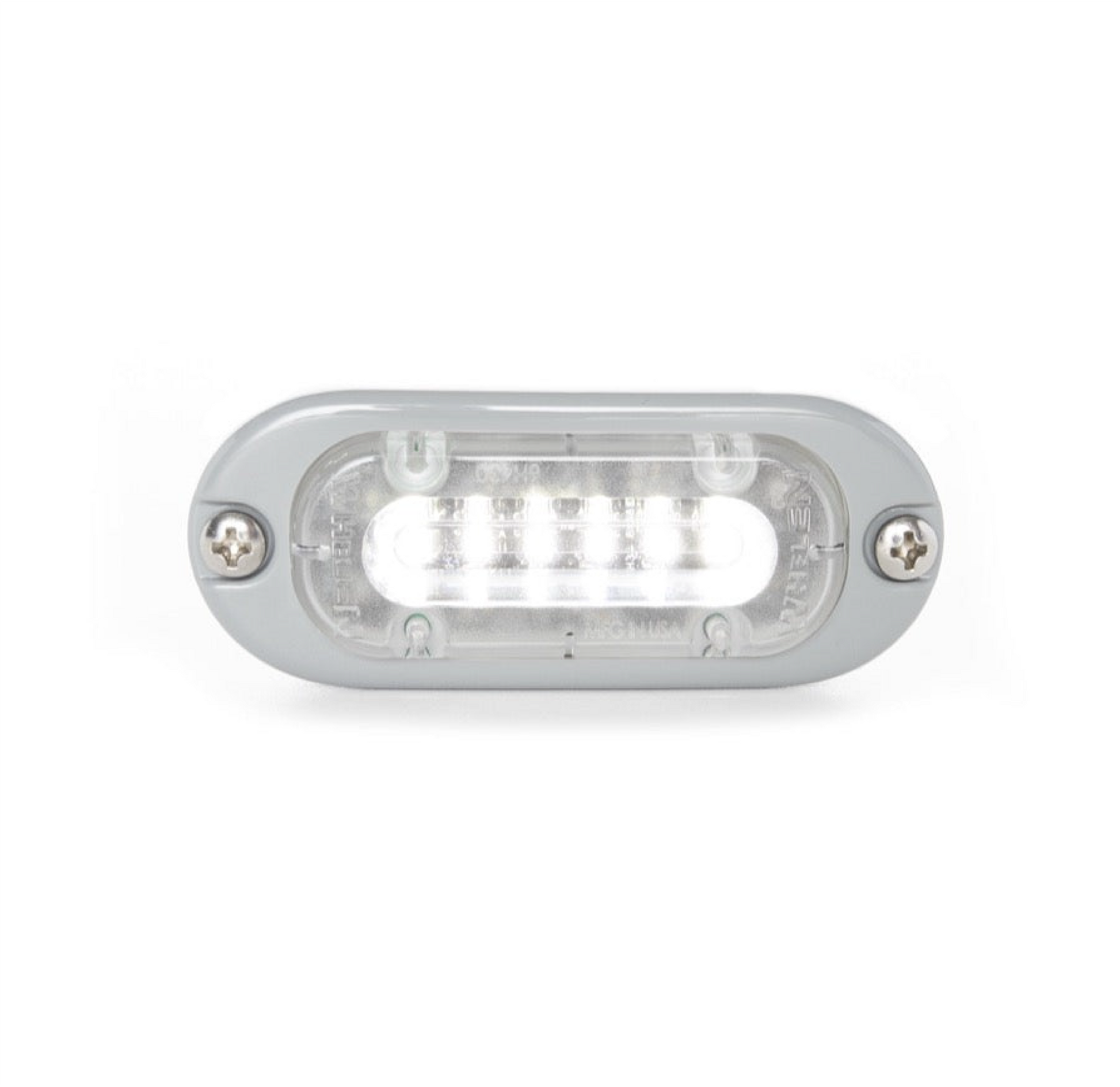

Product image 7

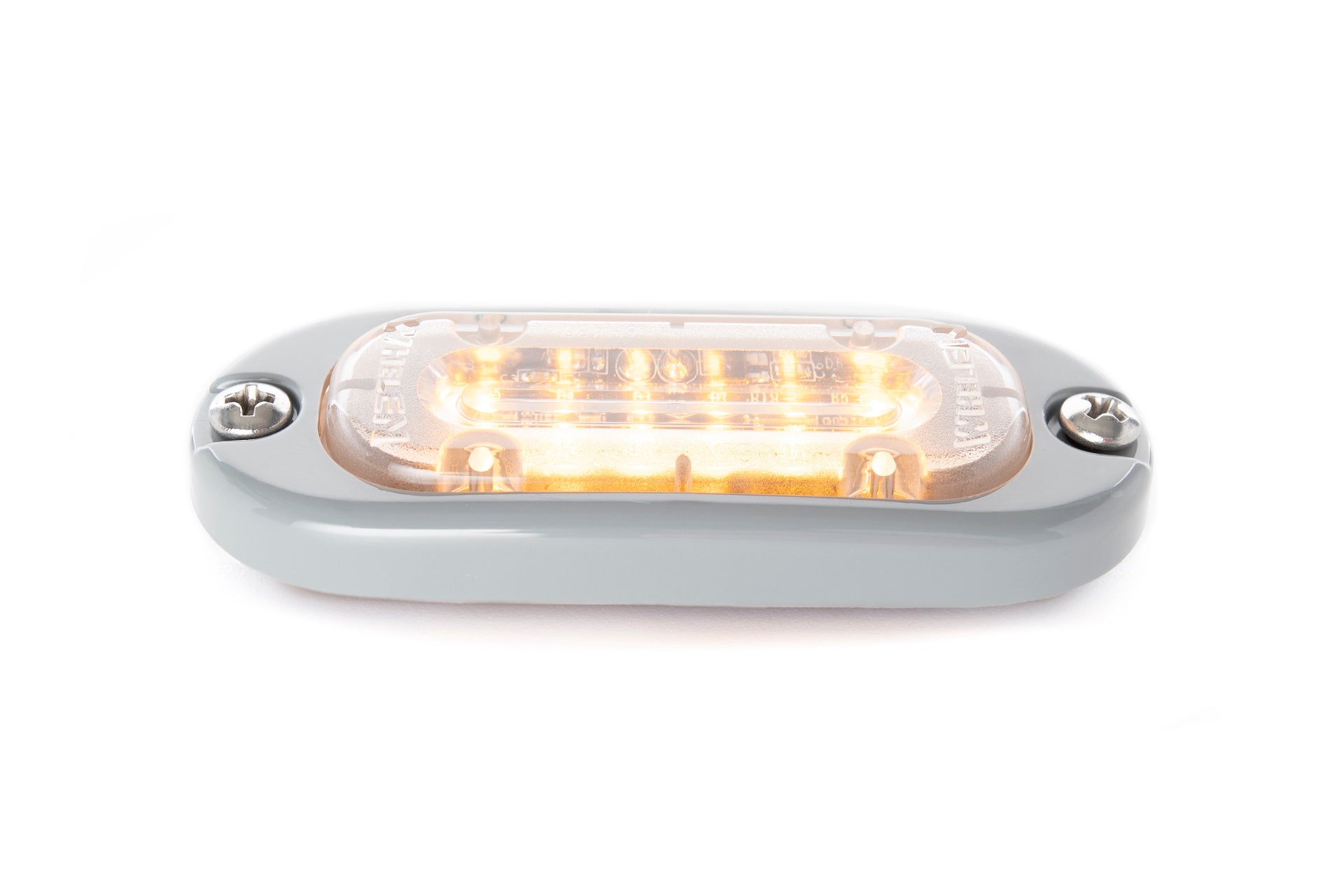

Product image 8

Product image 9

Product image 10

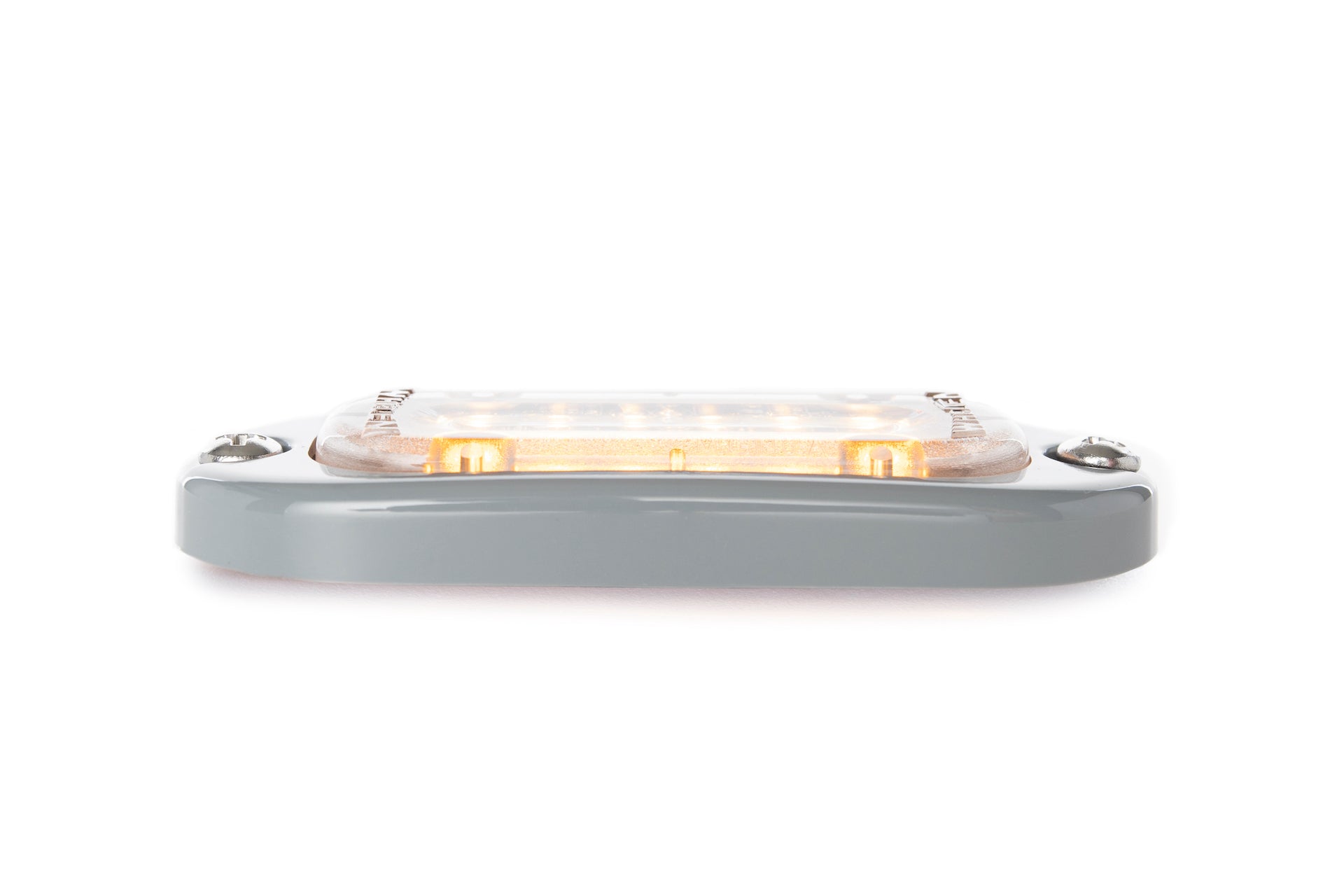

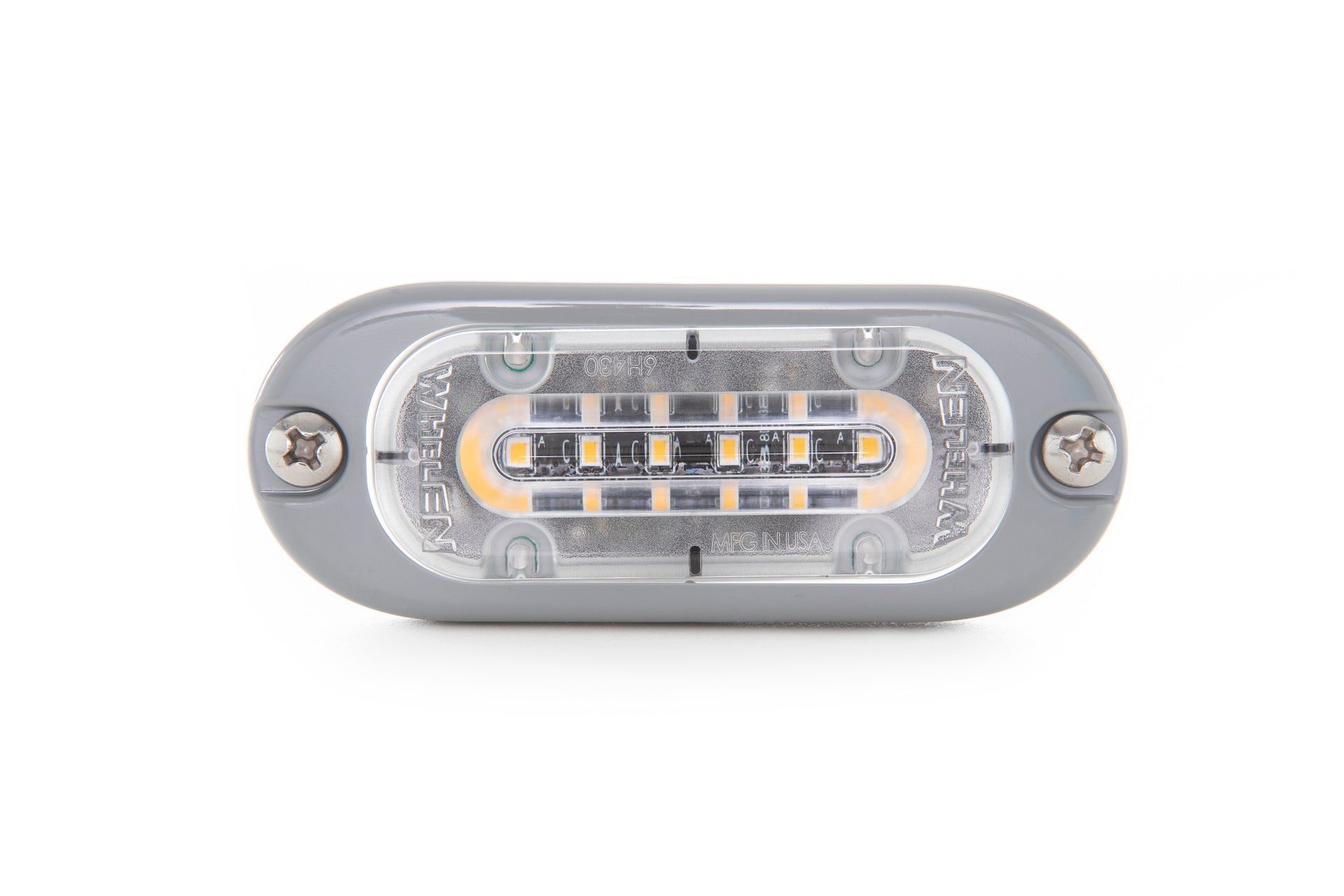

With a depth of only 1/2", the sleek Vector Series provides high performance warning or illumination in an extremely compact design.
AVL Vector Series
Tech Specs
- SAE Class 1 Certified (single color only)
- Linear Super-LED optics
- Available in Amber or White
- Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals Synchronize to other WAT sync products
- Easily surface mounts with two screws Includes Cray flange and a 4-wire 6" pigtail Rated IP67 for du.st and water resistance 12VDC
- Single color amp draw • 0.4 amps (peak)/ 0.16 amps(avg)
- DUO color amp draw· 0.2 amps per color
- (peak)/ 0.08 amps per color (avg)
- Size: 1.50" (3.81cm) H x .so· 0.27cm) D x 3.34" (8.48cm)L
- Create warning application for towing equipment or driving on the AOA (Airport Operations Area)
- Five year warranty
- Accessories - FLCBK2 & FLCBK1
Part & Model Numbers
Model |
Part Number |
Description |
|
|
Vector Amber |
FLVW
|
01-0672092-300
|
Vector White |
