AVL Junior Incursion Lightbar

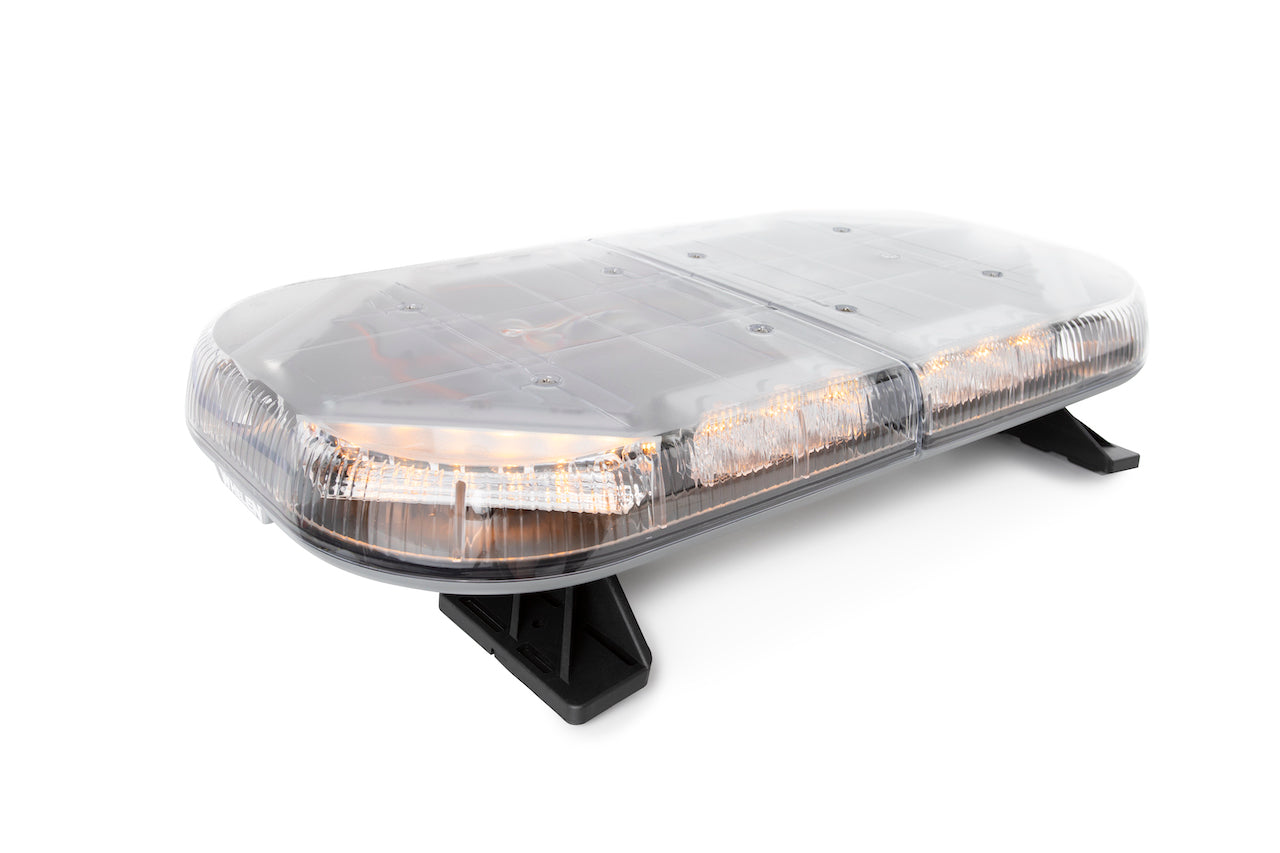

Product image 1

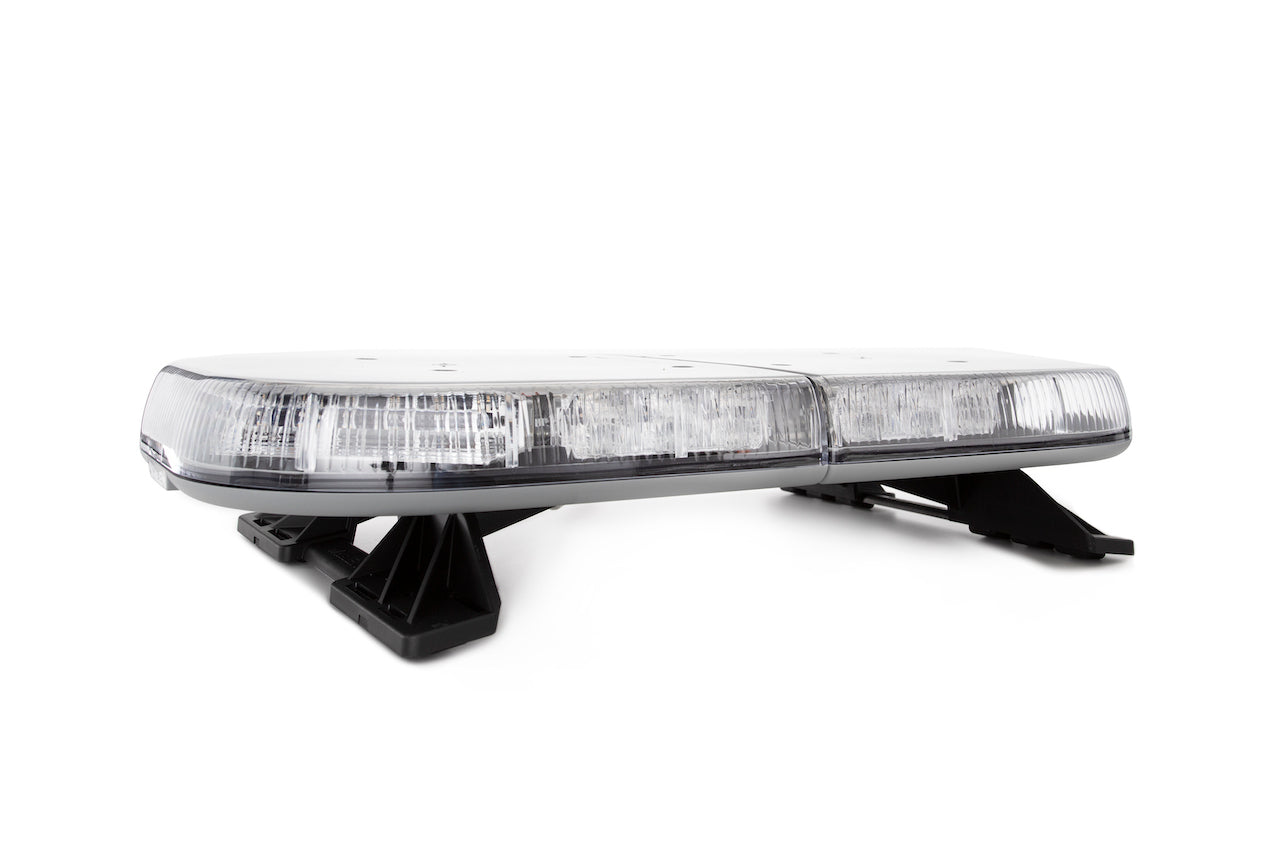

Product image 2

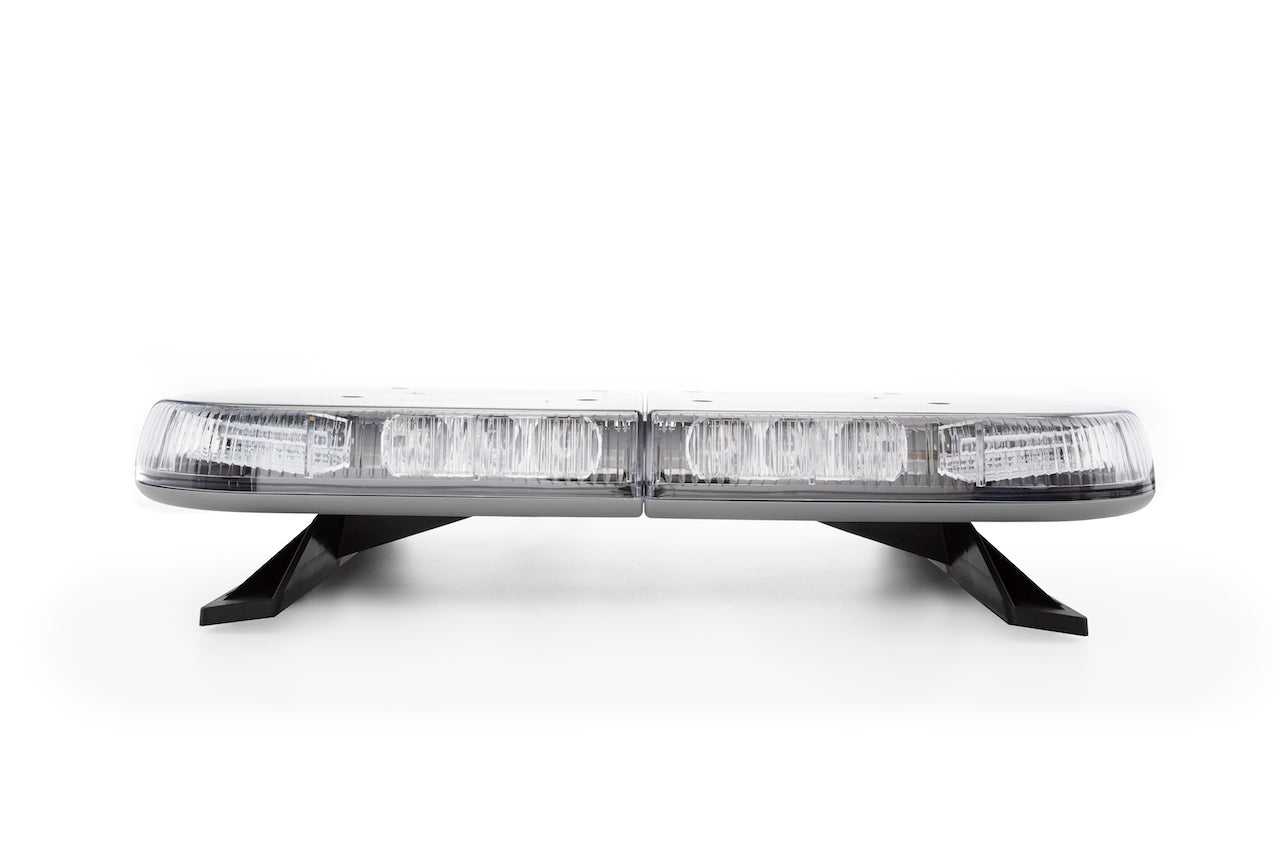

Product image 3

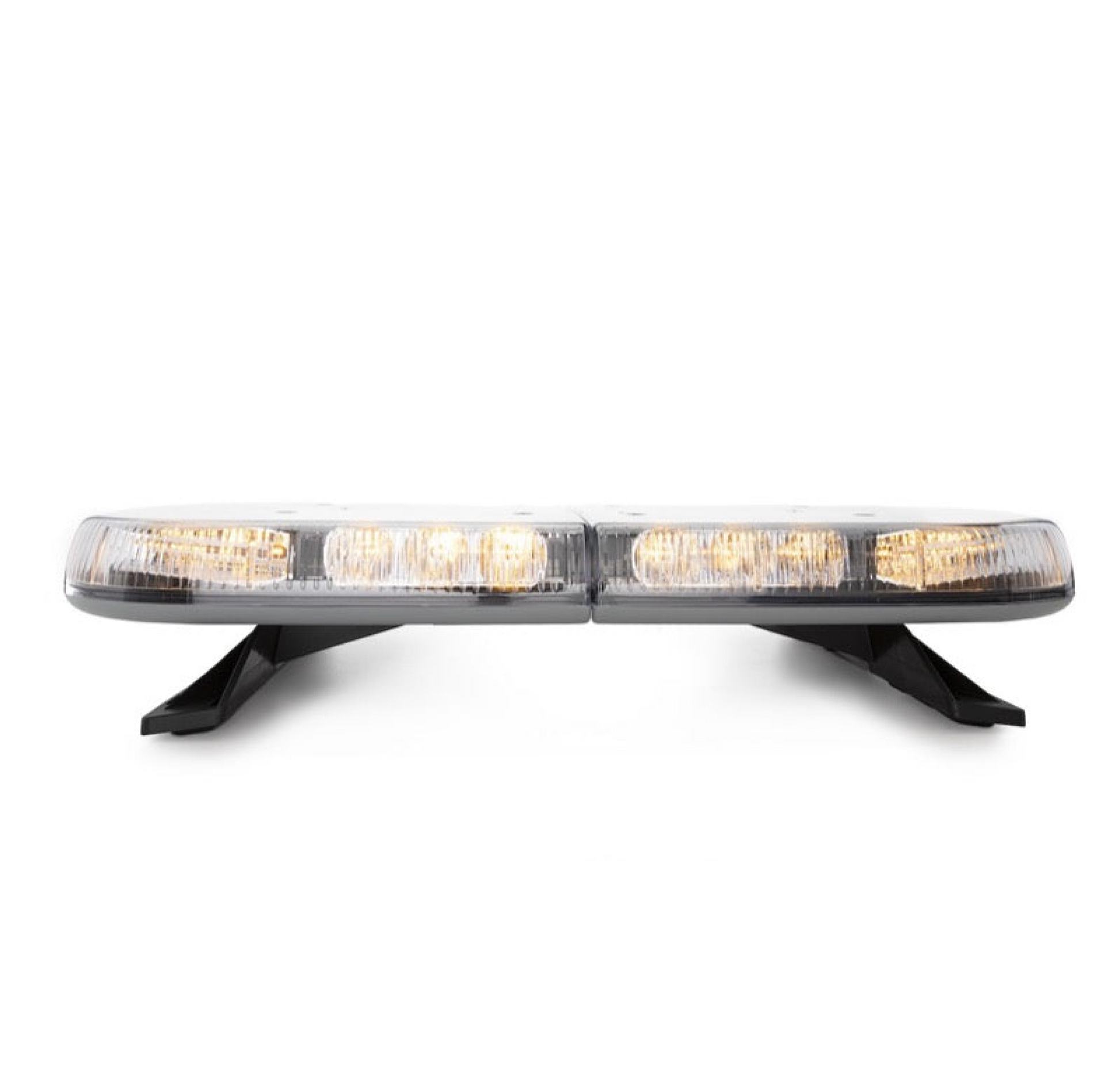

Product image 4

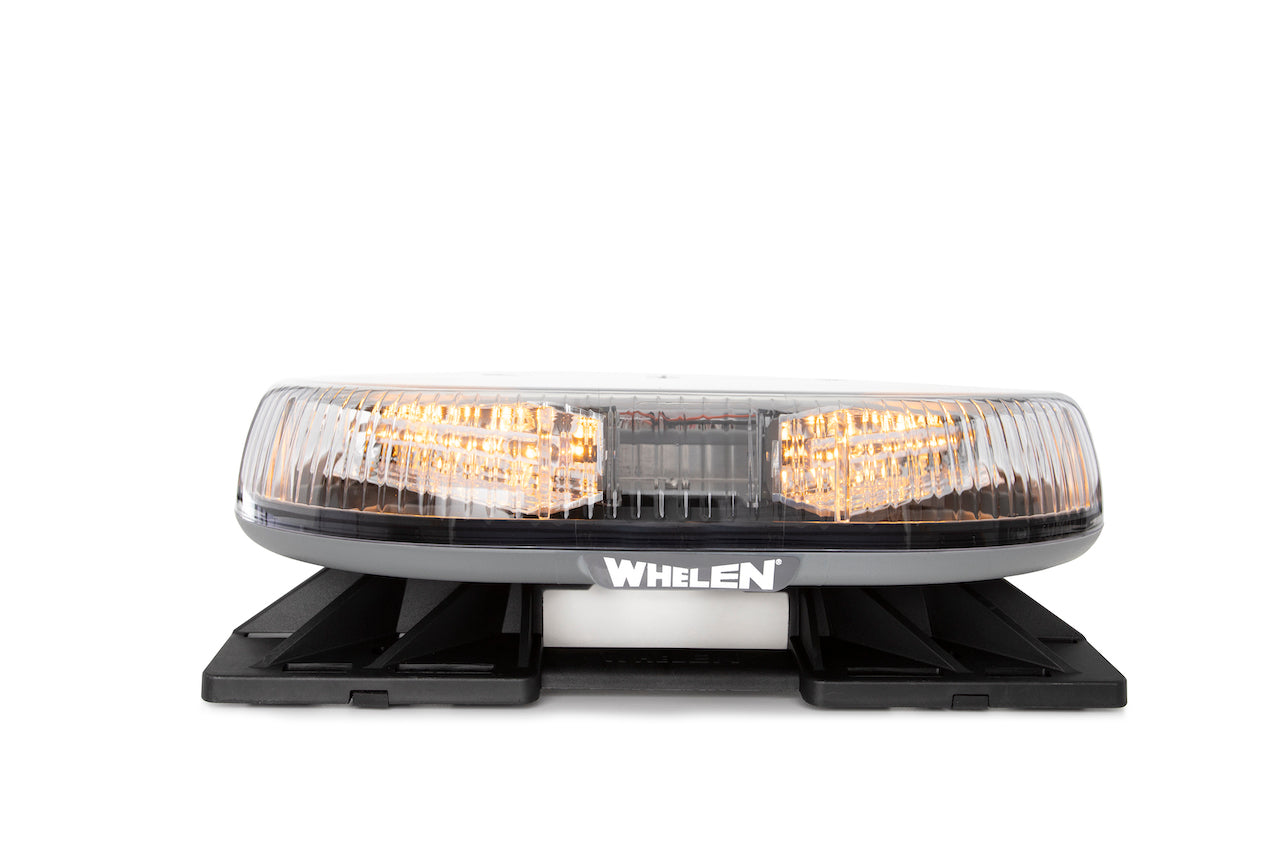

Product image 5

Whelen Aerospace Technologies (WAT) Incursion Series features four corner Linear-LED modules, providing 360° coverage. Models are available in Low Current with many options for optimal versatility.
AVL Incursion Lightbar
Tech Specs
- Meets SAE Class 1 and California Title XIII specifications Available with nine or six diode Linear-LED corners Black polycarbonate base
- Extruded aluminum platform for long life dependability
- Center dividers with LIM (Liquid Injection Molded) seals and protects internal components from water infiltration
- Each model has one or two sealing points, ensuring lightbar integrity in all weather conditions
- Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
- Point to point wiring between the 1/0 board and each light head allows for easy reconfiguration
- Advanced Thermal Design reduces the stress on LEDs during extended dwell time
- Easily upgraded or serviced in the field
- 15' passenger side exit cable
- Available with Clear, Smoked, or color lenses Optional Photocell automatically dims the lightbar at night while still meeting SAE Class 1 requirements
- 12VDC
- Nine diode corner amps: 1.5/peak and 6/avg per corner
- Six diode corner amps: 1.0/peak and 0.4/avg per corner
- Size: 2-1/4 (57mm) H x 12" (304mm) D
- Five-year warranty
Part & Model Numbers
Model |
Part Number |
Description |
|
01-0690895-000 | Incursion Mini 23" Amber or White |
Dimensions

Documents
