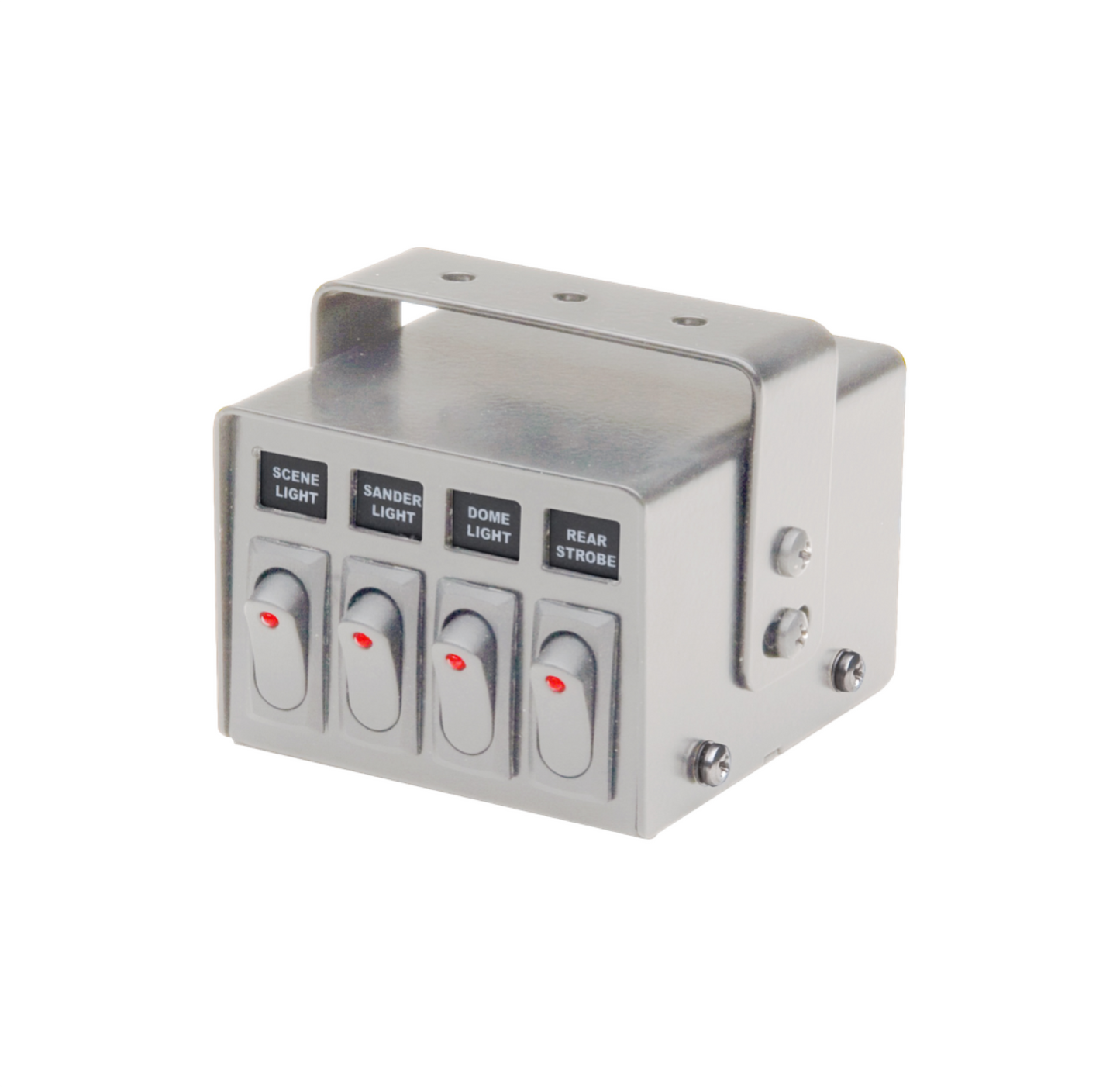

AVL Control Switch
Product image 1

Product image 2

The compact and economic Control Switch is engineered for complete control of numerous auxiliary light functions. Designed for simplistic usage, all models are equipped with LED indicators and include press-on labels for customization.
AVL Control Switch
Tech Specs
- Complete control of four, or six, auxiliary light functions 25 amp switches
- Rocker-style single pole/single throw switches with 'active' LED indicators
- Individual spade-type fuses conveniently located on rear mounted fuse strip
- Ignition controlled backlighted legend windows for easy visibility in any light
- Backlight circuit can be connected to vehicle dimmer switch to control backlight intensity
- 72 press-on legend tabs for customization
- Gray epoxy-finished steel housing
- Common ground post for ease of installing
- 12VDC
- Two year warranty
FLSWl4
- Flying leads connection
- Includes an adjustable two position universal bail bracket strap mounting kit for over or under dash mounting
- Dimensions: 2-3/4" (70mm) H x 3" (76mm) W x 4" 002mm)D
- Adjustable bail bracket overall heights: 2-3/4" (70mm) H (lower bracket position}, 3-1/4" (83mm) H (higher bracket position)
FLSWl6
- Terminal block for easy installation
- One 10 amp momentary switch in the last position in place of the standard On/Off switch
- Includes an adjustable two position universal bail bracket strap mounting kit for over or under dash mounting
- Dimensions: 3-3/8" (86mm) H x 6" 052mm) W x 3-9/16" (91mm) D
- Adjustable bracket overall heights: 3-3/8" (86mm) H (lower bracket position}, 3-3/4" (96mm) H (higher bracket position)
Part & Model Numbers
Model |
Part Number |
Description |
|
|
Control Switch 4 25amp |
FLSWl6 | 01-0690892-000 | Control Switch 6 25amp |
