CHROMA Series LED Plug N Play Position Lamps

Product image 1CHROMA Series LED Plug N Play Position Lamps
Product image 2CHROMA Series LED Plug N Play Position Lamps
Product image 3CHROMA Series LED Plug N Play Position Lamps
Product image 4CHROMA Series LED Plug N Play Position Lamps
Product image 5CHROMA Series LED Plug N Play Position Lamps
Product image 6CHROMA Series LED Plug N Play Position Lamps
Contact Reseller

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.

Description

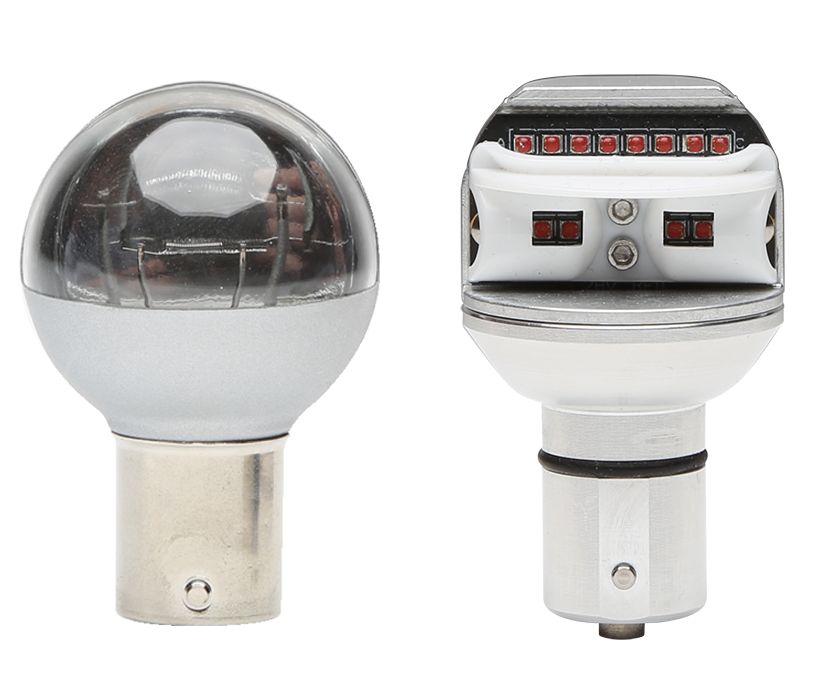

CHROMA Series LED Plug N Play Position Lamps meet all FAR requirements for Chromaticity, Intensity, and Coverage FAR Part 23.1383 the 23.1397 FAR Part 27.1383 thru 27.1397 Unique reflector design allows for full FAR coverage compliance. Fixed current source design provides consistent light output compared to filament lamps and LED resistor type designs = complete FAR compliance. Robust machined base provides vibration resistance tested in accordance with RTCA/DO160 CAT U2, Curves F, F1 for rotorcraft. All electronic logic conformal coated for weather resistance. Keeps original lens configuration to maintain FAA approvals of light assembly. LED lamps have a 10,000 hour operating life, while incandescent bulbs have a fragile filament and 300 hours average life 85%.  FAA TSO and STC Approved.



Model

Part

Description

Approvals

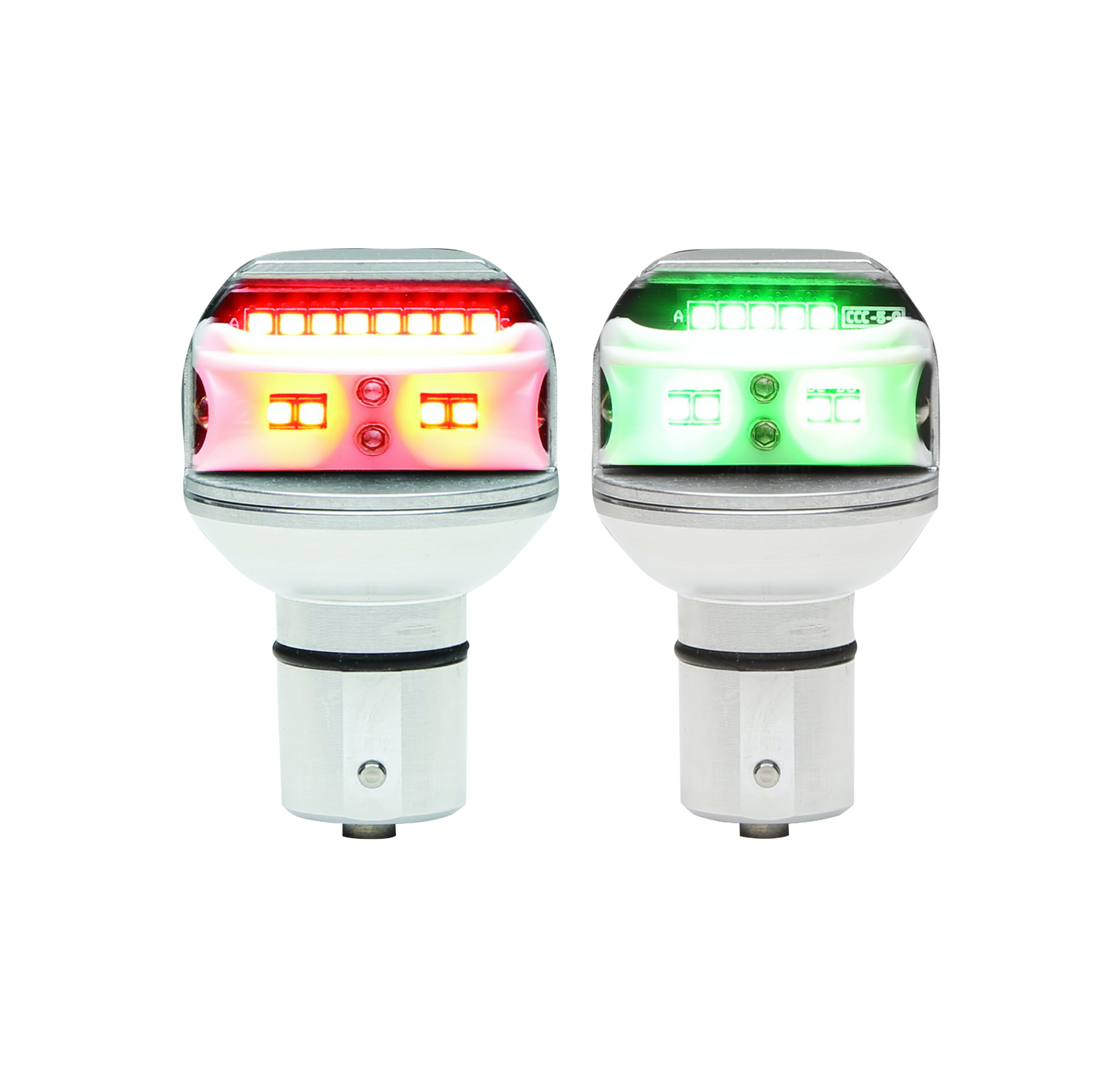

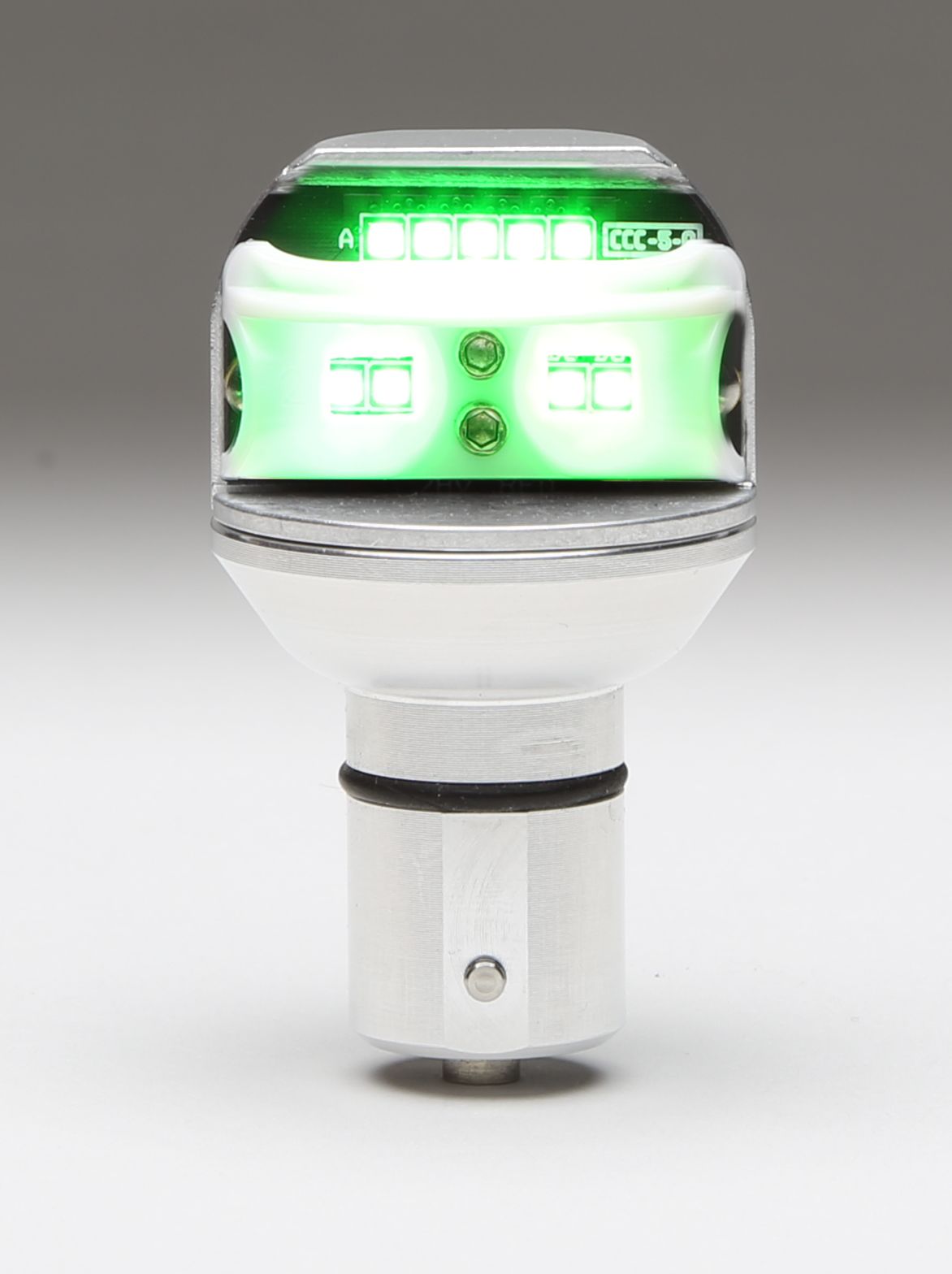

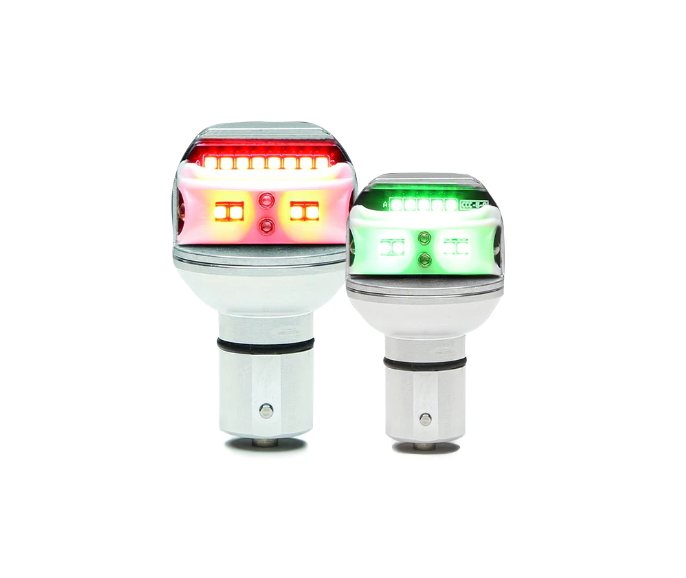

CHROMA1G 01-0771900G14 Green LED Position Lamp 14VDC FAA TSO-C30b Type II/ STC

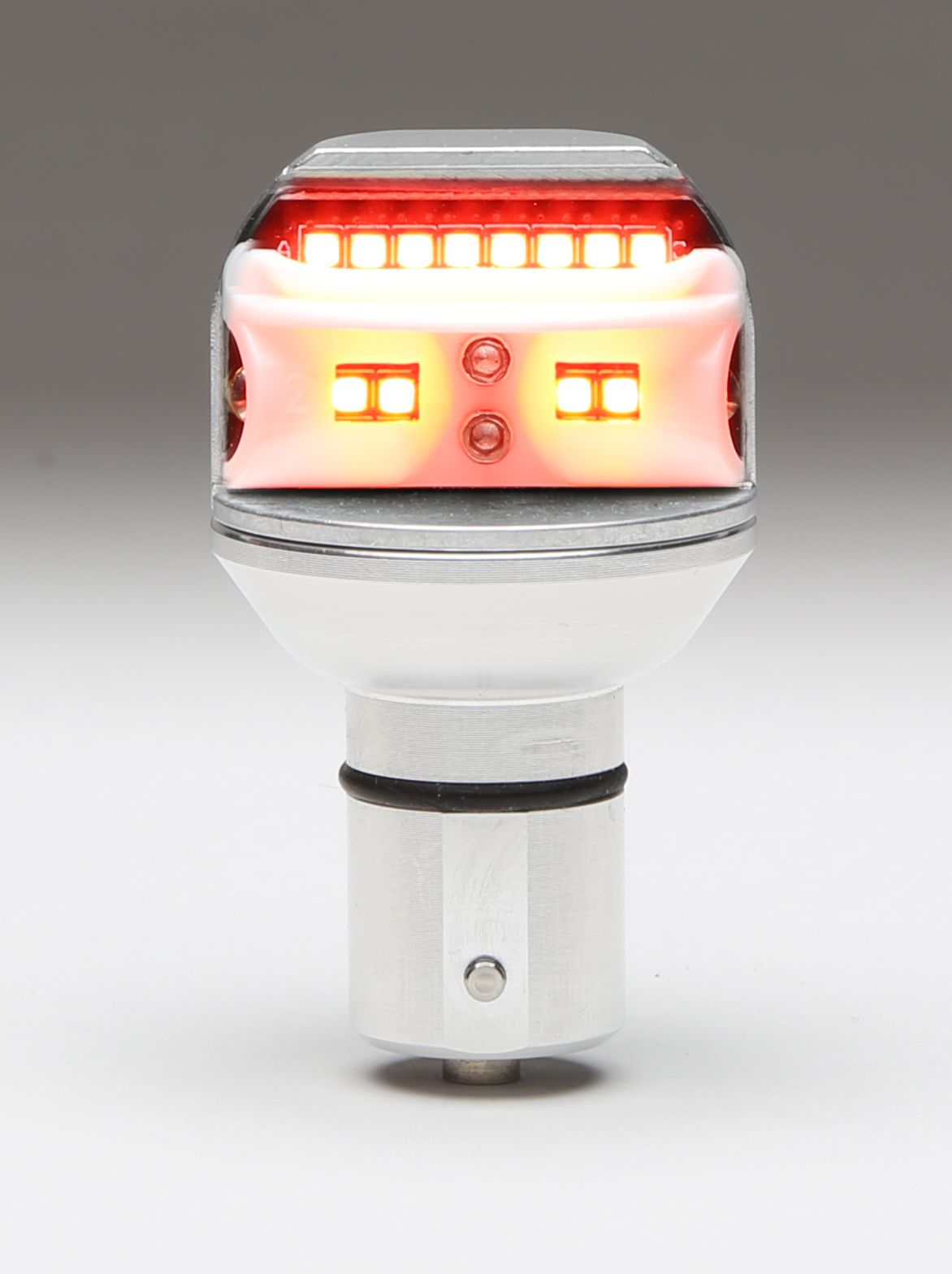

CHROMA1R 01-0771900R14 Red LED Position Lamp 14VDC FAA TSO-C30b Type I/ STC
CHROMA2G 01-0771900G28 Green LED Position Lamp 28VDC FAA TSO-C30b Type II/ STC
CHROMA2R 01-0771900R28 Red LED Position Lamp 28 VDC FAA TSO-C30b Type I/ STC



Documents

Product Bulletin: Chroma Series
Install Guide: 14B97
STC: SA800-EA
