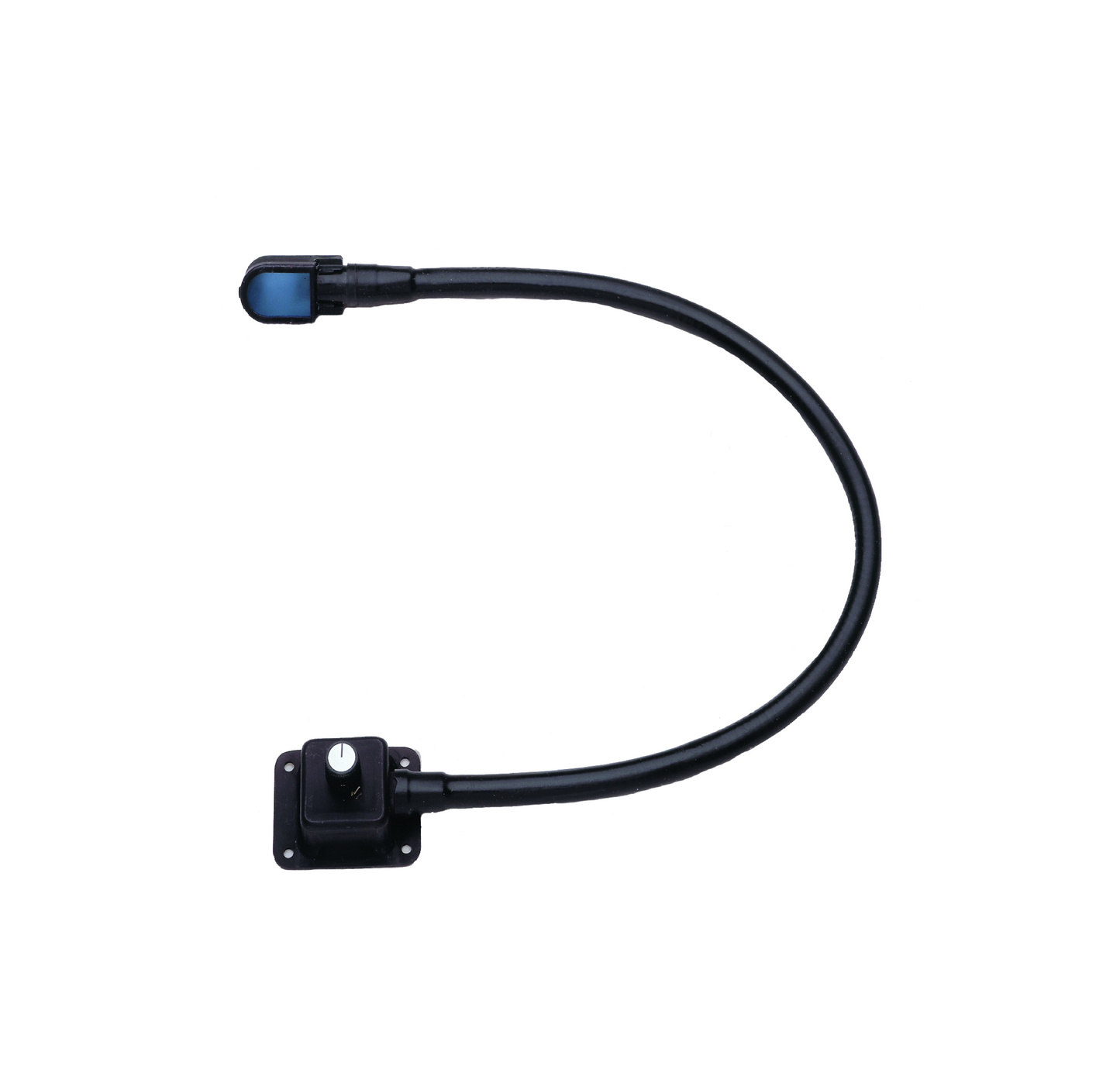

C70190 Series Interior Gooseneck Light Assembly
C70190 Series Interior Gooseneck Light Assembly
Interior gooseneck light assembly featuring a positive off position & rheostat controlled light intensity. Uses the #1495 lamp (available in 28VDC only).
Interior Gooseneck Light Assembly - C70190 Series
Tech Specs
- Drawing Number: 70190
- Weight: 0.3 lbs. (136gm)
- Lamp: 6 watt
- Power Consumption: 0.3 amps @ 28 VDC
| Model | PartĀ # | Description | STC | Approvals |
| 70190B08 | 01-0770190B08 | Assembly, Adjustable map light | None | None |
| 70190B10 | 01-0770190B10 | Assembly, Adjustable map light | None | None |
| 70190B12 | 01-0770190B12 | Assembly, Adjustable map light | None | None |
| 70190B14 | 01-0770190B14 | Assembly, Adjustable map light | None | None |
| 70190B16 | 01-0770190B16 | Assembly, Adjustable map light | None | None |
| 70190B18 | 01-0770190B18 | Assembly, Adjustable map light | None | None |
| 70190B20 | 01-0770190B20 | Assembly, Adjustable map light | None | None |
| 70190B22 | 01-0770190B22 | Assembly, Adjustable map light | None | None |
| 70190R06 | 01-0770190R06 | Assembly, Adjustable map light | None | None |
| 70190R08 | 01-0770190R08 | Assembly, Adjustable map light | None | None |
| 70190R12 | 01-0770190R12 | Assembly, Adjustable map light | None | None |
| 70190R14 | 01-0770190R14 | Assembly, Adjustable map light | None | None |
| 70190R16 | 01-0770190R16 | Assembly, Adjustable map light | None | None |
| 70190R18 | 01-0770190R18 | Assembly, Adjustable map light | None | None |
| 70190W06 | 01-0770190W06 | Assembly, Adjustable map light | None | None |
| 70190W08 | 01-0770190W08 | Assembly, Adjustable map light | None | None |
| 70190W10 | 01-0770190W10 | Assembly, Adjustable map light | None | None |
| 70190W12 | 01-0770190W12 | Assembly, Adjustable map light | None | None |
| 70190W14 | 01-0770190W14 | Assembly, Adjustable map light | None | None |
| 70190W16 | 01-0770190W16 | Assembly, Adjustable map light | None | None |
| 70190W18 | 01-0770190W18 | Assembly, Adjustable map light | None | None |
| 70190W22 | 01-0770190W22 | Assembly, Adjustable map light | None | None |
