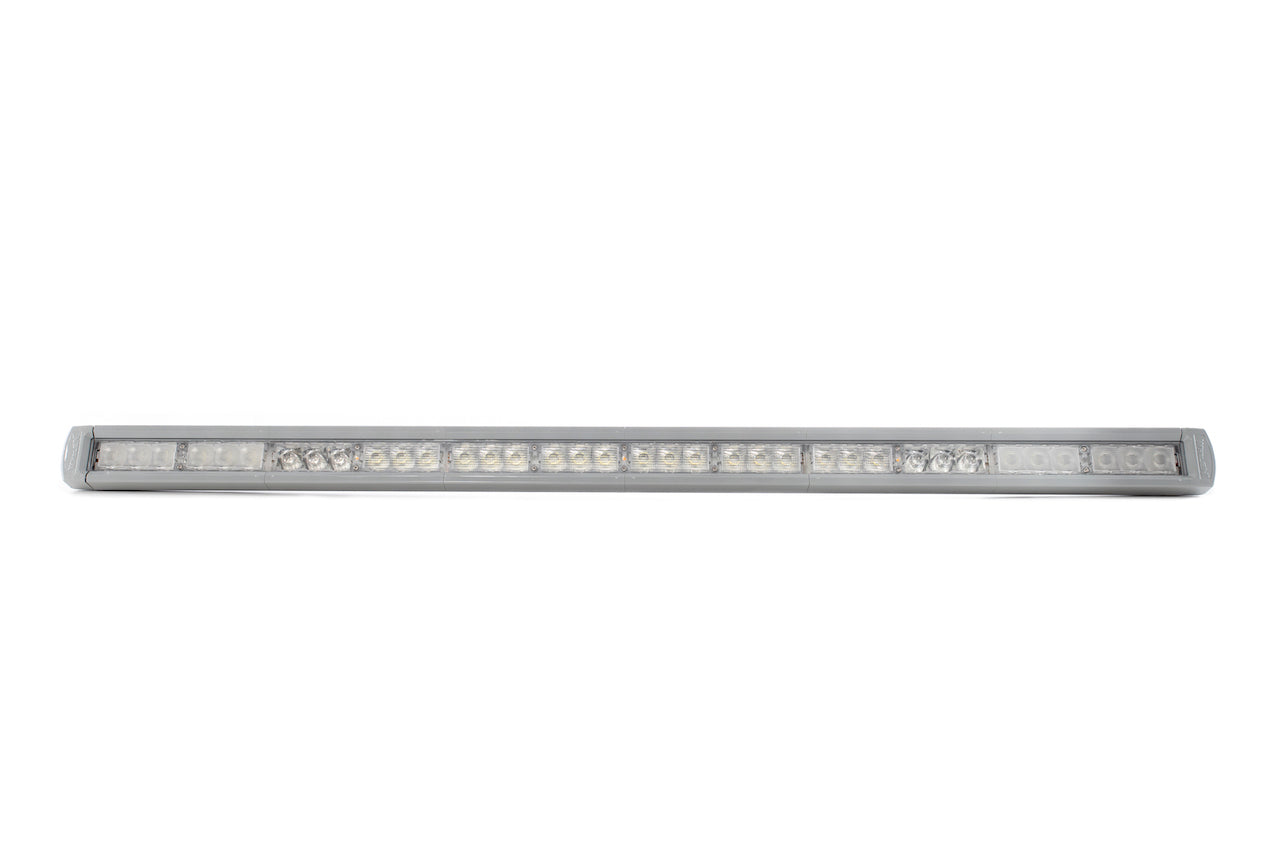

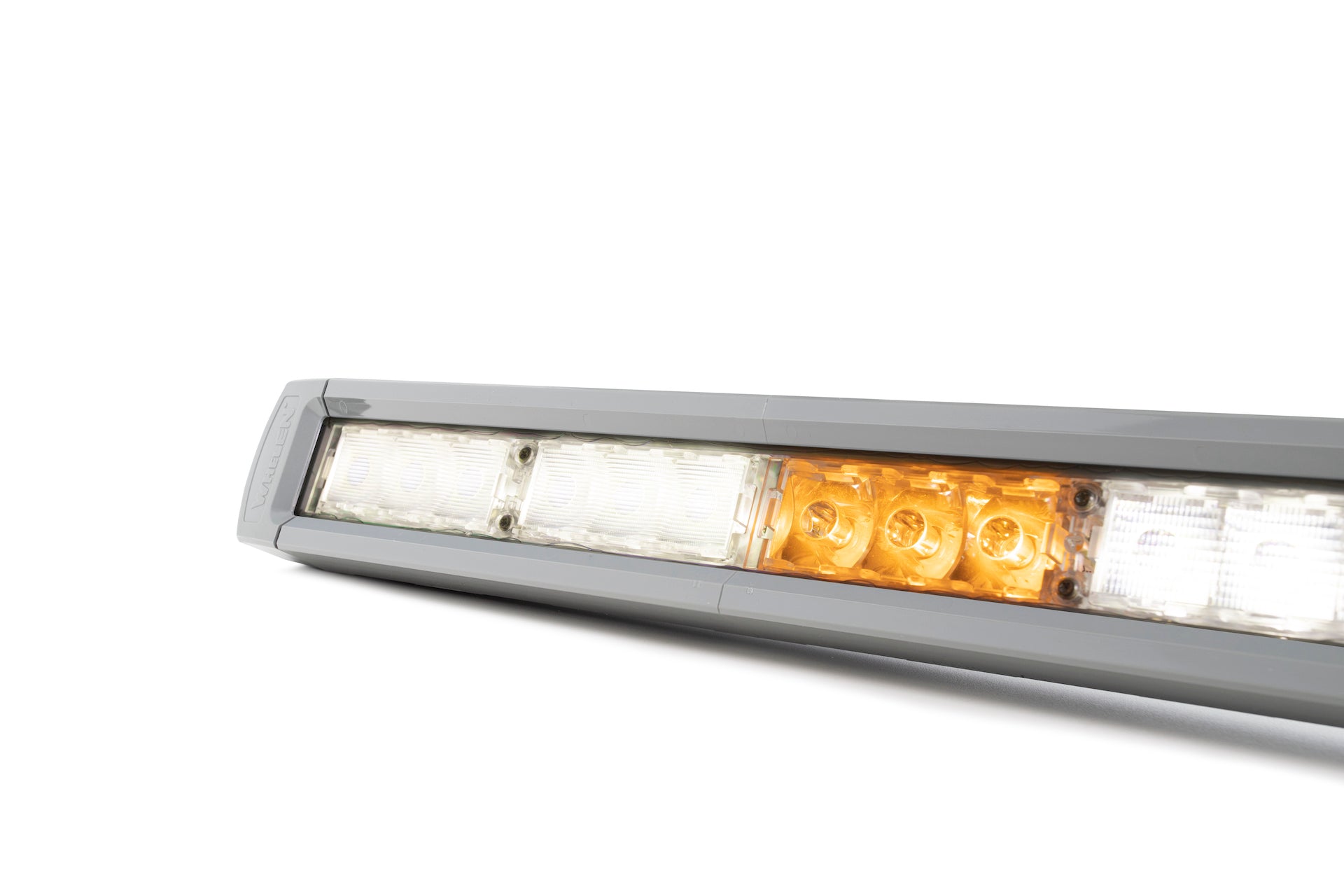

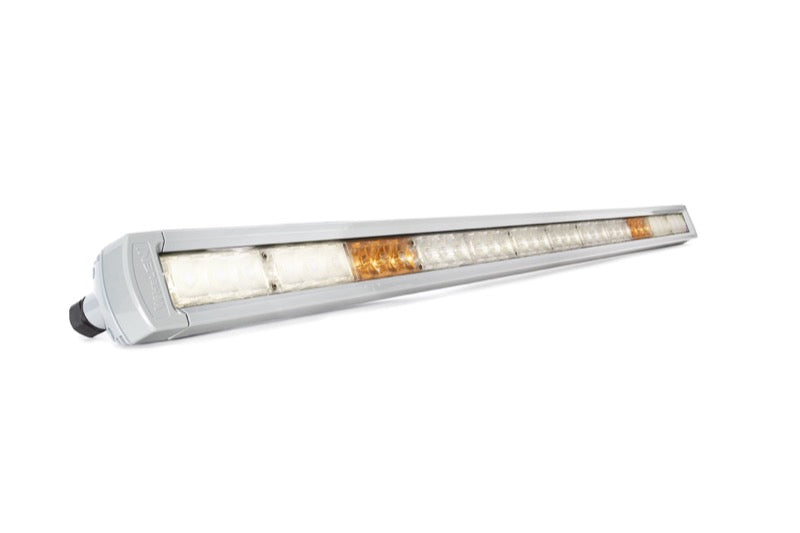

AVL Apex Work Light
Product image 1

Product image 2

Product image 3

Product image 4

Product image 5

Product image 6

Product image 7

Designed to deliver maximum light intensity, the low-profile Apex Series is available in multiple spot, flood, and scene optic combinations. Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics. The Apex Series features optional integrated warning and clearance lights for optimal illumination and visibility. Mounting brackets not included must purchase separately.
AVL Apex Work Light
Tech Specs
- SPECS SAE 578 Color Temperature Certified
- Preconfigured spot, flood, or scene optics
- Available with White illumination
- Warning lights require remote flasher, purchased separately
- Individual control of each set of optics
- Increase clarity with Whelen's all-new, patent pending Proclera™ Silicone Optics Hard-coated lenses minimize environmental damage from sand, sun, salt, and road chemicals
- Extruded and die-cast aluminum powder coated housing available in gray
- Screwless lens retainer design provides a clean finish and the improved ability to adjust optic configuration 100% solid-state electronics
- Rated IP67 for dust and water resistance
- Rear mounting track for flexible mounting configurations Bail bracket mount standard
- Includes 30" cable, connector, and heat shrink tubing. Some assembly required
- Dual voltage (10-30 VDC input)
- Five year warranty
- Module count is per 3 LEDs (each silicone optic)
- Overall size does not include mounting hardware or cable entry
- Side bail brackets add 2" to width
- Depth to cable entry is 3.22"
- Current draw is calculated at l2.8VDC
-
Mounting brackets not included must purchase separately.
Part & Model Numbers
Model |
Part Number |
Description |
|
|
Apex 30" Work Light |
FLAPX44 | 01-0690889-01 | Apex 44" Work Light |

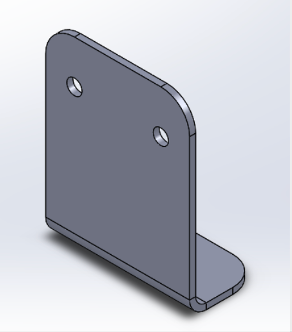

SUBKT1B | 01-0447823-10 | Universal "L" Mounting Brackets for 9" to 44" Models, Black. |

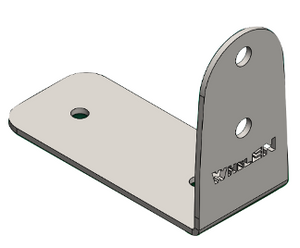

SUBKT3B | 1-0419234-01 | New! Universal "L" Mounting Bracket, Horizontal, Non Adjustable, Black. Up to 30" Requires 2 Brackets, 38" - 44" Requires 3 Brackets, 72" Requires 4 Brackets, and 86" Requires 5 Brackets. |
Dimensions

Documents
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.
