A650 PG & PR Series Wing Tip Anti Collision & Forward Position Lights
A650 PG & PR Series Wing Tip Anti Collision & Forward Position Lights
PRODUCT NOT IN PRODUCTION: PLEASE SEE LED REPLACEMENT 71110

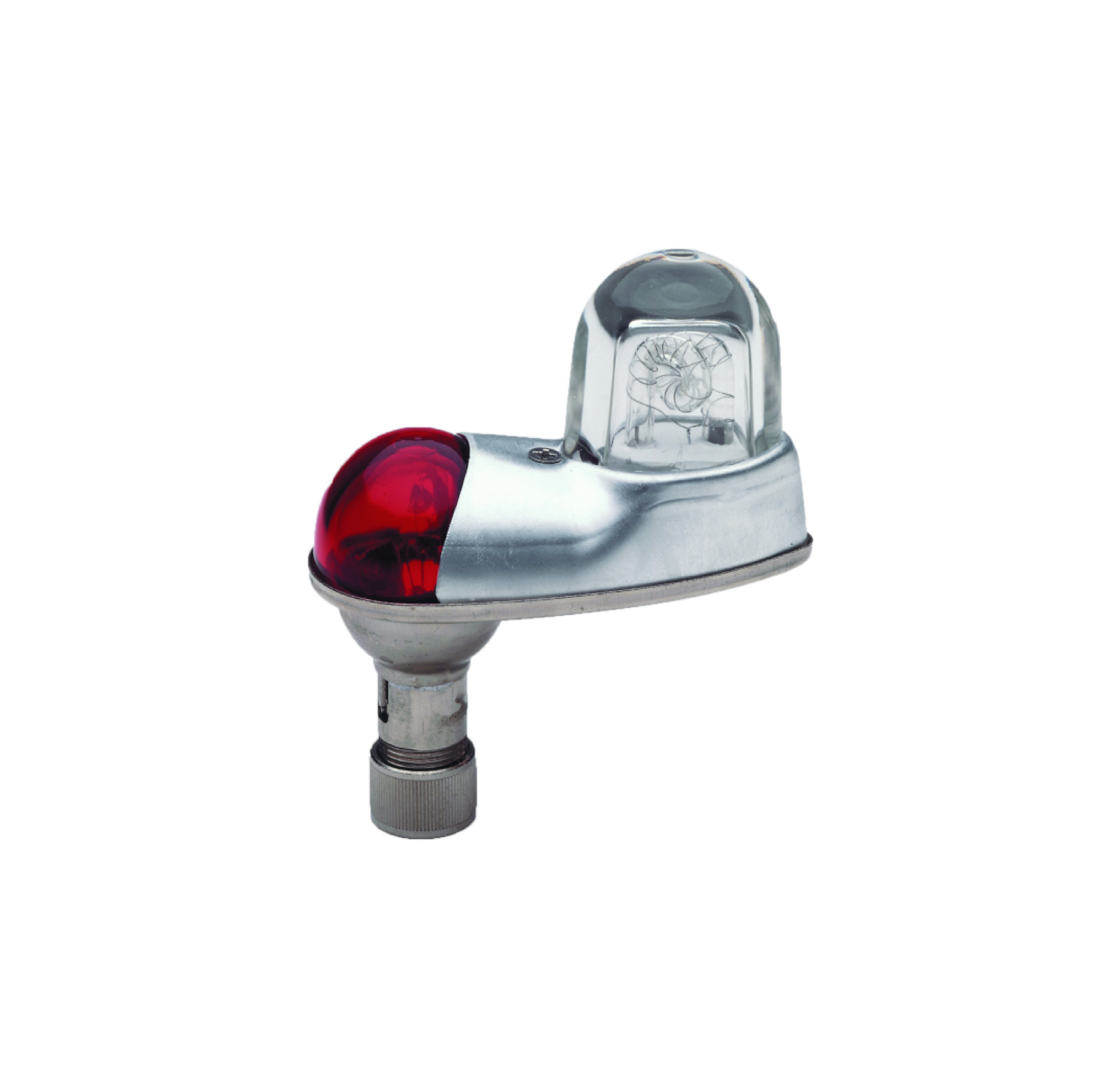

Wing tip with anti-collision & forward position lights. Can be used to convert non-Whelen position lights into a position/anti-collision light system. The small size allows for mounting into a wing tip enclosure. Available in 14 or 28 VDC and in a radio-shielded version. The forward position lamp is 26 watts.
Wing Tip Collision / Forward Position Lights - A650PG & PR Series
Tech Specs
- Drawing Number: 70054
- Weight: 0.6 lbs. (272gm)
- Position Lamp Power Consumption: 2 Amps @ 14 VDC; 1 Amp @ 28 VDC
- Exposed Height: 2.4 (61mm)
- Length: 4.0 (102mm)
- Width: 1.7 (43mm)
Model | Part # | Description |
A650D | 01-0770053-13 | Wing Tip Strobe Assy., RFI Shielded |
A650PG1 | 01-0770054-00 | Wing Tip Strobe/Pos. LT., Green, 14V |
A650PG2 | 01-0770054-01 | Wing Tip Strobe/Pos. LT., Green, 28V |
A650PGD1 | 01-0770054-04 | Wing Tip Strobe/Position Light, Green, 14V, RFI Shielded |
A650PGD2 | 01-0770054-05 | Wing Tip Strobe/Position Light, Green, 28V, RFI Shielded |
A650PR1 | 01-0770054-02 | Wing Tip Strobe/Pos. LT., Red, 14V |
A650PR2 | 01-0770054-03 | Wing Tip Strobe/Pos. LT., Red, 28V |
A650PRD1 | 01-0770054-06 | Wing Tip Strobe/Position Light, Red, 14V, RFI Shielded |
A650PRD2 | 01-0770054-07 | Wing Tip Strobe/Position Light, Red, 28V, RFI Shielded |
Additional Information
A650PG LEGACY UNIT
LED REPLACEMENT 71110
