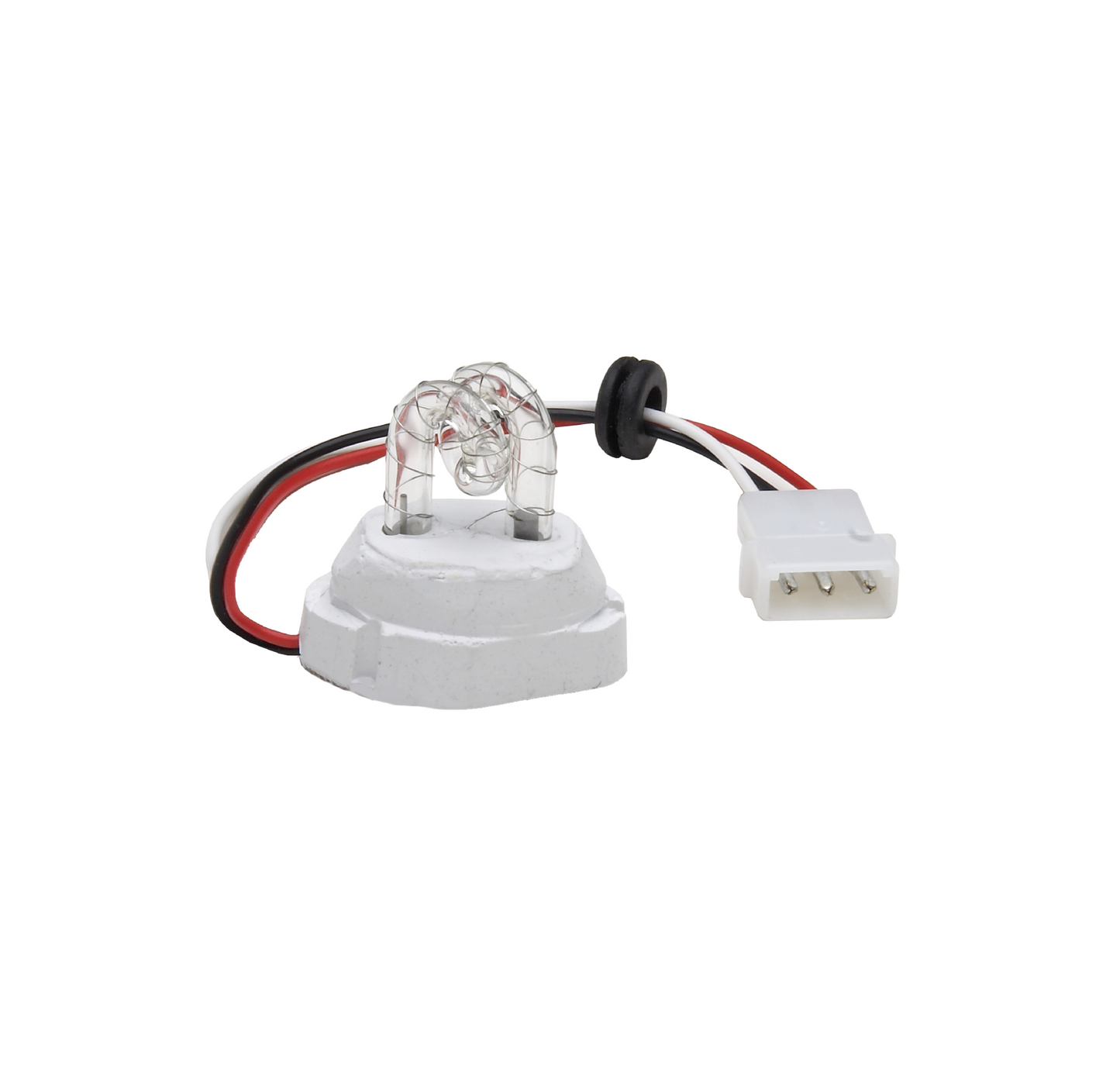

A610 & A612 Series Strobe Tube Asemblies
Model A610 flash tube and Model A612 glass lens are used for installing wing tip strobes in single engine Cessna's 1972 and later. The existing position light retainer is modified to accommodate the lens, and the flash tube is mounted directly behind. The unique magnifying design of the A612 lens increases the light intensity by two to three times in the horizontal plane. These items may be used for custom installations or as spare parts for existing light assemblies. The A612 lens is available in Aviation Red and an RFI coated version. Lenses meet material requirements of MIL-C-7989B Class B.
Model A610 flash tube and Model A612 glass lens are used for installing wing tip strobes in single engine Cessna's 1972 and later. The existing position light retainer is modified to accommodate the lens, and the flash tube is mounted directly behind. The unique magnifying design of the A612 lens increases the light intensity by two to three times in the horizontal plane. These items may be used for custom installations or as spare parts for existing light assemblies. The A612 lens is available in Aviation Red and an RFI coated version. Lenses meet material requirements of MIL-C-7989B Class B.
Strobe Tube Assemblies - A610 & A612 Series
Tech Specs
- Drawing Number A610: 50276
- Drawing Number A612: 90005
- A610 Flash Tube Weight: 0.09 lbs. (41gm)
- A612 Lens Weight: 0.08 lbs. (36gm)
| Model | Part # | Description | Approvals |
| 5027602 | 02-0250276-02 | Strobe Tube Assembly (A610 Style with 12-1/2" Leads) | |
| A610 | 02-0250276-00 | Strobe Tube Assembly | |
| A610M | 02-0250276-03 | Strobe Tube Assembly, Same as A610 (Molex Connector) | |
| A612D | 02-0350071-35 | Shielded Lens/Retainer Assy., White | |
| A612DR | 02-0350071-55 | Shielded Lens/Retainer Assy., Red |
