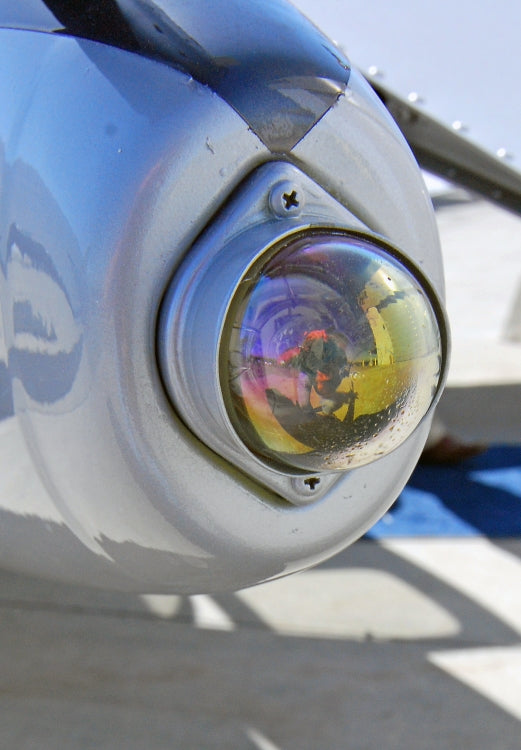

A500A Series Tail Position / Strobe Light, 14V and 28v
Combination strobe/tail navigation light used when the wing tip anti-collision lights are mounted in an enclosure and can provide 360 degrees of strobe coverage. It is a direct replacement for the standard tail position light. Available in a radio-shielded version. Voltage (14 or 28) and mounting (horizontal or vertical) must be specified when ordering.
Combination strobe/tail navigation light used when the wing tip anti-collision lights are mounted in an enclosure and can provide 360 degrees of strobe coverage. It is a direct replacement for the standard tail position light. Available in a radio-shielded version. Voltage (14 or 28) and mounting (horizontal or vertical) must be specified when ordering.

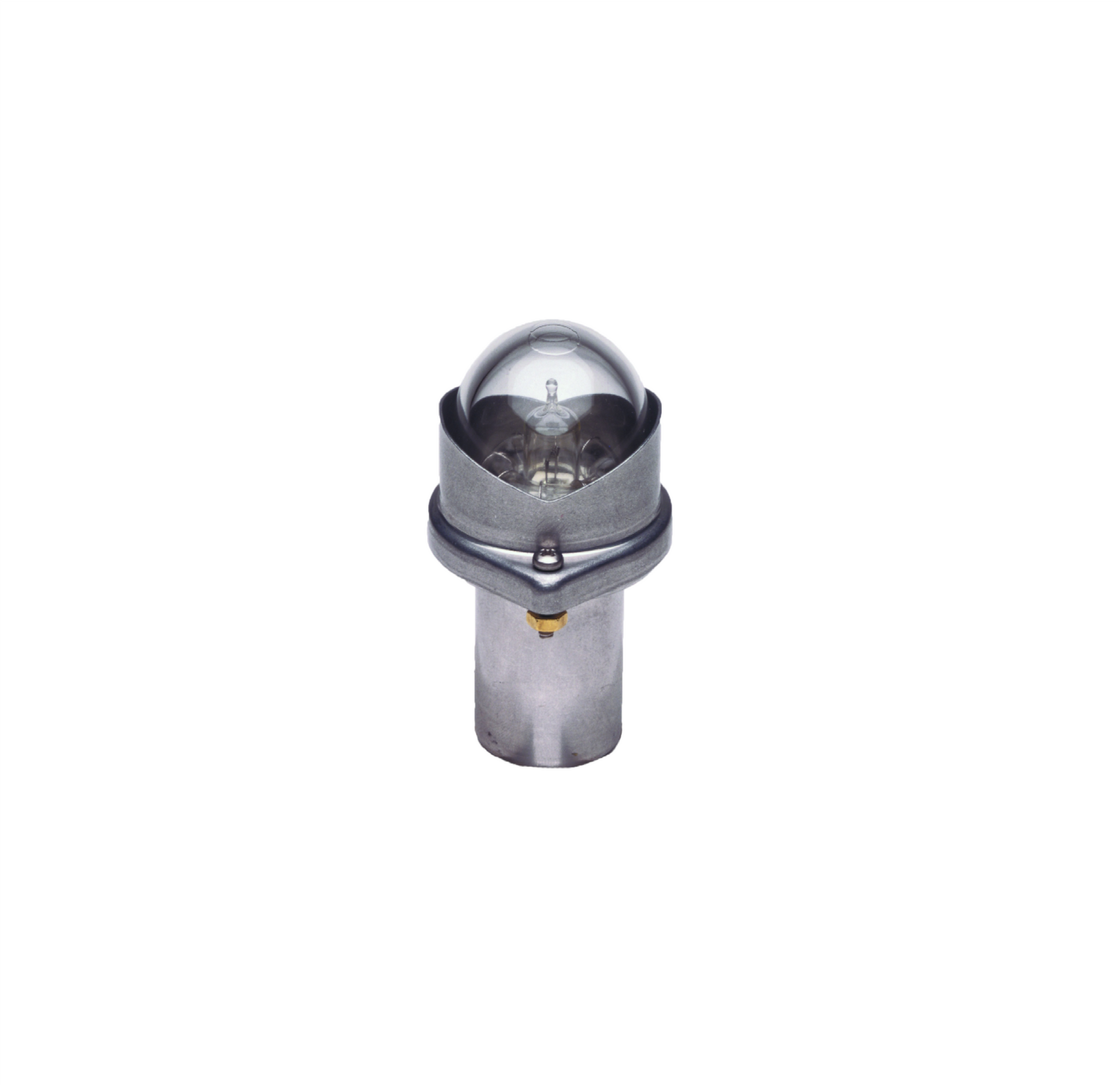

Tail Position / Strobe Light - A500A Series
Tech Specs
- Drawing Number: 70024
- Weight: 0.3 lbs. (136gm)
- Exposed Height: 1.7 (43mm)
- Diameter: 1.5 (38mm)
| Model | Part # | Description | STC | Approvals |
| A500ABV1 | 01-0770024-16 | Tail Position/Strobe Light, 14V, Vertical Mount, with MS Connector | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500ABV2 | 01-0770024-15 | Tail Position/Strobe Light, 28V, Vertical Mount, with MS Connector | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500AH14 | 01-0770024-02 | Tail Position/Strobe Light, 14V, Vertical Mount | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500AV28 | 01-0770024-01 | Tail Position/Strobe Light, 28V, Vertical Mount | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500AV14 | 01-0770024-00 | Tail Position/Strobe Light, 14V, Vertical Mount | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500AVD2 | 01-0770024-05 | Tail Position/Strobe Light, 28V, Vertical Mount, Radio Shielded | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
| A500VDM1 | 01-0770024-08 | Tail Position/Strobe Light, 14V, Vertical Mount, Molex Conn., Shielded | STC SA800EA.pdf | FAA/PMA,FAA/TSO-C30b pmasup7 |
