A490TCF Series Power Supply

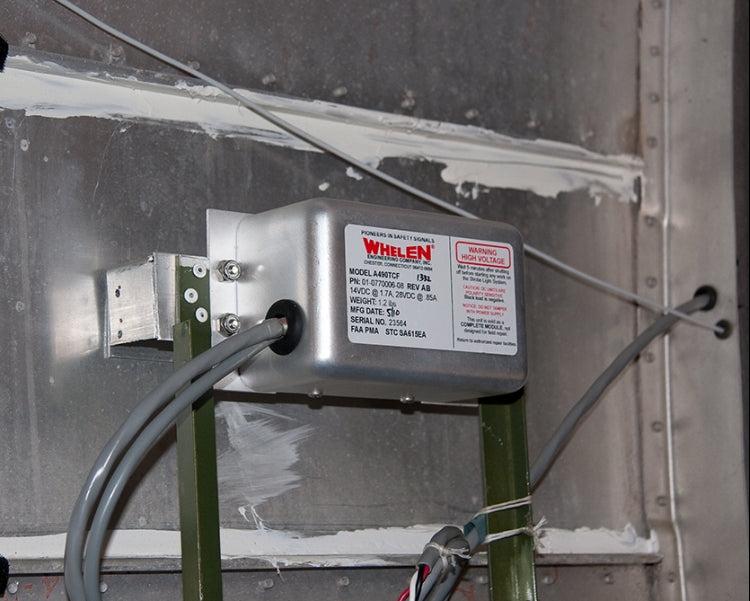

Product image 1

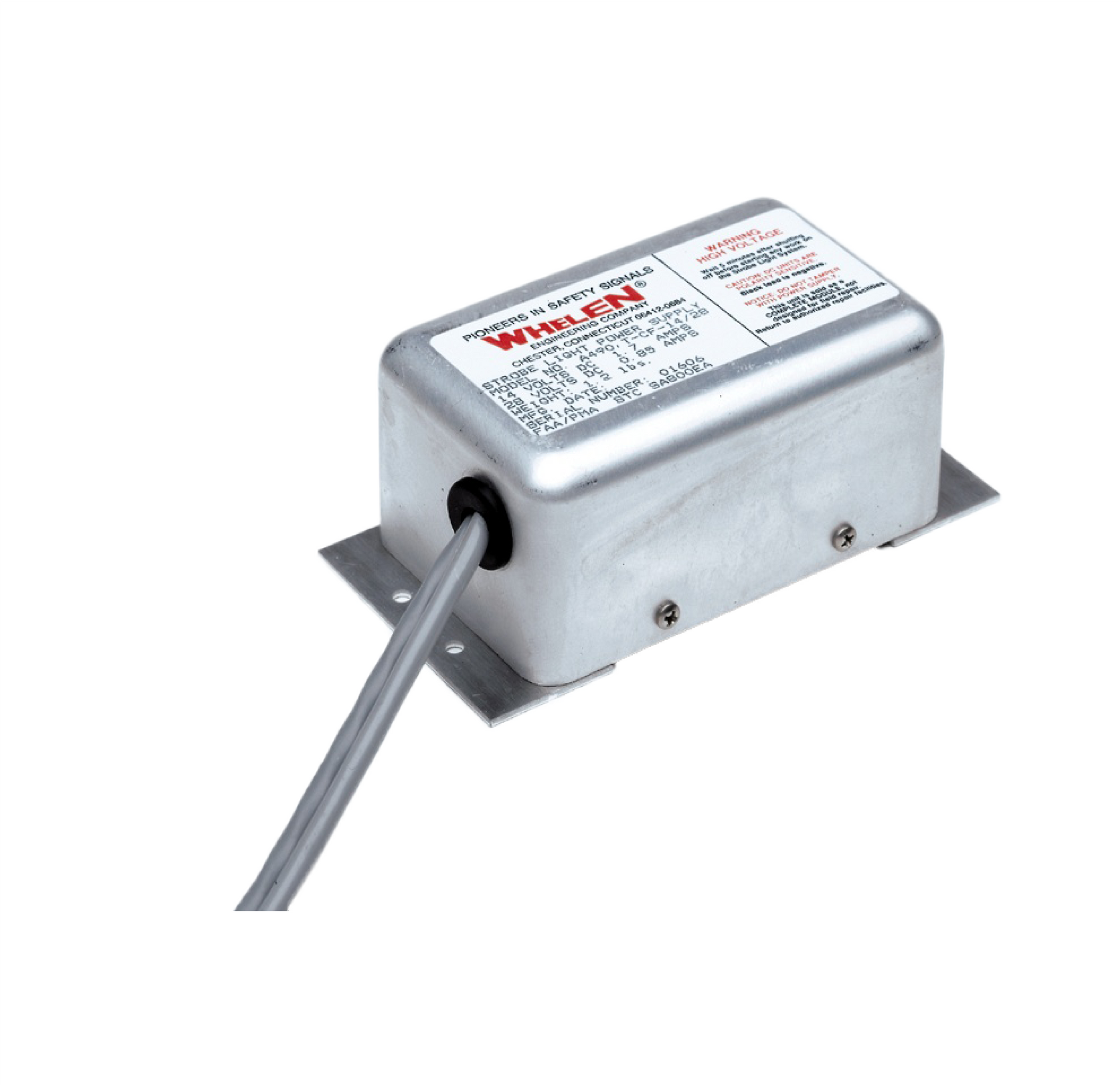

Product image 2
Features
A490TCF series operates one strobe lighthead. It is our most compact unit and can be mounted in the wingtip and/or the tail adjacent to the light head. It produces an accumulated 19 joules of power. It will only meet 400 CP when used with the A470A-W. This unit cannot be synchronized. This power supply operates from 10 to 30 VDC (not approved for use with Red strobe light).
Drawing Number: 70006
Power Consumption: 1.7 Amps @ 14 VDC; 0.85 Amps @ 28 VDC
Weight: 1.2 lbs. (544gm)
Length: 5.0" (127mm)
Width: 3.12" (79mm)
Height: 2.38" (60mm)
| Model | Part Number# | Description | STC | Approvals |
| A490TCF | 01-0770006-08 | Power Supply | STC SA615EA.pdf | FAA/PMA. pmasup6 |
| A490TCFM | 01-0770006-14 | Power Supply, Molex Connectors | STC SA615EA.pdf |
