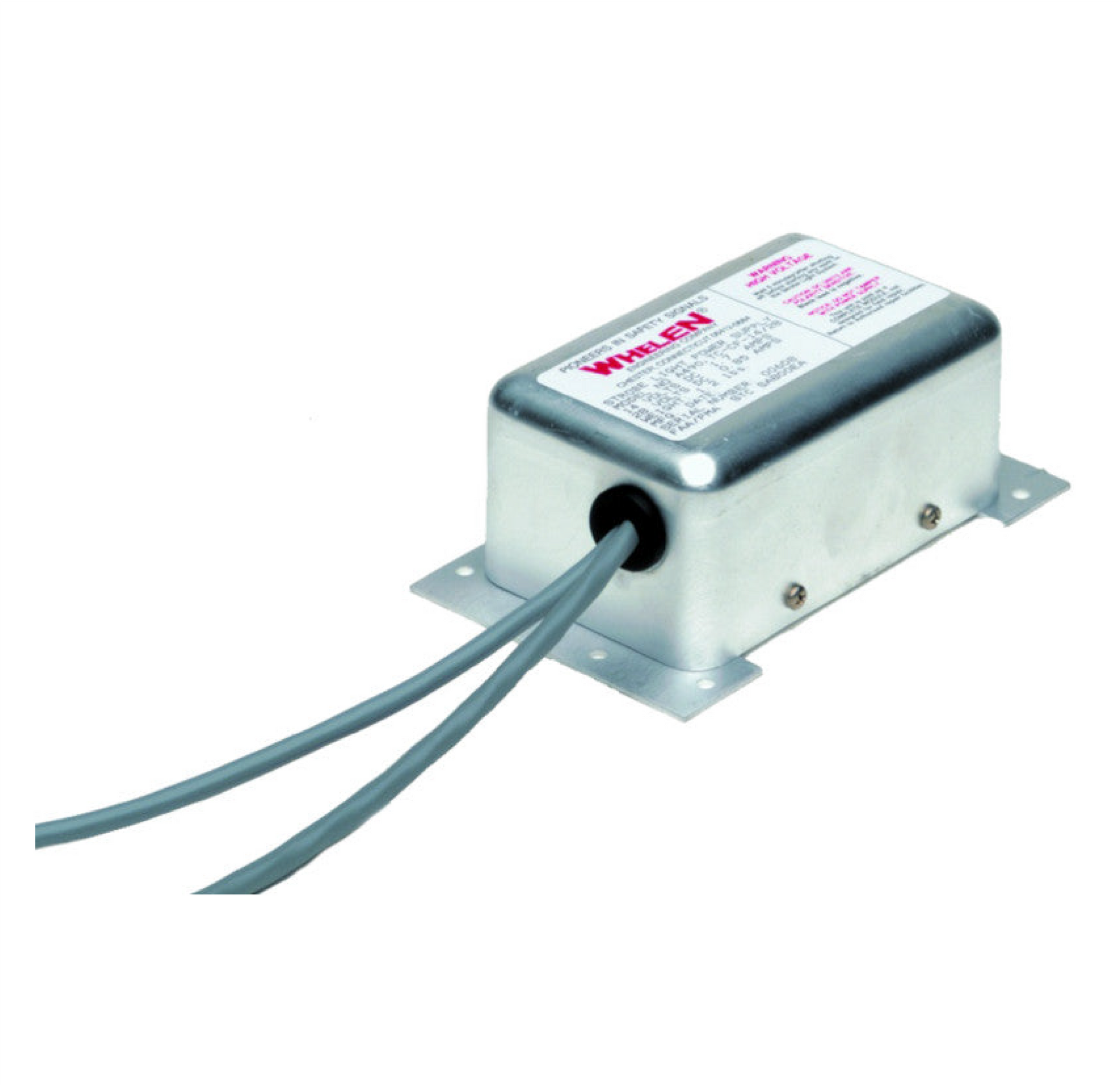

A490TCCF Series Power Supply

Product image 1A490TCCF Series Power Supply
Product image 2A490TCCF Series Power Supply
Contact Reseller

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.

Features

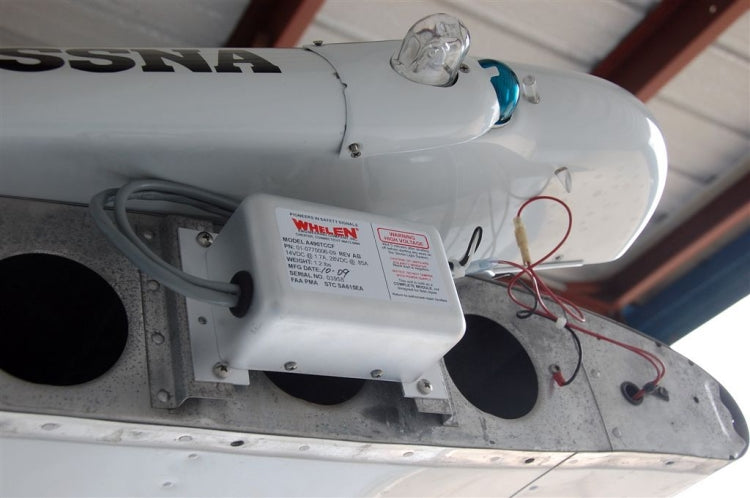

Model A490TCCF series is the same as the A490TCF but has a mounting plate with additional holes that directly replace factory installed systems on single-engine Cessnas, Aero Commanders, and Grumman Americans

Drawing Number: 70006
Power Consumption:1.7 Amps @ 14 VDC 0.85 Amps @ 28 VDC
Weight: 1.2 lbs. (544gm)
Length: 5.0h (127mm)
Width: 3.12h (79mm)
Height: 2.38h (60mm)

  • STC - A490TCCF - STC SA615EA
  • EASA STC - 10052976 Fixed Wing
  • EASA STC - 10053536 Rotorcraft
  • Brazlian STC - Formulario F 400 01G 0808259
  • PMA - A490TCCF - pmasup6
  • Install Guide: 13706 - A490TCCF
  •

    Model Part Number# Description STC Approvals
    A490TCCF 01-0770006-09 Power Supply STC SA615EA.pdf FAA/PMA.     pmasup6
