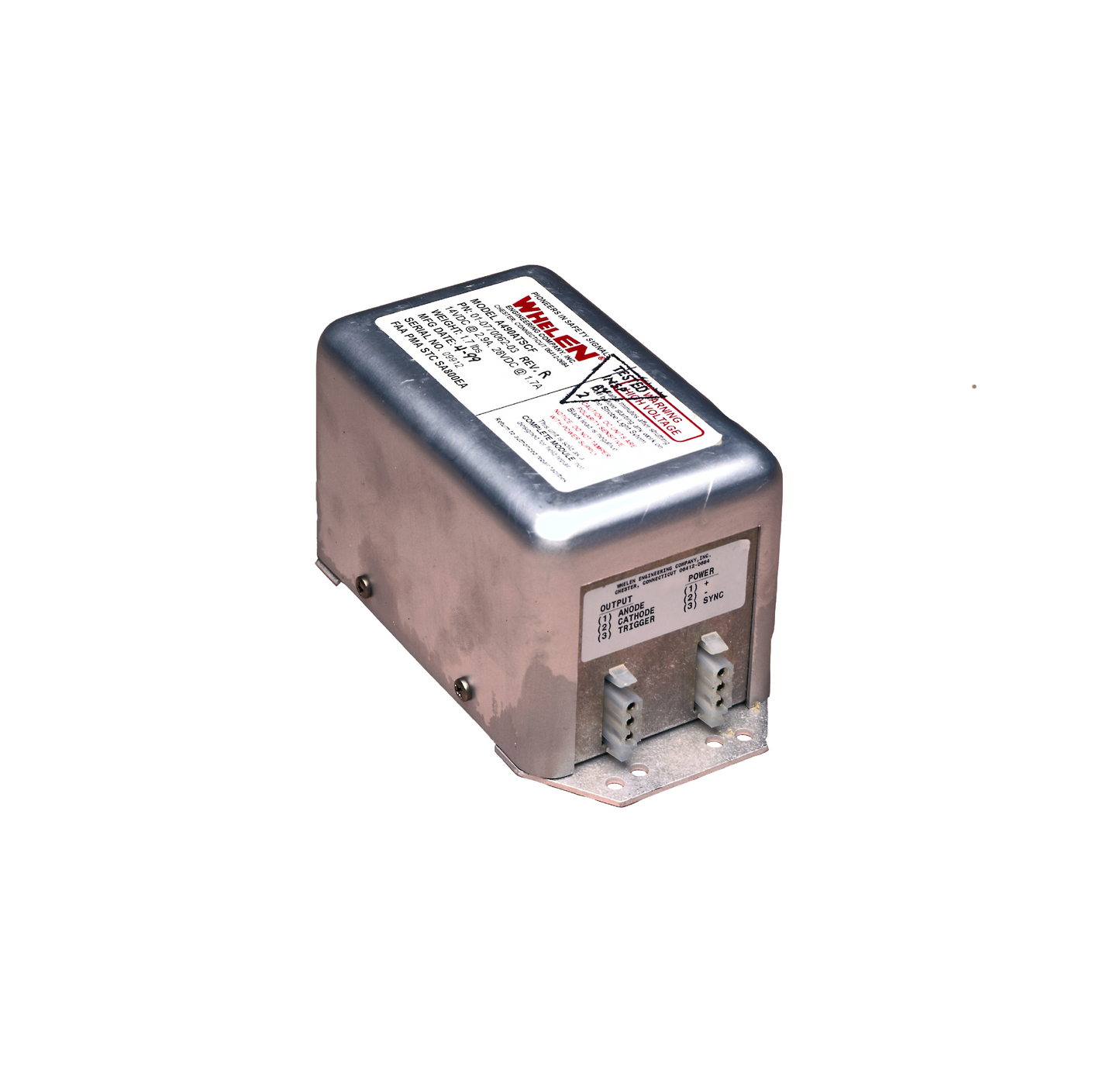

A490ATSCF Series Power Supply For Sale
Model A490ATSC series operates one strobe lighthead. Its compact size allows mounting in the wingtip and/or the tail, adjacent to the light head. It produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector. This power supply will operate from 10 to 30 VDC.
Model A490ATSC series operates one strobe lighthead. Its compact size allows mounting in the wingtip and/or the tail, adjacent to the light head. It produces an accumulated 34 joules of power and can be equipped to flash simultaneously with up to 5 other like units by connecting an 18 gauge wire between outlet 3 on the input power connector. This power supply will operate from 10 to 30 VDC.
Power Supply - A490ATSCF Series
Tech Specs
- Drawing Number: 7006
- Power Consumption: 4.0 Amps @ 14 VDC; 2.0 Amps @ 28 VDC
- Weight: 1.7 lbs. (771gm)
- Length: 5.0\h (127mm) , Width: 3.12\h (79mm) , Height: 3.06\h (78mm)
| Model | Part # | Description | STC | Approvals |
| A490ATSC | 01-0770062-03 | Power Supply A490ATSCF-14/28 | STC SA615EA.pdf | FAA/PMA. pmasup6 |
Documents
