A470A Series Remote Strobe Head Assembly

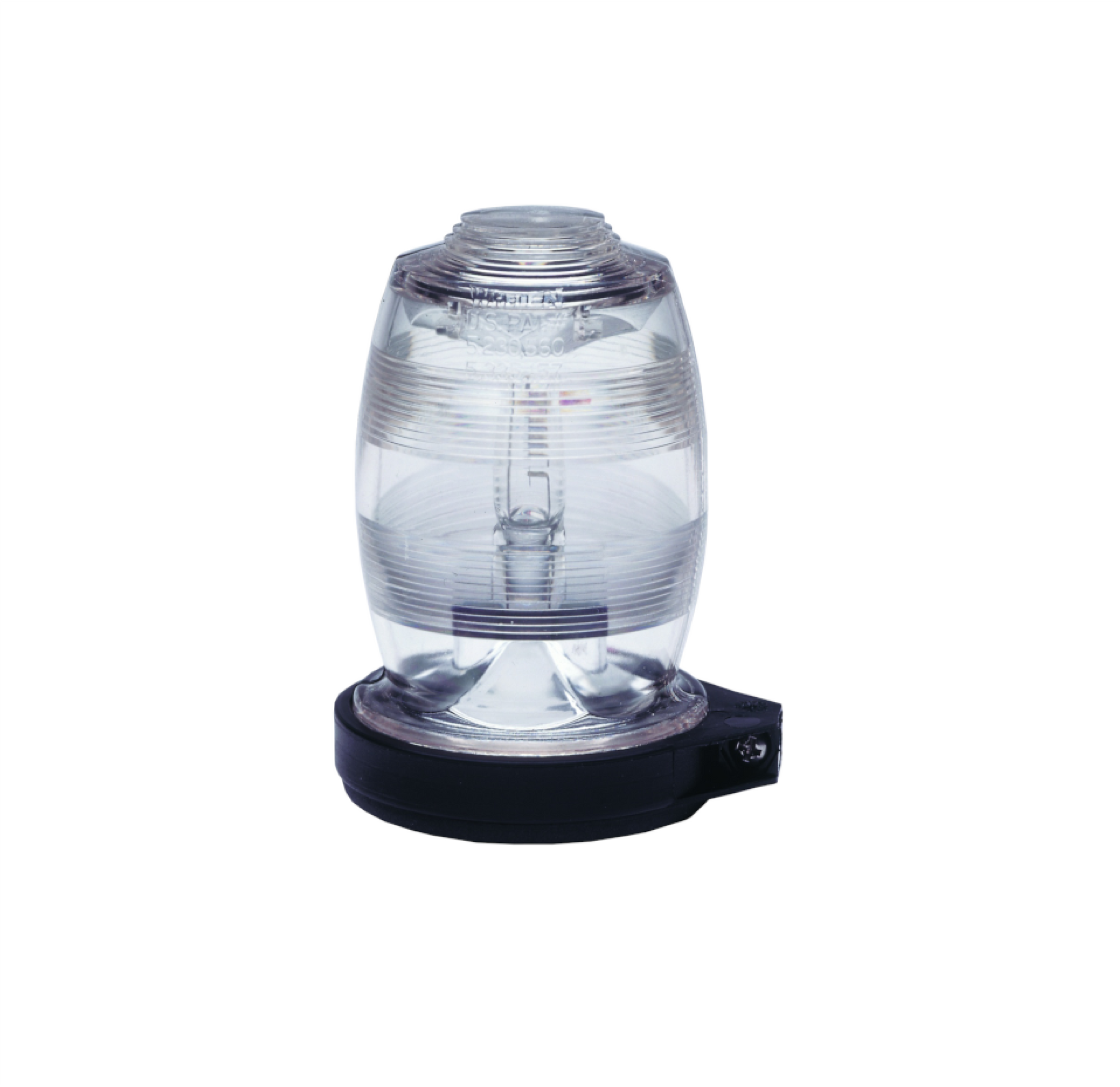

Product image 1A470A Series Remote Strobe Head Assembly
Product image 2A470A Series Remote Strobe Head Assembly
Product image 3A470A Series Remote Strobe Head Assembly
Product image 4A470A Series Remote Strobe Head Assembly
Product image 5A470A Series Remote Strobe Head Assembly

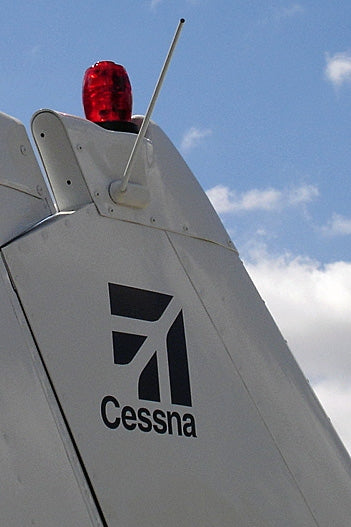

A remote strobe light assembly, compatible with all WAT power supplies. It can be installed on the fuselage or the vertical fin. The unique polycarbonate optic lens and reflector design, re-directs stray light rays into the horizontal plane to provide the maximum 360 degrees of uniform light coverage possible. Available in three different lens colors, Aviation Red, Aviation White and Split Aviation Red/White. Available in radio-shielded configurations. All assemblies require either the model H102 or H103 mounting adapter.

Tech Specs
  • Drawing Number: 70019
  • Weight: 0.3 lbs. (136gm)
  • Exposed Height: 3.75 (95mm)
  • Diameter: 2.5 (64mm)
Model Part # Description STC Approvals
A470ADR 01-0770019-21 Strobe Head Assembly Shielded Red STC SA800EA.pdf FAA/PMA pmasup2
A470ADS 01-0770019-23 Strobe Head Assy, Shielded Red/White STC SA800EA.pdf FAA/PMA pmasup2
A470ADW 01-0770019-22 Strobe Head Assembly, Shielded White STC SA800EA.pdf FAA/PMA pmasup2
A470AR 01-0770019-18 Strobe Head Assembly, Red STC SA800EA.pdf FAA/PMA pmasup2
A470AS 01-0770019-20 Strobe Head Assembly, Red/White STC SA800EA.pdf FAA/PMA pmasup2
A470AW 01-0770019-19 Strobe Head Assembly, White STC SA800EA.pdf FAA/PMA pmasup2
Documents

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.
