A350 & A350CN Series Post Light Assembly
A350 & A350CN Series Post Light Assembly

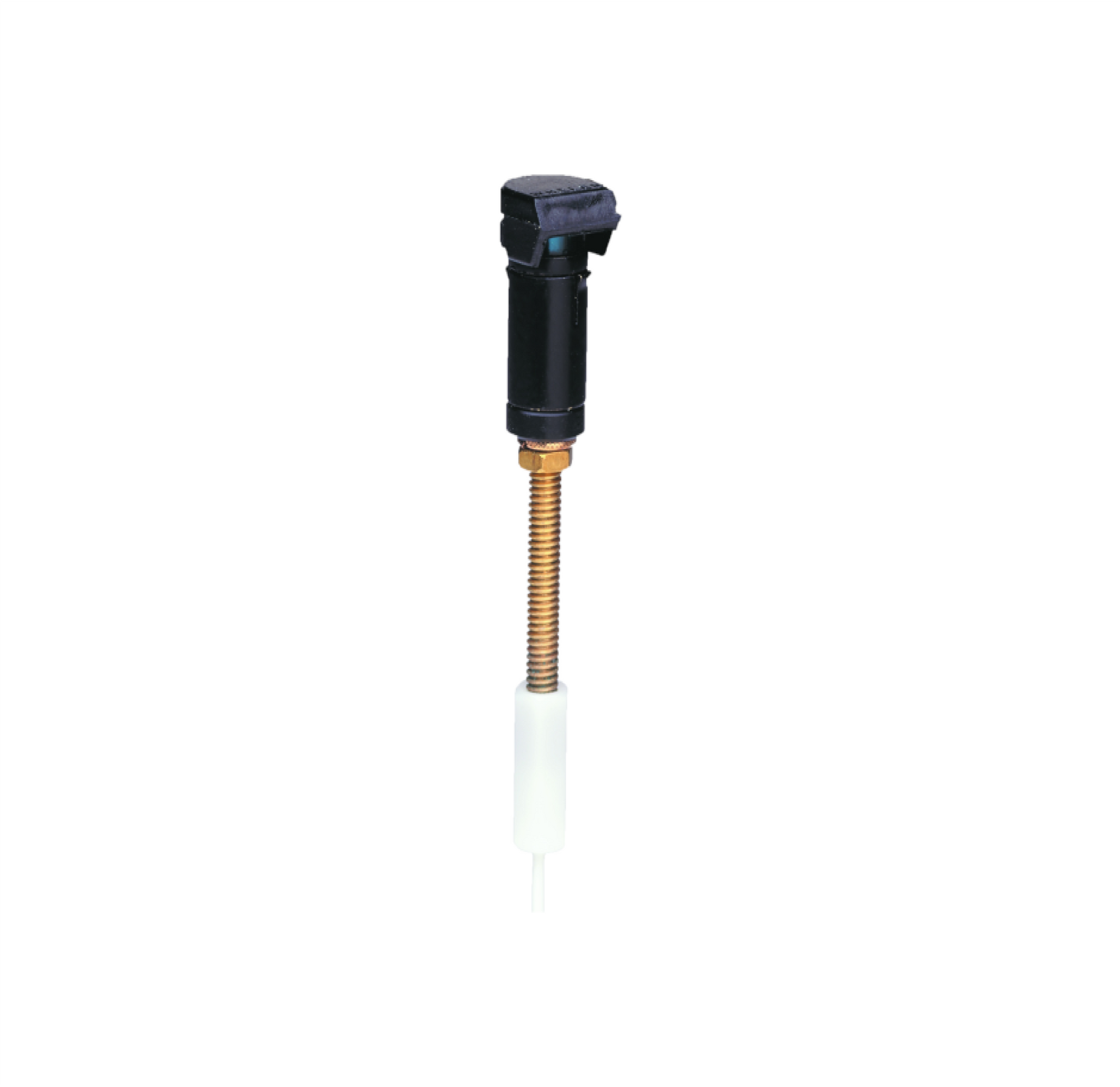

Instrument post light assemblies designed to illuminate the instrument panel and function as instrument mounting bolts. The A350 is identical to the A350CN, but without the connector nut.
Aircraft Light Assembly - A350 & A350CN Series
Tech Specs
- Drawing Number A350: 70116
- Drawing Number A350CN: 70119
- Exposed Height: .875 (22mm) without spacer, 1.00 (25mm) with spacer
- Power Consumption: 0.2 amps @6 VDC, 0.08 amps @14 VDC, & 0.04 amps @ 28 VDC
- Weight: 0.037 lbs. (17gm)
| Model | PartĀ # | Description | STC | Approvals |
| A35014LC | 01-0770116LC1 | Post Light Assembly | None | None |
| A35014LR | 01-0770116LR1 | Post Light Assembly | None | None |
| A35014LW | 01-0770116LW1 | Post Light Assembly | None | None |
| A35014SC | 01-0770116SC1 | Post Light Assembly | None | None |
| A35014SR | 01-0770116SR1 | Post Light Assembly | None | None |
| A35014SW | 01-0770116SW1 | Post Light Assembly | None | None |
| A35028LC | 01-0770116LC2 | Post Light Assembly | None | None |
| A35028LR | 01-0770116LR2 | Post Light Assembly | None | None |
| A35028LW | 01-0770116LW2 | Post Light Assembly | None | None |
| A35028SC | 01-0770116SC2 | Post Light Assembly | None | None |
| A35028SR | 01-0770116SR2 | Post Light Assembly | None | None |
| A35028SW | 01-0770116SW2 | Post Light Assembly | None | None |
| A350CN03 | 01-0770119-03 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN05 | 01-0770119-05 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN06 | 01-0770119-06 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN07 | 01-0770119-07 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN08 | 01-0770119-08 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN09 | 01-0770119-09 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN10 | 01-0770119-10 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN11 | 01-0770119-11 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN12 | 01-0770119-12 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN13 | 01-0770119-13 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN14 | 01-0770119-14 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN15 | 01-0770119-15 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN16 | 01-0770119-16 | Post Light Assy., with Connector Nut | None | FAA/PMA |
| A350CN17 | 01-0770119-17 | Post Light Assy., with Connector Nut | None | FAA/PMA |
