A315-HI Series Utility Light

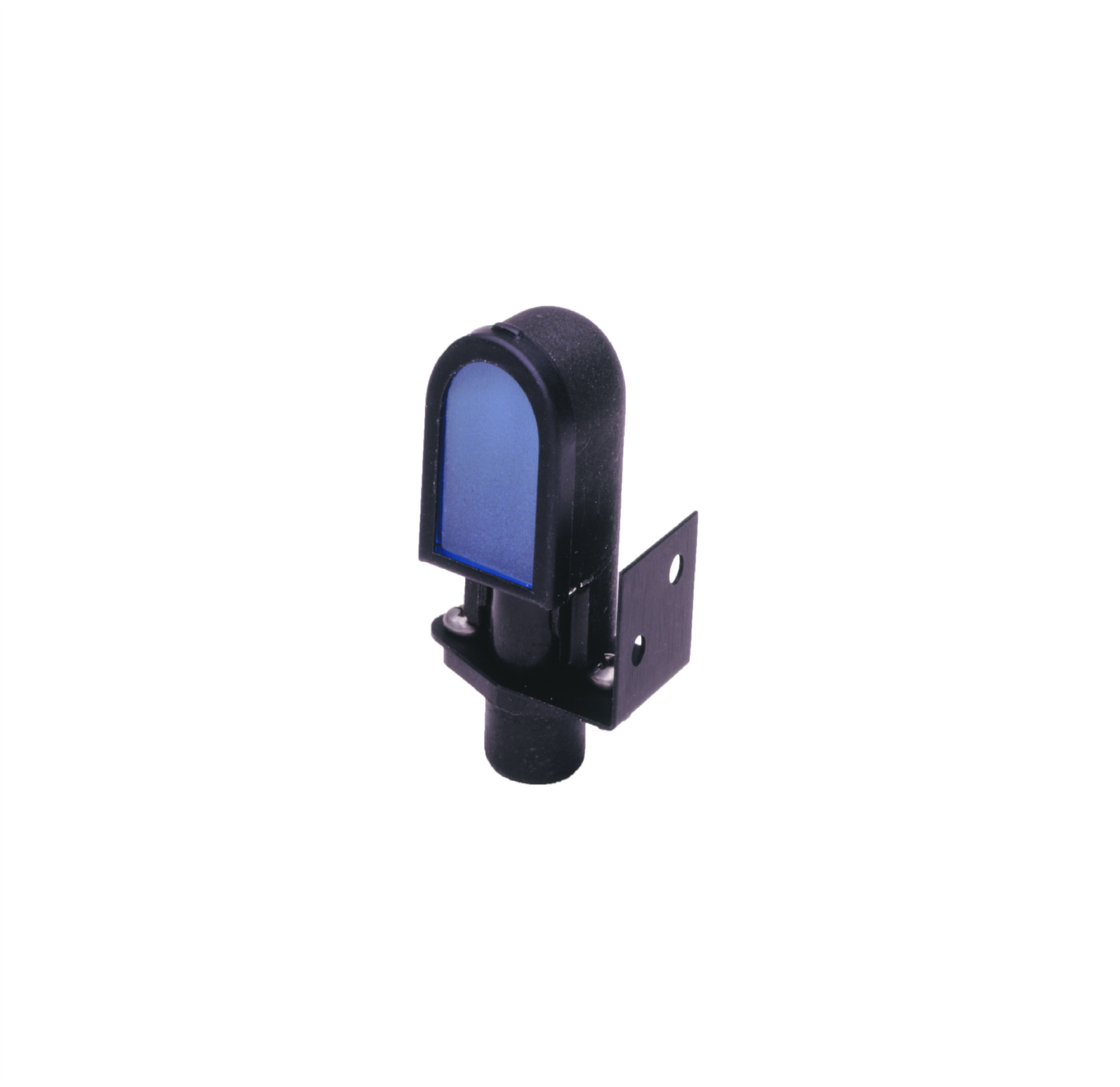

Cockpit utility light assembly which rotates for convenience in reading maps and illuminating instrument panels. Furnished with a right angle bracket for ease of mounting. Available with Instrument White (blue) lens, Red or Clear. Uses a 14 VDC #1414 or a 28 VDC #1495 lamp.
Cockpit utility light assembly which rotates for convenience in reading maps and illuminating instrument panels. Furnished with a right angle bracket for ease of mounting. Available with Instrument White (blue) lens, Red or Clear. Uses a 14 VDC #1414 or a 28 VDC #1495 lamp.
Utility Light - A315-HI
Tech Specs
- Drawing Number: 70113
- Weight: 0.07 lbs. (32gm)
- Height: 2.2 (56mm)
- Depth: 0.93 (24mm)
- Width: 0.87 (22mm)
- Power Consumption: 0.46 amps @ 14 VDC, 0.3 amps @ 28 VDC
Model | Part # | Description | STC | Approvals |
A315HIR1 | 01-0770113-00 | Utility Light, 14V, Red Lens | None | - |
A315HIR2 | 01-0770113-01 | Utility Light, 28V, Red Lens | None | - |
A315HIW1 | 01-0770113-02 | Utility Light, 14V, White Lens | None | - |
