A300 Series Interior Map Light Assemblies

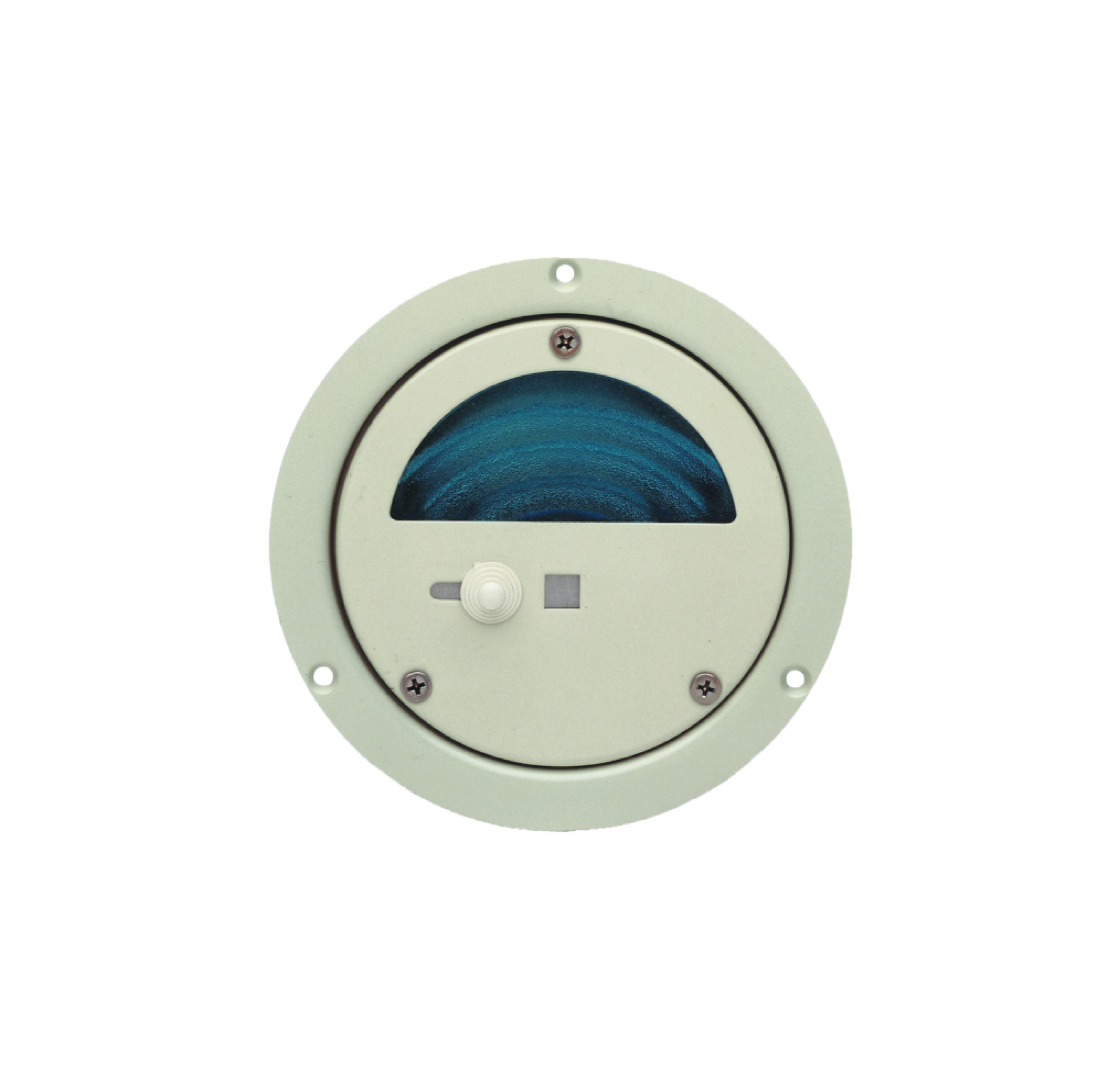

Product image 1A300 Series Interior Map Light Assemblies

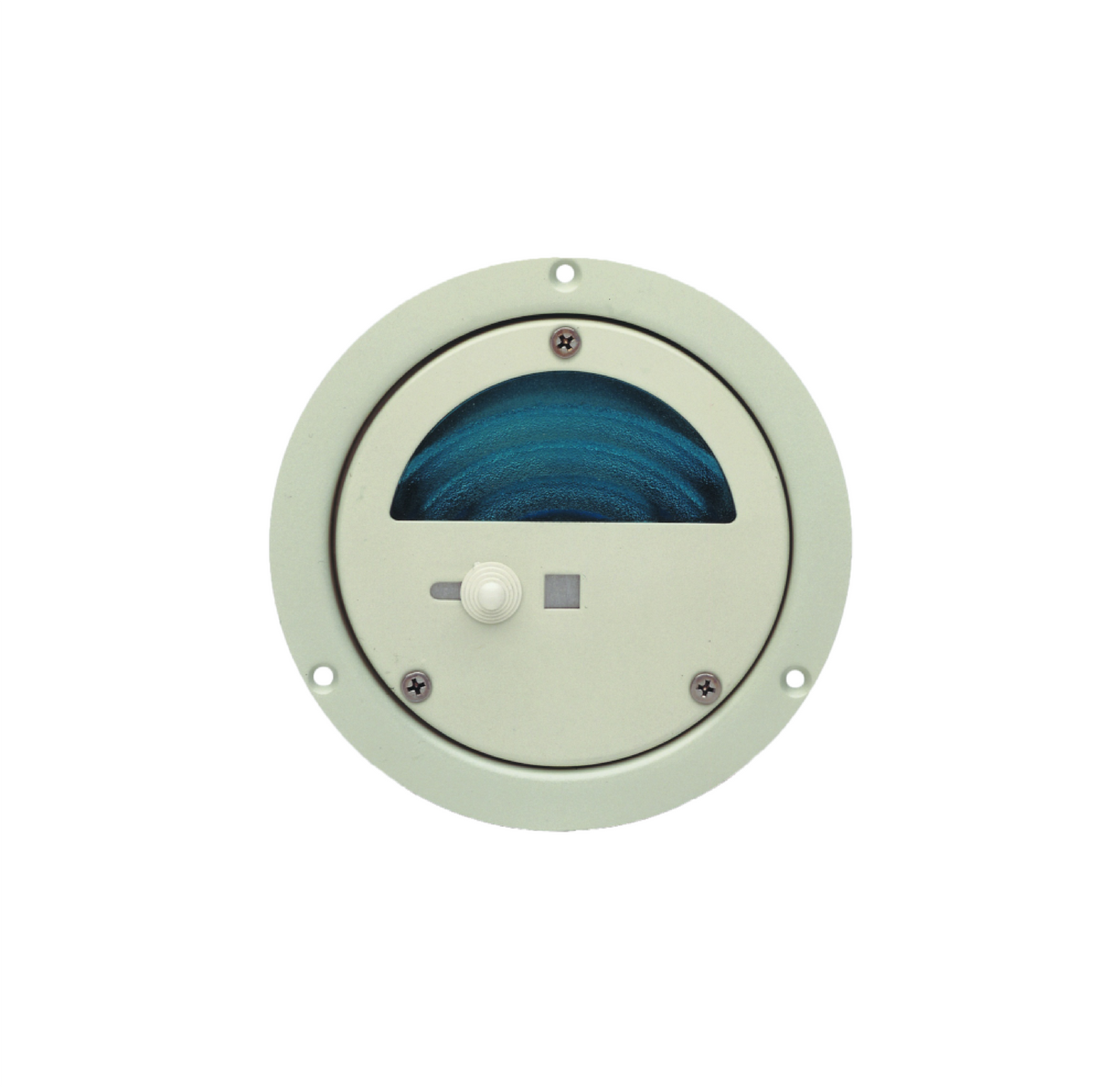

Product image 2A300 Series Interior Map Light Assemblies

Interior map light assemblies designed for indirect cockpit illumination. Slide switch permits direct chart reading. Available with a red or instrument white lens. Uses a 14 VDC #1414 lamp or a 28 VDC #1495 lamp.

Interior Map Light Assembly - A300 Series

Tech Specs
  • Drawing Number: 70104
  • Depth Behind Mounting Flange: 1.06
  • Weight: 0.16 lbs. (73gm)
  • Lamp Wattage: 6 watts
  • Power Consumption: 0.46 amps @ 14 VDC, 0.3 amps @ 28 VDC
Model Part # Description STC Approvals
A300R14 01-0770104-50 Map Light, 14V Red None None
A300W14 01-0770104-30 Map Light, 14V Instrument White None None
A300W28 01-0770104-31 Map Light, 28V Instrument White None None
