90777 King Air LED Wingtip Light Assembly
90777 King Air LED Wingtip Light Assembly

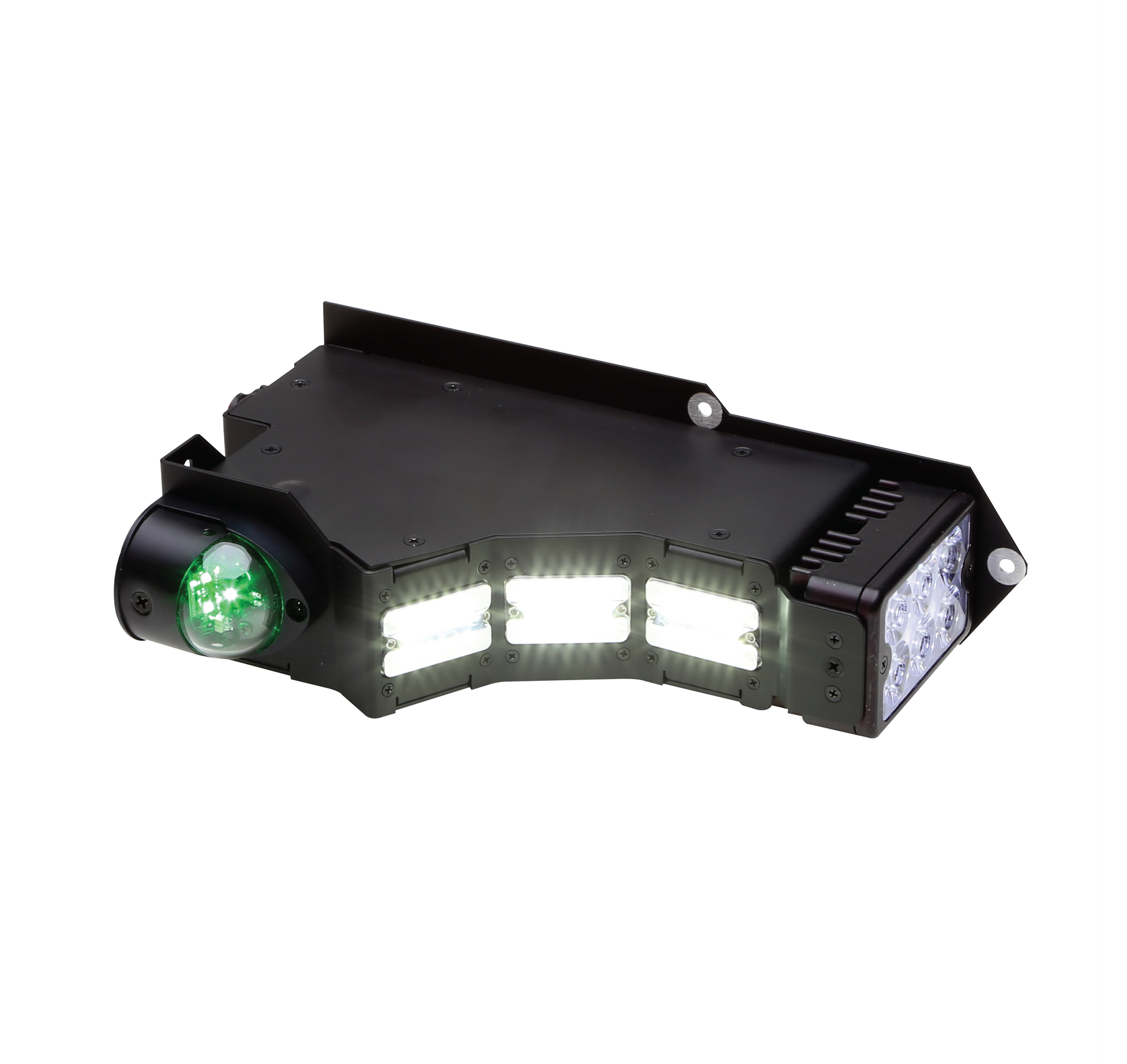

The 90777 series is a KingAir wingtip all LED replacement for the legacy Whelen 90029 series assembly. It is entirely self contained utilizing LED’s for the anti-collision, position and recognition functions. Being all LED, it allows for unparalleled dispatch reliability, and safety of flight due to the robust design combined with the reliability and longevity of LEDs as a light source. Fully FAA/TSO approved with a five year warranty. You may purchase this product with STC paperwork thru Kadex Aero Supply.
King Air LED Wingtip Light Assembly - 90777 Series
Tech Specs
- Nominal Operational Voltage 28 VDC
- (Operation from 22-32 VDC Input Current)
- Anti-Collision (Avg .047 AMPS)
- Anti-Collision Light (Pulse@.25 Sec) 2.5 AMPS
- Position Light .25 AMPS
- Recognition Light (Optional) .45 AMPS
- Flash-rate 45 +/-5/Min
- Weight (Ref)
- LO,-RO 1.9 lbs
- L1,-R1 1.5 lbs
| Model | Part # | Description | Approvals |
| 90777L0 | 01-0790777-L0 | Wingtip LED Position / Anti-Collision Light with Recognition Light, Red | TSO-C96a CLASS II; APPROVED & TSO-C30c TYPE I, & II; APPROVED |
| 90777L1 | 01-0790777-L1 |
Wingtip LED Position / Anti-Collision Light without Recognition Light, Red |
TSO-C96a CLASS II; APPROVED & TSO-C30c TYPE I, & II; APPROVED |
| 90777R0 | 01-0790777-R0 | Wingtip LED Position / Anti-Collision Light with Recognition Light, Green | TSO-C96a CLASS II; APPROVED & TSO-C30c TYPE I, & II; APPROVED |
| 90777R1 | 01-0790777-R1 |
Wingtip LED Position / Anti-Collision Light without Recognition Light, Green |
TSO-C96a CLASS II; APPROVED & TSO-C30c TYPE I, & II; APPROVED |
Documents
Legacy 90029
Cross Reference
|
Beech/Textron P/N |
Side/Color |
Recognition Light Included |
MFGR |
Legacy P/N |
Whelen LED Replacement P/N |
|
100-384118-11 |
Left/Red |
|
|
|
01-0790077-L1 |
|
100-384118-12 |
Right/Green |
|
|
|
01-0790077-R1 |
|
100-384118-13 |
Left/Red |
|
|
|
01-0790077-L0 |
|
100-384118-14 |
Right/Green |
|
|
|
01-0790077-R0 |
|
100-384118-15 |
Left/Red |
NO |
Grimes |
30-1329-3 |
01-0790077-L1 |
|
100-384118-16 |
Right/Green |
NO |
Grimes |
30-1329-4 |
01-0790077-R1 |
|
100-384118-17 |
Left/Red |
YES |
Grimes |
30-1329-5 |
01-0790077-R0 |
|
100-384118-18 |
Right/Green |
YES |
Grimes |
30-1329-6 |
01-0790077-L0 |
|
100-384118-23 |
Left/Red |
NO |
Whelen |
01-0790029-01 |
01-0790077-L1 |
|
100-384118-24 |
Right/Green |
NO |
Whelen |
01-0790029-02 |
01-0790077-R1 |
|
100-384118-25 |
Left/Red |
YES |
Whelen |
01-0790029-03 |
01-0790077-R0 |
|
100-384118-26 |
Right/Green |
YES |
Whelen |
01-0790029-04 |
01-0790077-L0 |
