90569 Series LED Forward & Aft Position & Anti Collision Light
90569 Series LED Forward & Aft Position & Anti Collision Light

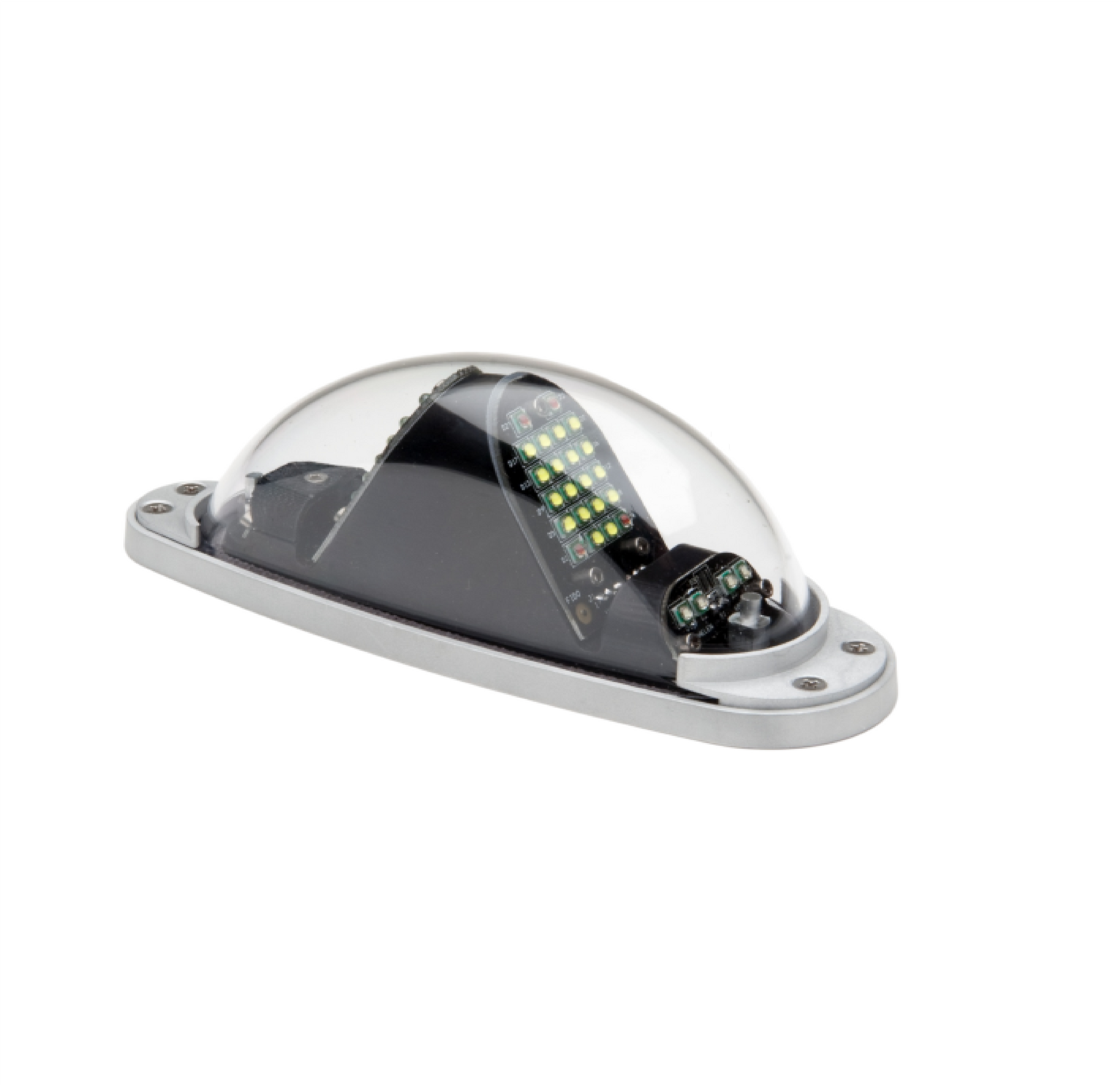

90569 is an LED head assembly only, powered by Whelen Model 71457 LED Flasher /Current source designed to be mounted within 12 inches of the lighthead assembly. Unit complies with TSO-C96a Class II (400 ECP) anti-collision light requirements and TSO-C30c forward position light requirements. Model 90569 (5.61 Long x 1.77 Wide) is a direct mechanical replacement for A600/90340 (with adapter). 90569 has an overall 2 exposed height. Unit ships with 12 of cable wiring into an amp connector.
LED Forward / Aft Position / Anti Collision Light - 90569 Series
Tech Specs
- Drawing: 90569
- Current: See 71457 (0.3 Amps Fwd & Aft Pos),(0.85 Amps Average ACL
- Weight: 0.5 lbs
- Lens: Clear Polycarbonate
- Dimensions:5.61 Long (142.49mm), 1.77 Wide (44.96mm), Exposed Height, 2.01 (50.8mm)
| Model | Part # | Description | Approvals |
| 9056901 | 01-0790569-01 | LED Fwd/Aft POS/ACL w/GND REC, Green | FAA TSO-C96a, TSO-C30c Types II & III |
| 9056902 | 01-0790569-02 | LED Fwd/Aft POS/ACL w/GND REC, Red | FAA TSO-C96a, TSO-C30c Types I & III |
| 9056951 | 01-0790569-51 | LED POS (Green) / ACL (White), Ground/Rec,(IR) | FAA TSO-C96a, TSO-C30c Types II & III |
| 9056952 | 01-0790569-52 | LED POS (Red) / ACL (White), Ground/Rec, (IR) | FAA TSO-C96a, TSO-C30c Types I & III |
