90540 Series Infrared LED Landing Light Flasher | Whelen Aerospace Technologies

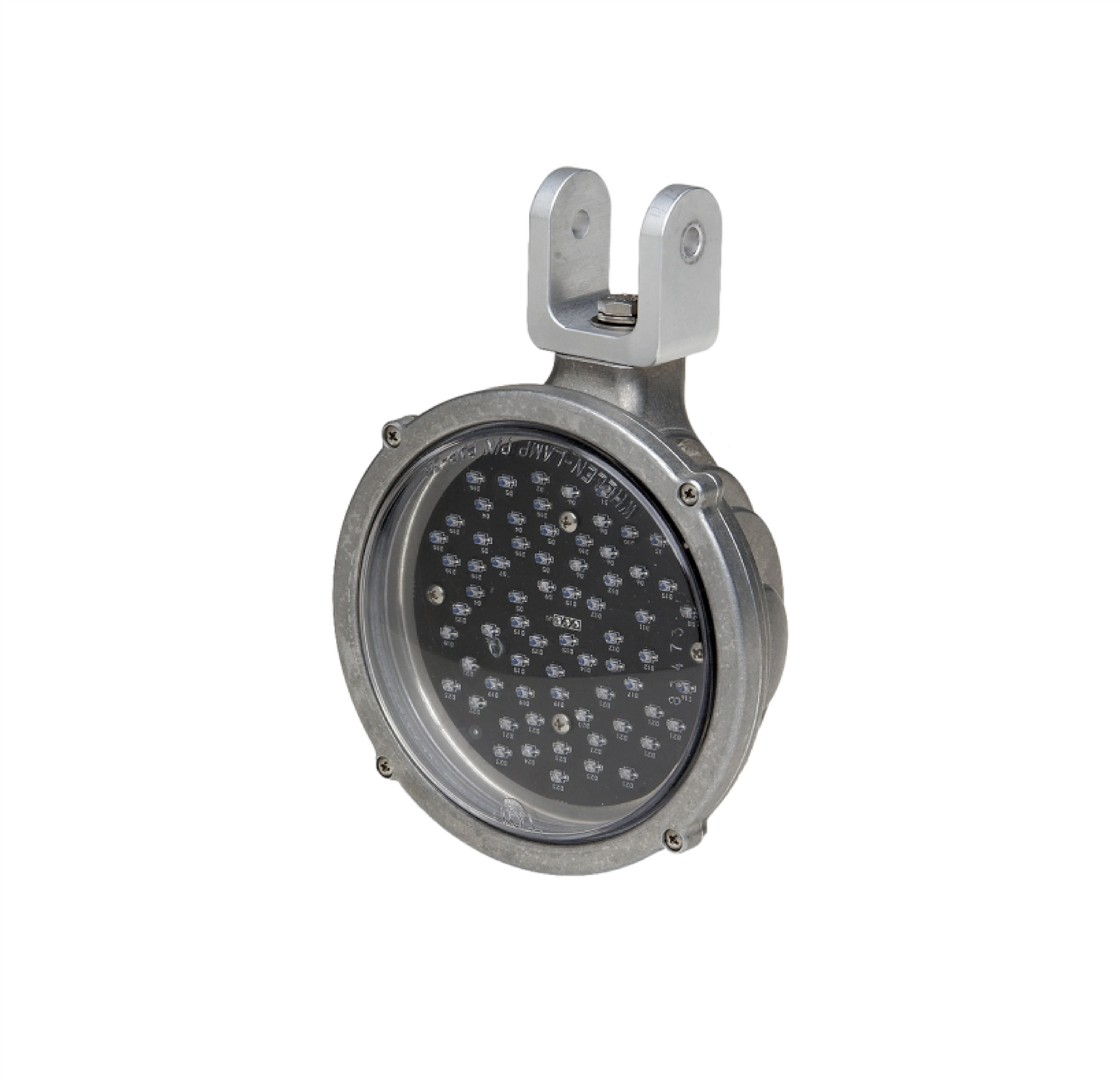

90540 Series IR LED Landing Light Flasher with 24 Degree Beam

Model 90540 is an Infrared illumination product that an produces a 24 degree beam. Model 90540 has demonstrated effectiveness for helicopters and reciprocating engine airplanes during takeoff, landing and off-airport locations. Enhances the effectiveness of NVG goggles by producing IR illumination at 875nm nominal. Specifications: On Request

Model 90540 is an Infrared illumination product that an produces a 24 degree beam. Model 90540 has demonstrated effectiveness for helicopters and reciprocating engine airplanes during takeoff, landing and off-airport locations. Enhances the effectiveness of NVG goggles by producing IR illumination at 875nm nominal. Specifications: On Request

Infrared LED Landing Light Flasher - 90540 Series

Tech Specs
  • Drawing 90540
  • Weight 1.5 lbs
  • Dimensions Diameter x U Bracket 4.70" (119.38mm) x 1.86" (47.24mm)
  • Current Draw 2 amps @ 28VDC
  • Lenses Clear Hard-coated Polycarbonate
Model Part # Description STC Approvals
9054000 01-0790540-00 IR LED Flasher with 24 degree beam, 28 VDC None None
