90520 Series LED Flashing Beacon
90520 Series LED Flashing Beacon

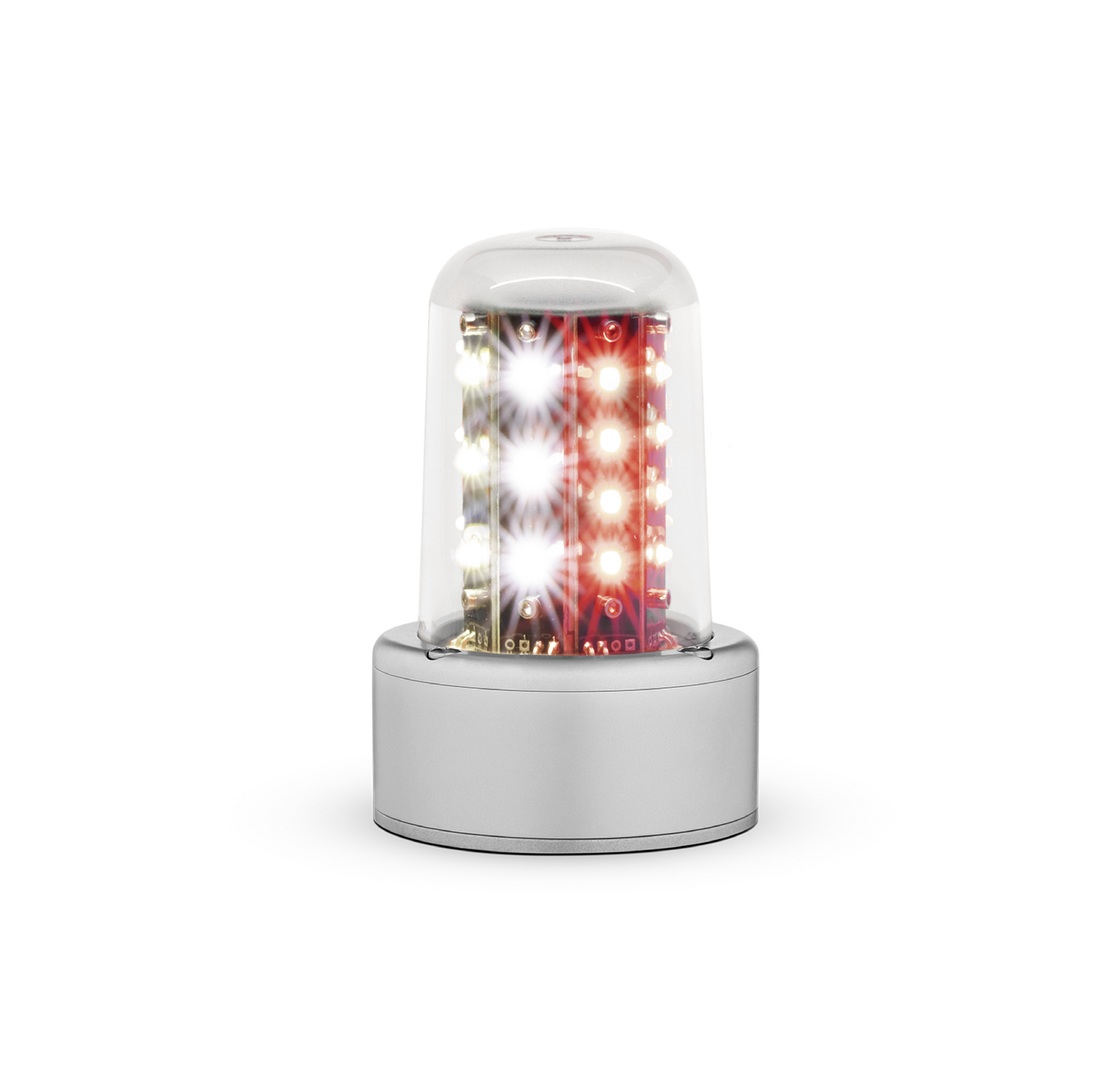

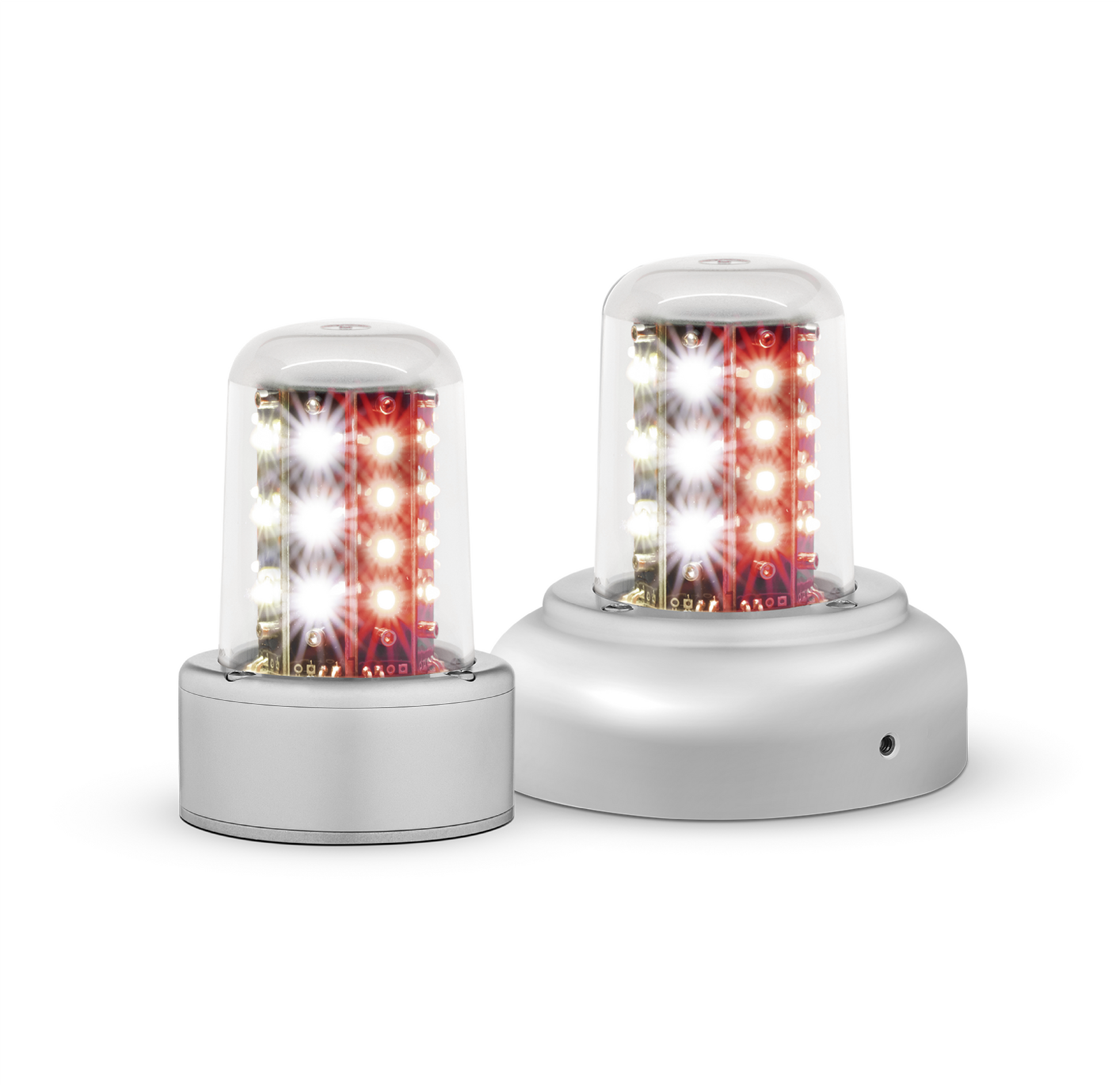

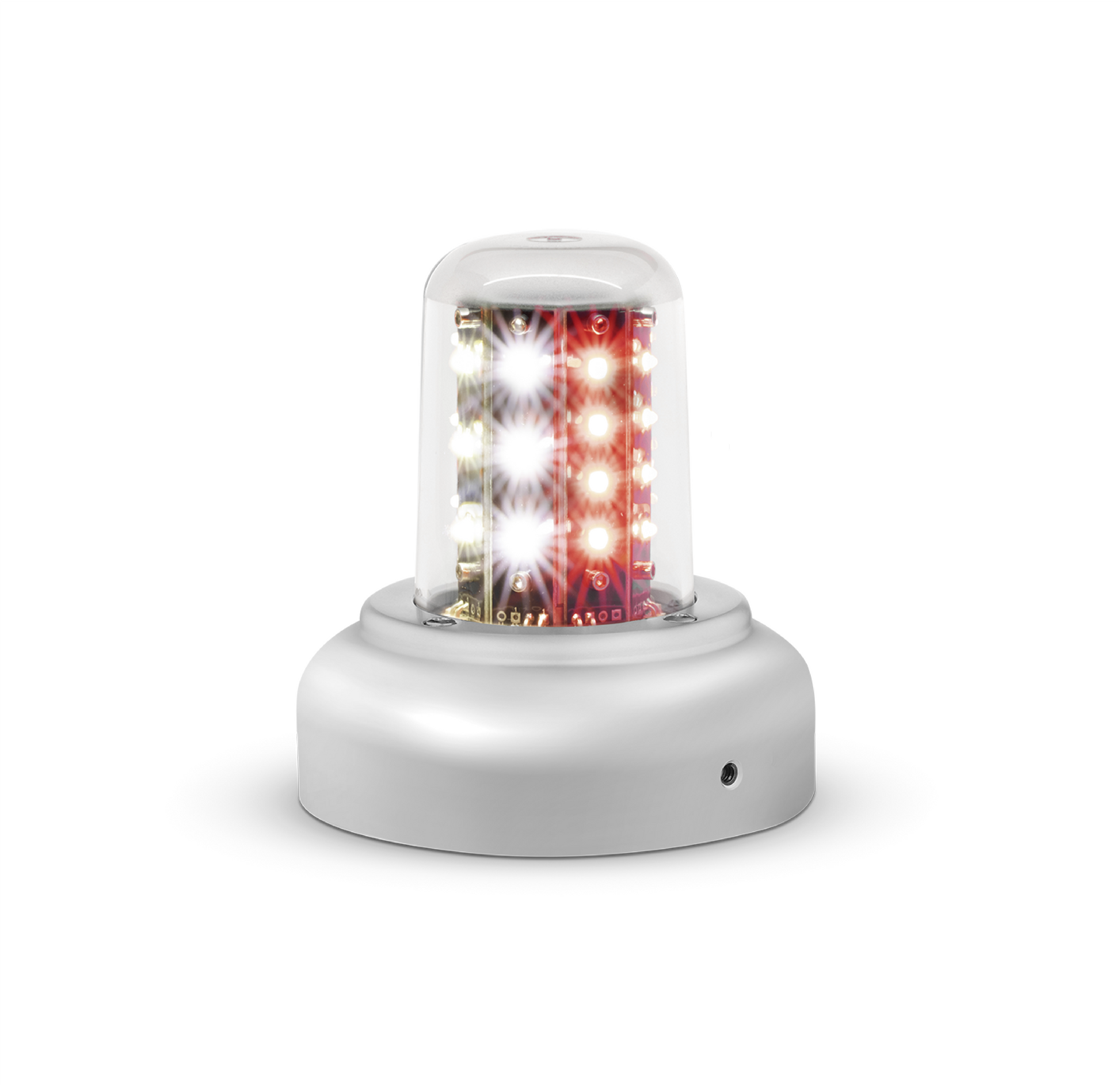

90520 series LED beacons are FAA TSO compliant self-contained LED anti-collision lights (Ref. Class III 100 effective candlepower). They are designed to replace strobe lightheads as small as the A470A with available models to replace HR self-contained beacons (HRCFA) or our legacy 70900 LED beacon. Mounting plate included with assembly.
LED Flashing Beacon - 90520 Series
Tech Specs
- Current: 0.45 amps Average, 2.0 amps Peak @ 3 Sec. 28VDC
- Current: 0.90 amps Average, 4.0 amps Peak @ 3 Sec. 14VDC
- Weight: 0.65 lbs. (295gm) (-01 & -51)
- Lens: Clear polycarbonate
- Dimensions: 2.6 (66mm) Diameter, Exposed Height, 3.74(95mm) (-01 & 51)
| Model | Part # | Description | STC | Approvals |
| 9052000 | 01-0790520-00 | LED Rd/Wt Beacon, 28V (No Adapt, MateNLock) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052001 | 01-0790520-01 | LED Rd/Wt Beacon, 28V (A470A Mount, FlyingLeads) 2.6" | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052004 | 01-0790520-04 | LED Rd/Wt Beacon, 28V (5HoleAdapt, Flying Leads) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052005 | 01-0790520-05 | LED Rd/Wt Beacon, 28V (3.75"Adapt, FlyingLeads) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052007 | 01-0790520-07 | LED Rd/Wt Beacon, 28V (3.75"Adapt, MSConn) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052008 | 01-0790520-08 | LED Rd/Wt Beacon, 28V (5HoleAdapt, MSConn) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052014 | 01-0790520-14 | LED Rd/Wt Beacon, 28V (5HoleAdapt, FlyingLeads, Lower) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052015 | 01-0790520-15 | LED Rd/Wt Beacon, 28V (3.75"Adapt, FlyingLeads, Lower) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052017 | 01-0790520-17 | LED Rd/Wt Beacon, 28V (3.75"Adapt, MSConn, Lower) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052018 | 01-0790520-18 | LED Rd/Wt Beacon, 28V (5HoleAdapt, MSConn, Lower) | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052051 | 01-0790520-51 | LED Rd/Wt Beacon, 14V (A470A Mount, MateNLock) 2.6" | STC SA615EA.pdf | FAA TSO-C96a Class III |
| 9052055 | 01-0790520-55 | LED Rd/Wt Beacon, 14V (3.75"Adapt, FlyingLeads) | STC SA615EA.pdf | FAA TSO-C96a Class III |
Documents
- STC - 9052000 - STC SA615EA
- EASA STC - 10052976 Fixed Wing
- EASA STC - 10053536 Rotorcraft
- Brazlian STC - Formulario F 400 01G 0808259
- Install Guide: 14289 -9052000
- Install Guide: 14290 - 9052051, 9052001
- Install Guide: 14291 - 9052014, 9052004
- Install Guide: 14292 - 9052015, 9052005
- Install Guide: 14293 - 9052017, 9052007
- Install Guide: 14294 - 9052018, 9052008
- Install Guide: 14357 - 9052055
- Installation & Service Manual - Document #05131 Rev. E
