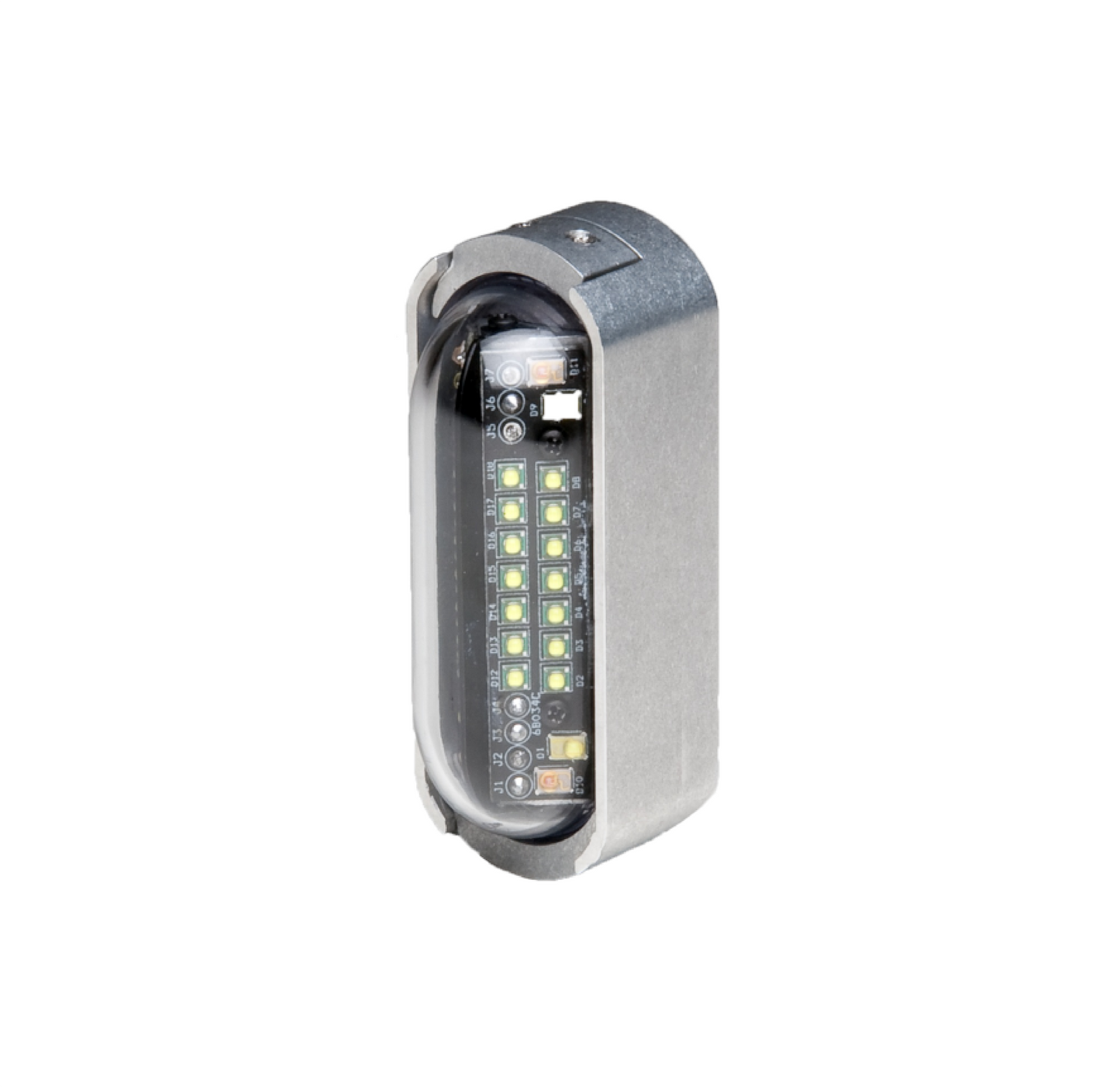

90482 Series LED Tail Position / Anti Collision 28v Light Assembly

Description

LED ANTI-COLLISION / TAIL POSITION LIGHT ASSEMBLY

Model 90482 Series is an all-LED tail-mounted anti-collision position light assembly. The design is intended to be operated by an external flasher/current source box (ref - 71234). Unit complies with TSO-C96a Class II (400 ECP) anti-collision light requirements, and TSOC30c tail position light requirements.

Technical Specifications

•Power Consumption: 0.6 Amps avg. 3 Amps Peak @ 0.25 sec. 28 VDC
•Weight: 0.8 Lbs (363gm)
•Height: 4.88 (124mm)
•Width: 1.84 (47mm)
•Overall Depth: 2.00 (38mm)
•Input connector: MIL D38999/20F13-8PN



Documents

Install Guide: 14329
Install Guide: 14330
