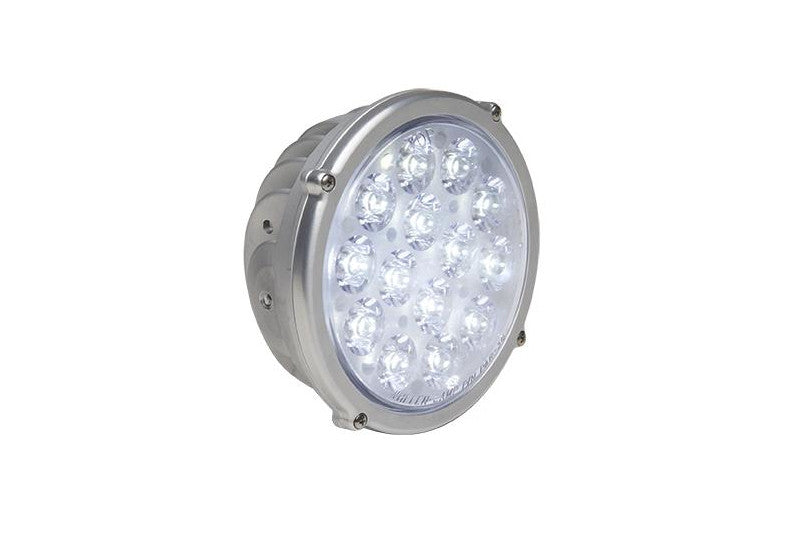

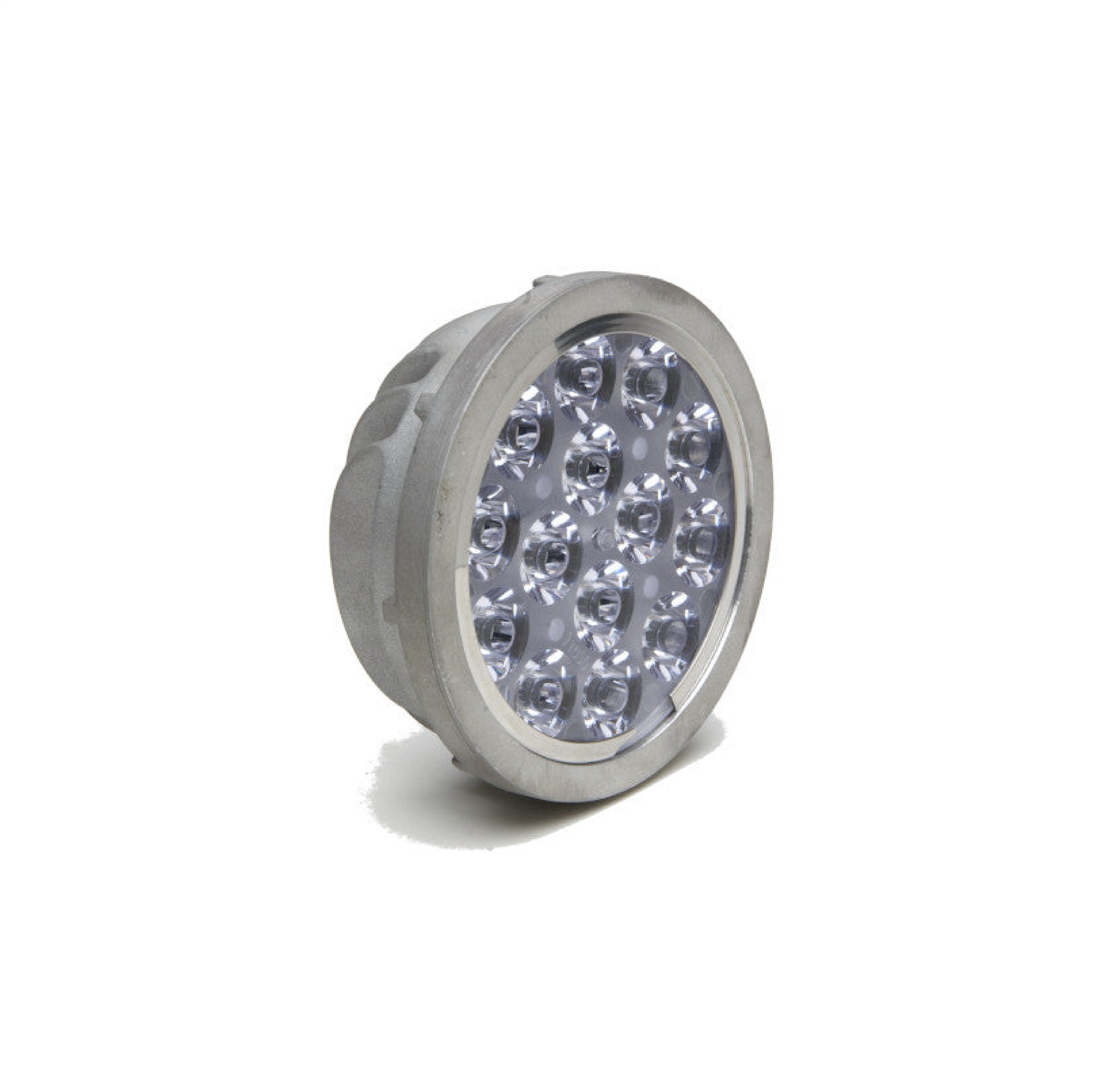

90361 Series LED Light


Model 90361 Series is a self-contained all LED Landing Light Assembly. The design is intended to provide a solution to the needs for a Taxi & Landing Light on a wide variety of aircraft. All current source and electronic circuitry is contained within the housing. Unit is available in several mounting configurations to retrofit existing typical PAR-36 lighting. Outer lens allows for mounting externally on aircraft, option of diffusion lens available upon request. Item ships with flying leads. Contact your OEM for installation eligibility on your aircraft.
Model 90361 Series is a self-contained all LED Landing Light Assembly. The design is intended to provide a solution to the needs for a Taxi & Landing Light on a wide variety of aircraft. All current source and electronic circuitry is contained within the housing. Unit is available in several mounting configurations to retrofit existing typical PAR-36 lighting. Outer lens allows for mounting externally on aircraft, option of diffusion lens available upon request. Item ships with flying leads. Contact your OEM for installation eligibility on your aircraft.
Airplane LED Light - 90361 Series
Tech Specs
- Power Consumption: 1.5 Amps @ 28 VDC
- Weight: 1.3 Lbs (590gm)
- Exposed Diameter: 4.70 (119mm), Overall
- Depth: 2.87 (73mm)
- Lens: Clear Polycarbonate
Model | Part # | Description | STC | Approvals |
9036120 | 01-0790361-20 | LED Landing 4 Round, 28V, External Mount | None | - |
9036125 | 01-0790361-25 | LED Taxi 4 round, 28V, External Mount w/ Spreader Optic | None | - |
Additional Details
LED LANDING LIGHT (EXTERNAL MOUNT) PAR-36 STYLE
