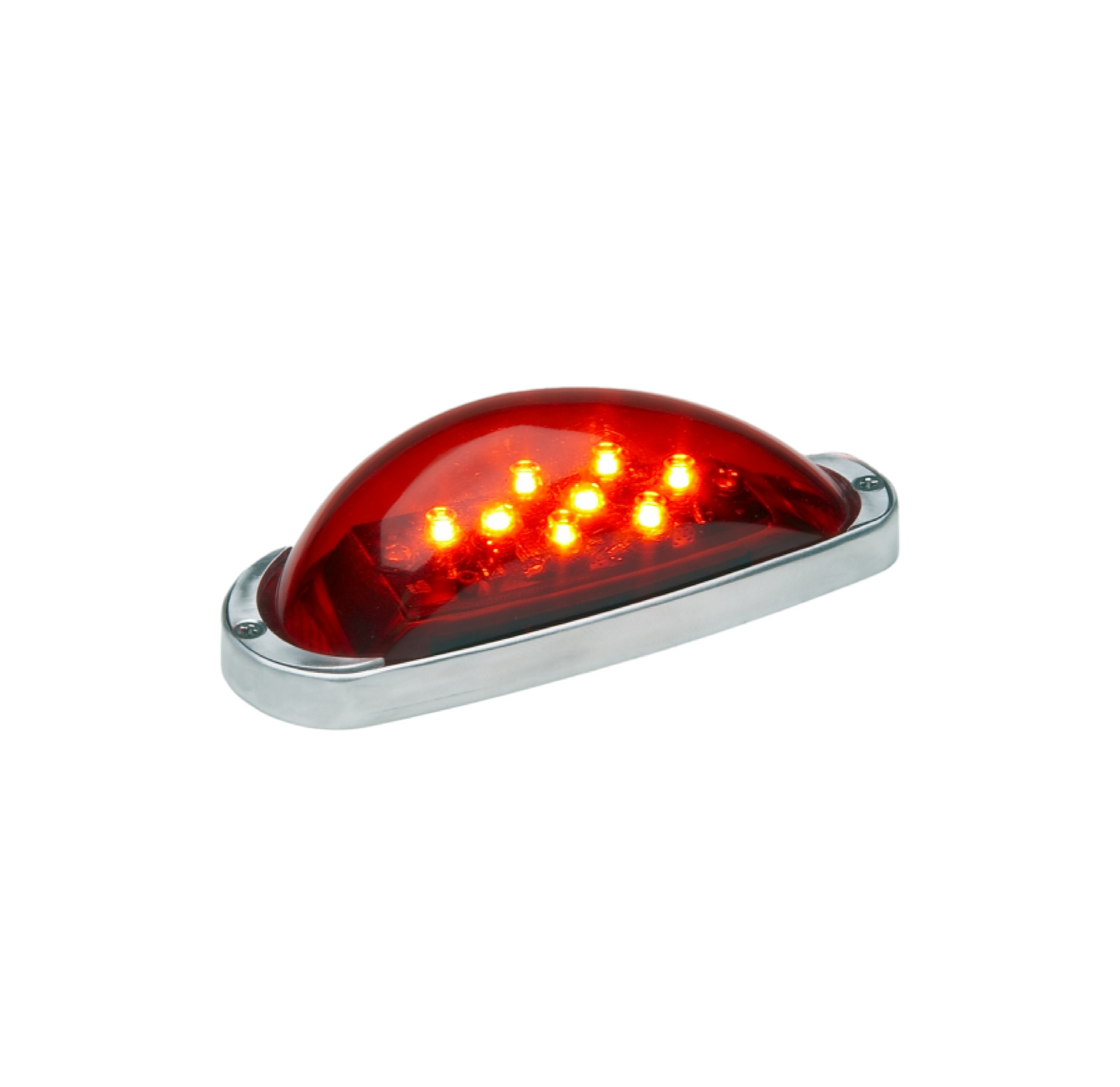

90350 Series Self-Contained LED Ground Recognition Light Assembly

Model 90350 Series is a self-contained all LED Ground Recognition light assembly. The design is intended to provide a solution to the needs for ground recognition lighting on a wide variety of aircraft. All current source and flasher circuitry is contained within the base plate. Unit is flush mounted to aircraft surface eliminating the need for large cutouts in the aircraft structure. Item ships with flying leads.

Self Contained LED Ground Recognition Light Assembly - 90350 Series

Tech Specs
  • Power Consumption: 0.28 Amps Avg. @ 28 VDC
  • LED Colors: Aviation Red
  • Lens: Aviation Red, Polycarbonate
  • Weight: 0.2 Lbs (91gm)
  • Exposed Height: 1.48 (38mm)
  • Exposed Width: 1.64 (42mm)
  • Exposed Length: 4.61 (117mm)
Model Part # Description STC Approvals
9035000 01-0790350-00 LED Mini Ground Recognition LT., 28V None -
