90028 Series Strobe Flash Tube Assembly

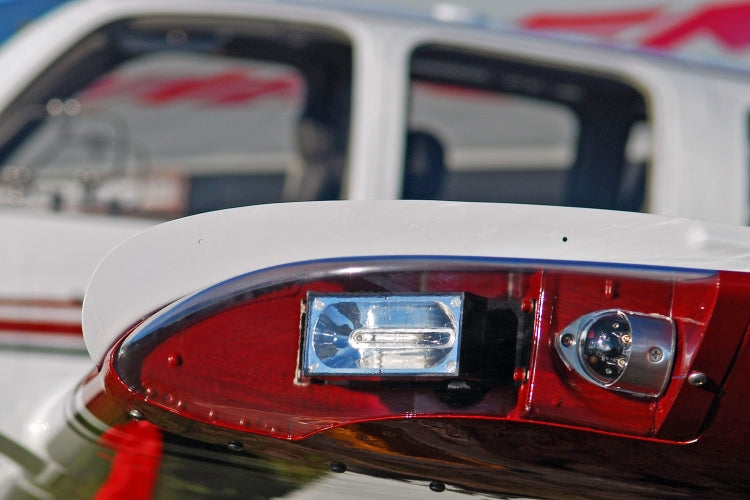

A wing tip strobe light used on Beech aircraft with commonality wing tip 1974 & later. It is a direct replacement for 30-0467-( ), 30-1331-( ) and the 30-1467-( ) series.
A wing tip strobe light used on Beech aircraft with commonality wing tip 1974 & later. It is a direct replacement for 30-0467-( ), 30-1331-( ) and the 30-1467-( ) series.
Strobe Flash Tube Assembly - 90028 Series
Tech Specs
- Drawing Number: 90028
- Weight: 0.4 lbs. (181gm)
- Exposed Height: 1.87 (48mm)
- Length: 4.37 (111mm)
- Depth: 2.25 (57mm)
Model | Part # | Description |
9002800 | 01-0790028-00 | Strobe Flash Tube Assembly (Unpainted) |
9002801 | 01-0790028-01 | Strobe Tube Assembly (Painted) |
D900283 | 01-0790028-03 | Wing Tip Light Head Assembly with 45° Mounting Bracket |
D900285 | 01-0790028-05 | Taillight Head Assembly with 90° Mounting Bracket |
D900287 | 01-0790028-07 | Wing Tip Light Head Assembly with 45° Mounting Bracket and MS Connector |
D900289 | 01-0790028-09 | Taillight Head Assembly with 90° Mounting Bracket and MS Connector |
