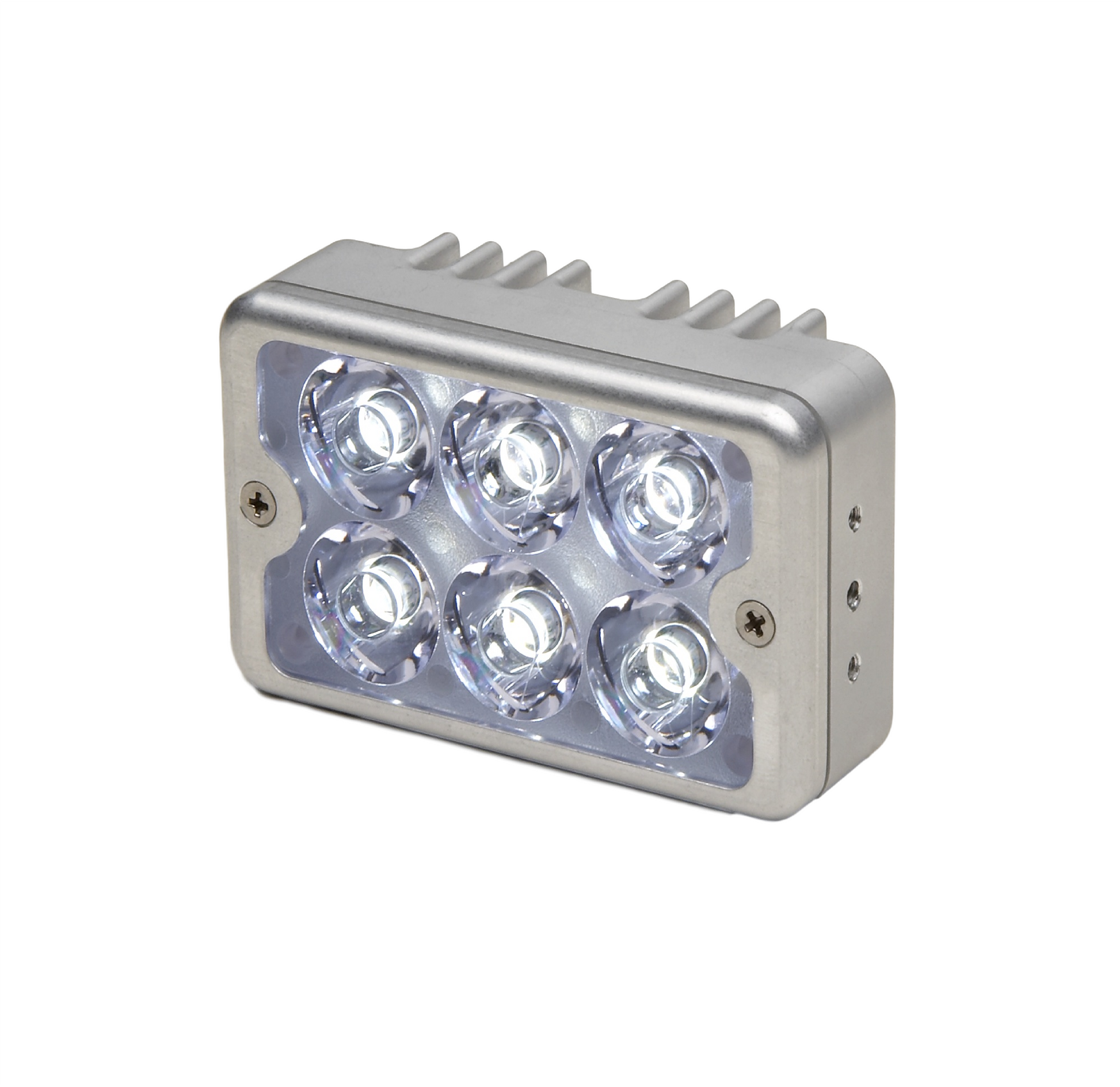

72170 Series LED Recognition Light






Experience enhanced illumination with our 72170 Series LED recognition light, tailored for diverse aircraft needs. Reap the myriad benefits of LED technology: no EMI/RFI interference, energy efficiency with low current consumption, minimal heat generation, and impressive longevity. Especially suited for areas sensitive to vibrations. This product comes with pre-attached flying leads and offers a variety of beam spreads. An upgraded version with an integrated MS connector is also at your disposal.
Upgrade Alert: The 72170 seamlessly replaces the 71125 series, shining 2.5 times brighter. Now catering to diverse power needs with its variable voltage feature, ranging from 14-28VDC. Swap out your 71125 with the 72170 for a brighter, more efficient lighting solution.
*Brackets and mounting hardware not included*
Experience enhanced illumination with our 72170 Series LED recognition light, tailored for diverse aircraft needs. Reap the myriad benefits of LED technology: no EMI/RFI interference, energy efficiency with low current consumption, minimal heat generation, and impressive longevity. Especially suited for areas sensitive to vibrations. This product comes with pre-attached flying leads and offers a variety of beam spreads. An upgraded version with an integrated MS connector is also at your disposal.
Upgrade Alert: The 72170 seamlessly replaces the 71125 series, shining 2.5 times brighter. Now catering to diverse power needs with its variable voltage feature, ranging from 14-28VDC. Swap out your 71125 with the 72170 for a brighter, more efficient lighting solution.
*Brackets and mounting hardware not included*
Recognition Light - 72170 Series
Upgrade Alert: The 72170 seamlessly replaces the 71125 series, shining 2.5 times brighter. Now catering to diverse power needs with its variable voltage feature, ranging from 14-28VDC. Swap out your 71125 with the 72170 for a brighter, more efficient lighting solution.
Tech Specs
- Power Consumption: 1.1 Amps @ 14 Volts, 0.56 Amps @ 28 Volts
- Weight: 0.36 lbs. (163gm)
- Overall Width: 3.25 (83mm)
- Overall Depth: 1.25 (32mm)
- Overall Height: 1.95 (50mm)
Model | Part # | Description | STC | Approvals |
72127001 | 01-0772170-01 | LED Light, 2"x3", 14-28VDC, 10º Beam Pattern | None | None |
7217002 | 01-0772170-02 | LED Light, 2"x3", 14-28VDC, 20º Beam Pattern | None | None |
7217003 | 01-0772170-03 | LED Light, 2"x3", 14-28VDC, 30º Vertical Beam Pattern | None | None |
7217009 | 01-0772170-09 | LED Light, 2"x3", 14-28VDC, 150º Beam Pattern | None | None |
7217041 | 01-0772170-41 | LED Light, 2"x3", 14-28VDC, 10º Beam Pattern | None | None |
7217042 | 01-0772170-42 | LED Light, 2"x3", 14-28VDC, 20º Beam Pattern | None | None |
7217043 | 01-0772170-43 | LED Light 2"x3",14- 28VDC, 30º Vertical Beam Pattern | None | None |
7217049 | 01-0772170-49 | LED Light, 2"x3", 14-28VDC, 150º Beam Pattern | None | None |
Cross Reference
71125 Model Number
|
71125 Part Number
|
72170 Model Number
|
72170 Part Number
|
7112510
|
01-0771125-10
|
72127001
|
01-0772170-01
|
7112520
|
01-0771125-20
|
72127001
|
01-0772170-01
|
7112511
|
01-0771125-11
|
7217002
|
01-0772170-02
|
7112521
|
01-0771125-21
|
7217002
|
01-0772170-02
|
7112523
|
01-0771125-23
|
7217003
|
01-0772170-03
|
7112512
|
01-0771125-12
|
7217009
|
01-0772170-09
|
7112522
|
01-0771125-22
|
7217009
|
01-0772170-09
|
7112552
|
01-0771125-52
|
7217041
|
01-0772170-41
|
7112550
|
01-0771125-50
|
7217042
|
01-0772170-42
|
7112553
|
01-0771125-53
|
7217043
|
01-0772170-43
|
7112551
|
01-0771125-51
|
7217049
|
01-0772170-49
|
