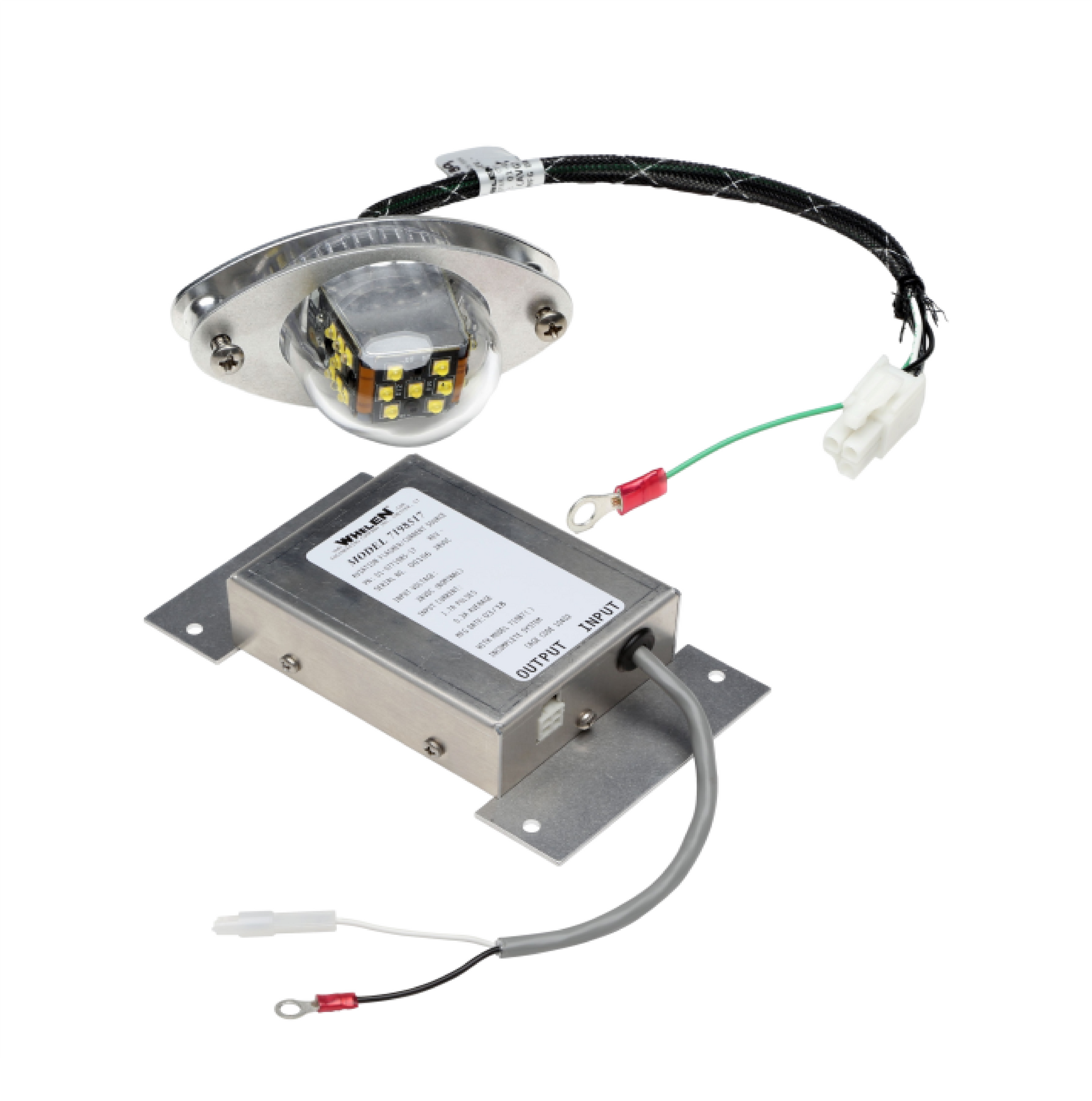

71987 & 71985 LED Anti-Collision Light

The Model 7198700 & 7198517 are designed to replace the legacy strobe light (01-0770818-00) and power supply (01-0770006-12 & -17) system on Cessna single engine restart aircraft 1996 & newer. FAA/PMA Approved.


Tech Specs
  • Drawing:  71987 & 71985
  • Weight:  0.14lbs. -  71987 / 0.48lbs. - 71985
  • Current Draw: 0.3 AMPS Avg. @ 28 Volts
  • Dimensions:     71987 - 1.18 (30mm) H X 3.17 (81mm) L X 1.42 (6mm) W                        71985 - 1.38 (35MM) H X 3.93 (100mm) L X 3.10 (79mm) W
  • LED Color - Aviation White
Model Part # Description Approvals
7198700 01-0771987-00 LED Anti-Collision light, White
FAA/PMA
7198517 01-0771985-17 Flasher Assembly
FAA/ PMA

**NOTE: If replacing either 7081800 strobe assembly or 7000617 power supply both 7198517 & 7198700 are needed to convert to LED**

Documents

Installation Guide: 14B71 - 7198700

Installation Guide: 14B79 - 7198517

PMA SUPPLEMENT 48
