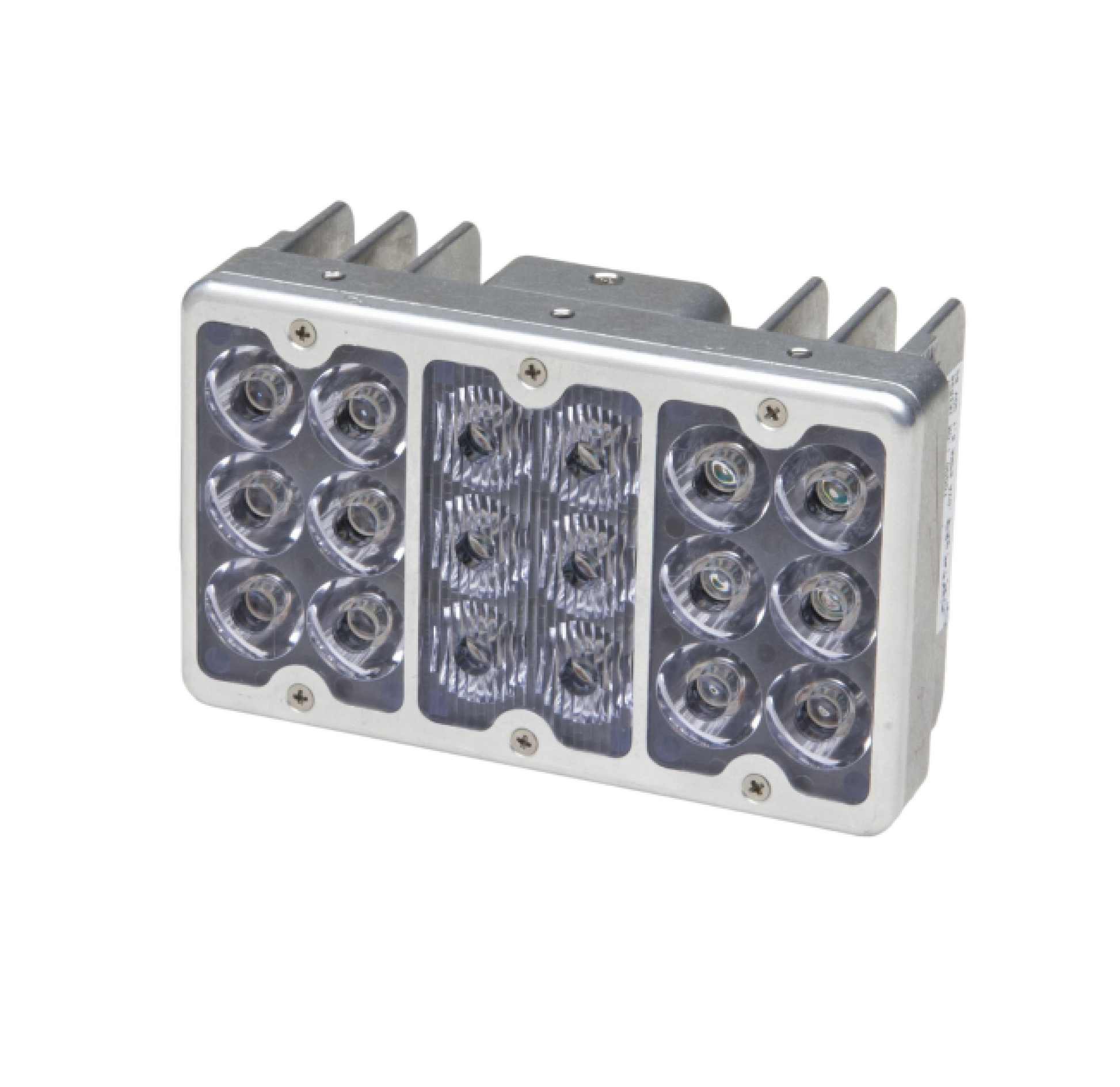

71674 Series Interior LED Landing Light


Model 71674 is an Interior mounted LED Landing/Taxi/Recognition light. This assembly has 3 modes in which to operate. Taxi mode will illuminate the center light module for taxiing purposes. Landing Mode will illuminate all light modules for maximum output. Recognition mode will flash the 3 modules simultaneously. The unit comes equipped with 6 inch flying leads. Unit available in 28 VDC.
Model 71674 is an Interior mounted LED Landing/Taxi/Recognition light. This assembly has 3 modes in which to operate. Taxi mode will illuminate the center light module for taxiing purposes. Landing Mode will illuminate all light modules for maximum output. Recognition mode will flash the 3 modules simultaneously. The unit comes equipped with 6 inch flying leads. Unit available in 28 VDC.
Interior LED Landing Light - 71674 Series
Tech Specs
- Drawing 71674
- Weight 1.2 lbs
- Dimensions H x W x L 3.25" (82.5mm) x 2.19" (55.62mm) x 5.40" (137mm)
- LED Color White
- Lenses Clear Polycarbonate with UV inhibitor
- Candela: Landing Light 52,000
Model | Part # | Description | STC | Approvals |
71674 | 01-0771674-00 | Landing/Taxi/Recognition 28 VDC | None | - |
