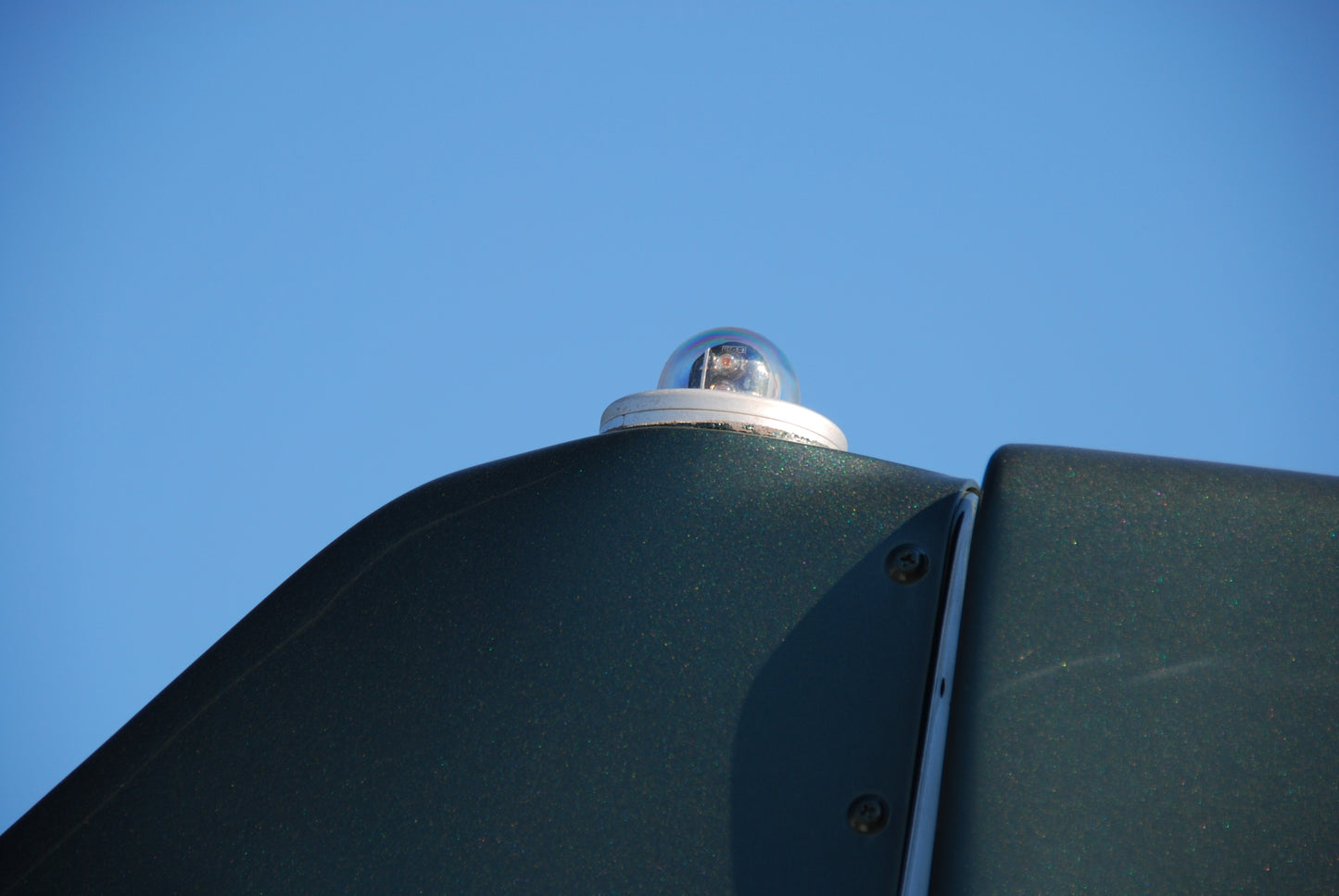

71560 Series - LED Vertical Fin Ground Recognition

The Model 71560 Series is an LED anti-collision beacon for Cessna Restart and certain Piper aircraft. It's solid-state circuitry and LED light source allow for replacement of the legacy Whelen 70786 series halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles of the legacy beacons, thus eliminating the need to alter the aircraft.
The Model 71560 Series is an LED anti-collision beacon for Cessna Restart and certain Piper aircraft. It's solid-state circuitry and LED light source allow for replacement of the legacy Whelen 70786 series halogen flashing beacons. Benefits include no moving parts, no EMI/RFI, no inrush current spikes and crisp on off cycles. There are several models available to provide compatibility with existing mounting patterns and profiles of the legacy beacons, thus eliminating the need to alter the aircraft.

Vertical Fin Ground Recognition Light - 71560 Series

Tech Specs
  • Drawing:  71560
  • Weight:  0.2 LBS. (97gm)
  • Current Draw: 0.11 Amps @ 28 VDC
  • Dimensions: 1.39" (35mm) X 2.47" (63mm) X 2.09" (53mm)
  • LED Color - Aviation Red
Model Part # Description
7156000 01-0771560-00 28V LED ground recognition light Cessna
7156020 01-0771560-20 28 V LED ground recognition light Piper
7156050 01-0771560-50

28 V LED ground recognition light Piper (Teardrop Base)

7156000 Replaces 7078600 & 710500 and is utilized on Cessna Single engine restart aircraft and Piper.
