71554 Series LED Aircraft Position Light 14v and 28v

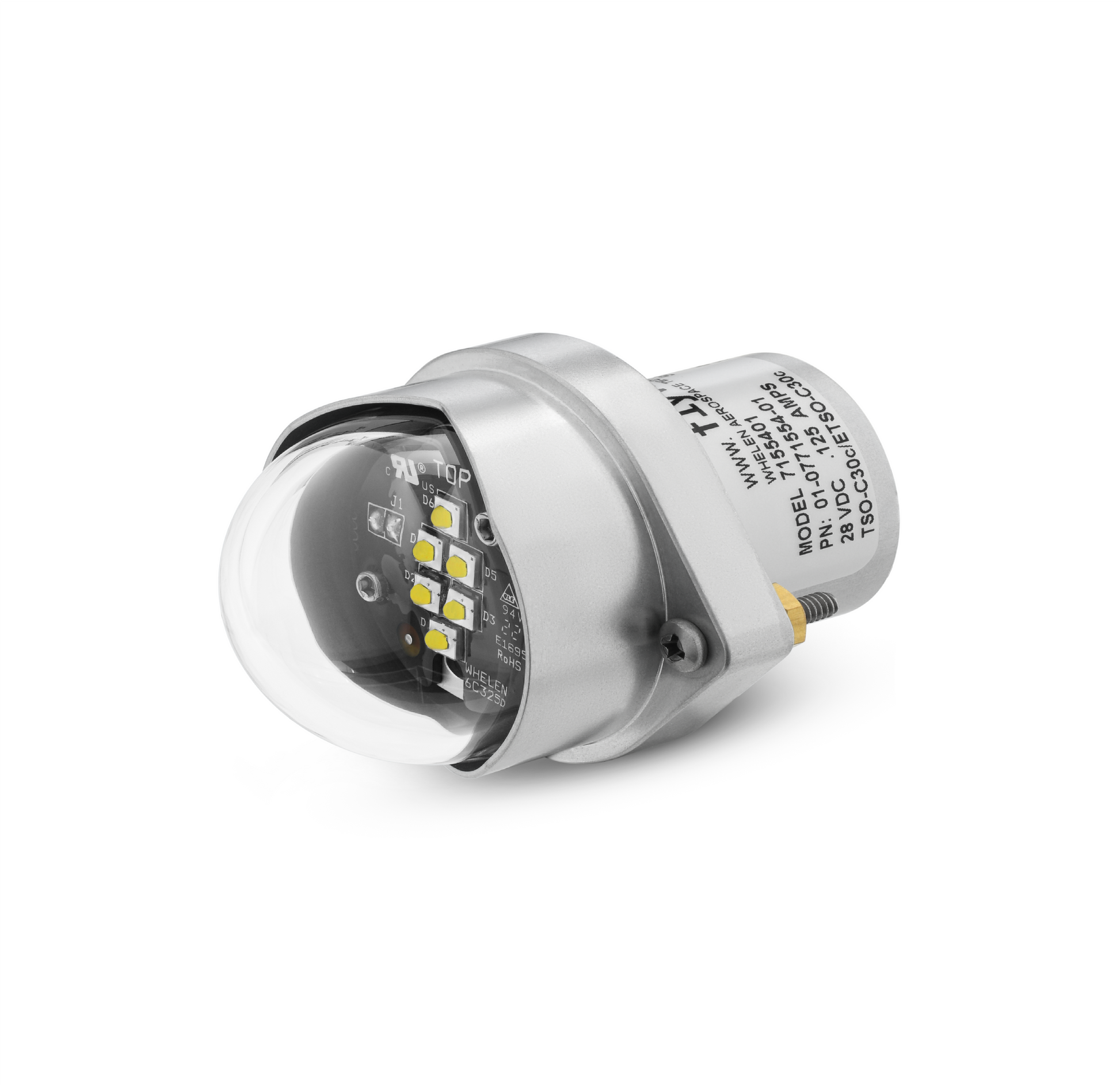

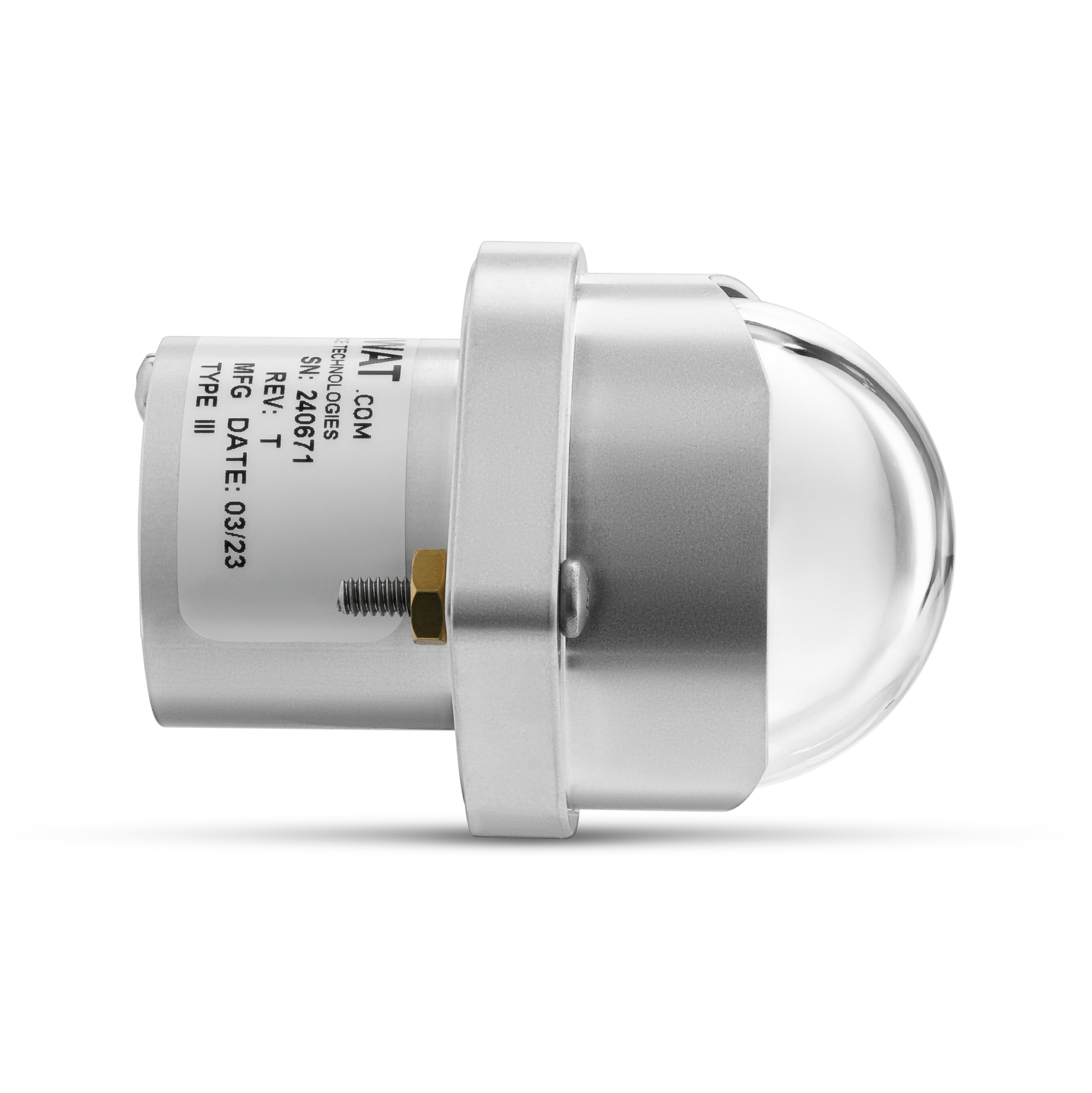

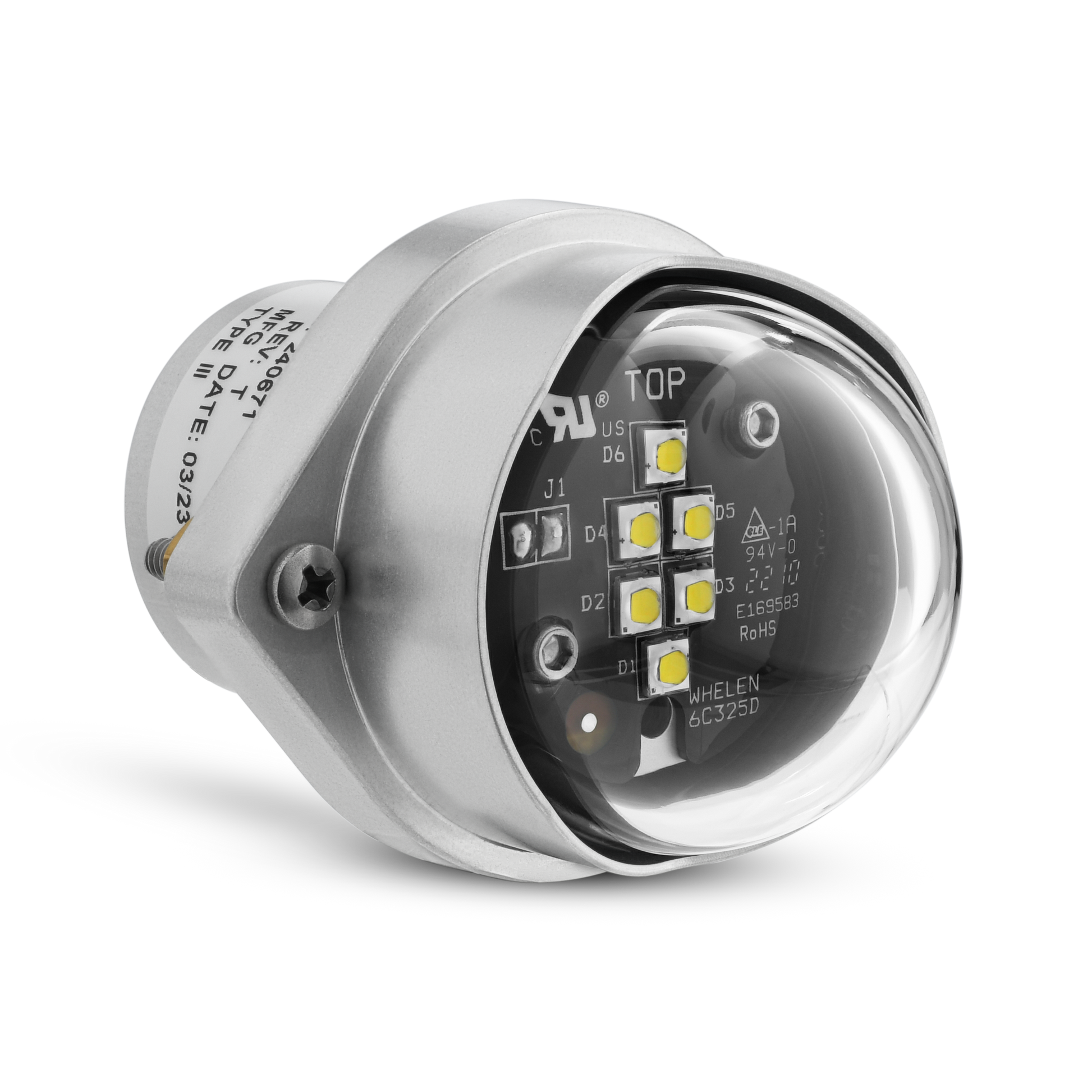

71554 Series in our newest LED Tail Position Light. Exact Footprint for Whelen Models A555A and 71011 Taillights. Available in horizontal or vertical mount. Models -01 and -02 come with flying leads. Model -03 has a pin and a ring terminal for connections.
71554 Series in our newest LED Tail Position Light. Exact Footprint for Whelen Models A555A and 71011 Taillights. Available in horizontal or vertical mount. Models -01 and -02 come with flying leads. Model -03 has a pin and a ring terminal for connections.
Aircraft Position Light 14V & 28V - 71554 Series
Vertical = aircraft mounting holes at 12 & 6 o’clock positions
Horizontal = aircraft mounting holes at 9 & 3 o’clock positions
Tech Specs
- Drawing 71554
- Weight 0.14 lbs
- Dimensions H x W x L Exposed Height: 1.4 (35.56mm) x 1.59 (40.38mm) x 2.07 (52.57mm)
- Current Draw 0.13 Amps @ 28 VDC 0.26 Amps @ 14 VDC
- Available Colors Aviation White
- Lenses Clear Hard-coated Polycarbonate
| Model | Part # | Description | Approvals | |
| 7155401 | 01-0771554-01 | LED Aft POS Light, 28V, Horizontal | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155402 | 01-0771554-02 | LED Aft POS Light, 28V, Vertical | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155403 | 01-0771554-03 | LED Aft POS Light, 28V, Vertical (CESSNA) | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155411 | 01-0771554-11 | LED Aft POS Light, 14V, Horizontal | FAA TSO-C30c Type III, E-TSO, STC | |
| 7155412 | 01-0771554-12 | LED Aft POS Light, 14V, Vertical | FAA TSO-C30c Type III, E-TSO, STC |
Documents
- 71554 STC- SA800EA
- EASA STC - 10055068 Fixed Wing
- EASA STC - 10056206 Rotorcraft
- 71554 STC - SA04472AT Caravan
- Brazillian STC - Formulario F 400 01G 0806731
- Install Guide: 14487 - 7155411, 7155412
- Install Guide: 14483 - 7155401, 7155402
- Install Guide: 14485 - 7155403
- Installation & Service Manual - Document #05131 Rev. E
Legacy A55A For Reference Only
