71485 Series Cover Infrared IR / Red Combination Beacon

Contact Reseller

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.

Description

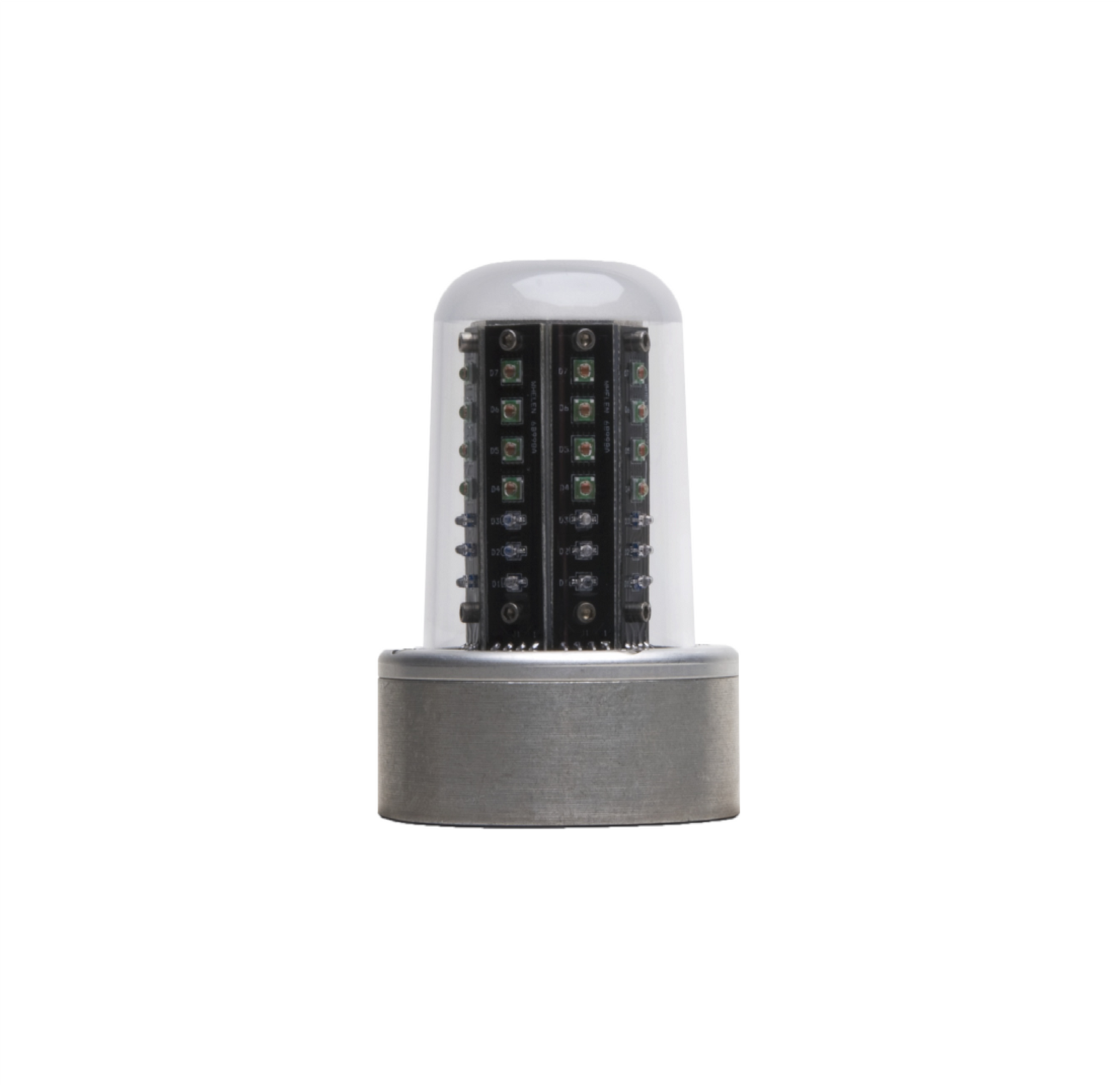

71485 is a combination Aviation Red visible and IR flashing beacon. Produced as a derivative of our Models 71080 & 90520, there is no TSO available for this product. 71485 can be surface mounted in an area as small as 2.75 or has an adapter to drop into a 3.75 recessed mount commonly found. Nominal IR LEDs at 875nm. unit ships with 18 flying leads, independent control for Red and IR LED packages. Surface mount unit and additional models are not listed, contact factory.



Technical Specifications

Drawing Number: 71485
Voltage: 28VDC
Power Consumption: 0.3Amps Avg Red // 0.12Amps Avg IR
LED Color: Aviation Red & IR
Lens: Clear Poly carbonate
Weight: 0.670lbs (304gm) (w/3.75 Adapt)
Exposed Height: 3.5 (88.9mm)Base Width: 3.66 (92.96mm)



Model

Part

Description

STC

Approvals

7148500 01-0771485-00 LED Red None None
7148501 01-0771485-01 LED Red None None
