71434, 71440 & 71450 Series LED Instrument Post Light Assemblies

Product image 171434, 71440 & 71450 Series LED Instrument Post Light Assemblies
Product image 271434, 71440 & 71450 Series LED Instrument Post Light Assemblies

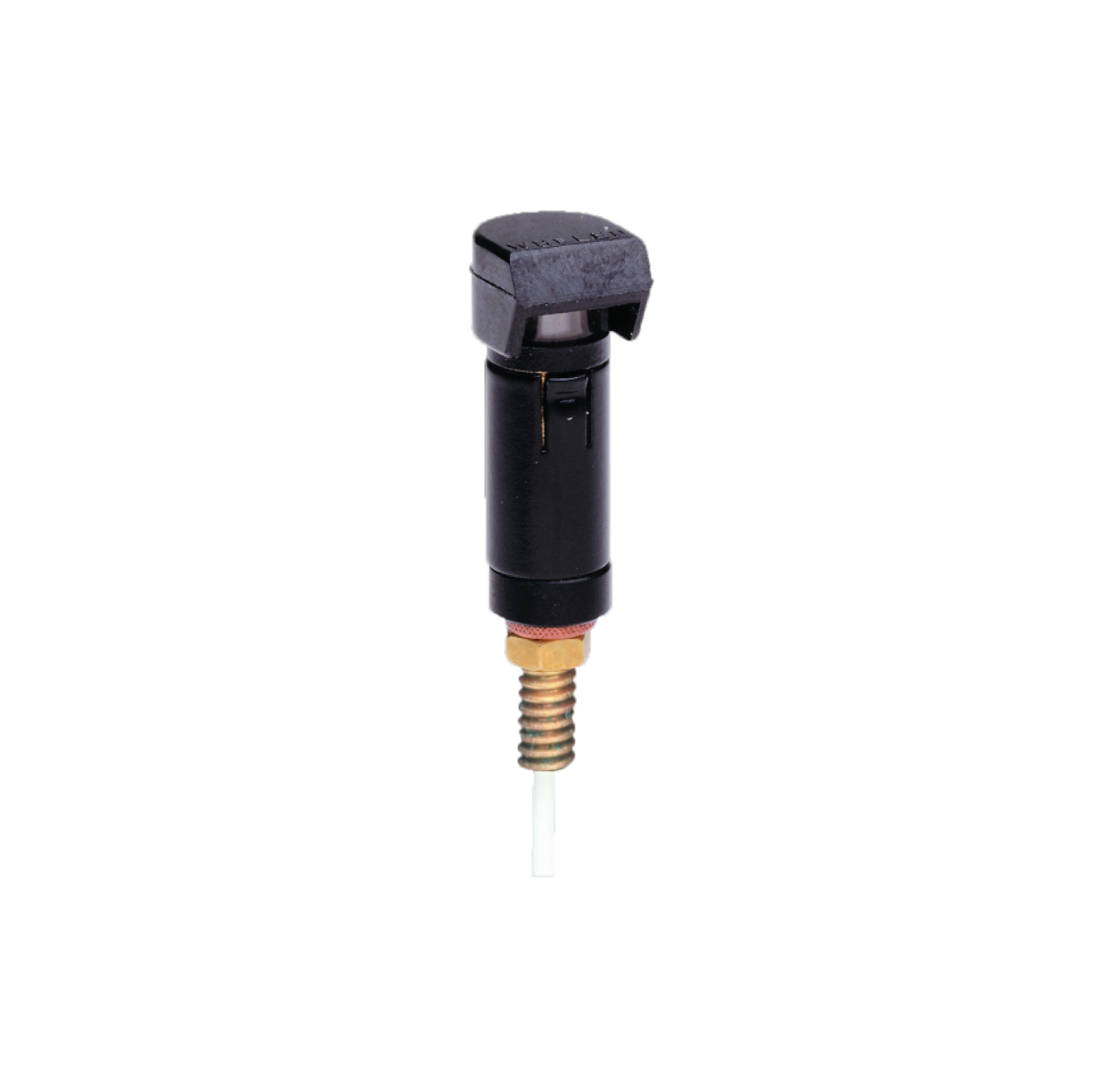

The 71434, 71440, & 71450 Series LED (Light Emitting Diode) instrument post light assemblies are designed to illuminate the instrument panel and function as instrument mounting bolts. They are a high quality, long lasting modern alternatives to standard incandescent post lights.

Tech Specs
Model Part # Description STC Approvals
71434B11 01-0771434B11 LED POST LT 14V WHITE LONG BLK None -
71434B13 01-0771434B13 LED POST LT 14V WHT SHORT BLK None -
71434B20 01-0771434B20 LED POST LT 28V RED LONG BLACK None -
71434B21 01-0771434B21 ED POST LT 28V WHITE LONG BLK None -
71434B22 01-0771434B22 LED POST LT 28V RED SHORT BLK None -
71434B23 01-0771434B23 LED POST LT 28V WHT SHORT BLK None -
7144000 01-0771440-00 LED POST LT, 28V RED W/SPACER None -
7144002 01-0771440-02 LED POST LIGHT, 28V RED None -
71450B11 01-0771450B11 LED POST W/NUT 14V WHT LONG BK None -
71450B13 01-0771450B13 LED POST WNUT 14V WHT SHORT BK None -
71450B20 01-0771450B20 LED POST W/NUT 28V RED LONG BK None -
71450B21 1-0771450B21 LED POST W/NUT 28V WHT LONG BK None -
71450B22 01-0771450B22 LED POST WNUT 28V RED SHORT BK None -
71450B23 01-0771450B23 LED POST WNUT 28V WHT SHORT BK None -
Additional Information

Benefits of upgrading to LED technology include: Long Life (approx. 20,000 hours); Reduced Power Consumption (compared to conventional light sources); Shock & Vibration Resistance (no fragile filament to burn out); Light Color & Temperature (produces bright, crisp light); and No EMI or RFI Interference

Model 71434 is identical to the 71450 without the connector nut. Both are available in black and grey. 14V version available with White LED, 28V version with White or Red. Made to replace existing A350 and A350CN assemblies.

Model 71440 has a #10-32 mounting thread. 28V version available with White or Red LED. Available in black. Made to replace Model 70348.
