71414 Series LED Inspection Light | Whelen Aerospace Technologies

71414 Series LED Inspection Light

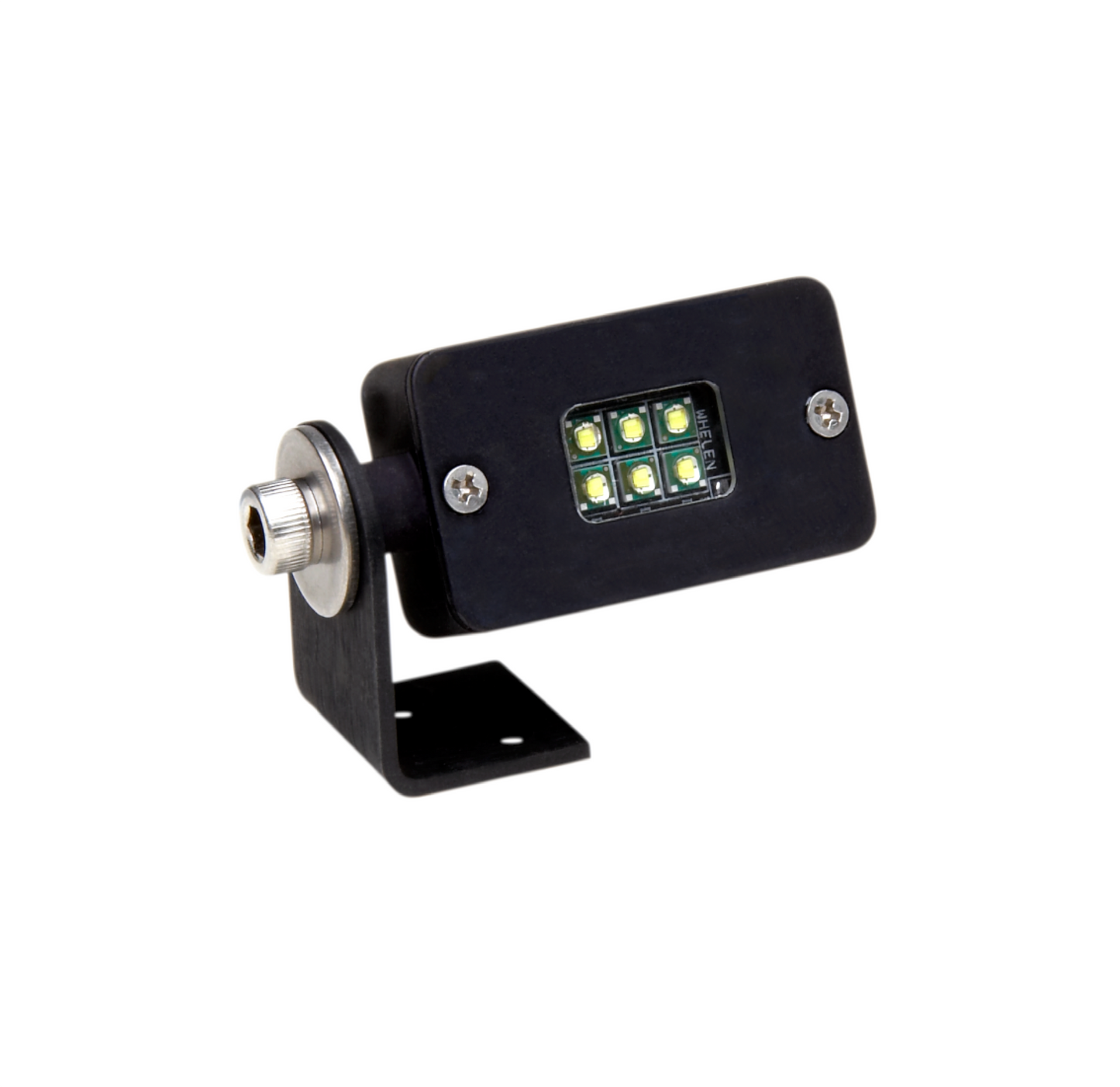

Product image 171414 Series LED Inspection Light
Product image 271414 Series LED Inspection Light

Model 71414 is an LED inspection light designed to replace GRIMES A5395-23 on the S76 Helicopter. The product comes standard with a black anodize finish and a clear poly carbonate lens. 71414 also comes with a Bracket and has a hex head locking assembly to hold the light at the desired angle. 71414 produces more (>13) candela than the GRIMES light it replaces,unit comes with 12 flying leads.

Replaces Grimes A5395-23

Model 71414 is an LED inspection light designed to replace GRIMES A5395-23 on the S76 Helicopter. The product comes standard with a black anodize finish and a clear poly carbonate lens. 71414 also comes with a Bracket and has a hex head locking assembly to hold the light at the desired angle. 71414 produces more (>13) candela than the GRIMES light it replaces,unit comes with 12 flying leads.

Replaces Grimes A5395-23

Inspection Light - 71414 Series

Tech Specs
  • Model # 7141400 01-077414-00 LED Inpection Light (28V)
  • Drawing Number: 71414
  • Weight: 0.08lbs (36.29gm)
  • Length: 2.17(55.12mm)
  • Height: 1.19 (30.23mm)
  • Width: 0.80 (20.32mm)
  • Voltage: 24VDC
  • Viewing Angle: Up to 70Deg
Model Part # Description STC Approvals
7141400 01-0771414-00 LED Inspection Light (28V), GRIMES A5395-23 None -
