71410 Series LED Anti-Collision Light
Product image 1

Product image 2

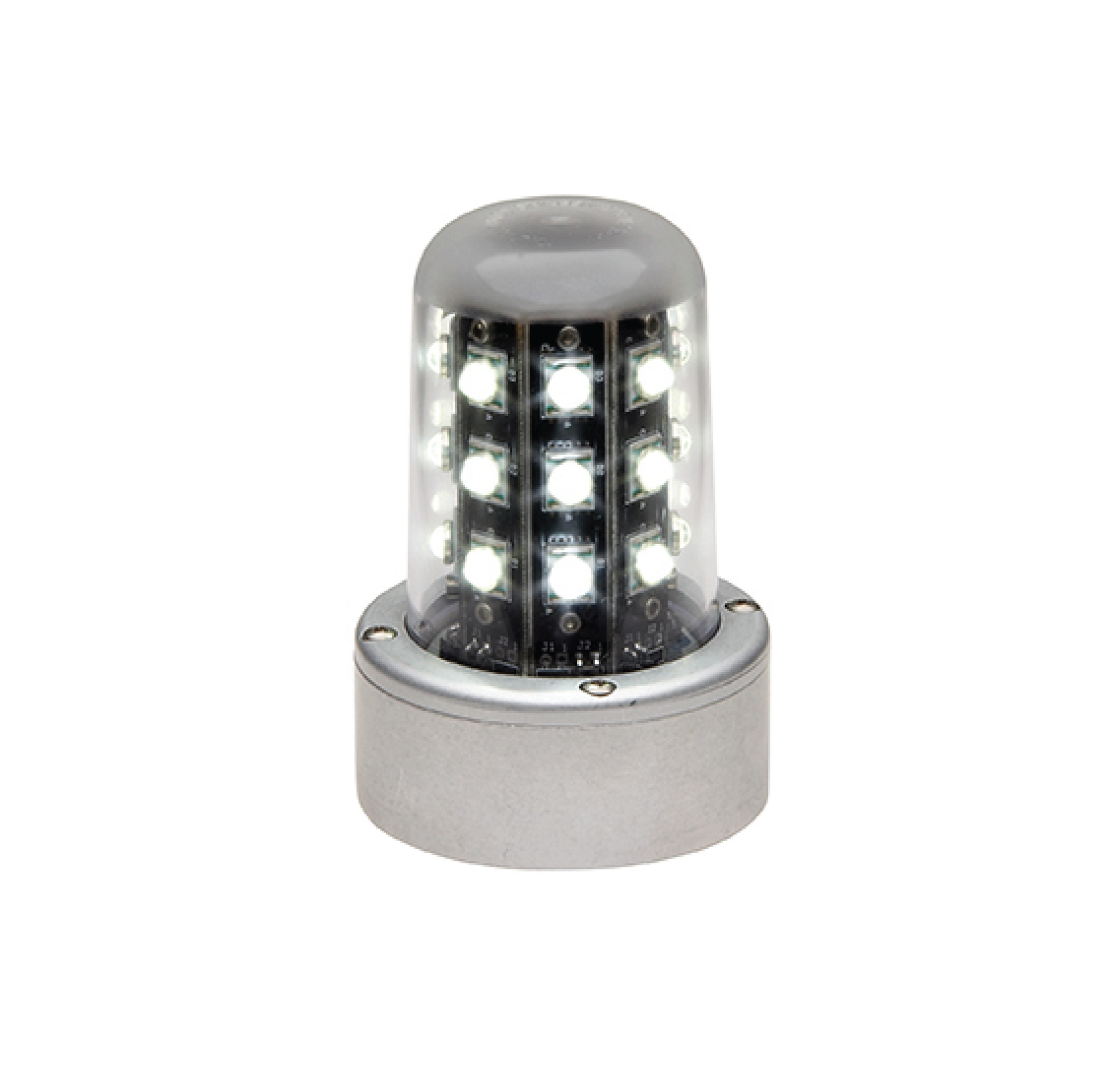

71410 LED White Anti-Collision Beacons are FAA TSO compliant self-contained LED Anti-Collision Lights. They are designed to replace 3 3/4 opening found with our HRCFA/SACF style Strobe units and to replace rotating beacons, they also come with a narrow base allowing replacement of A470(A) and similar remote strobes(Contact Factory). 71410 Ships with 12 long flying leads, available in 28v Only. (TSO-C96a, CLASS III)
71410 LED White Anti-Collision Beacons are FAA TSO compliant self-contained LED Anti-Collision Lights. They are designed to replace 3 3/4 opening found with our HRCFA/SACF style Strobe units and to replace rotating beacons, they also come with a narrow base allowing replacement of A470(A) and similar remote strobes(Contact Factory). 71410 Ships with 12 long flying leads, available in 28v Only. (TSO-C96a, CLASS III)
Anti-Collision Light - 71410 Series
Tech Specs
- Drawing Number: 71410
- Voltage: 28VDC
- Power Consumption: 0.32Amps
- LED Color: Aviation WHITE
- Lens: Clear Polycarbonate
- Weight: 0.75lbs (340.19gm)
- Exposed Height: 3.4 (86.36mm)
- Diameter: 3.60 (91.44mm)
Model | Part # | Description | Approvals |
7141001 | 01-0771410-01 | LED Anti-Collision Light, WT 2.75" Base | FAA TSO-C96a Class III |
7141005 |
01-0771410-05 |
LED Anti-Collision Light, WT 3.66" Base Upper Mount | FAA TSO-C96a Class III |
7141015 |
01-0771410-15 |
LED Anti-Collision Light, WT 3.66" Base Lower Mount | FAA TSO-C96a Class III |
7141008 |
01-0771410-08 |
LED Anti-Collision Light, WT 5.14" Base Upper Mount | FAA TSO-C96a Class III |
7141018 |
01-0771410-18 |
LED Anti-Collision Light, WT 5.14" Base Lower Mount | FAA TSO-C96a Class III |
Documents
