71379 Series LED Forward Position Light
71379 Series LED Forward Position Light

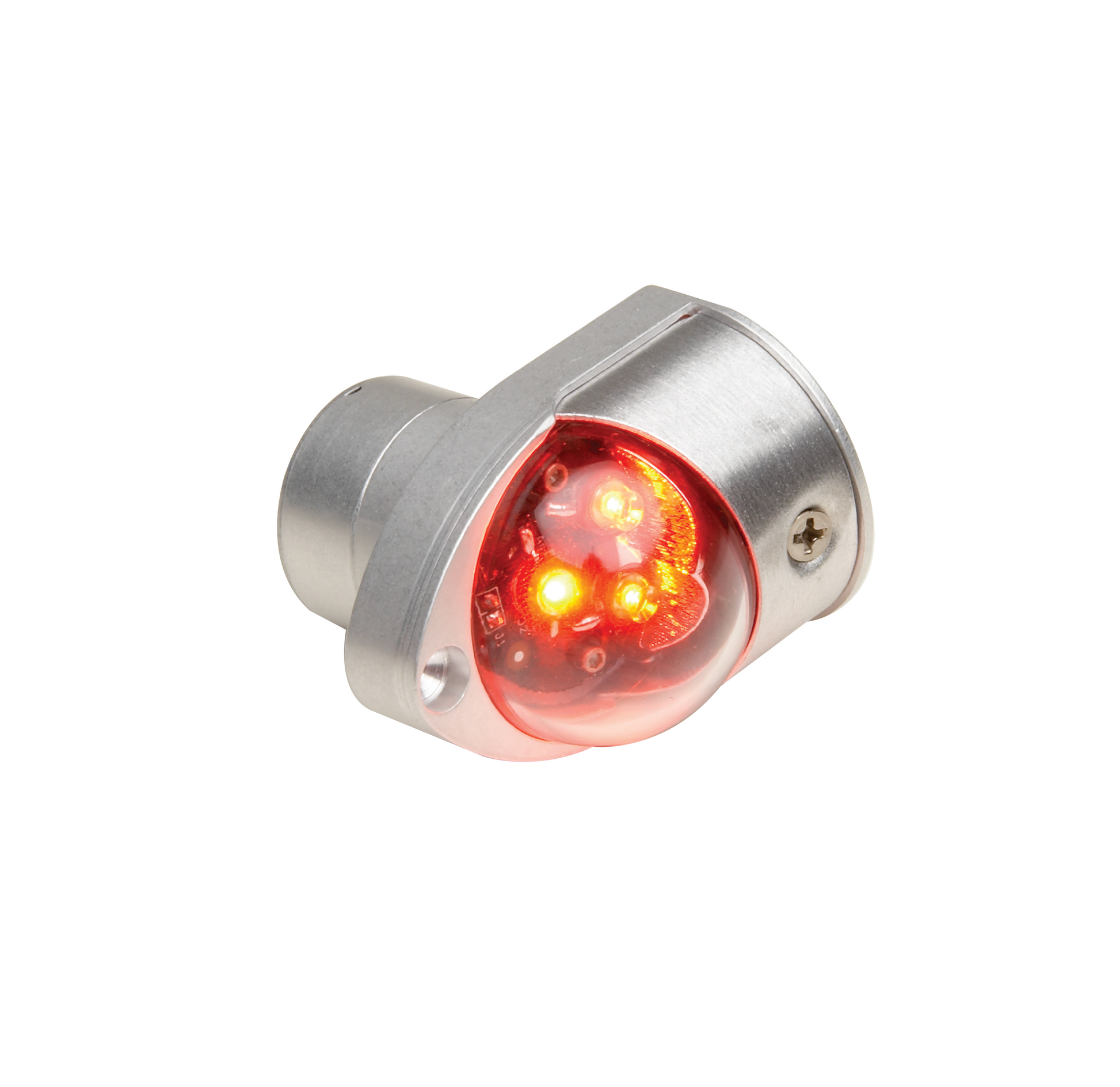

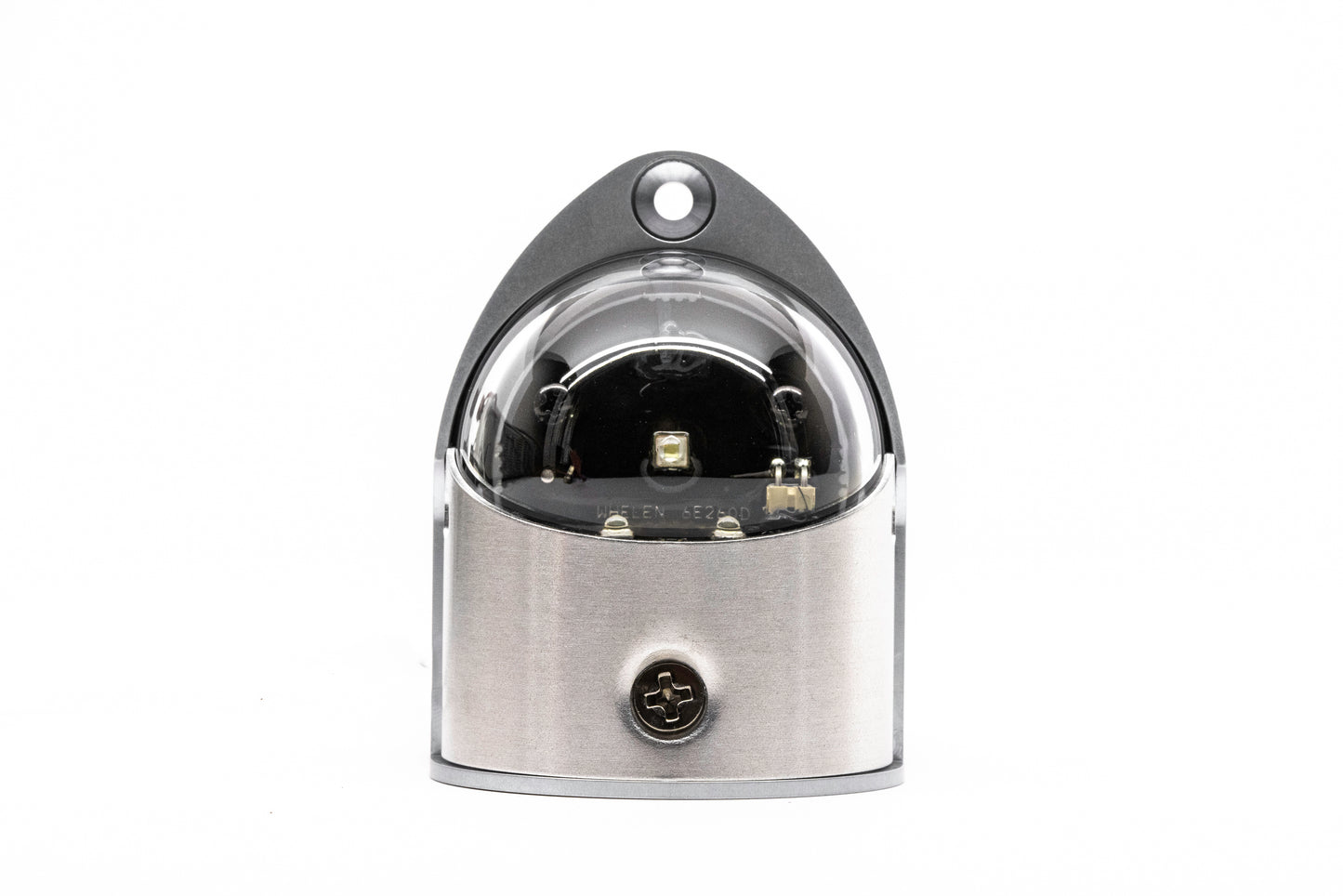

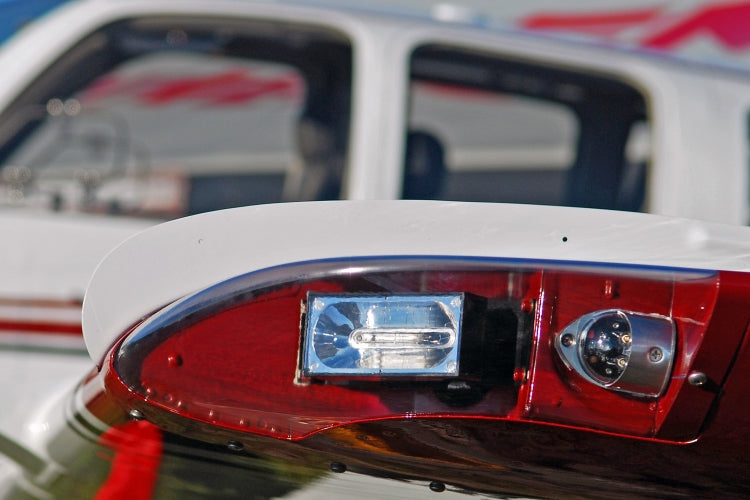

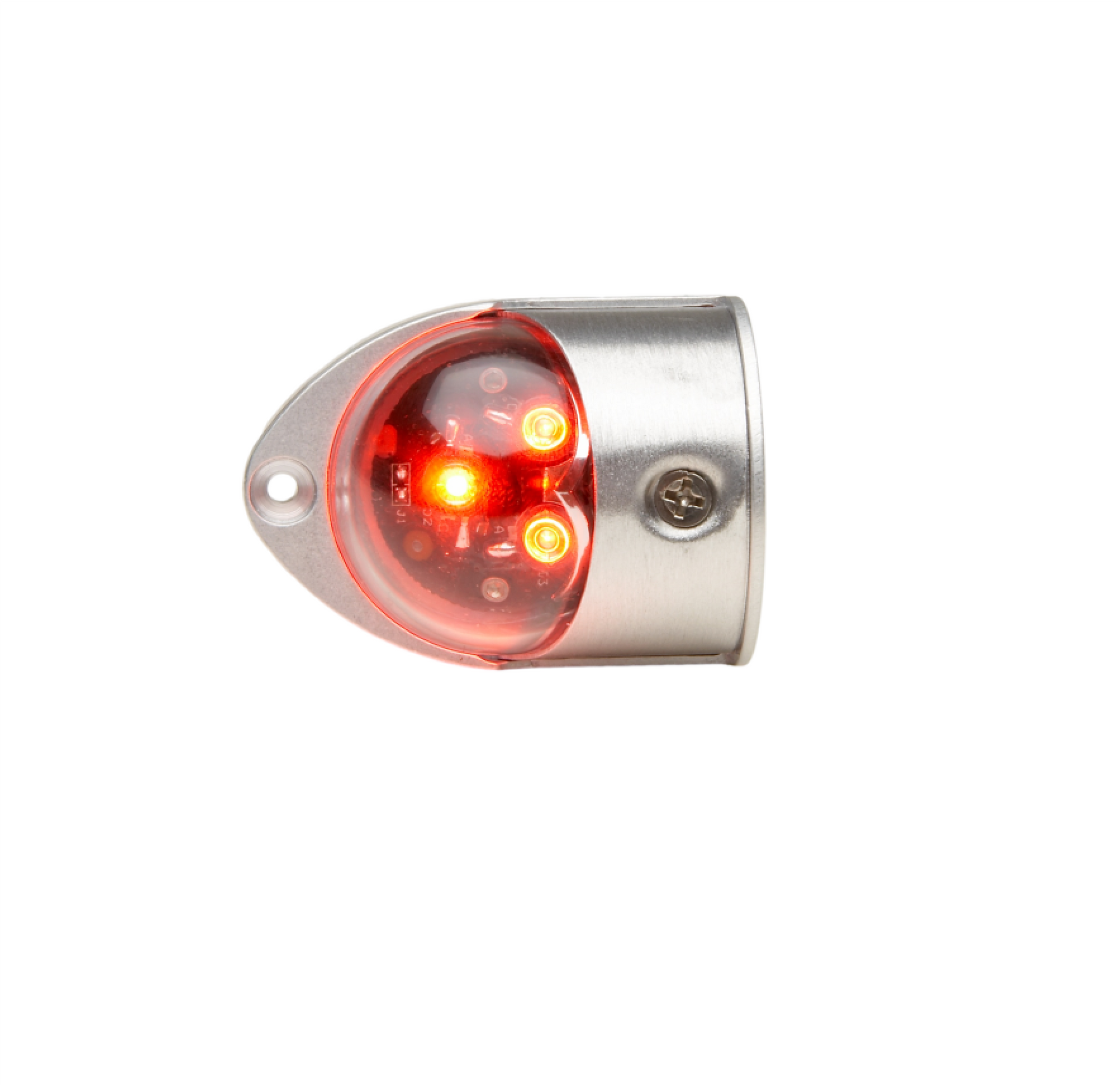

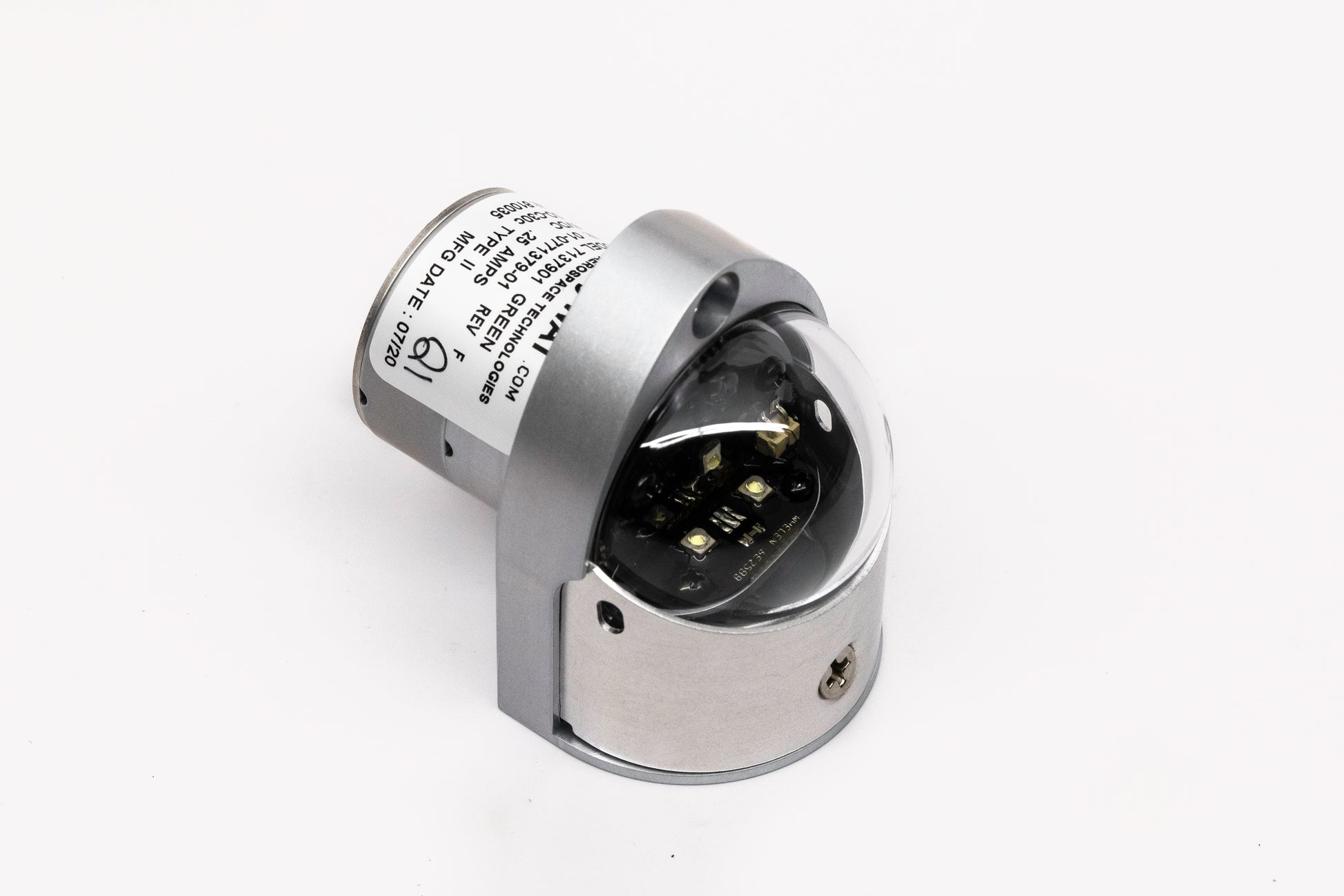

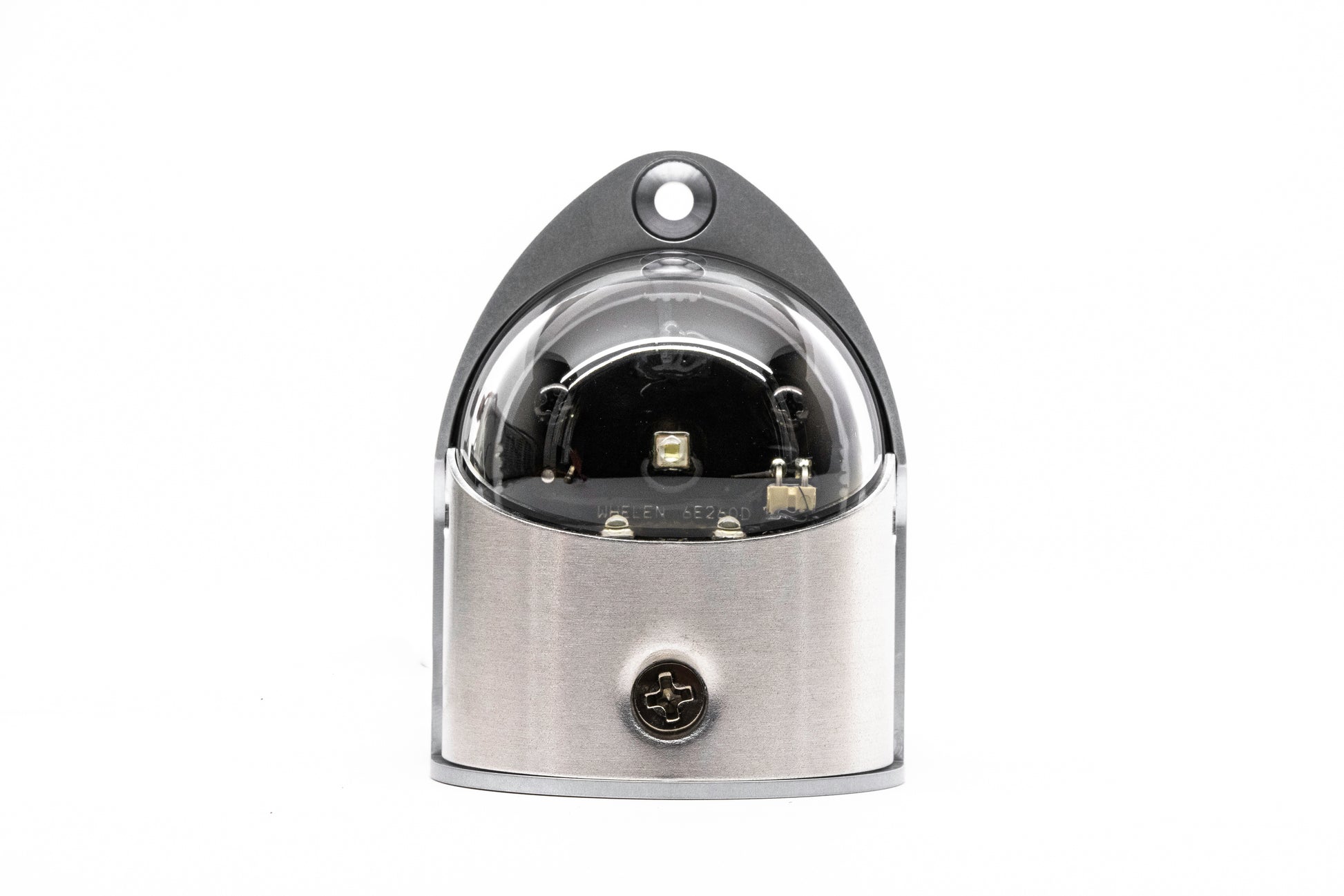

71379 is an LED wingtip forward position light designed to be located under a fairing but is suitable for external mounting as well. Replaces GRIMES A1815A and Whelen W1250. Product ships with a 6-inch flying lead and is available in 28VDC or 14VDC.
Tech Specs
Model | Part # | Description | Approvals |
7137901 | 01-0771379-01 | LED Fwd POS Light (28V), Green (Replace W1250) | FAA TSO-C30c Type II |
7137902 | 01-0771379-02 | LED Fwd POS Light (28V), Red (Replace W1250) | FAA TSO-C30c Type I |
7137911 | 01-0771379-11 | LED Fwd POS Light (14V), Green (Replace W1250) | FAA TSO-C30c Type II |
7137912 | 01-0771379-12 | LED Fwd POS Light (14V), Red (Replace W1250) | FAA TSO-C96a, TSO-C30c Types I |
7137922 | 01-0771379-22 | LED Fwd POS Light (28V), Red | FAA TSO-C30c Type I |
7137923 | 01-0771379-23 | LED Fwd POS Light (28V), Green | FAA TSO-C30c Type II |
Documents
Legacy W1250 For Reference Only
