71170 Series LED Wingtip Anti-Collision/Forward Position Lights Kit
71170 Series LED Wingtip Anti-Collision/Forward Position Lights Kit

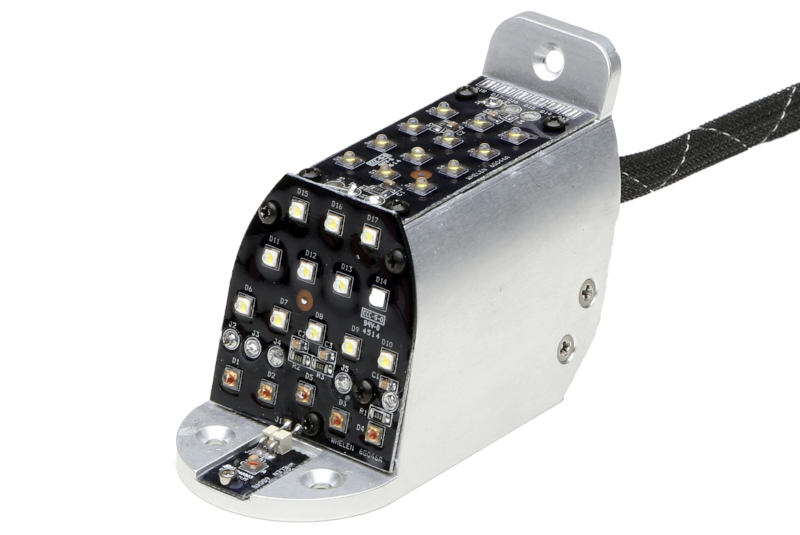

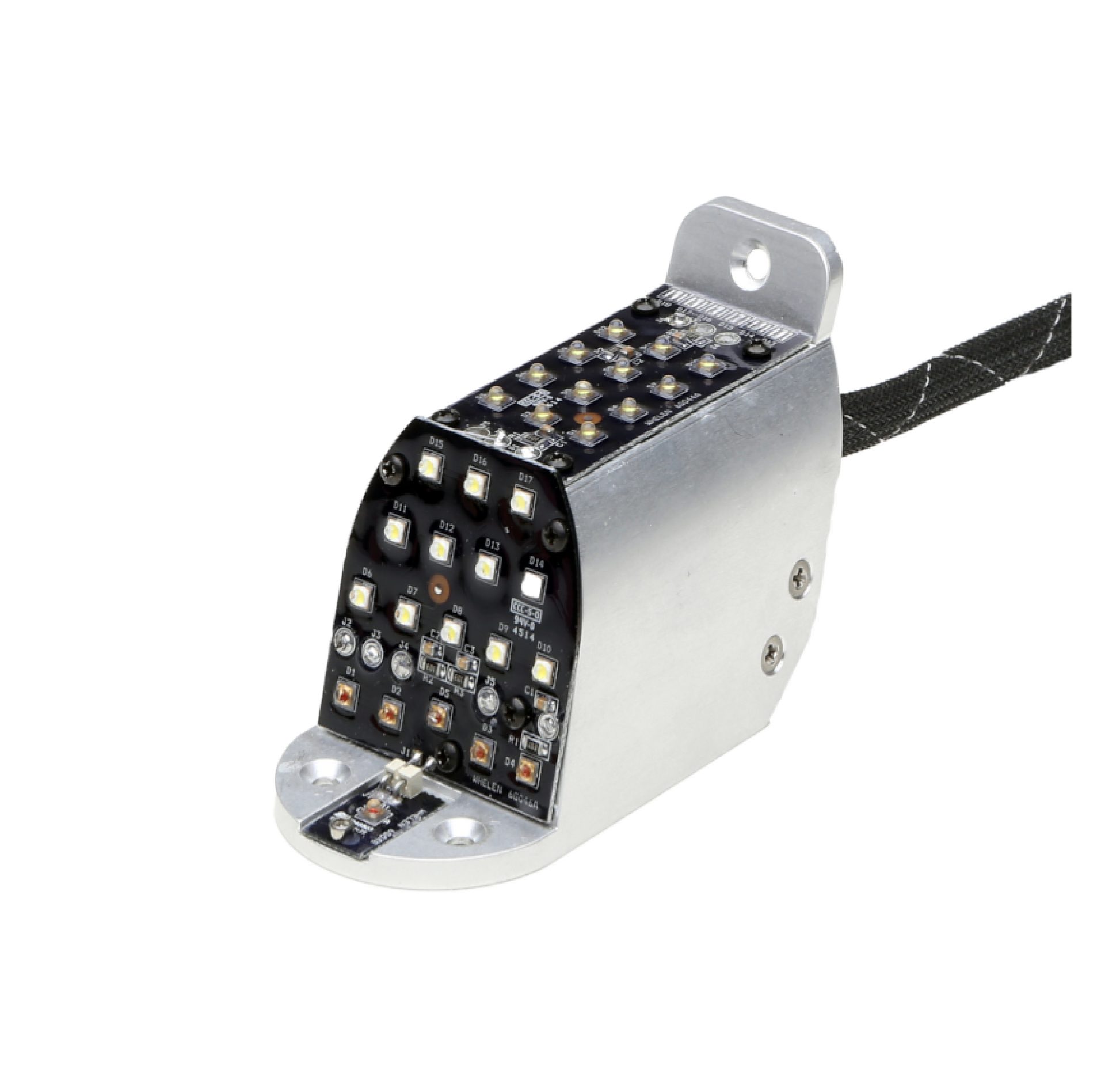

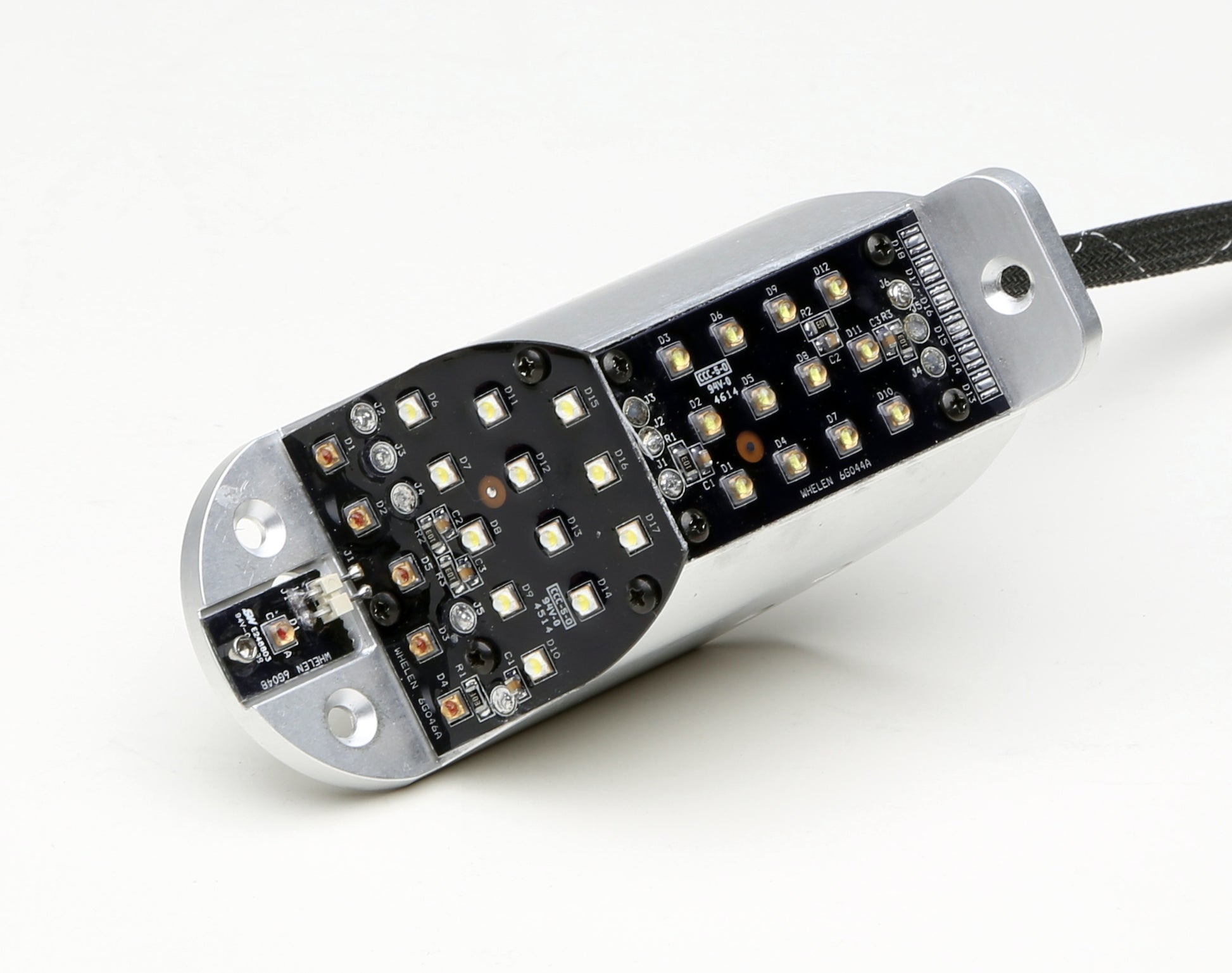

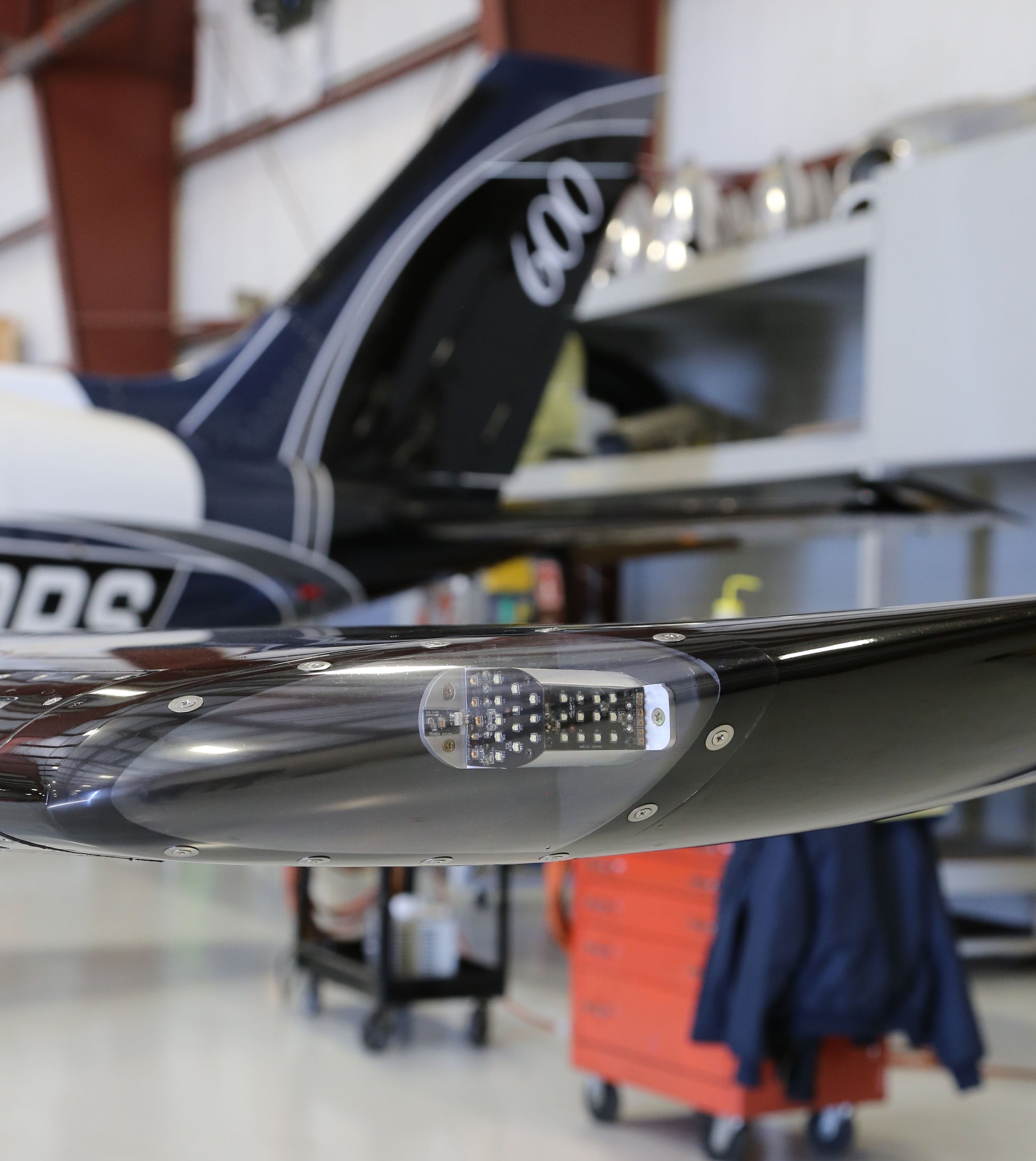

Model 71170 Series is an all LED wingtip anti-collision/forward position light assembly. The design is intended to be mounted behind an existing lens and is operated by an external flasher/ current source box (ref - 71234). Unit complies with TSO-C96a Class II (400 ecp) anti-collision light requirements, and TSO-C30c forward position light requirements.
Wingtip Anti-Collision/Forward Position Light Kit - 71170 Series
Tech Specs
- Power Consumption: 0.53 Amps avg. 2.8Amps Peak @ 0.25 sec. 28 VDC
- Weight: 0.45 Lbs
- Height (includes mounting flange): 2.33"
- Overall Length: 3.97" •Width: 1.77" (44mm)
- Input connector: MIL D38999/20F13-8PN
Model | Part # | Description | Approvals |
7117001 | 01-0771170-01 | LED Wingtip Anti-Collision/Green Nav- D38999/20F13-8PN Conn. (Ref.7123403) |
TSO-C96a/TSO-C30c |
7117002 | 01-0771170-02 | LED Wingtip Anti-Collision/Red Nav- D38999/20F13-8PN Conn.(Ref.7123403) |
TSO-C96a/TSO-C30c |
Documents
- Install Guide: 14327 - 7117001
- Install Guide: 14327 - 7117002
USED WITH FLASHER
7123403 PURCHASED SEPARATELY.
