71156 Series LED Flasher Assembly LED Flasher Assembly, 4 Output 28V

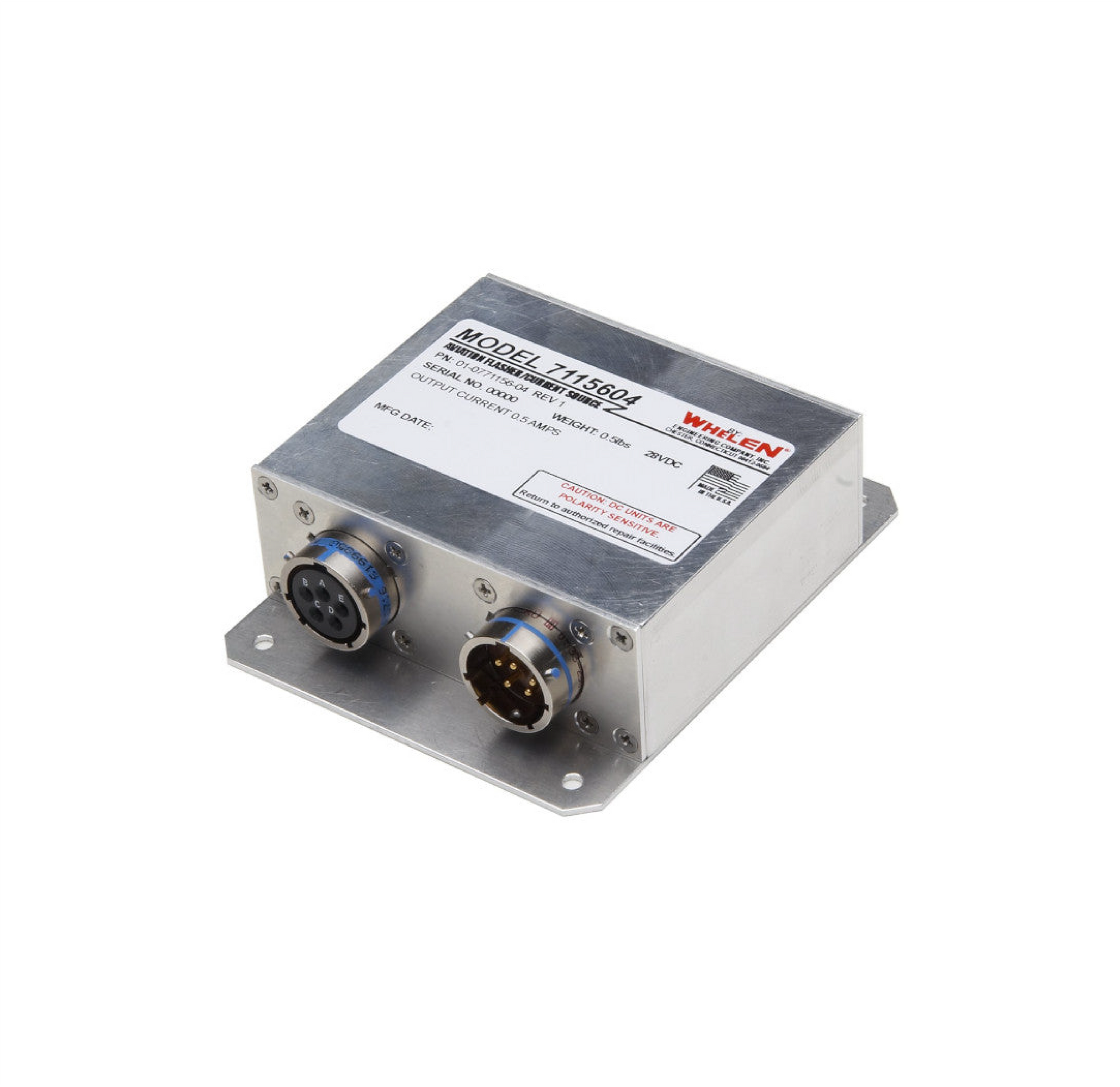

Product image 171156 Series LED Flasher Assembly LED Flasher Assembly, 4 Output 28V
Product image 271156 Series LED Flasher Assembly LED Flasher Assembly, 4 Output 28V

Model 71156 Series is an electronic 'Pulse' light flasher for use with WAT Taxi & Landing LED lightheads (catalog and custom versions). 71156 is being integrated into aircraft model upgrades and new type certified aircraft. Flasher operates four outputs steady on or will allow two outputs to be flashed or steady independent of the other. MS Connectors with aluminum housing. Tested in accordance with RTCA/DO-160 Environmental Tests.

Tech Specs
  • Power Consumption: 20A max (all outputs) @ 28
  • Weight: 1.1Lbs (499gm)
  • Length: 5.0 (127mm)
  • Exposed Height: 1.8 (46mm)
  • Width: 4.56 (116mm)
  • Flash Rate: 90fpm (Combined)
Model Part # Description STC Approvals
7115604 01-0771156-04 LED Flasher Assembly, 4 Output, (28V) None -

Site Logo for Warning SectionWARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit flywat.com/regulatory.
