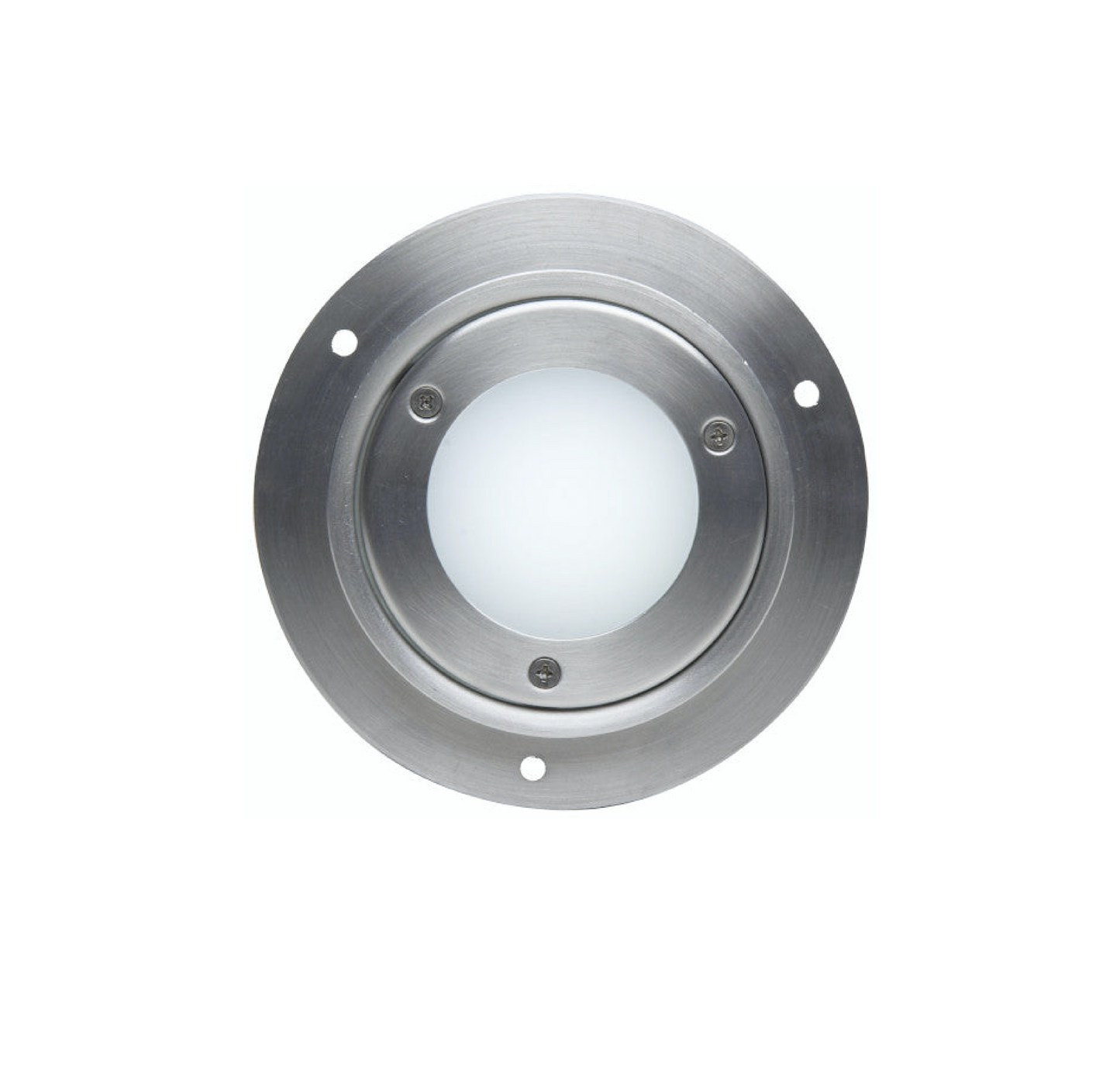

71140 Series LED Interior Dome Light (Grimes 34170)
Model 71140 is an LED alternative for to Grimes 34170 (Dome Light) used on Bombardier Global Express, Challenger 600, 601, 604; Gulfstream GIII, GIV; Learjet 54, 56, 60 and Sikorsky S76. Primary operating voltage is 28V, an emergency circuit at 5V is provided for long-life lighting on an alternate power source. Spun aluminum assembly 5.5 inches outer diameter, 3.83 inch recessed inner diameter with a 1 inch recessed depth. Item ships with three flying leads, a ground, a 5V line and a 28V line.
Model 71140 is an LED alternative for to Grimes 34170 (Dome Light) used on Bombardier Global Express, Challenger 600, 601, 604; Gulfstream GIII, GIV; Learjet 54, 56, 60 and Sikorsky S76. Primary operating voltage is 28V, an emergency circuit at 5V is provided for long-life lighting on an alternate power source. Spun aluminum assembly 5.5 inches outer diameter, 3.83 inch recessed inner diameter with a 1 inch recessed depth. Item ships with three flying leads, a ground, a 5V line and a 28V line.
Interior Dome Light - 77140 Series
Tech Specs
- Power Consumption: 125mA @ 28 VDC, 250mA @ 5V
- LED Color: Aviation White
- Weight: 0.35 Lbs (159m)
- Exposed Height: 0.45 (mm)
- Lens: Translucent Polycarbonate
| Model | Part # | Description | STC | Approvals |
| 7114000 | 01-0771140-00 | LED Interior Dome Light (Grimes 34170) | None | - |
