71110 Series Wingtip Strobe/LED Position Light 14v / 28v RFI Shielded

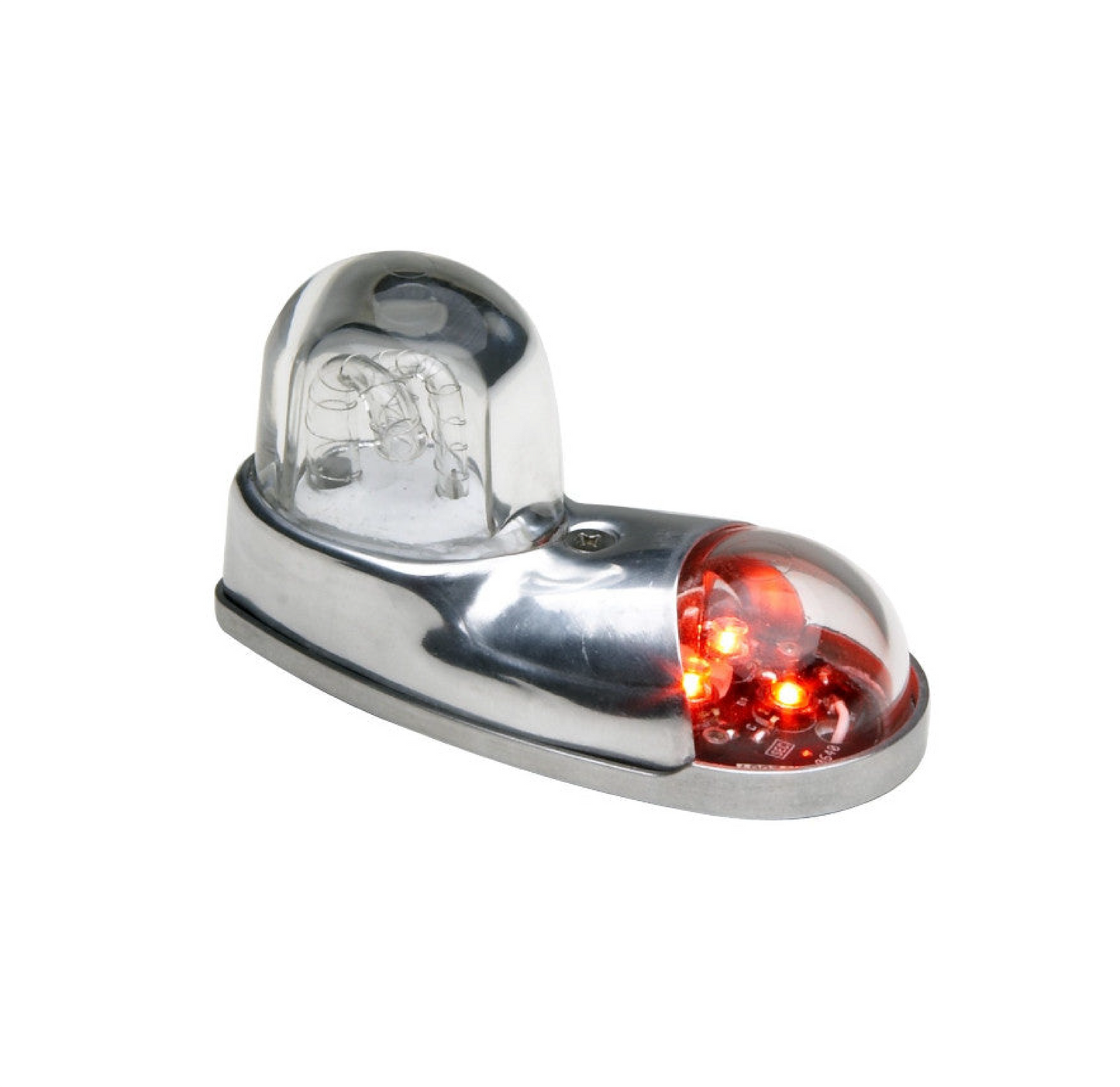

Product image 1

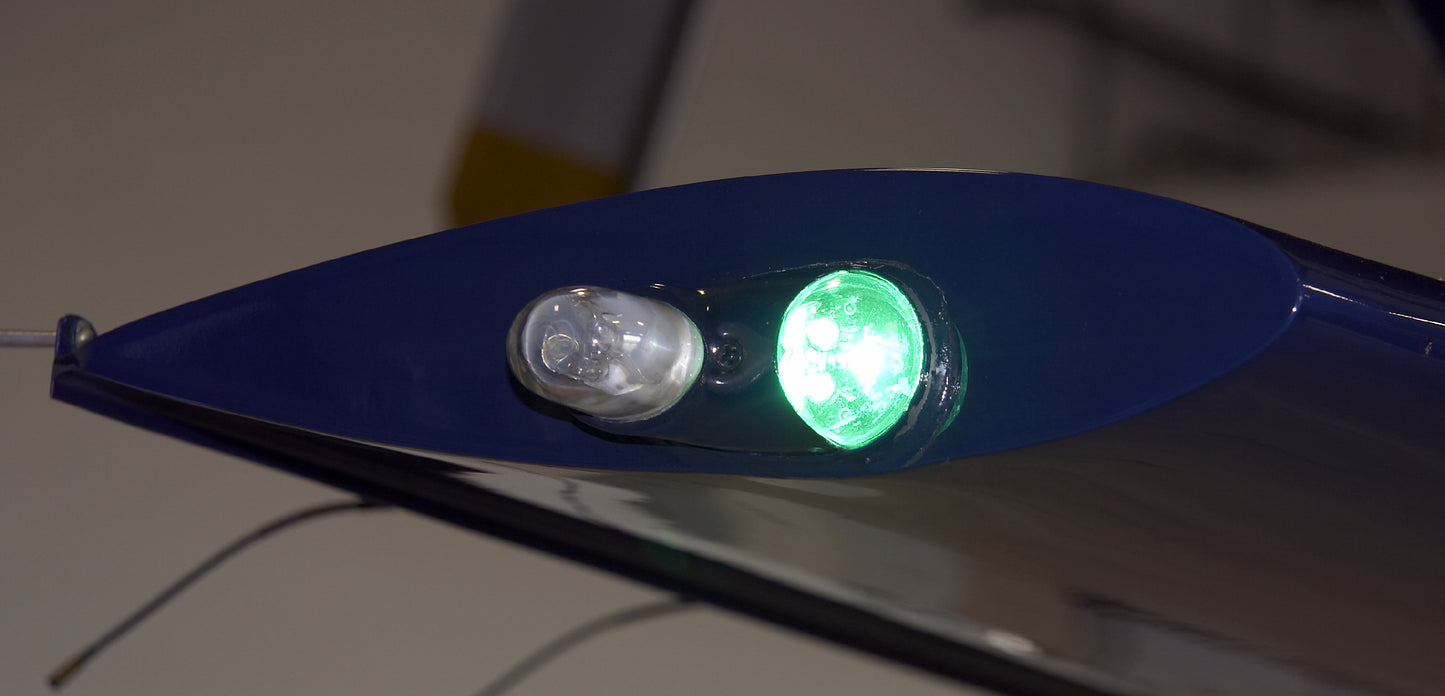

Product image 2

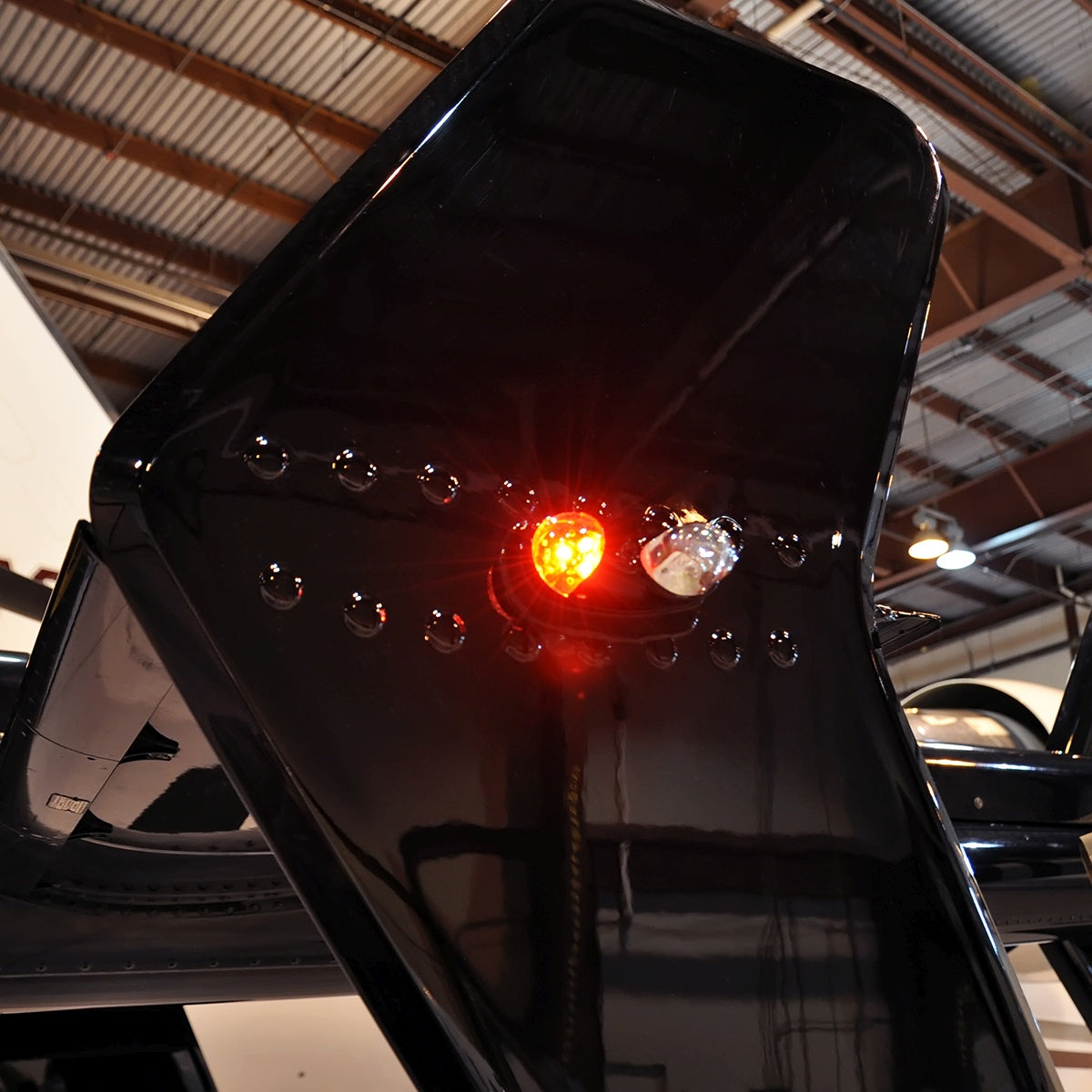

Product image 3

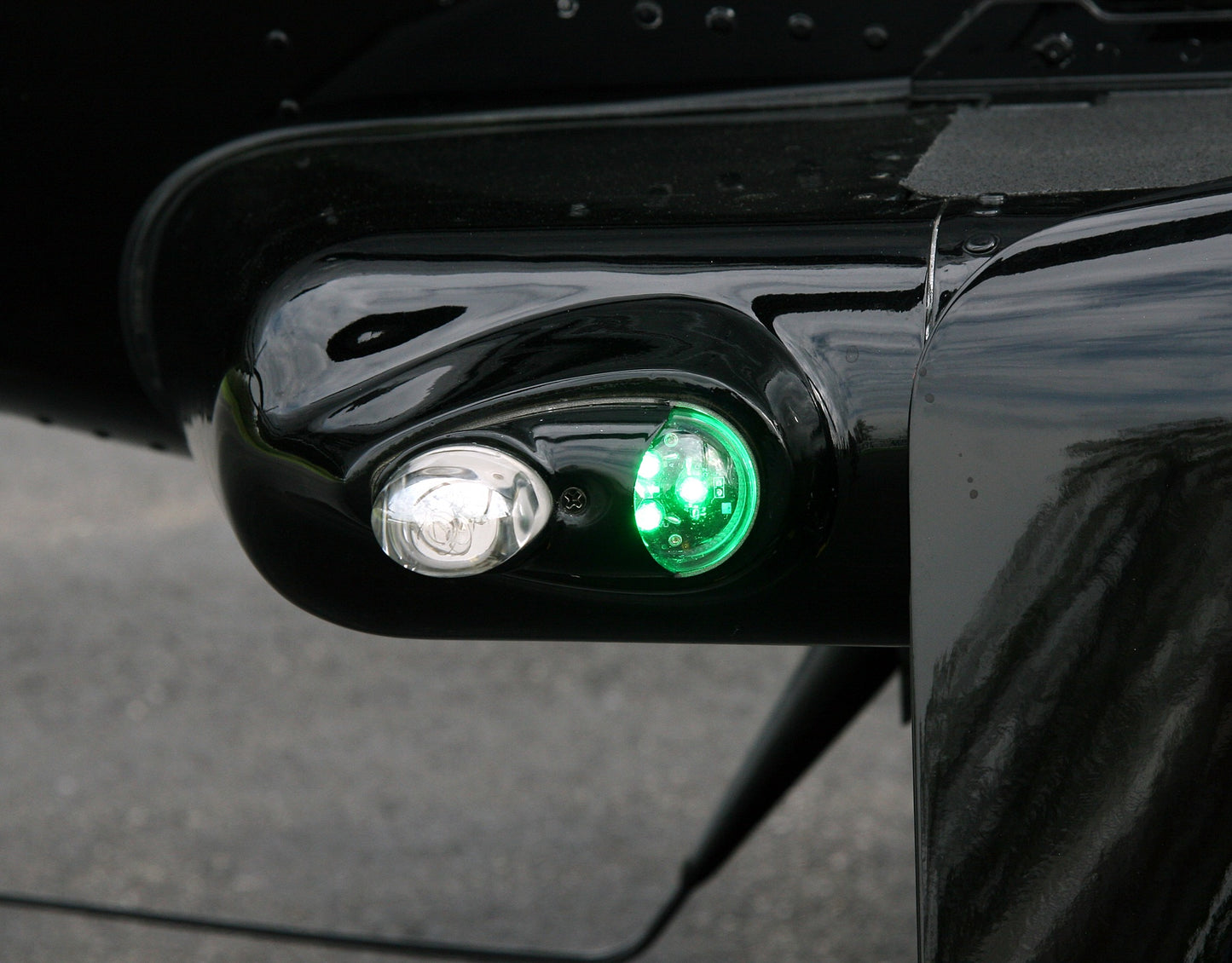

Product image 4
Product image 5
Product image 6
Model 71110 Series is a wing tip mounted Strobe anti-collision/position light assembly utilizing LED's for the forward position lights. The LED's provide a significant reduction in current draw over conventional position light bulbs. The Strobe light lens assembly is radio shielded for maximum EMI/RFI protection. Direct replacement (Exact Footprint) for the Whelen Model A650PG/PR series without replacing the current strobe power supply. Navigation light portion is wired with flying leads.
Tech Specs
- LED Navigation Light Power Consumption: 0.25 Amps @ 14V or 28V
- LED Colors: Aviation Red, Aviation Green
- Weight: 0.45 Lbs (204gm) 14V, 0.50 Lbs (227gm) 28V
- Exposed Height: 2.70 (69mm)
- Lens: Clear RFI coated glass: Strobe, Clear Polycarbonate: Navigation Lights
| Model | Part # | Description | STC | Approvals |
| 7111001 | 01-0771110-01 | Wingtip Strobe/LED Position, Green 14V RFI Shielded | STC SA800EA.pdf | FAA TSO-C96a, TSO-C30c Type II |
| 7111002 | 01-0771110-02 | Wingtip Strobe/LED Position, Red 14V RFI Shielded | STC SA800EA.pdf | FAA TSO-C96a, TSO-C30c Type I |
| 7111003 | 01-0771110-03 | Wingtip Strobe/LED Position, Green 28V RFI Shielded | STC SA800EA.pdf | FAA TSO-C96a, TSO-C30c Type II |
| 7111004 | 01-0771110-04 | Wingtip Strobe/LED Position, Red 28V RFI Shielded | STC SA800EA.pdf | FAA TSO-C96a, TSO-C30c Type I |
Documents
- STC - 7111001 - STC SA800EA
- Brazlian STC - Formulario F 400 01G 0806731
- EASA STC - 10055068 Fixed Wing
- STC - 7111007 - STC SA800EA
- EASA STC - 10056206 Rotorcraft
- EASA STC - 10055068 Fixed Wing
- Brazlian STC - Formulario F 400 01G 0806731
- EASA STC - 10056206 Rotorcraft
- STC - 7111002 - STC SA800EA
- Brazlian STC - Formulario F 400 01G 0806731
- EASA STC - 10055068 Fixed Wing
- STC - 7111008 - STC SA800EA
- EASA STC - 10056206 Rotorcraft
- EASA STC - 10055068 Fixed Wing
- Brazlian STC - Formulario F 400 01G 0806731
- EASA STC - 10056206 Rotorcraft
- STC - 7111003 - STC SA800EA
- Brazlian STC - Formulario F 400 01G 0806731
- EASA STC - 10055068 Fixed Wing
- Install Guide: 14652 - 7111001
- EASA STC - 10056206 Rotorcraft
- Install Guide: 14652 - 7111002
- Brazlian STC - Formulario F 400 01G 0806731
- Install Guide: 14652 - 7111003
- STC - 7111004 - STC SA800EA
- Install Guide: 14652 - 7111004
- EASA STC - 10055068 Fixed Wing
- Install Guide: 14652 - 7111007
- EASA STC - 10056206 Rotorcraft
- Install Guide: 14652 - 7111008Installation & Service Manual - Document #05131 Rev. E
Legacy A55A For Reference Only
