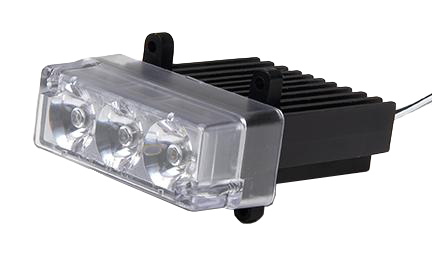

71092 Series LED Recognition Light

Recognition Lights - 71092 Series


Model 71092 Series LED recognition light is designed to provide supplemental identification lighting for a wide variety of aircraft platforms. Provides all of the advantages of LED's as a light source, no EMI/RFI, low current draw, low heat, long life. Perfect for vibration prone areas. Approx 10 degree total beam spread. Unit can be operated from 12 to 28 VDC without conversion.

Technical Specifications

•Drawing Number: 71092
•Power Consumption: 0.5 Amps
•Lens: Clear polycarbonate
•LED Color: Aviation White
•Weight: 0.43 lbs. (195gm)
•Overall Width: 2.80 (71mm)
•Overall Depth: 3.19 (81mm)
•Mounting Pattern: 1.743 (44mm) wide x 1.45 (37mm) high







7109201 01-0771092-01 LED Recognition Light None -
