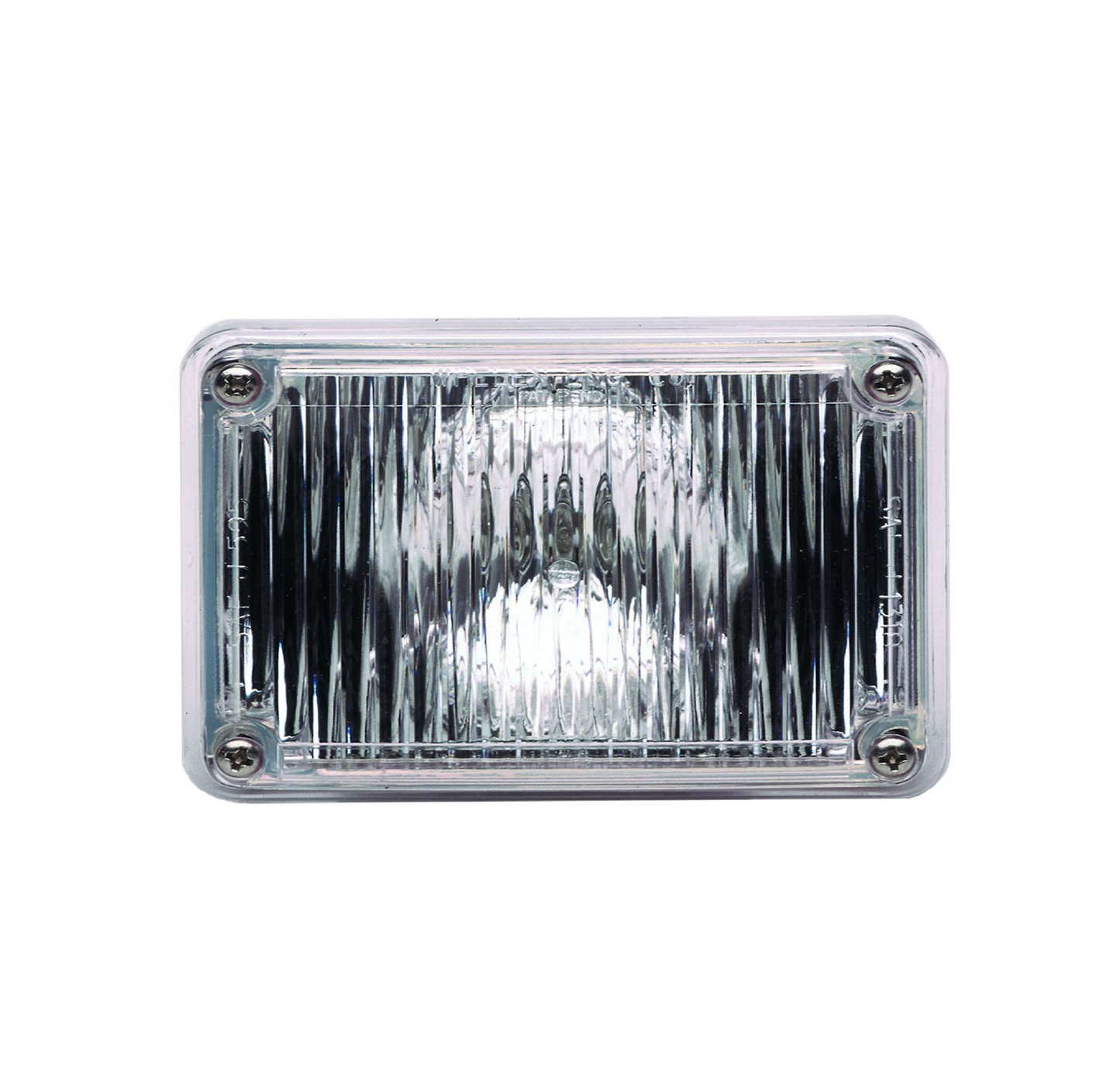

70346 Series Recognition Light Assembly
WAT's family of quartz halogen PAR lamps offer two distinct features over standard incandescent PAR lamps; sustained light intensity and 10 times the average life. Tests have shown 250 hours lab life versus 25 for standard off-the-shelf lamps. This dramatically reduces costs associated with replacement labor and parts. Where incandescent lamps decline in intensity (beam candlepower) over time due to filament deterioration, Whelen Aerospace's family of lamps maintain their rated intensity throughout their life providing a constant level of visibility.
WAT's family of quartz halogen PAR lamps offer two distinct features over standard incandescent PAR lamps; sustained light intensity and 10 times the average life. Tests have shown 250 hours lab life versus 25 for standard off-the-shelf lamps. This dramatically reduces costs associated with replacement labor and parts. Where incandescent lamps decline in intensity (beam candlepower) over time due to filament deterioration, Whelen Aerospace's family of lamps maintain their rated intensity throughout their life providing a constant level of visibility.
70346 Series Recognition Light
Tech Specs
- Drawing Number: 70346
- Width: 4.25 (108mm)
- Height: 3.0 (76mm)
- Depth: 2.9 (74mm)
- Weight without Lens: 0.16 lbs. (73gm)
- Weight with Lens: 0.28 lbs. (127gm)
- Power Consumption: 2.5 amps @ 14 VDC, 1.25 amps @ 28 VDC
| Model | Part # | Description | STC | Approvals |
| 7034600 | 01-0770346-00 | Recognition Light (14V) No Lens | None | None |
| 7034601 | 01-0770346-01 | Recognition Light 28V) No Lens | None | FAA/PMA |
| 7034602 | 01-0770346-02 | Recognition Light (14V) Clear Lens | None | FAA/PMA |
| 7034603 | 01-0770346-03 | Recognition Light (28V) Clear Lens | None | None |
| 7034604 | 01-0770346-04 | Recog. Light (14V) Clear Optic Lens | None | FAA/PMA |
| 7034605 | 01-0770346-05 | Recog. Light (28V) Clear Optic Lens | None | None |
| 7034609 | 01-0770346-09 | ASS'Y, 14V LANDING LIGHT CLEAR 54" LEADS | None | None |
Additional Information
Recognition/Landing light assembly which produces up to 80,000 beam candlepower using only a 35 watt lamp. Available with an optic spreader lens for taxiing, a clear lens for spot or without a lens for custom applications.
